DBS Oil Leak Help please
#1
DBS Oil Leak Help please
Had my car aligned and was informed that i have an oil leak. I looked and it seems to be coming from the very front of the motor up behind the front pulleys. Its tracking all the way back towards the transmission and as the car sits there you can see it dripping down. Car only has 8500 Miles and is a 2009 DBS. Is there a front main seal on these? What typically starts leaking from the front?
#3
Well that's not good news lol
#4
If it were mine I would try an oil additive to swell the oil seals. Keep in mind you would need double the quantity called for because of your large sump capacity. I'm sure this suggestion will likely elicit some negative responses but what other choices do you have? I would not live with an oil leak on an Aston.
#5

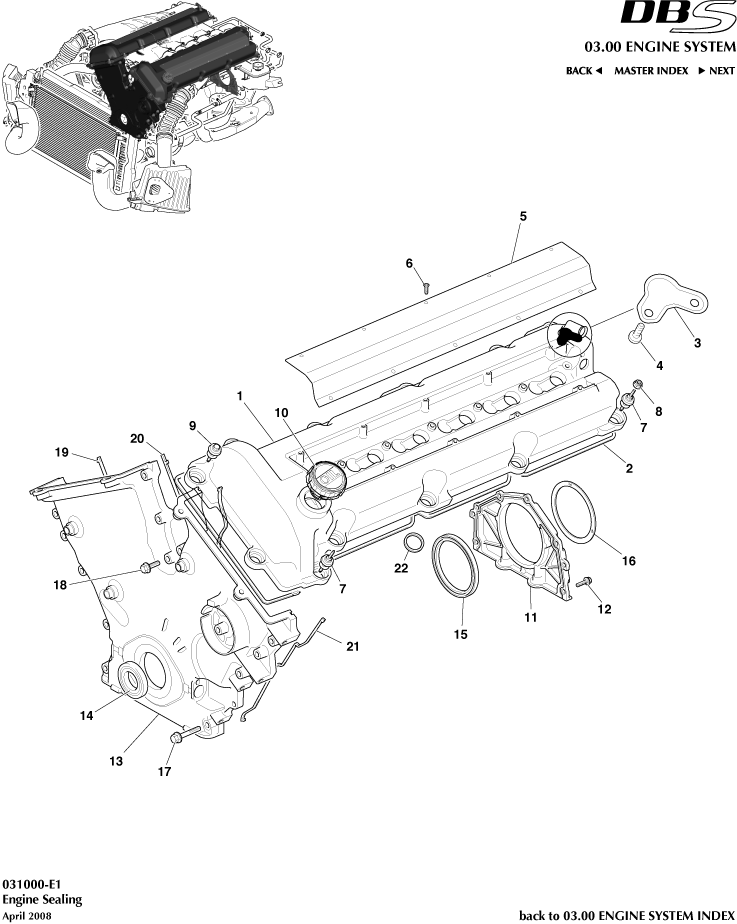

Engine out fix...so I'm assuming that you cannot put the car on a lift and remove the accessories in the front to get at the timing cover?
Could it be coming from a valve cover and running/dripping down?
Could it be coming from a valve cover and running/dripping down?
#6
It can be done in the car...just got to know how
__________________
__________________
Technical Director
Christopher Edgett
Velocity Automotive Performance Limited
214 Maple Ave.
Oliver, B.C
Canada V0H 1T9
Office: (1)250-485-5126
Email: Tuning@VelocityAP.com
www.velocityap.com
__________________
Technical Director
Christopher Edgett
Velocity Automotive Performance Limited
214 Maple Ave.
Oliver, B.C
Canada V0H 1T9
Office: (1)250-485-5126
Email: Tuning@VelocityAP.com
www.velocityap.com
#7
Still a big job...
So, how many hours to do it using your special trickery?
So, how many hours to do it using your special trickery?
Trending Topics
#8
Less work than a V8 I can assure you.. ..sorry, hours I can't quote being I don't following all steps..would not be fair to quote and bring this txt to another dealer/garage and state "irish does it, why can't you?"..I have to play fair
__________________
__________________
Technical Director
Christopher Edgett
Velocity Automotive Performance Limited
214 Maple Ave.
Oliver, B.C
Canada V0H 1T9
Office: (1)250-485-5126
Email: Tuning@VelocityAP.com
www.velocityap.com
__________________
Technical Director
Christopher Edgett
Velocity Automotive Performance Limited
214 Maple Ave.
Oliver, B.C
Canada V0H 1T9
Office: (1)250-485-5126
Email: Tuning@VelocityAP.com
www.velocityap.com
#9
Had my car aligned and was informed that i have an oil leak. I looked and it seems to be coming from the very front of the motor up behind the front pulleys. Its tracking all the way back towards the transmission and as the car sits there you can see it dripping down. Car only has 8500 Miles and is a 2009 DBS. Is there a front main seal on these? What typically starts leaking from the front?
Sweating(oil staining) is ok and can be lived with but monitored yearly on service...leaking(forming drops) is not ok at any time and should be repaired
__________________
__________________
Technical Director
Christopher Edgett
Velocity Automotive Performance Limited
214 Maple Ave.
Oliver, B.C
Canada V0H 1T9
Office: (1)250-485-5126
Email: Tuning@VelocityAP.com
www.velocityap.com
__________________
Technical Director
Christopher Edgett
Velocity Automotive Performance Limited
214 Maple Ave.
Oliver, B.C
Canada V0H 1T9
Office: (1)250-485-5126
Email: Tuning@VelocityAP.com
www.velocityap.com
#10
I chased down a similar leak on my my first DB9 several years ago. Even the advantage of a lift in my garage, I couldn't accurately find the source.
I eventually tried a method suggested to me by a mechanic friend of mine and I accurately located the exact location of this pesky leak.
Quite simple really. Introduce a specially formulated dye into the problematic source of the leak and then allow time for the lubrication to move through the system. Then inspect with the supplied UV flashlight and glasses to easily find the source. Just like it's done at hotel rooms and/or crime scenes.
The kit I used is called "Dye-Lite" TP-3400. Attached some pics. Good luck!
Custom storage box.
I eventually tried a method suggested to me by a mechanic friend of mine and I accurately located the exact location of this pesky leak.
Quite simple really. Introduce a specially formulated dye into the problematic source of the leak and then allow time for the lubrication to move through the system. Then inspect with the supplied UV flashlight and glasses to easily find the source. Just like it's done at hotel rooms and/or crime scenes.
The kit I used is called "Dye-Lite" TP-3400. Attached some pics. Good luck!
Custom storage box.
