Question Manually fold 2011 Vantage seat down (without power) to access battery

I found myself with a completely dead battery. I've changed the battery before, but right now I cannot move/fold the seat down at all without any power.

How can I manually fold the seat down? Looks like there's a quick release for 4 seaters (https://aston1936.com/2021/10/31/ast...quick-release/) but I don't see it on my Vantage.


Old May 20, 2023 | 04:16 PM
  #2
GA_DB9's Avatar
Registered User
5 Year Member
Joined: Aug 2017
Posts: 271
From: Alpharetta, GA
Rep Power: 70
GA_DB9 Is a GOD !GA_DB9 Is a GOD !GA_DB9 Is a GOD !GA_DB9 Is a GOD !GA_DB9 Is a GOD !GA_DB9 Is a GOD !GA_DB9 Is a GOD !GA_DB9 Is a GOD !GA_DB9 Is a GOD !GA_DB9 Is a GOD !GA_DB9 Is a GOD !
For the seats with the hole in the headrest there should be a strap lying flat across the bottom of the hole. Put your fingers under the strap and pull up.

Old May 20, 2023 | 05:45 PM
  #3
minming's Avatar
Thread Starter
|
Registered User
5 Year Member
Joined: May 2016
Posts: 32
From: California
Rep Power: 12
minming is infamous around these parts

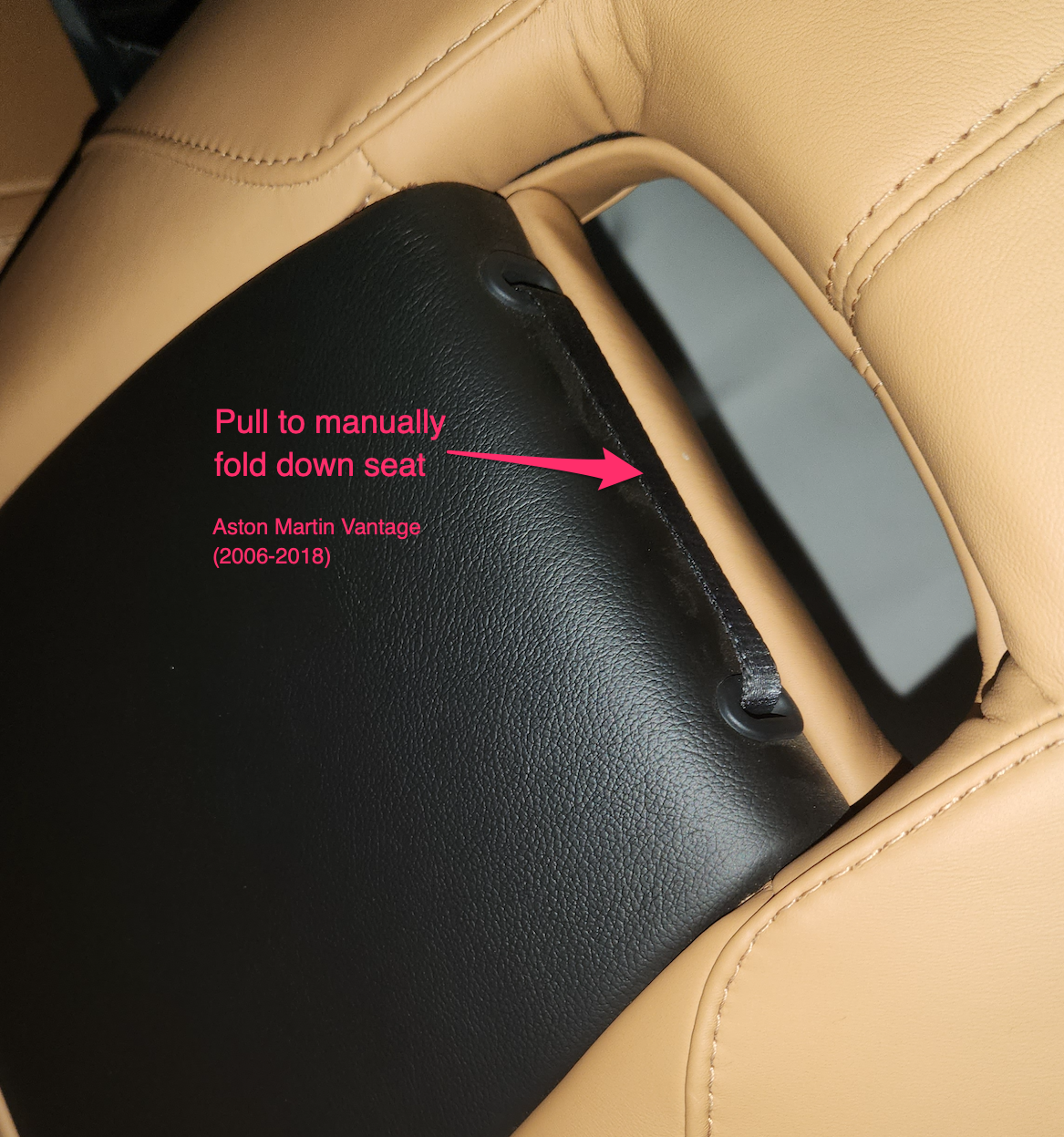

Thank you! I attached a photo for future reference.
