Where is the battery reconnect switch on an '06 V8 Vantage?

Aston Martin DB7, DB9, DBS, Vantage V8, Vanquish, and Classic models
Sponsored by:

Where is the battery reconnect switch on an '06 V8 Vantage?

Reply




  #1
Old 06-11-2015, 11:21 PM
Whag460203's Avatar
Registered User
Thread Starter
Join Date: Aug 2014
Location: Phoenix
Posts: 89
Rep Power: 8
Whag460203 is on a distinguished road
Where is the battery reconnect switch on an '06 V8 Vantage?

I feel like an idiot. Hit the battery disconnect switch in the trunk because of problems I'm having with the radio. Now, when I try to turn on the car I get an error message on the dash saying "Check Battery Disconnect Switch." In the manual, it states that the battery reconnect switch is a yellow button behind the driver's seat, but I cannot, for the life of me find it!

Any help and/or pictures of this elusive button? Doesn't help that my seats are pushed all the way back and I cannot move them at the moment.

Reply With Quote
  #2
Old 06-12-2015, 01:20 AM
GDay2's Avatar
Registered User
Join Date: May 2014
Location: Austria
Age: 58
Posts: 180
Rep Power: 14
GDay2 is a jewel in the roughGDay2 is a jewel in the roughGDay2 is a jewel in the rough
The reset button is hidden in the bulkhead behind the seat IIRC.
Sorry can't look it up as mine is a MY09.

Best of luck

Christian

Reply With Quote
  #3
Old 06-12-2015, 08:25 AM
DonL's Avatar
Registered User
Join Date: May 2010
Location: SF East Bay
Posts: 697
Rep Power: 54
DonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant future
Appropriate page from the 2006 Owners manual: Note location is behind RH seat!

Attached Thumbnails Click image for larger version

Name:	V8 Vantage 06MY Owners Guide 204.jpg
Views:	981
Size:	307.2 KB
ID:	421977
Reply With Quote
  #4
Old 06-12-2015, 09:33 AM
Whag460203's Avatar
Registered User
Thread Starter
Join Date: Aug 2014
Location: Phoenix
Posts: 89
Rep Power: 8
Whag460203 is on a distinguished road
Thanks guys. I also saw the info in the manual but still cannot locate it! Is it under or behind the RH seat?

Reply With Quote
  #5
Old 06-12-2015, 09:57 AM
Whag460203's Avatar
Registered User
Thread Starter
Join Date: Aug 2014
Location: Phoenix
Posts: 89
Rep Power: 8
Whag460203 is on a distinguished road
Found! The manual is incorrect. It's not a yellow button. It's a large black button behind the RH seat at the base or the trim.

Reply With Quote
  #6
Old 06-12-2015, 09:59 AM
Registered User
Join Date: Jun 2009
Location: Northern CT
Posts: 1,827
Rep Power: 116
XJRS Owner has a reputation beyond reputeXJRS Owner has a reputation beyond reputeXJRS Owner has a reputation beyond reputeXJRS Owner has a reputation beyond reputeXJRS Owner has a reputation beyond reputeXJRS Owner has a reputation beyond reputeXJRS Owner has a reputation beyond reputeXJRS Owner has a reputation beyond reputeXJRS Owner has a reputation beyond reputeXJRS Owner has a reputation beyond reputeXJRS Owner has a reputation beyond repute
On the vertical panel behind the seat back, in an indentation. If you can't unlatch the seat back to tilt it forward to gain access, you are kinda screwed.

Reply With Quote
  #7
Old 06-15-2015, 09:25 PM
DonL's Avatar
Registered User
Join Date: May 2010
Location: SF East Bay
Posts: 697
Rep Power: 54
DonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant future
Originally Posted by Whag460203 View Post
Found! The manual is incorrect. It's not a yellow button. It's a large black button behind the RH seat at the base or the trim.
Presume all is ok now?

Reply With Quote
  #8
Old 05-19-2017, 06:46 AM
Registered User
Join Date: May 2017
Location: Miami
Age: 57
Posts: 1
Rep Power: 0
Pbais is an unknown quantity at this point
Aston Martin 08 Vantage US Version - Battery reconnect button

I cannot find the battery reconnect switch behind drivers nor passengers seat. Need help! I need to reconnect the battery urgently.

Reply With Quote
  #9
Old 07-09-2018, 11:27 AM
EAP
EAP is offline
Registered User
Join Date: Nov 2016
Location: Massachusetts
Posts: 13
Rep Power: 0
EAP is an unknown quantity at this point

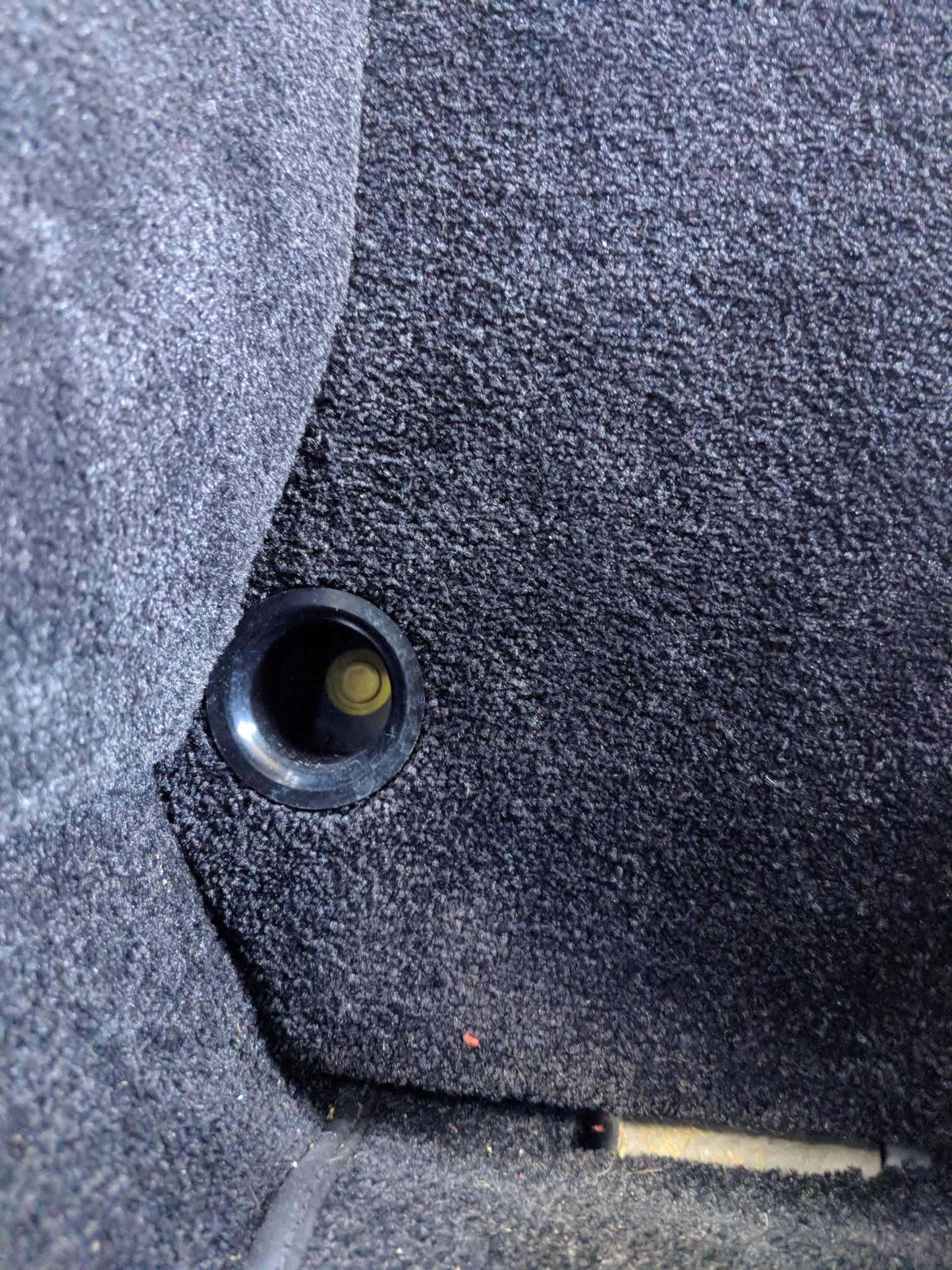

V8 Vantage Battery Re-Connect switch location & picture

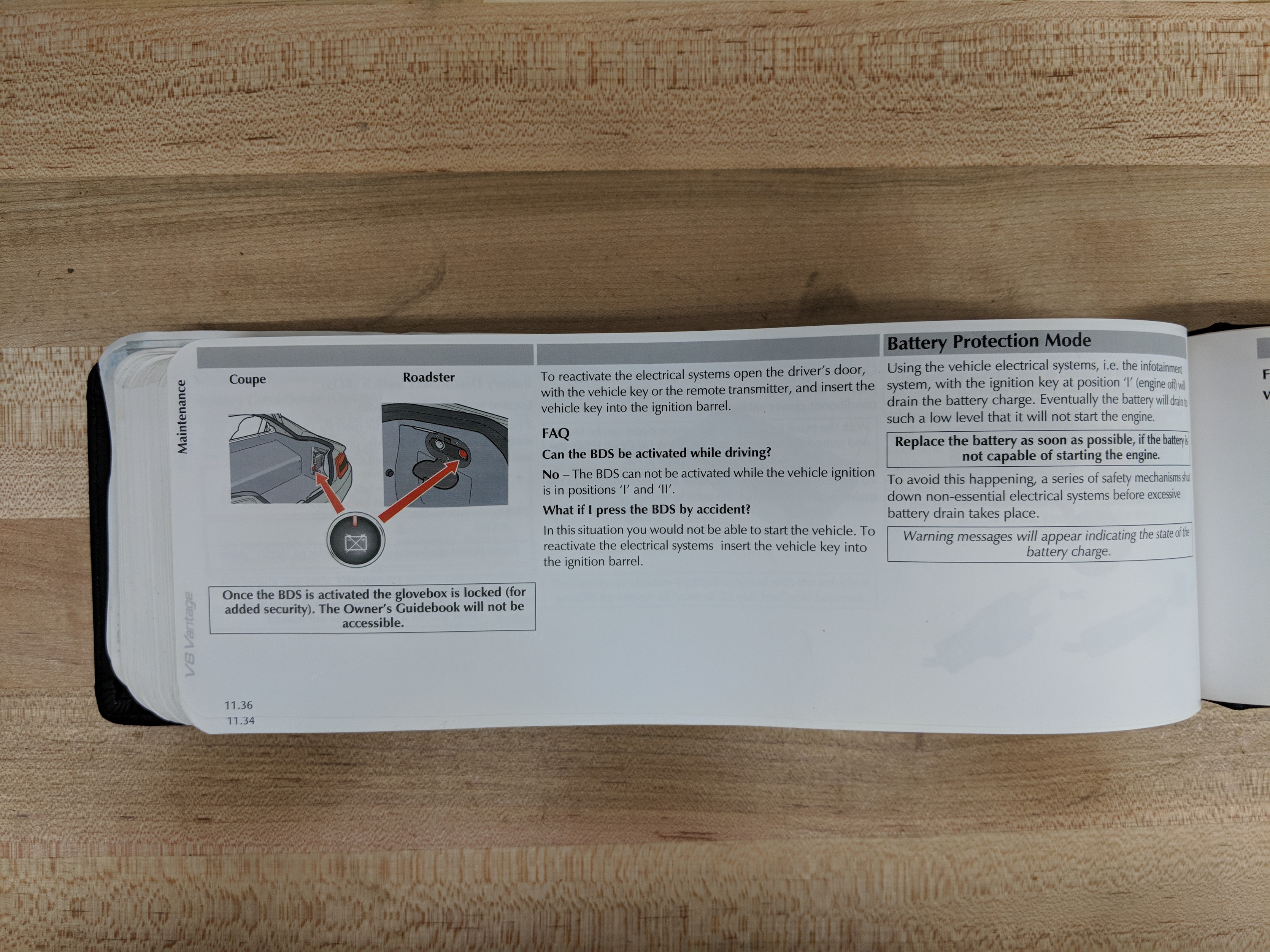

Hi, read the postings and thought a picture of the battery reconnect switch might help. Mine is a 2006, US model. Yellow button down low on the panel behind the passenger seat. My manual wrongly stated that there is no button i.e. that inserting the key in the ignition suffices (page of manual also copied). Hope this is useful.

Attached Thumbnails Click image for larger version

Name:	MVIMG_20180709_093233.jpg
Views:	52
Size:	1.64 MB
ID:	528495   Click image for larger version

Name:	IMG_20180709_094401.jpg
Views:	54
Size:	1.73 MB
ID:	528496
