Category: Engine - Electrical
Price: $500
Private or Vendor Listing: Private Listing
Part fits: Aston Martin
Location (State): PA
Item Condition: Brand New
Shipping Information: Item can be shipped

Set of 12 Coil Packs for Aston Martin V12

On offer is a set of 12 coil packs that I planned to use on my 2014 Vanquish. After research, it seemed to be a proper cross to the coil packs on this car. Once I had the intakes off, I realized my car has the round coil packs, so I need to go OEM.

These coil packs on offer are MSD 82593 and are a cross to ED23-12A366-AC with the changing of the boots and wire. One of the packages has been opened - see pics.

This thread has details on changing the boots and using the MSD coil packs on a Rapide:
Coil Pack Experience
You should be able to pull off the cover from the front of the valve cover and look at your coil packs to determine shape and 2-pin or 3-pin.

These will not cross to round coil packs of PN 8G43-12A377-AA (that are on my Vanquish)

Price: $500 including UPS shipping CONUS.
Located: Near Doylestown, PA.

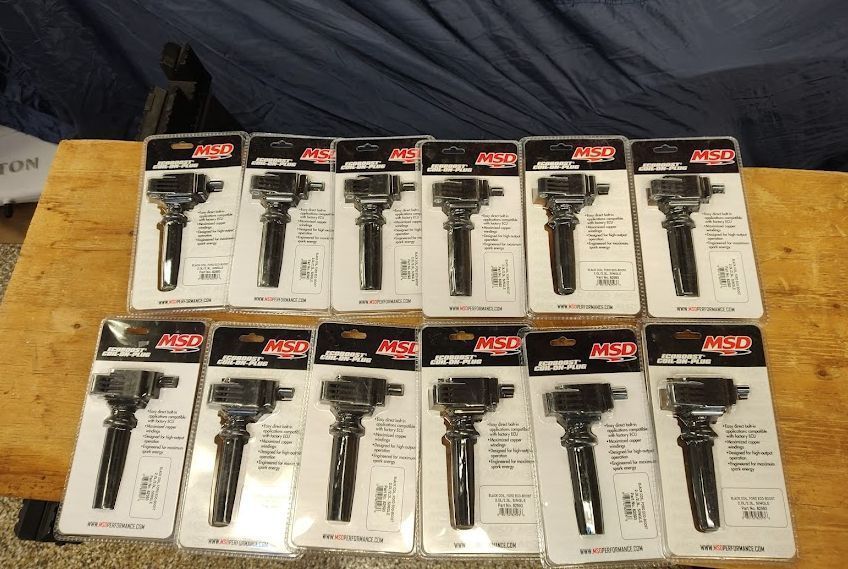

Set of 12 MSD Coil Packs

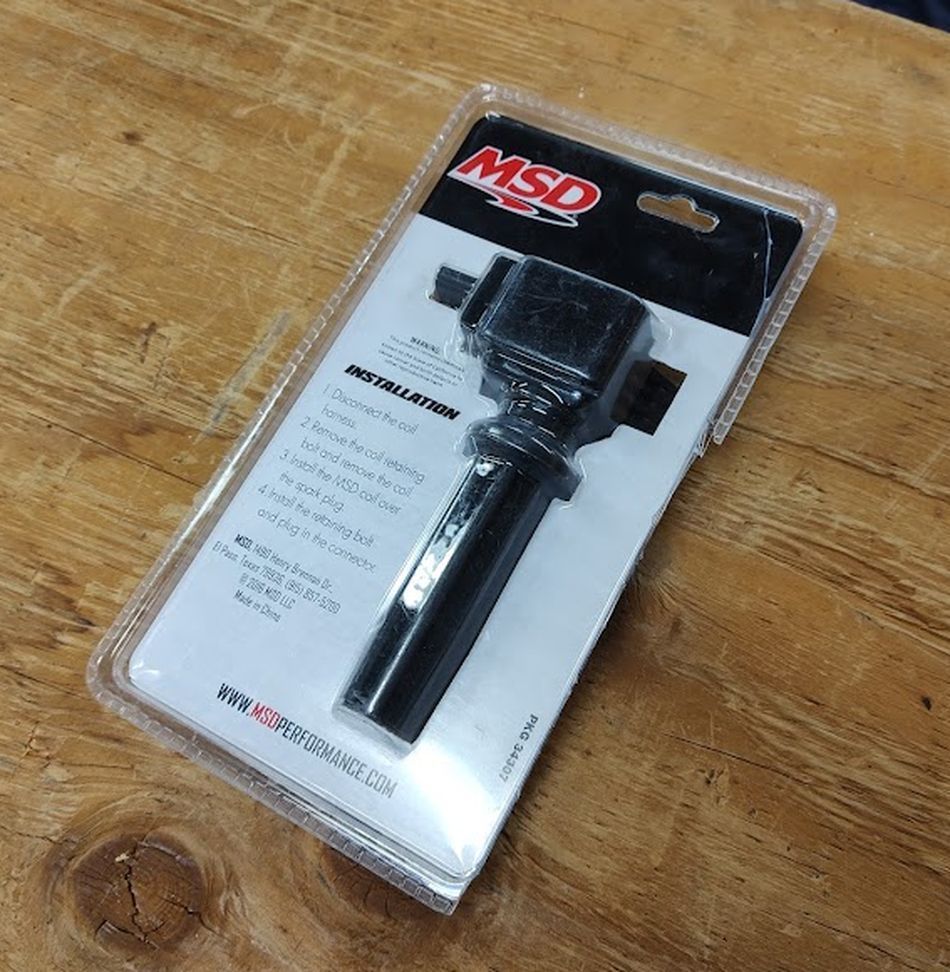

Opened coil package showing part number

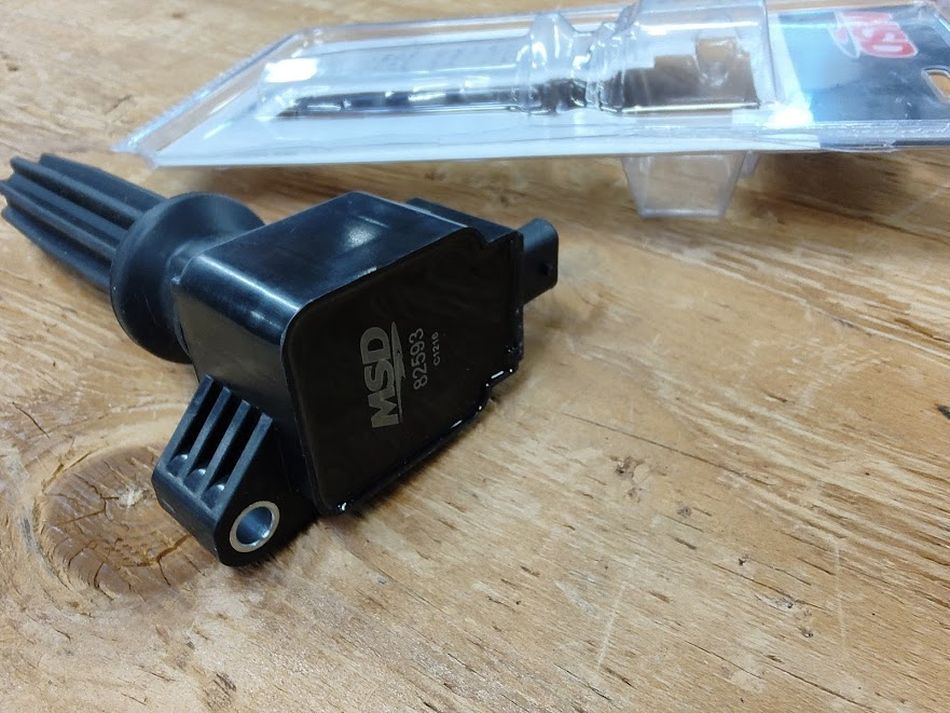

Coil pack removed from package

Opened coil package
.



I've still got these and they're ready to ship. Make an offer!

The boot and internal spring simply snap on and off to change over to the Aston V-12.



Realized the box of these is still in the cabinet.

If you need coils and they're compatible, get 'em.



These coils are still available. Same box and condition as the pics show. Make an offer on the set!



Would they fit a 2010 Rapide?
Thank you.



I did a little digging and it seems that the coil packs that I'm selling are for the V12's 2015 and newer. You can verify by lifting the small black plate(covering a sensor and possibly solenoid) at the front edge of the top of the valve cover and using a light to view in towards the coils. If they're square, these coils will probably work.
