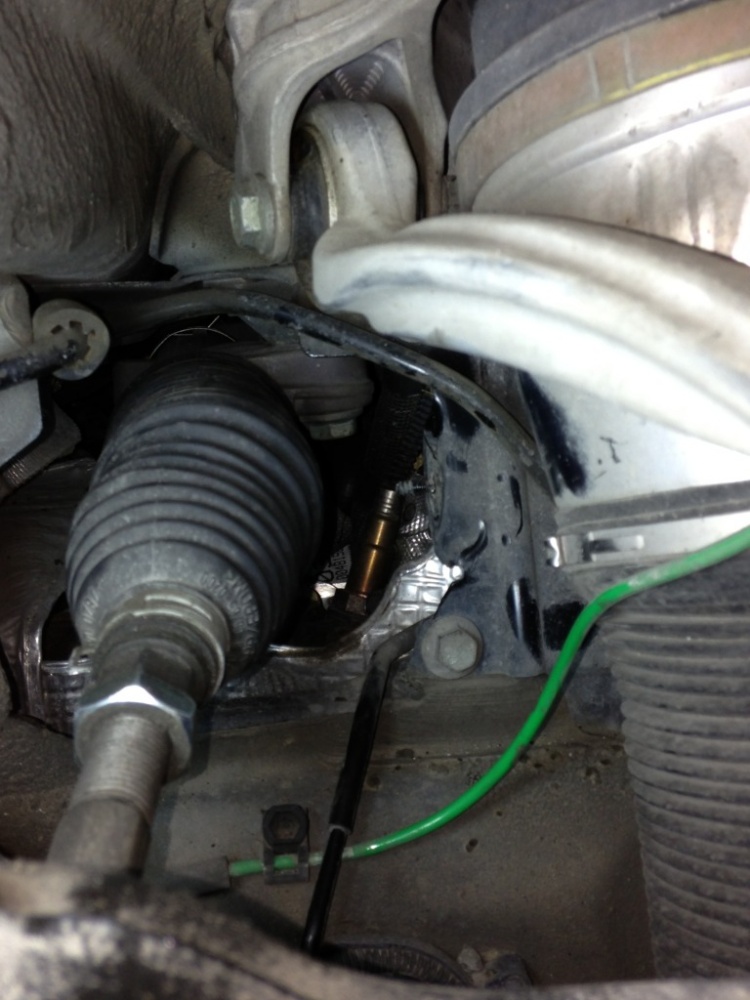

bank 1 sensor 1, this is passenger side pre-cat o2 sensor,


took me and my dad 1.5 hour to remove. remove a small heatshield, remove wheel, drop tie rod, pull filter box, use a long o2 wrench and get it from the top.


sure bentley quoted 40 hours.

macgyver is my middle name



Send your procedure to Bentley as am sure they'd like to know an easier way



And lose $? Sure.



they know the easier way,they just have not updated assist,if done under warranty the factory does not pay for engine removal and if done with customer pay the dealer should not charge for it either !!



I know Indy shops told me 8-10 hours
Half shaft removal, shock removed, drop subframe, etc etc

I am not sure how hard the driver side would be
I know the passenger side bank 1 sensor 1, pre cat I did easily

I heard the bank 2 is much harder ?? maybe the steering gets in the way



on the 04 to i think 12MY cars all the O2 sensors can be changed without having to remove engine,if you are thinking of lowering the trans mount to do the rear sensors then that is not recommended because of the stress put on the front electronic mounts.



hope i dont get another o2 sensor bad, the o2 is out, now just waiting for the part to come in.ordered original bentley sensor.



I did a starter in an '07, I couldn't find an easy way around that job. The motor came out for that job.



What a pain, no way to drop subframe or anything? Make tools?



Hello,
I have to change my sensor 1 bank 2.
Could you explain to me with détails how did you changed it ?
Thank you very much



what size 02 sensor removal tool did you use? I need to change mine out too. Thanks in advance.



hi there
i was just wondering ! i have 2014 flying spur that has a faulty o2 sensor bank 2 (P192300 code)and hoping someone will tell me where exactly located please?

Thank you



What year is your Bentley?
Curious if you would share where you got the new sensor part and for how much?
I got mine from Flying Spares, about 50% less than from Bentley dealer.



Ha, ha sure they will. don't flame me I get the sarcasm - gotta luv it.

OBTW - I am posting up a couple of pictures of my EGR secondary air valve that they wanted $500 to replace.



Is bank 1 sensor 2 possible without dropping the engine?

I have a P0141 code for the heater circuit that comes on intermittently. I want to test the wiring/resistance from the harness. Did you take any photos of where the harness connector can be found please? Thanks
