Hello Rico,
I hope you got some rest....

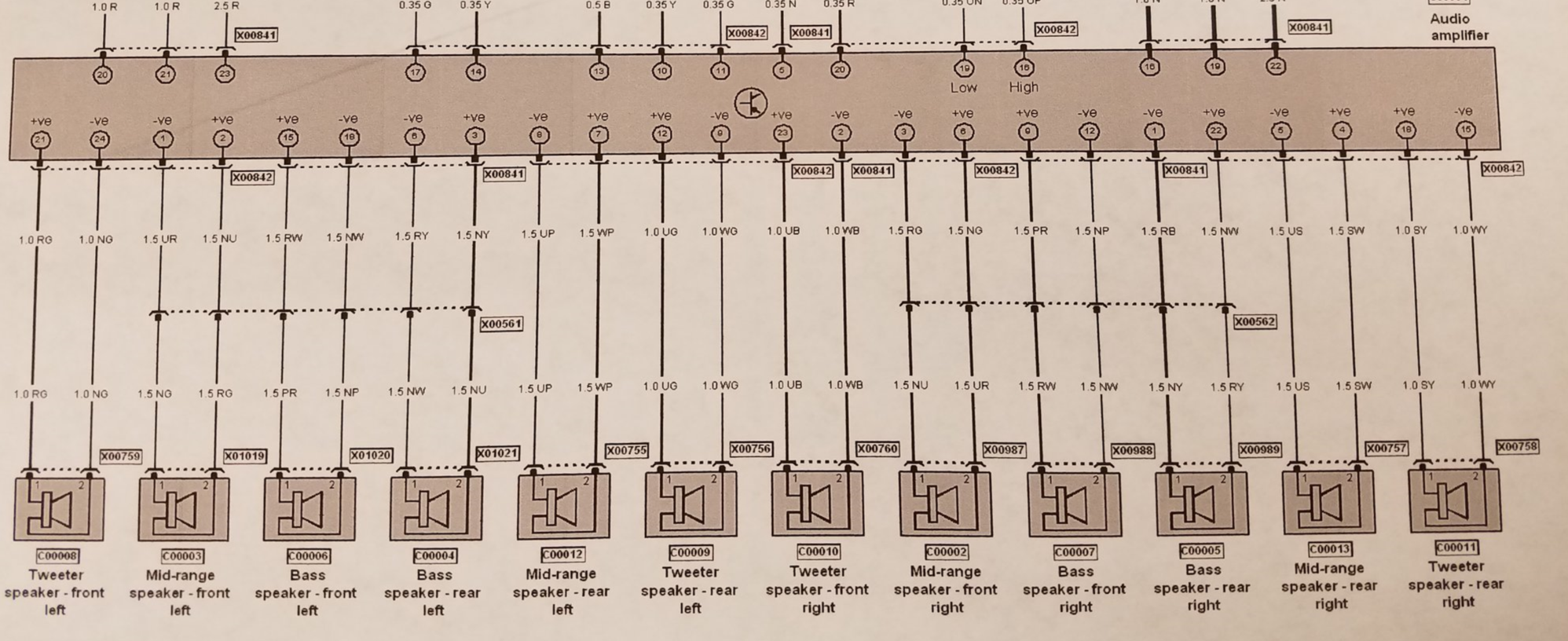

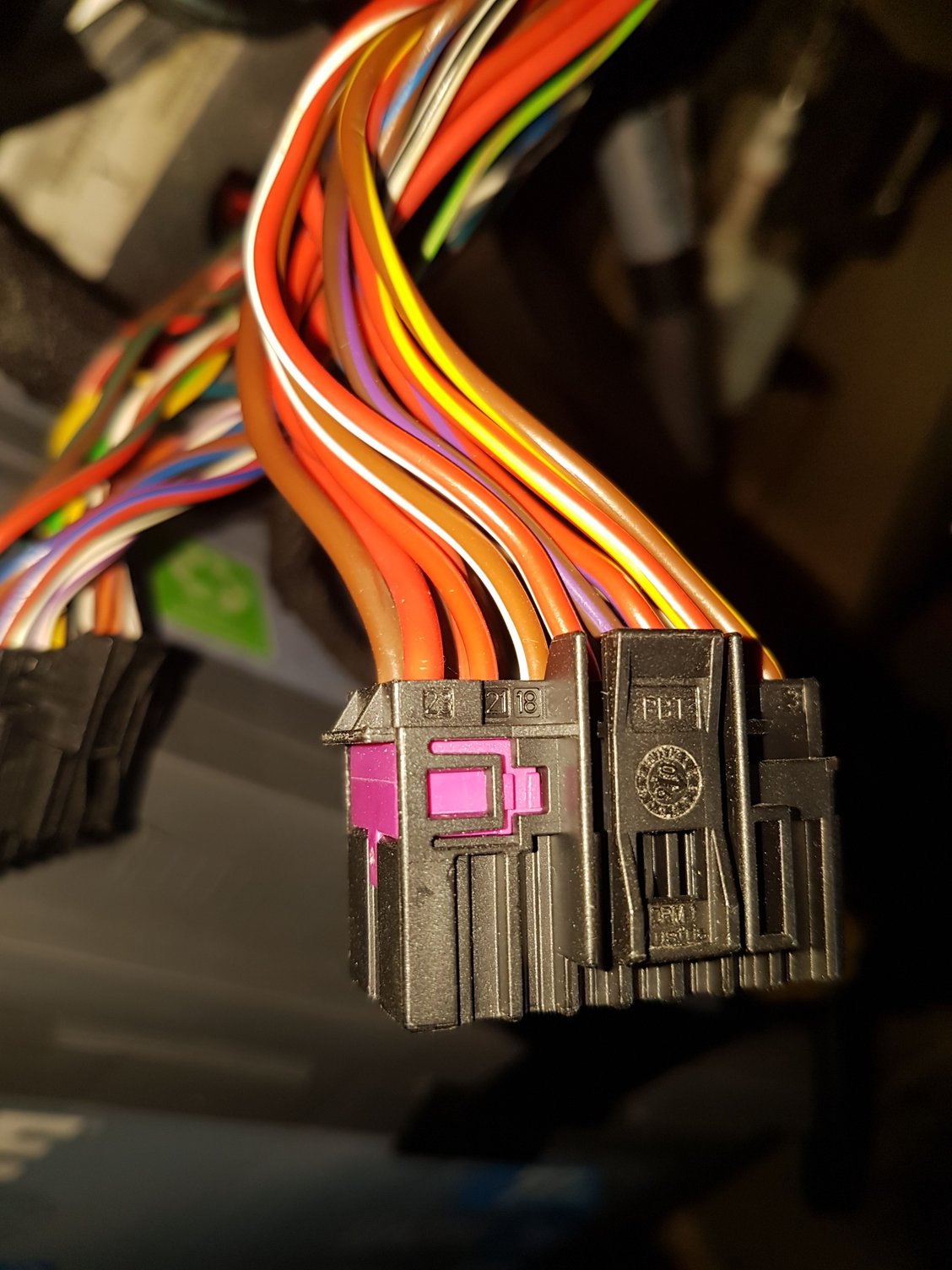

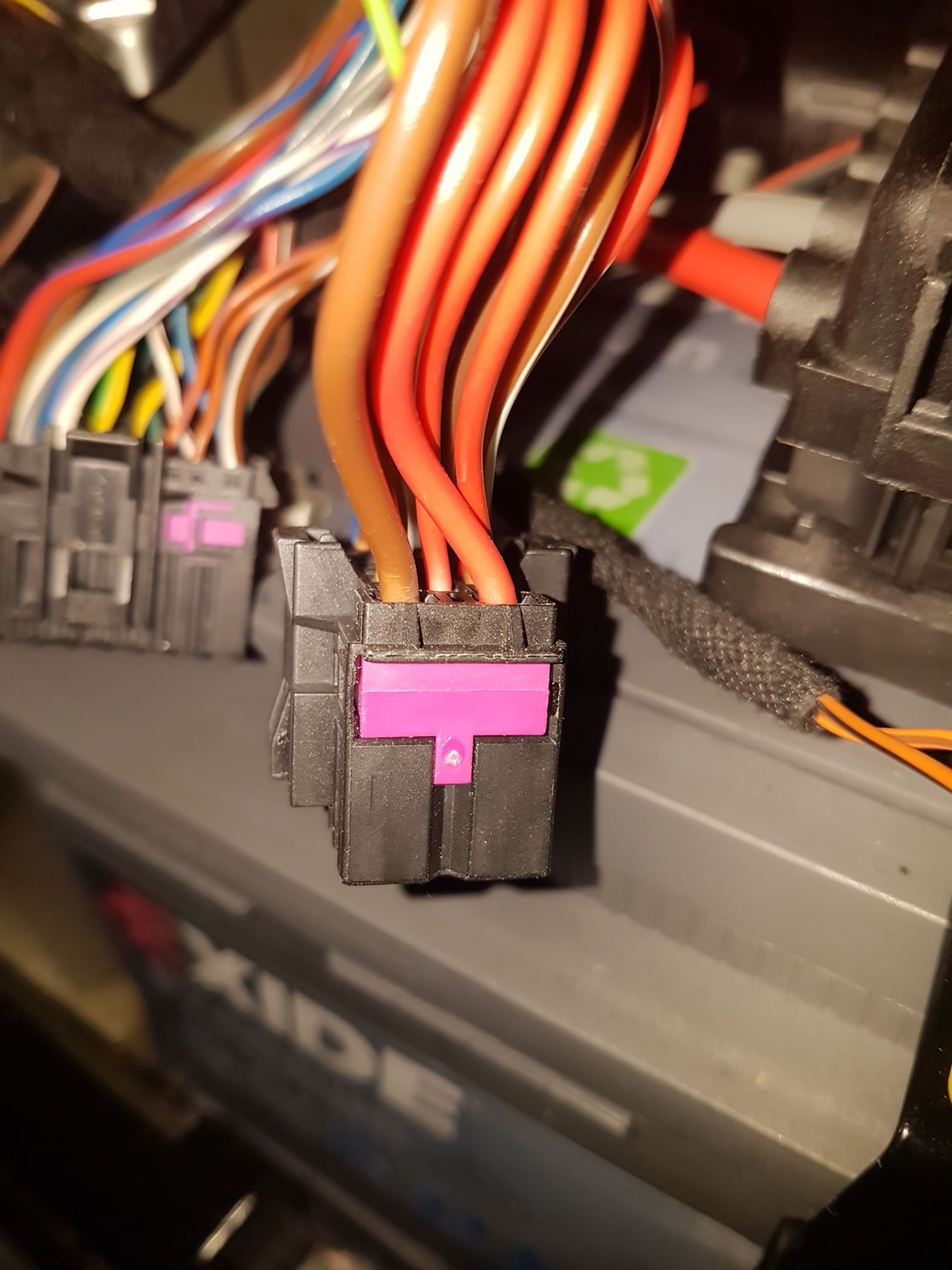

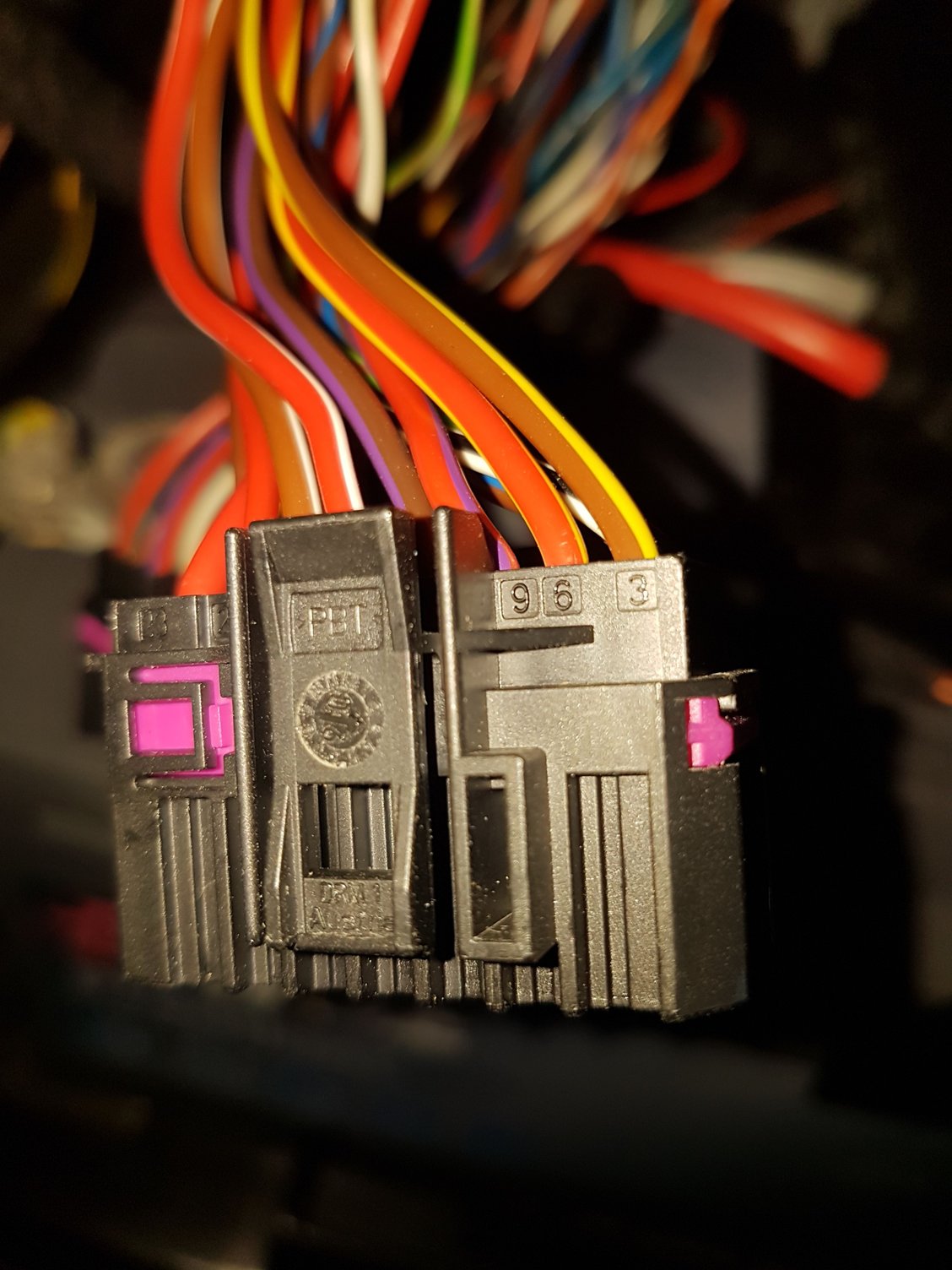

I don't know how you missed it, BUT it is right there in your pictures ... I think you missed or misunderstood as to the audio out all coming from the one plug, it dose not as you now know and have listed output from both plugs, but what may also be throwing you off, is the fact that some speakers have one feed on the 23 pin plug, with the other on the 24 pin plug, your front tweeters are not components, there are wired straight to the amp as shown in you latest pictures, with the blue and black located in pin hole # 23 on the 24 pin plug, the same is said for the white and black located in pin hole # 2 on the 23 pin plug.
The small green, yellow, and blacks that go into heat shrink are for the phone, NAV, etc.
Hello Johnny
Thank you for your info, I'll go through it all in a sec, Ive made some changes to my last post, found all of the speakers to the colours & pins but have no idea which is + or -
but still haven't found the front 2 tweeters ... Like said I'll go look at your last post, Ive scanned through it & seen you've point out the tweeters ... thanks ...

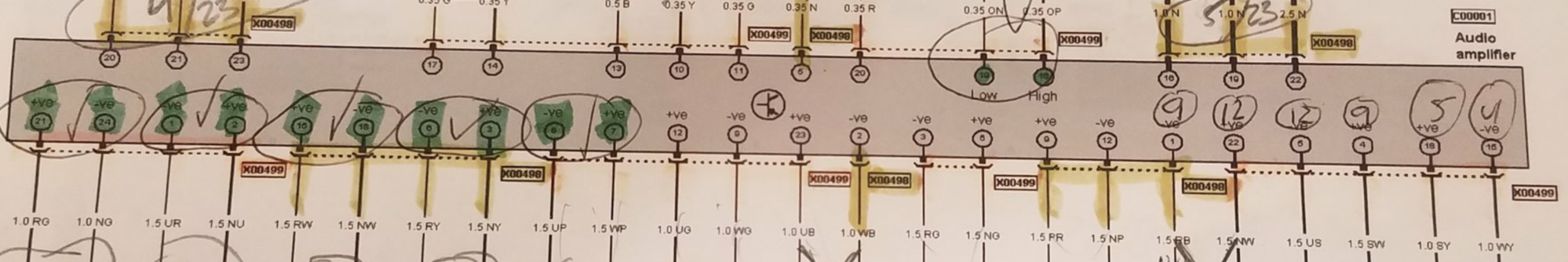

Oh yes that drawing well all of them I was working them out last night till gone 2am, boy you've done some working out ...
Last edited by Rico.Adams; Mar 24, 2019 at 10:58 AM.
Ok got that, Yah your right don't know how I missed it.
I'll give it a go in the morning as Im tried and yes thanks I did manage a few hours sleep last night ...
Here are a couple of special tools to seek out your speakers ...
The battery test ...
The other 3.5 Jack can be plugged into a iPod, iPad or Phone if like me you're on your own its great just push the ends into the pins and listen out for the sound to each speaker.
Last edited by Rico.Adams; Mar 25, 2019 at 04:27 AM.
As far as your question in my re-build thread as to auto folding mirrors, you could ask Louis known as ltooz_a6_a8_q7 on Audiworld A8 D3 forum, he has done some similar tweaks by adding relays into circuits such as closing of bootlid by key fob.
Hello Johnny
Now all that is sorted, I was wondering the only thing left is the parking sensors, as everything else goes through the head unit & out down the RCA cables. My plan was to splice into each cable and soldier each outgoing cable from the new amps onto the loom. Then replace the 2 plugs back into the stock amp. Thinking about it its not worth keeping the stock amp just for the parking sensors ?
Would I need a separate amp to send the signal from the loom into an amp & then out to the speakers or would the cables from the loom go direct into the speakers. Which pins & plug/s are used for the parking sensors ...
I think you missed or misunderstood as to the audio out all coming from the one plug, it dose not as you now know and have listed output from both plugs, but what may also be throwing you off, is the fact that some speakers have one feed on the 23 pin plug, with the other on the 24 pin plug, your front tweeters are not components, there are wired straight to the amp as shown in you latest pictures, with the blue and black located in pin hole # 23 on the 24 pin plug, the same is said for the white and black located in pin hole # 2 on the 23 pin plug.
