Hi Dark Green, I saw that one thanks. I am speaking to a friend regarding the one available in Budapest, he lives there and may be able to get it faster. Sorry for my ignorance but what do you mean by "build standard"? Thanks Paul
I have given the VIN number to the supplier of the Kessy unit to hopefully ensure I receive the correct item. The new garage

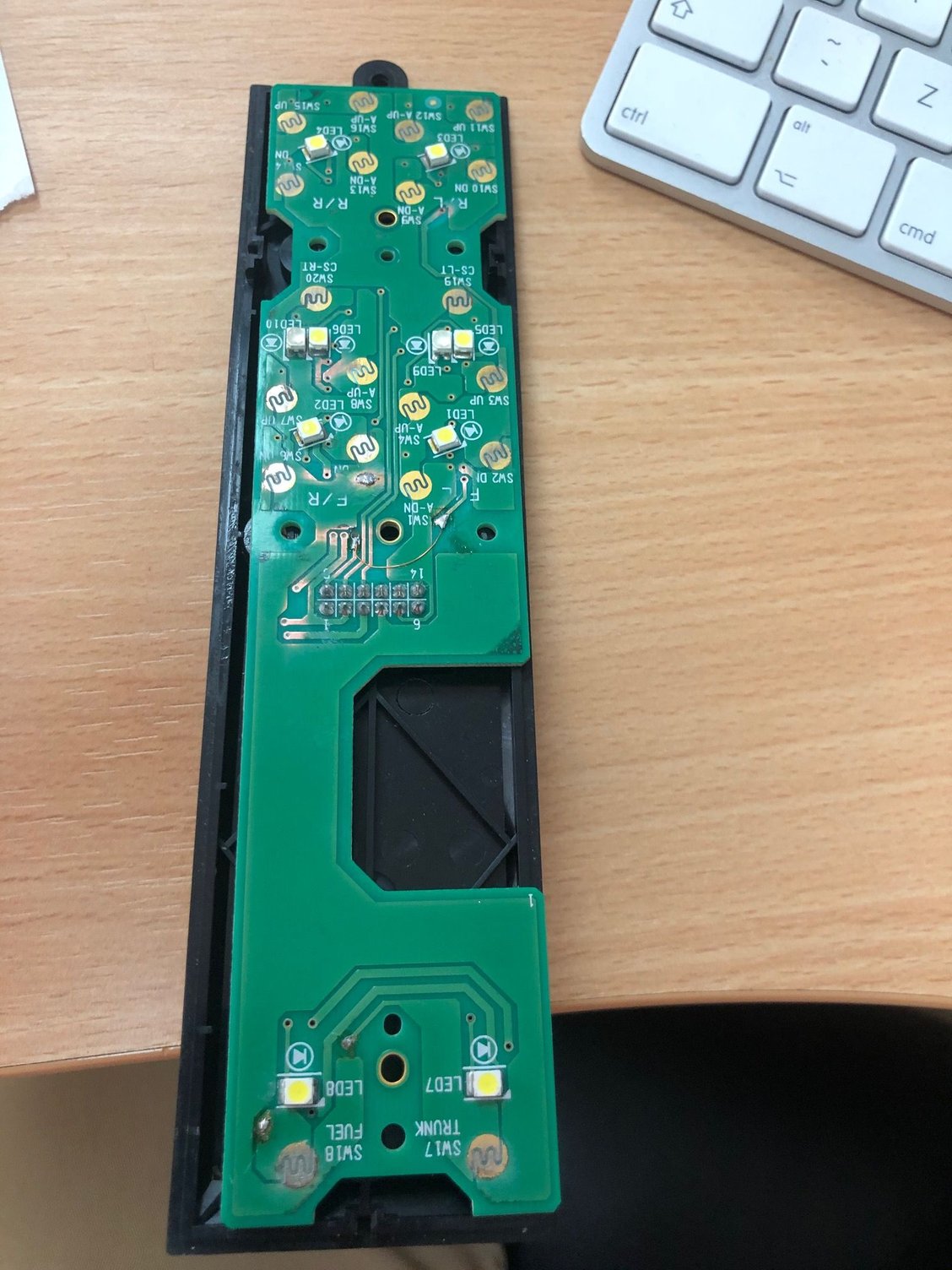

are making quick progress. I need to find a replacement circuit board for the drivers side window, boot and fuel cap controls. Can anyone help here?
I have given the VIN number to the supplier of the Kessy unit to hopefully ensure I receive the correct item. The new garage
are making quick progress. I need to find a replacement circuit board for the drivers side window, boot and fuel cap controls. Can anyone help here?
Hi mate it's matt I had the same. Problem and bought one for a vw phaeton for 50 pound open the unit and just swap over the circuit board into your Bentley one as the keys are different
Hi all, an update from Covid free NZ!
The replacement KESSY unit I purchased was not virgin after all...but not a problem as it happens.
Based on Dark Greens info around software and hardware versions I had the eeprom swapped from my old KESSY to the new unit with the same part number, software and hardware numbers.
I got it back this morning and plugged it in with great anticipation. I turned the ignition and pushed the start button and the beast burst into life!
The lesson here is that cloning or swapping the eeprom works a treat so long as all the numbers match up on the two KESSY. units.
I have yet to drive the car as there seems to be other stuff going on as in a very noisy alternator bearing and the engine check light has just come on despite having cleared the huge number of DTC codes created by the water damaged KESSY. A continuing saga.............
Thanks to all who helped.
Stephen.
Great news and post as many others will be going down this well trodden path because of water ingress .
Alternator is VAG thing with water cooling at the back .Just two €2 O rings prevent coolant leaking out .Theses perish ( heat cycles etc ) and inevitably start to leak .....water enters amongst other things the bearing.
There are threads on here and if it needs replacing it’s pretty tight in there and even though it’s a VAG part the connections and pipes are pretty specific.So tread carefully.You are back into parts compatibility.....but not tech this time physically getting it ( if it’s not got the correct suffix letter ) to fit back ....brackets + connections different for different VAG modals ....even though it’s the same basic alternator output etc .
You might be able to just refurb the thing at a car shop re new bearings assuming the windings are sound .
Always replace the O rings ...that’s a DIY Job .
To access this it’s a front end off job , remove the radiator etc .Although you can swing the rad to a “ service position “ it’s best to completely remove it .
Then you are in to a “ while you are in “ situation.
New poly belt + idler ( it might be the idler bearing anyhow ? ) .....but all the same pull the alternator and changes those O rings .
Carefully satisfy yourself the integrity of the rad while it’s off and it’s pipes .....they all corrode eventually if the roads are salted in the winter ,so make a decision on that when you can fully examine it .
Think about any headlight bulb refresh while the front is off = now easy access to the rear of the units .
Last edited by John Fiammetta; Jun 9, 2020 at 04:48 AM.
Thanks John for the info, very enlightening. I was reading the Bentley manual re the alternator and it casually mentions remove engine as part of the alternator removal process. It is good to know it can be removed less invasively. I haven't even been able to drive the car yet.....it runs for 30 seconds and stops....MAF sensor code
P0101. I will be a Bentley master tech before I am done...yeah...nah!
I will keep you posted.
Cheers,
Stephen.
Hi, I'm Paul and I've just joined this group and would be extremely grateful for some advice. I have a 2004 Benley Continental GT. Great car but I have a major problem - it won't start!!! I replaced both batteries as the car was struggling to start and one was not holding a charge. Since I've replaced the batteries, the car will not start. The key is stuck in the ignition and won't release. I've had an auto electrician out and he's checked all fuses etc and they are fine. Power to dash, lights work etc but it appears that there is no power to ignition. Drivers front and back windows would go down but not up - now they won't move at all. Car is stuck outside under a cover but I'm desperate to get it inside. Did I do anything wrong when replacing batteries? Is there a certain sequence I should have gone through when reconnecting? The key fob was recently overhauled and new battery fitted - the car was running after this was done. Any help appreciated. Thanks.
hey bro did you ever find out what the problem was with your car? I am having the same issue.
beane
Just to update everyone. The car is now fixed and running very well. The Kessy was replaced - cost me around GBP£250. The window controls on drivers door were also f*+ked. Replaced this with one from a Toureg (thanks Matt!!) - cost me around GBP£60.00. Paid GBP£570.00 for labour.............. so all in the repair was around GBP£900.00. I think this was good value as the car has been off the road since November last year. Just took it our and it's like a flying machine again. Going to keep it inside and covered up from now on. Also, invested in a trickle charger because I've learned that the electrics on these are a fu*king nightmare when they go wrong.
Forgot to say. I had the car fully serviced. All filters etc. Changed the plugs aswell. This cost me GBP£600.00. I would be interested to find out what people are paying for servicing. Thanks Paul.
Hello @jtec963 Paul,
I was going to send you to my listing in the marketplace here on 6Speed, but then realized as you said, "RHD", so the units are different LHD vs RHD as the pictures of the RHD show...
Scuderia has it new at $1255USD, whereas Flying Spur's has it used at £467.50 Excl VAT..
