There is also this @Johnny Hotspur GT .

This was before I attempted to open the park brake. So I the picture the module is OK. I will check the motor fuses tomorrow.👍

Reply
Old Nov 18, 2024 | 07:06 AM
Share
  #17
Frank ( Sunnyside )'s Avatar
Thread Starter
|
Registered User
15 Year Member
Joined: May 2010
Posts: 1,666
From: Scotland
Rep Power: 105
Frank ( Sunnyside ) has a reputation beyond reputeFrank ( Sunnyside ) has a reputation beyond reputeFrank ( Sunnyside ) has a reputation beyond reputeFrank ( Sunnyside ) has a reputation beyond reputeFrank ( Sunnyside ) has a reputation beyond reputeFrank ( Sunnyside ) has a reputation beyond reputeFrank ( Sunnyside ) has a reputation beyond reputeFrank ( Sunnyside ) has a reputation beyond reputeFrank ( Sunnyside ) has a reputation beyond reputeFrank ( Sunnyside ) has a reputation beyond reputeFrank ( Sunnyside ) has a reputation beyond repute
Here is an ODIS Scan results.




Reply
Old Jan 20, 2026 | 07:53 AM
Share
  #18
Flying spur 2014's Avatar
Registered User
Joined: Jan 2026
Posts: 2
Rep Power: 0
Flying spur 2014
Ecu
Originally Posted by Johnny Hotspur GT
Hello @Frank ( Sunnyside ) ,
To release the connector, you pull the handle to slide it out, then lift it off.

Johnny

.

Where exactly is the ecu? I removed battery but can not find?

Reply
Old Jan 20, 2026 | 08:55 AM
Share
  #19
jeyjey's Avatar
Registered User
Joined: Jan 2026
Posts: 57
From: Ireland
Rep Power: 0
jeyjey

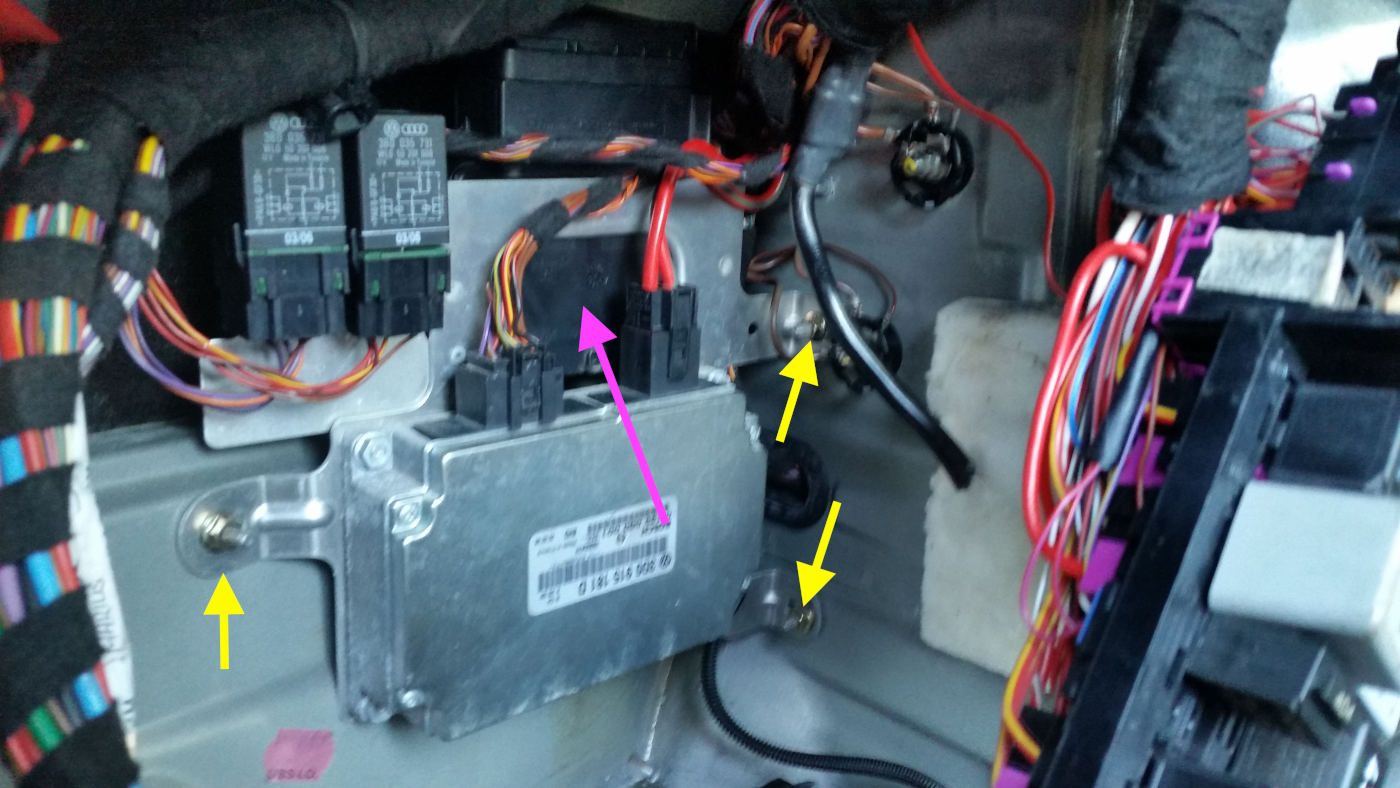

Marked in magenta. It's on the back side of the plate, so you'll need to remove it (marked in yellow).



Reply
Old Jan 20, 2026 | 08:56 AM
Share
  #20
jeyjey's Avatar
Registered User
Joined: Jan 2026
Posts: 57
From: Ireland
Rep Power: 0
jeyjey
Pictures of the plate and backside here: https://www.6speedonline.com/forums/...ml#post4618414

Reply
Old Jan 20, 2026 | 09:07 AM
Share
  #21
Flying spur 2014's Avatar
Registered User
Joined: Jan 2026
Posts: 2
Rep Power: 0
Flying spur 2014
Originally Posted by jeyjey
Marked in magenta. It's on the back side of the plate, so you'll need to remove it (marked in yellow).

Thank you.. 👍 Super helpful
