Cayenne 955/957 Porsche's SUV up to 2011. Cayenne, Cayenne S, and Cayenne Turbo message forum.

Where is the wiring harness plug for a trailer, I have the tow package '04 CS

Thread Tools

Search this Thread

Rate Thread

  #1
Old 12-26-2009, 09:47 PM
Pepper's Avatar
Registered User
Thread Starter
Join Date: Dec 2009
Location: Fl
Posts: 77
Rep Power: 18
Pepper will become famous soon enough
Where is the wiring harness plug for a trailer, I have the tow package '04 CS

My other cars it was in the cargo area....

  #2
Old 12-27-2009, 01:03 AM
Road Runner's Avatar
Registered User
Join Date: Sep 2009
Location: Toronto Canada
Posts: 131
Rep Power: 20
Road Runner is on a distinguished road
It should be on the left side of the trailer hitch (square cover with 4 screws)
You will need to buy a proper receptacle from the dealer to replace the blank cover.

  #3
Old 12-27-2009, 08:31 AM
Pepper's Avatar
Registered User
Thread Starter
Join Date: Dec 2009
Location: Fl
Posts: 77
Rep Power: 18
Pepper will become famous soon enough
Thumbs up

Originally Posted by Road Runner
It should be on the left side of the trailer hitch (square cover with 4 screws)
You will need to buy a proper receptacle from the dealer to replace the blank cover.
If anyone has one to sell please pm me!

  #4
Old 12-27-2009, 08:36 AM
WayneE's Avatar
Registered User
Join Date: Dec 2007
Location: Maryland
Posts: 181
Rep Power: 24
WayneE is on a distinguished road
  #5
Old 12-27-2009, 09:20 AM
Pepper's Avatar
Registered User
Thread Starter
Join Date: Dec 2009
Location: Fl
Posts: 77
Rep Power: 18
Pepper will become famous soon enough
Angry FrUsTrAtInG! should be a simple thing!?!

So once I buy this part $11+/- and plug it in the box next to the hitch they say it still won't work the brakes on a trailer!?

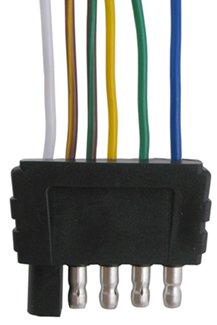

Even my Jeep was simpler. I tow an 18ft boat with a standard shorelander boat trailer with a STANDARD plug pic below/ same as on my 6x8 flatbed trailer hookup. What good is a plug without it working brake lights? What do I need to buy on top of that other plug?????? Thanks
Name:  trailer plug.jpg
Views: 1025
Size:  15.4 KB

  #6
Old 12-27-2009, 10:57 PM
Road Runner's Avatar
Registered User
Join Date: Sep 2009
Location: Toronto Canada
Posts: 131
Rep Power: 20
Road Runner is on a distinguished road
Originally Posted by Pepper
So once I buy this part $11+/- and plug it in the box next to the hitch they say it still won't work the brakes on a trailer!?
Even my Jeep was simpler. I tow an 18ft boat with a standard shorelander boat trailer with a STANDARD plug pic below/ same as on my 6x8 flatbed trailer hookup. What good is a plug without it working brake lights? What do I need to buy on top of that other plug?????? Thanks
Attachment 112706
They don't mean that the brake lights wont work on your trailer.
They just mean that the electric brakes wont work if your trailer has them!

For trailers with electric brakes you will need to install a special brake controller that goes under the dash and a different plug at the hitch (7 pin round).

For a regular trailer without electric brakes the straight plug that you show is fine.

  #7
Old 12-28-2009, 07:39 AM
Pepper's Avatar
Registered User
Thread Starter
Join Date: Dec 2009
Location: Fl
Posts: 77
Rep Power: 18
Pepper will become famous soon enough
Now your talkin! I'm gonna nickname you "Cayennist", but I like Road Runner better, meep meep
THANKS!

  #8
Old 12-28-2009, 11:53 PM
Road Runner's Avatar
Registered User
Join Date: Sep 2009
Location: Toronto Canada
Posts: 131
Rep Power: 20
Road Runner is on a distinguished road
Originally Posted by Pepper
Now your talkin! I'm gonna nickname you "Cayennist", but I like Road Runner better, meep meep
THANKS!
LOL, thanks Pepper for the undeserved compliment!

  #9
Old 12-29-2009, 09:01 AM
PorscheSalesAtl's Avatar
Registered User
Join Date: May 2007
Location: Atlanta, GA
Posts: 74
Rep Power: 19
PorscheSalesAtl is on a distinguished road
Originally Posted by Pepper
So once I buy this part $11+/- and plug it in the box next to the hitch they say it still won't work the brakes on a trailer!?
Even my Jeep was simpler. I tow an 18ft boat with a standard shorelander boat trailer with a STANDARD plug pic below/ same as on my 6x8 flatbed trailer hookup. What good is a plug without it working brake lights? What do I need to buy on top of that other plug?????? Thanks
Attachment 112706

You simply need to buy an adapter for the 4 pin plug, same thing you would have to do with any vehicle that is rated to tow over 5,000 lbs. Its like another $10. Be happy your Cayenne has the tow package or you would be looking at a large bill to get a hitch on it. $20 for you to tow is a bargin

  #10
Old 01-02-2010, 05:56 AM
CURI0's Avatar
Banned
Join Date: Apr 2007
Location: Malibu
Posts: 1,363
Rep Power: 117
CURI0 Is a GOD !CURI0 Is a GOD !CURI0 Is a GOD !CURI0 Is a GOD !CURI0 Is a GOD !CURI0 Is a GOD !CURI0 Is a GOD !CURI0 Is a GOD !CURI0 Is a GOD !CURI0 Is a GOD !CURI0 Is a GOD !
Originally Posted by PorscheSalesAtl
You simply need to buy an adapter for the 4 pin plug, same thing you would have to do with any vehicle that is rated to tow over 5,000 lbs. Its like another $10. Be happy your Cayenne has the tow package or you would be looking at a large bill to get a hitch on it. $20 for you to tow is a bargin
I got U-haul to do the hitch for $400 bucks... way better than the dealer.
