Replacing sideview mirror bulbs?

Thread Tools

Search this Thread

Rate Thread

  #1
Old 09-11-2014, 09:52 AM
Chris_FL's Avatar
Registered User
Thread Starter
Join Date: Apr 2008
Location: Tampa, FL
Age: 39
Posts: 628
Rep Power: 44
Chris_FL is a jewel in the roughChris_FL is a jewel in the roughChris_FL is a jewel in the rough
Replacing sideview mirror bulbs?

Anyone been able to get to the bulbs to replace them (LED)?

I've searched and havn't found a thread where it was actually accomplished.

  #2
Old 09-11-2014, 08:51 PM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road
Yes, I did mine. It involves removing the body color cover, the mirror glass, the mirror base, I wouldn't say it is easy but it can be done.

  #3
Old 09-11-2014, 08:59 PM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road
Here are some pics.

  #4
Old 09-11-2014, 09:01 PM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road

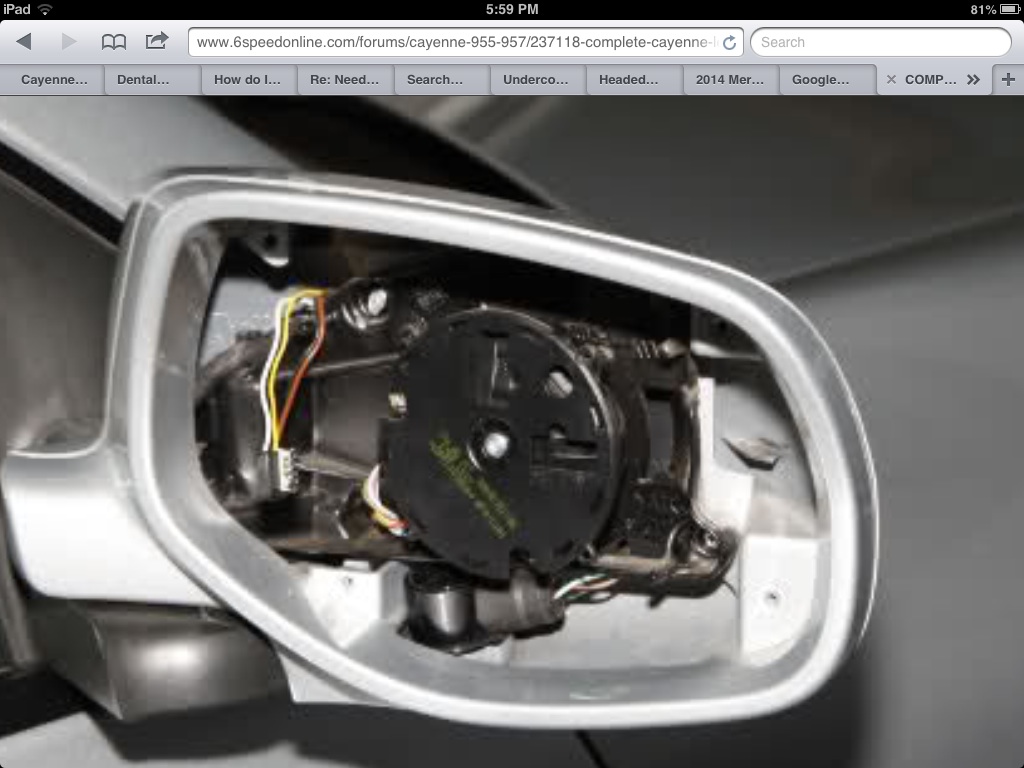

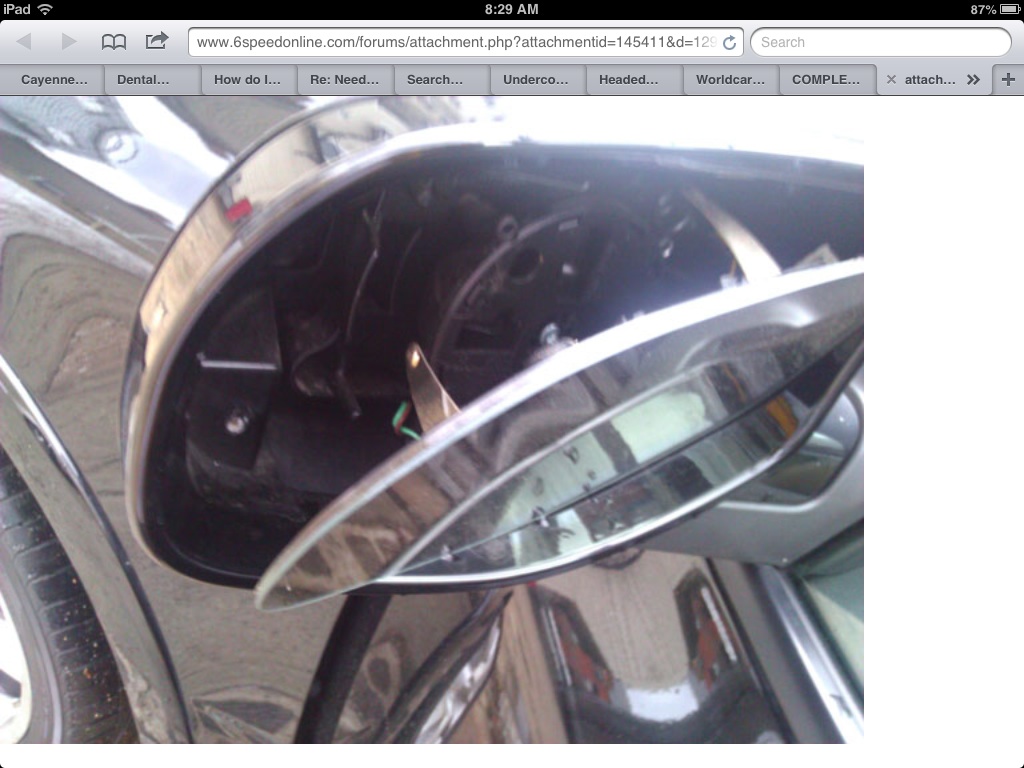

You can pry the mirror off.

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	344
Size:	156.0 KB
ID:	401589
  #5
Old 09-11-2014, 09:02 PM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road
This is how it looks.

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	436
Size:	144.0 KB
ID:	401590
  #6
Old 09-11-2014, 09:03 PM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road

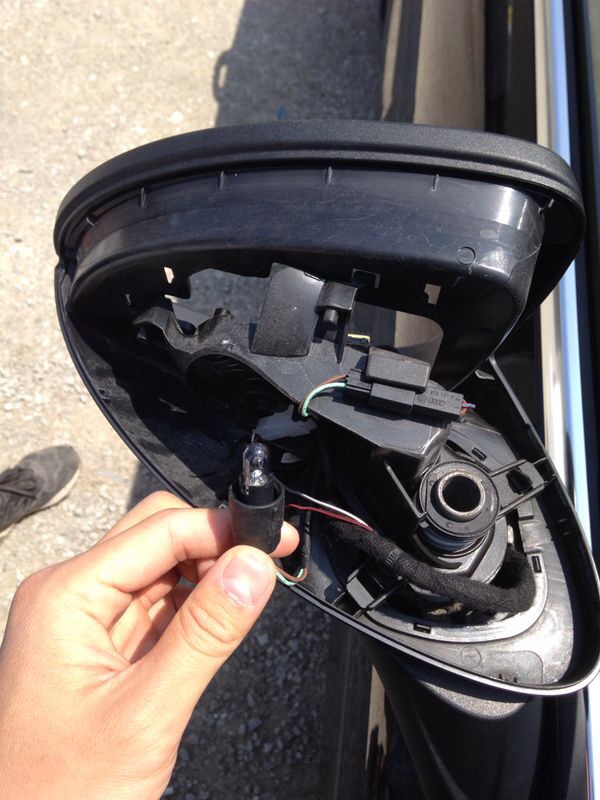

The light socket

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	380
Size:	125.4 KB
ID:	401591
  #7
Old 09-11-2014, 09:07 PM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road

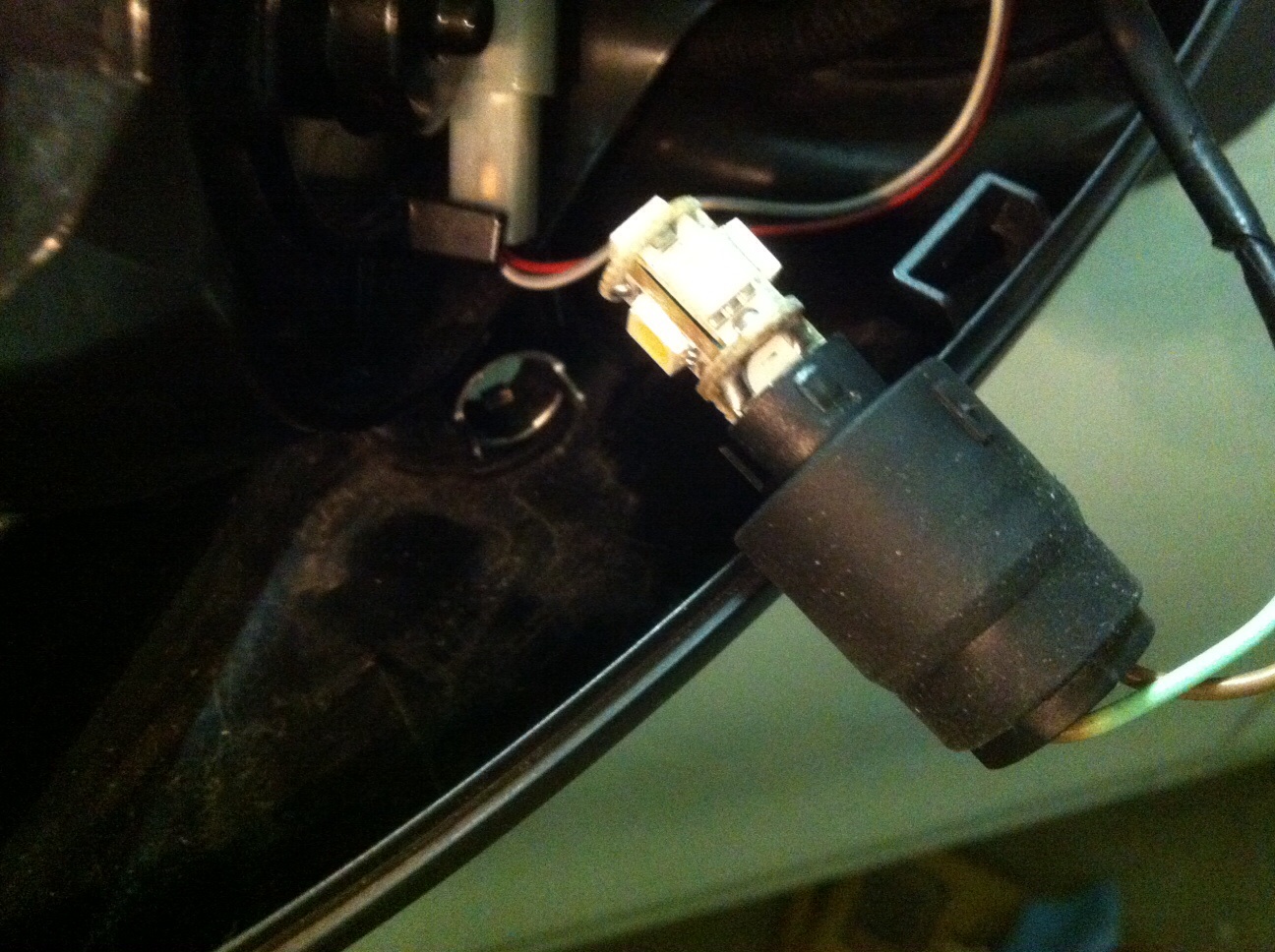

New LED bulb, you need to get a shorter bulb, the space is very limited. As the bulb is installed sideways, you need to get one that has LED elements on the side of the bulb, otherwise it will not be bright enough.

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	353
Size:	406.2 KB
ID:	401592
  #8
Old 09-14-2014, 03:31 PM
C4SxM5's Avatar
Registered User
Join Date: Jan 2004
Location: 916
Posts: 1,901
Rep Power: 149
C4SxM5 Is a GOD !C4SxM5 Is a GOD !C4SxM5 Is a GOD !C4SxM5 Is a GOD !C4SxM5 Is a GOD !C4SxM5 Is a GOD !C4SxM5 Is a GOD !C4SxM5 Is a GOD !C4SxM5 Is a GOD !C4SxM5 Is a GOD !C4SxM5 Is a GOD !
Which bulb did U end up using? Also any issues we should be aware before attempting so no clips or glass will be broken?

  #9
Old 09-14-2014, 06:46 PM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road
I just had these 2 extra no-name LED bulbs that happened to fit. I bought a whole bunch of LEDs a while ago because I also changed all my interior lights to LED. I did not break any glass or clips but you need to be very careful. You need to remove the mirror glass and the mirror base first because you need to unclip the body color cover from behind. After the cover is removed, you can then pull out the light socket. Hope this helps.

  #10
Old 09-14-2014, 09:24 PM
Chris_FL's Avatar
Registered User
Thread Starter
Join Date: Apr 2008
Location: Tampa, FL
Age: 39
Posts: 628
Rep Power: 44
Chris_FL is a jewel in the roughChris_FL is a jewel in the roughChris_FL is a jewel in the rough
I appreciate your detailed info, very helpful! Which is removed first? The Plastic cover, or the mirror?

  #11
Old 09-15-2014, 06:52 PM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road
You need to remove the mirror glass first in order to get behind the plastic cover to release the clips.

  #12
Old 02-14-2016, 04:24 AM
Luc's Avatar
Luc
Luc is offline
Registered User
Join Date: Feb 2016
Location: Evergem
Age: 54
Posts: 1
Rep Power: 0
Luc is on a distinguished road
Video remove side mirros on Porsche 958

How much force is needed? How to pull safe?

Originally Posted by TGED
You need to remove the mirror glass first in order to get behind the plastic cover to release the clips.

  #13
Old 02-21-2016, 03:59 AM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road
Just wrap a towel on a screwdriver and you can pry out the mirror, not too much force is needed, don't worry, you won't break anything.

  #14
Old 07-08-2016, 12:43 AM
rlong's Avatar
Registered User
Join Date: Jul 2016
Location: vancouver
Age: 33
Posts: 1
Rep Power: 0
rlong is an unknown quantity at this point
Originally Posted by TGED
You need to remove the mirror glass first in order to get behind the plastic cover to release the clips.
How do you release the clips? I could not find any clips in or behind the housing?

  #15
Old 07-08-2016, 07:22 PM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road
The housing is retained by a few clips, look carefully and you will see them.
