Need instructions on how to remove trunk panel.
#2
Certainly helps to post the year you're asking about.
From what I've seen in some PDFs there's at least two plastic rivets at the of the panel. But you need to remove some other trim too.
I've never removed any of those panels, so I don't know "how much" of the adjacent panels you "have to" remove in order to clear enough space for the side panel.
From what I've seen in some PDFs there's at least two plastic rivets at the of the panel. But you need to remove some other trim too.
WM 700319 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE
COMPARTMENT > PRELIMINARY WORK

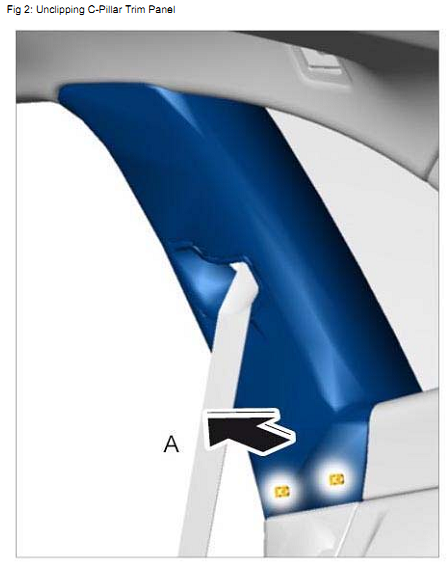

1. Remove C-pillar trim. → 706819 REMOVING AND INSTALLING C-PILLAR TRIM

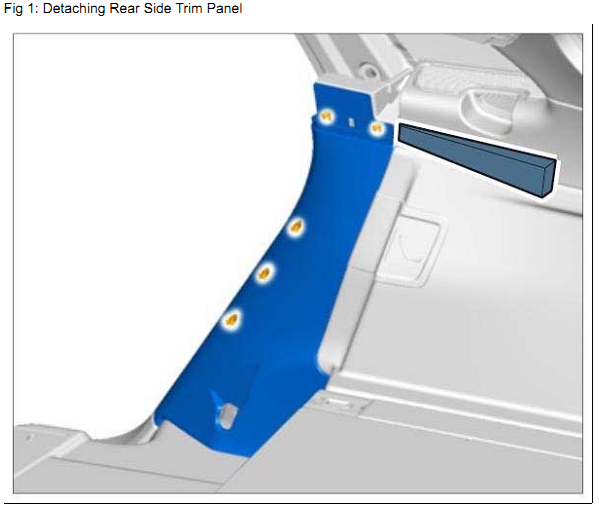

2. Remove the rear side trim panel. → 707519 REMOVING AND INSTALLING REAR SIDE TRIM PANEL

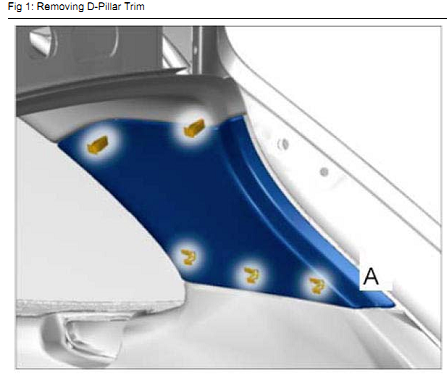

3. Remove D-pillar trim. → 706919 REMOVING AND INSTALLING D-PILLAR TRIM

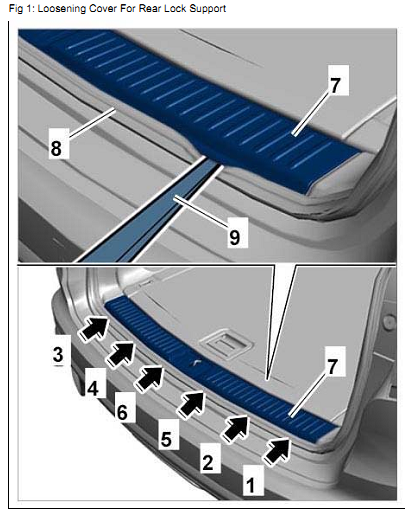

4. Remove cover for rear lock support. → 703919 REMOVING AND INSTALLING COVER FOR REAR LOCK SUPPORT
COMPARTMENT > PRELIMINARY WORK
1. Remove C-pillar trim. → 706819 REMOVING AND INSTALLING C-PILLAR TRIM
2. Remove the rear side trim panel. → 707519 REMOVING AND INSTALLING REAR SIDE TRIM PANEL
3. Remove D-pillar trim. → 706919 REMOVING AND INSTALLING D-PILLAR TRIM
4. Remove cover for rear lock support. → 703919 REMOVING AND INSTALLING COVER FOR REAR LOCK SUPPORT
#4
This is the right side (no left seems to be cited). I'd venture they're similar. It's those two top rivets that would likely be tricky. How much you'd need to remove to get all the other edges loose enough to remove it would be the trick.
The rest seem to be just those push-fit clips. I don't know that any of the others have the plastic rivets holding them.
The rest seem to be just those push-fit clips. I don't know that any of the others have the plastic rivets holding them.
#5
This is the right side (no left seems to be cited). I'd venture they're similar. It's those two top rivets that would likely be tricky. How much you'd need to remove to get all the other edges loose enough to remove it would be the trick.
The rest seem to be just those push-fit clips. I don't know that any of the others have the plastic rivets holding them.
The rest seem to be just those push-fit clips. I don't know that any of the others have the plastic rivets holding them.
#6
Sorry, no idea. I'm guessing they're the kind that are 'buttons' with the post being the piece that pushes apart the 'rivet' sections that go into the bodywork. A tee-shaped head, probably best removed with something like an upholstery tack remover or the proper panel removing tool. Sorta looks like a 'forked' lever with a screwdriver handle?
#7
C, D and rear lock trim.
C would also require removing the seat belt on the end down at the floor if you wanted to remove the panel entirely. Just 'setting it aside' probably wouldn't.
MIND YOURSELF, there are airbags in/around the C pillar area. Best have the battery disconnected to avoid them going off accidentally, or at least that's what the manual has to say about it.
C would also require removing the seat belt on the end down at the floor if you wanted to remove the panel entirely. Just 'setting it aside' probably wouldn't.
MIND YOURSELF, there are airbags in/around the C pillar area. Best have the battery disconnected to avoid them going off accidentally, or at least that's what the manual has to say about it.
