Hey guys. I'm pretty new to this forum, but had some ideas about upgrading the Pan Turbo. Does anyone know maximum ft. lbs. that the 7 speed can handle, and also what turbochargers Porsche is using on this car (Borg Warner?).

Thanks much



So no one knows anything?



Fairly uncharted at this point.



The turbos are integrated into the exhaust manifolds... that is Job 1.



I guess the only way to know is flash/upgrade until the trans starts to slip. The PDK in the 2010 turbo Champion built started to slip with the wick turned up. There is a thread regarding the vehcle and upgrades.



Here is what can be done right now:

1. Catback exhaust system.

2. Diverter valves.

All the other fun stuff like turbos, more boost, etc. are going to have to wait until one of the software developers cracks the code on the computer. I am sure they are working on this now. Once they do I see no reason why the 4.8 twin turbo wont support 650 bhp. The PDK clutches will be the weakest link but I bet they hold 650 bhp as well.

You can be sure that when Porsche did their development work on this engine platform that they built in all of the power upgrades that they would want to offer for the next several years. All they have to do is change the software.

The stock Pana Turbo hits a peak boost of 12 psi on our awd dyno and then the boost gradually bleeds down to only 6 psi towards redline. I would think that this engine could support 16 psi boost on 93 octane.



Speedart has a few packages available.

They have a 520hp 720NM package which consists of sport filters and a full exhaust. No ECU tuning required for this power. Full exhaust includes downpipes with sport cats, center resonator pipe, and sport mufflers with your choice of with or without the sound switch option.

The stage 3 550hp and 830nm upgrade consists of the 520hp kit plus an ECU upgrade. It works as a piggy back system so it can be unplugged before the car is brought in for service.

Last but not least 600hp and 850nm power kit includes the 550hp package plus the addition of modified turbo chargers.

Click each link to view the catalog on speedART's site.

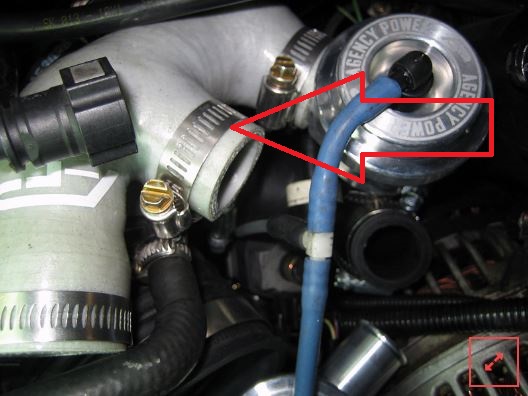

Anybody knows which brand is this / where to order these aftermarket F-hoses ?



Thats AGENCY POWER F hose.

Vivid racing sells them.


https://www.agency-power.com/shop/si...porsche-996tt/



Oh, appreciated for such quick response.
So it means that 996TT and Panny Turbo/Turbo S has the same F-hoses ?



No- The Panno hose is different.
https://www.nvmotorsport.com/porsche...valve-install/



OK. Seems that there is no aftermarket hoses for Panny Turbo diverter valves ... ? At least I have no success finding them



Just OEM hoses. They are fine.



yes they are, but when changing diverter valves they might brake, so I wouldn't mind to order silicone ones like for 996TT and replace them together with valves.

.... and what is p/n for OEM diverter valves for 970 Panamera Turbo just can't find them on diagram to check other stuff related ....
