I am looking to revert to the factory PORSCHE lettering (am going with PORSCHE 911S) on the rear of my car and ordered the parts online. Unfortunately, the PORSCHE letting came without the correct spacing between the letters. I have looked online for a template without any luck.

Would anyone be kind enough to provide measurements of the spacing between the letters of "PORSCHE"? How many mm between each of the letters? Or if anyone knows of a template like they use at the factory to put the lettering on, please let me know.

I have my dealer checking with the factory but so far, no luck.

Thanks in advance.



I have just "PORSCHE" and the letters are 4cm apart. Also, the "P" Starts at 14cm from the accent (crease) line that surrounds the left tail light (Also 14cm for the "E" from the Right Tail Light) . Hope this helps.



Thanks dhill911!!!!! Much appreciated.



I just looked at the back of mine and the PORSCHE letters are almost touching!
I only have 911 underneath due to Model delete (so no Carrera or S).
Wonder where or why that happened?



No Problem. . . . Happy to help



Hey guys, new around here so I need to get my post count up... Looking to get a 911 next year and am wondering about what I will do on the back too...

DBYT, I would be interested to see the outcome once finished. Porsche made it way too cluttered back there so you are doing the right thing IMO.

I like how you can opt to have "Porsche" and "911" from the factory, but don't like that it doesn't say "S" from the factory. You can tell by the tailpipes but it'd be nice to have it say "911 S" like yours will. Personally however i'd like the "S" in silver like the rest, red stands out a bit. just my personal preference but I think it'll look good either way.

Cheers,
Nick



Darren,

If you think it can help, I can put a piece of paper on top of it and mark the letters one by one, so you can get the exact spacing.

Also, I believe your dealer may have the template for correct spacing. I saw it on the National Geographic Documentary (posted here).

If you want me to do that, i can mail it to you.

Ale



I saw a recent video about the Porsche factory. In the segment depicting the installing of the rear body work showed a stencil type metal plate they use to install the lettering. It had cutouts for the letter placement



Thanks for the offer ale! I think I will wait to see whether the dealer can get that stencil template from the factory. If not, I will head to the dealer and make my own template.



Richard,
I saw that as well, that's why I am getting my dealer to check whether their service dept has it and if not, why not. You would think that every Porsche dealer would have this...



Or at least their body shop..

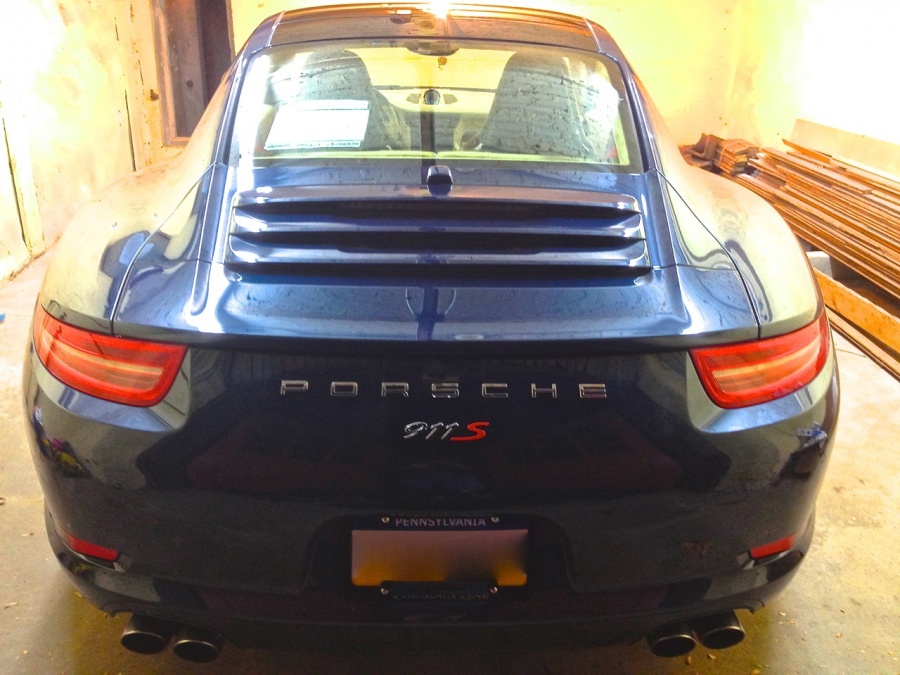

After much nashing of teeth and measurement, with a few corrections due to the contour of the rear end, I managed to get the factory PORSCHE lettering back on. Looks straight to me. Also added 911 with a red S.

To my eye, the aesthetics look better than having the 997 Carrera and S on the back. Maybe the chrome lettering provided a more up to date look and I think the font size complements the new back end better.

Now on to the next mod...



This looks fantastic! Congrats on getting it right.



hmmm, look like it is .01 inch too far to the right to me... please try again ; D



Thanks Fester...let's see how it looks in the cold hard light of day...
