have you tried to spin the shaft at the back of the trans to allow the mainshaft to line up? if its not in nuetral it may not be allowing the splines to line up and slide the mainshaft in



I am removing not installing!

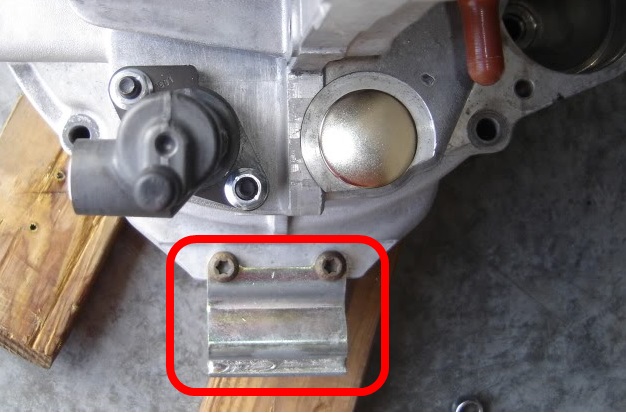

Isn't there a hook at the,top of the transaxle designed to help in a crash? Could that be hanging it up?



ok my mistake thought you were installing. check the lifting hook. also the pass side upper stud if removed helps in tilting the trans. its longer than the others double nut it and back it out



Stupid hook....I'll remove it tonight.



Might want to keep it. It forces the transmission under the car and stops the transmission from entering the cabin in a severe rear end collision.



Just for gearbox removal. I plan to reinstall it. Thx



Caught the sissy hyd slave line and started leaking pentosin but gearbox is finally out. Time to regroup, clean parts, and get on with the program.

Note to others, this isn't trivial and I've built race cars from the ground up. RECOMMEND dropping the motor (and I'm not even to install yet).



Buggered up line is the best reason for the gt2 slave conversion. And fwiw your about 4 hrs from dropping the motor. Do it now before the real fun begins!! Its super easy with the trans already out



Thanks, for the intel ... I guess I'll also be pinning lines, when I do my clutch.



repalce the water pump as well and any and all rubber hoses and tie wrap every vacuum and boost line you can find. SO much easier with the motor out!

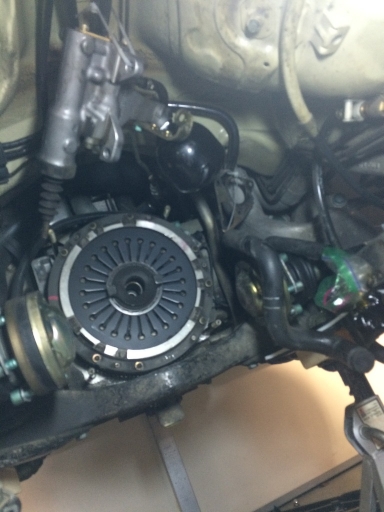

I noticed the DM flywheel comes with a bolt plate likely to better distribute the bolt load as well as protect the flywheel mounting surface from the bolt. See attached. SM flywheel has no such feature. No worries? Am I missing something? Thanks in advance.



cant comment on that but be aware the bolts are one time use and you need a flywheel lockout tool to secure the flywheel from spinning when torquing the bolts



We always used to use one of the bell housing bolts and a large screwdriver to lock the flywheel - though it is a bit of a juggling act if you are alone. Still, never bothered to purchase or make a flywheel lock.



that may work on a dual mass flywheel but chip a tooth on a 4000$ clutch setup and you will wish you had spent 30 minutes making a flywheel lock
