Brake master cylinder question ???? 27mm
#16
http://www.autozone.com/autozone/acc...er=183672_0_0_

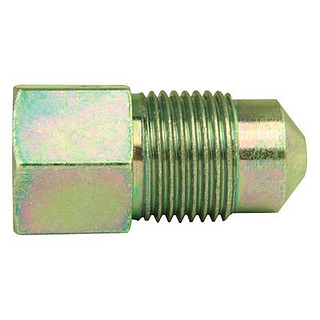

M12x1.0 bubble to 3:8-24 inverted by pwdrhound1, on Flickr
Are you talking about having to sand or modify the autozone M12 adapter that actually threads into the Master cylinder OR are you talking about having to modify the 3/8-24 tube nut that is used on the 3/16 (4.75mm) brake line that threads into the female inverted flare portion of the adapter (that is threaded into the Master)? I assume you fabricated a new line with a M10x1.0 bubble fitting on one end (the one that screws into the PSM pump) and a 3/8-24 inverted double flare fitting on the other end that screws into the Autozone adapter that is on the Master? However you state that you made a line with inverted flare fittings on both ends which would require you to also use an adapter on the PSM pump also since that is set up for a M10x1.0 bubble fitting. Confused....
Last edited by pwdrhound; 02-18-2013 at 08:06 PM.
#17
Citroen tools from the UK makes a unit that is very affordable that does a decent job of double flairs. It is 10x the tool that any of my snap-on flairing tools are; or any other brand I have found locally. They can be found on e-bay for a fairly cheap price. They are the ones in the blue steel case.
http://www.ebay.co.uk/sch/sis.html?_...d=250535709474
Or the Sykes tool
http://www.ebay.co.uk/itm/Vice-Bench...item48455e51e1
Last edited by Engine Guy; 02-19-2013 at 08:47 AM.
#18
Tim Citroen tools from the UK makes a unit that is very affordable that does fairly decent job of double flairs. It is 10x the tool that any of my snap-on flairing tools are; or any other brand I have found locally. They can be found on e-bay for a fairly cheap price. They are the ones in the blue steel case.
http://www.ebay.co.uk/sch/sis.html?_...d=250535709474
http://www.ebay.co.uk/sch/sis.html?_...d=250535709474
http://www.summitracing.com/search/b...ring-tool-kits
#19
Ok, I'm lost here. Below is the link to the Autozone M12 bubble male adapter that crews into the Master cylinder? Is this what you are modifying and why since it screws fully into the Master and engages without a problem? The male portion is a M12x1.0 bubble and the female is 3/8-24 inverted.
http://www.autozone.com/autozone/acc...er=183672_0_0_
M12x1.0 bubble to 3:8-24 inverted by pwdrhound1, on Flickr
Are you talking about having to sand or modify the autozone M12 adapter that actually threads into the Master cylinder OR are you talking about having to modify the 3/8-24 tube nut that is used on the 3/16 (4.75mm) brake line that threads into the female inverted flare portion of the adapter (that is threaded into the Master)? I assume you fabricated a new line with a M10x1.0 bubble fitting on one end (the one that screws into the PSM pump) and a 3/8-24 inverted double flare fitting on the other end that screws into the Autozone adapter that is on the Master? However you state that you made a line with inverted flare fittings on both ends which would require you to also use an adapter on the PSM pump also since that is set up for a M10x1.0 bubble fitting. Confused....
http://www.autozone.com/autozone/acc...er=183672_0_0_
M12x1.0 bubble to 3:8-24 inverted by pwdrhound1, on Flickr
Are you talking about having to sand or modify the autozone M12 adapter that actually threads into the Master cylinder OR are you talking about having to modify the 3/8-24 tube nut that is used on the 3/16 (4.75mm) brake line that threads into the female inverted flare portion of the adapter (that is threaded into the Master)? I assume you fabricated a new line with a M10x1.0 bubble fitting on one end (the one that screws into the PSM pump) and a 3/8-24 inverted double flare fitting on the other end that screws into the Autozone adapter that is on the Master? However you state that you made a line with inverted flare fittings on both ends which would require you to also use an adapter on the PSM pump also since that is set up for a M10x1.0 bubble fitting. Confused....
The adapter you that was shown earlier was the exact same one I used and another poster used and had to modify it - I decided not to go this route. The cone shaped end of the adapter is too long in order for the threads to engage in the master cylinder female threaded opening (12mm), and
#20
I made a new line that has a 10mm and 12mm fitting on it. The 12 goes into the master cylinder in the rear port and the other 10mm end goes into the ABS pre-pump. As far as I know, I went through every option with Suncoast in trying to find a compatible brake line that would simply plug in - no such luck.
The adapter you that was shown earlier was the exact same one I used and another poster used and had to modify it - I decided not to go this route. The cone shaped end of the adapter is too long in order for the threads to engage in the master cylinder female threaded opening (12mm), and
The adapter you that was shown earlier was the exact same one I used and another poster used and had to modify it - I decided not to go this route. The cone shaped end of the adapter is too long in order for the threads to engage in the master cylinder female threaded opening (12mm), and
Also, what tool did you use to make the good bubble flare on your new line? A well make flare is critical for a good seal as you know.
Thx...
#21
Ok, gotcha. So you bought a 3/16 (4.75mm) same size as OEM brake line and put a M10x1.0 bubble flare nut on one side and a M12x1.0 bubble flare nut on the other side. I assume there were no issues with the small 3/16 line bubble flare sealing properly on the larger M12 outlet port on the brake master? The reason I ask is that normally the larger 1/4" brake line that is used with the larger M12 port (as is used on the front M12 port of the brake master) creates a much larger bubble flare with a greater sealing surface.
Also, what tool did you use to make the good bubble flare on your new line? A well make flare is critical for a good seal as you know.
Thx...
Also, what tool did you use to make the good bubble flare on your new line? A well make flare is critical for a good seal as you know.
Thx...
My lines are very tight and no leaks. I also replaced my brake booster while I was in there.
#22
So after a lot of hair pulling I finally bought a professional brake line flaring tool which made making OEM quality bubble flares very simple and easy. I tried the simple flaring tools available at Autozone and other auto parts places but was not happy with the quality of the flares created by these tools. I ended up making a brake line with a 10mm nut on one end and a 12mm nut on the master cylinder end. I used a tubing bender and the result was a line on par with the quality of the OEM brake line. FYI, as was suggested in a previous post, using a 12mm/AN along with a 10mm/AN fitting adapter and connecting to a braided steel brake line will not work as the 12mm portion of the 12mm/AN adapter is not deep enough to engage and seal the base of the brake master port. I looked at all the options and making a new line is really the only way to go.

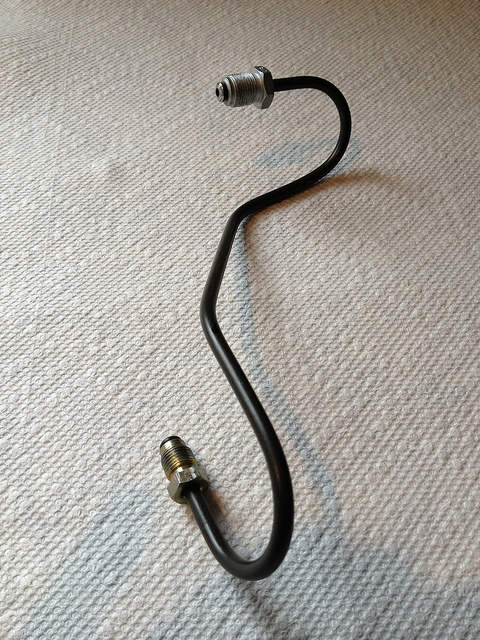

Brake line 12mm:10mm by pwdrhound1, on Flickr
12mm brake line by pwdrhound1, on Flickr
12mm 997master brake line by pwdrhound1, on Flickr
Brake line 12mm:10mm by pwdrhound1, on Flickr
12mm brake line by pwdrhound1, on Flickr
12mm 997master brake line by pwdrhound1, on Flickr
#28
I'm out of town for the next week or so but should be able to get a few made up for the couple of guys here I guess. I will say one thing, the difference in pedal feel is huge with the 27mm master!! I have the 997.2 PCCB Brakes with 380mm front steel floating rotors and 350mm rear steel floaters using PFC race pads and the pedal is hard as a rock after the conversion. It feels like you are stepping on a brick with a definite hard end point. My friend has a 2008 997 GT3 with the identical rotor/caliper/pad set up and the brake pedal feel is exactly the same on both cars. It's definitely a huge improvement over the mushy OEM 25mm brake master. A very worthwhile mod.
