Hi learned folks, my AC stopped working recently and I found the compressor clutch not pulling in, I could make it work by supplying 12v, so I have pulled the compressor off and found the small spade terminal was not connected at the other end.

Question where does it plug into, I have search and cant find the other end....please give me some pointers, feeling dumb here found the problem cant fix it!!

thanks
mike



There is only one wire going to the compressor which is green and yellow and goes to main plug X59/1 (25 pins) in the engine compartment right side.
Low pressure or lost of refrigerant can also cause the compressor to stop working. Even if you bypass the relay a low pressure condition will cause the compressor to stop working.

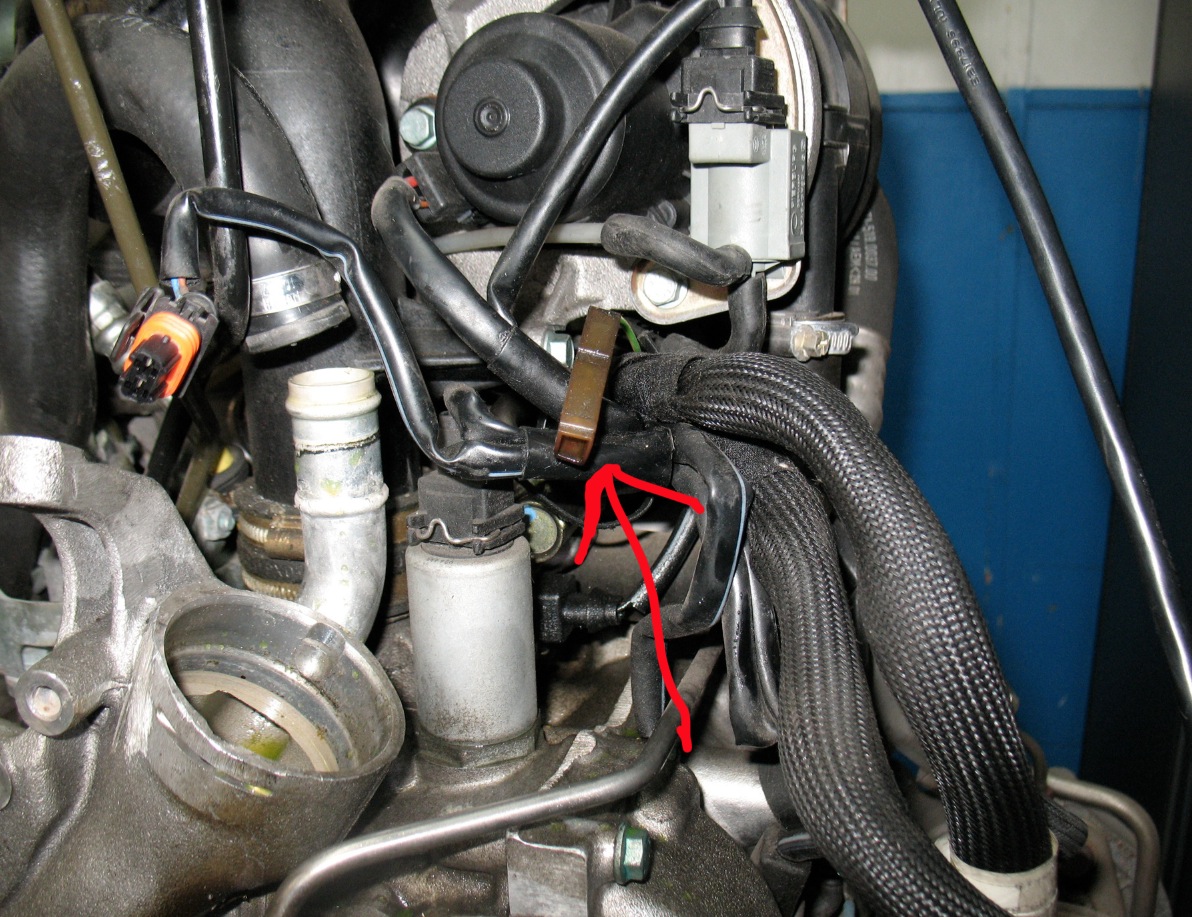

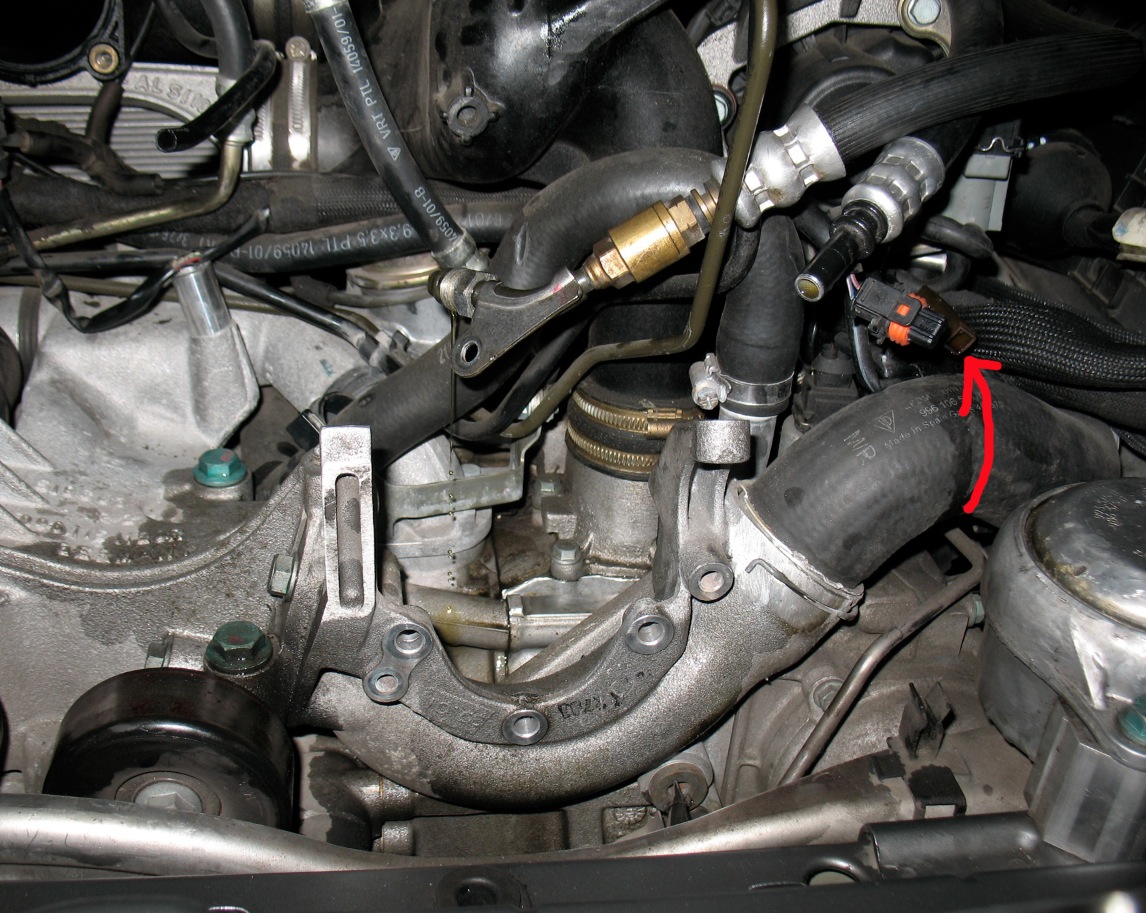

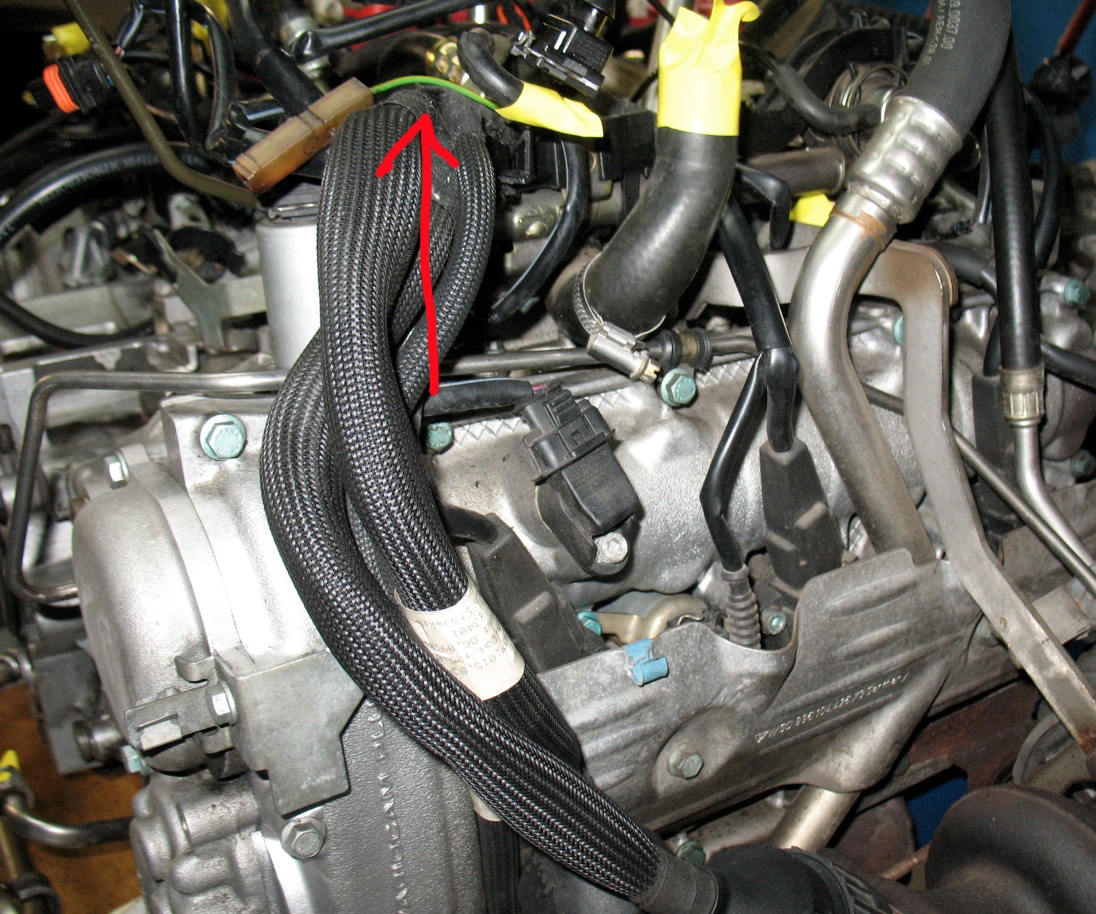

If you look at the picture you will found the connector for the compressor wire. This connector is located on the right side of the engine over the coolant pipe connection. The last picture is with the engine in place but you can barely see the connector.



amazing help - many thanks jfilip



Welcome Mike. Hope you will resolve your problem.



All fixed and blowing nice and cold......thanks
