DIY Painted rear Bumperettes

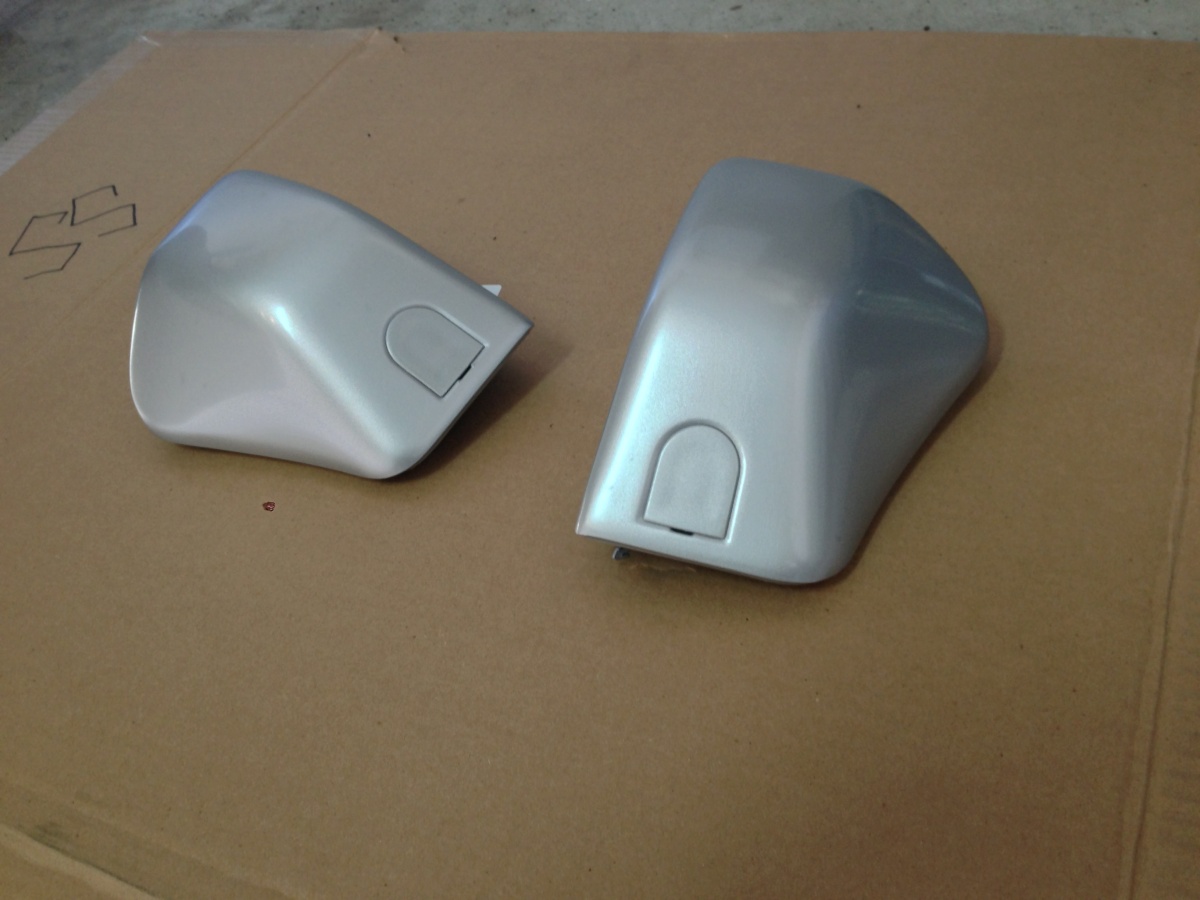

So I decided to try my hand painting my bumperettes, the overall process wasn't too hard but was time consuming. The end results came out well, just need to take your time.

1) Sand down the finish with 120grit to get rid of the pebble finish.

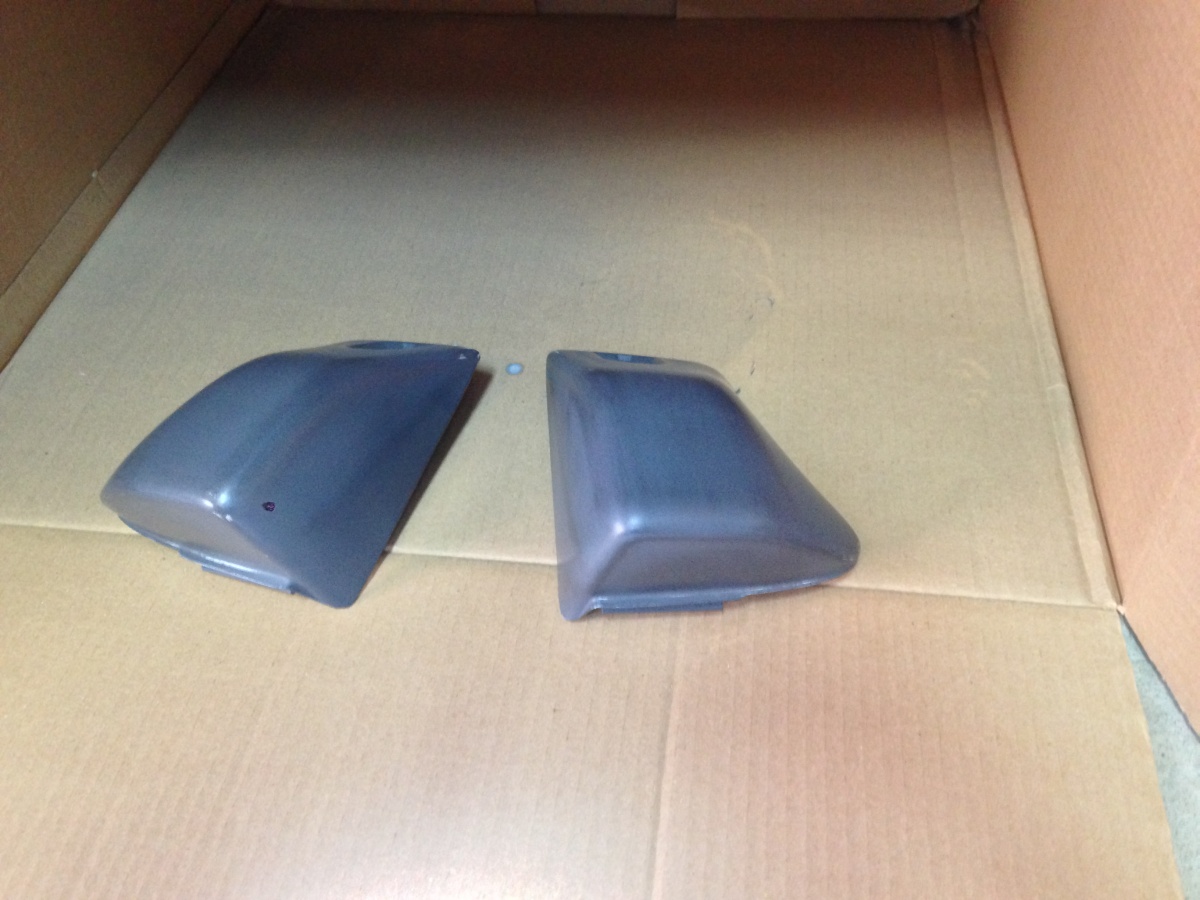

2) Primer with high solids or high hiding primer, 2-3 coats. Sand with 600.
3) Primer with normal sandable primer. Sand with 600 grit again. Don't go too far and rub through to the original finish.

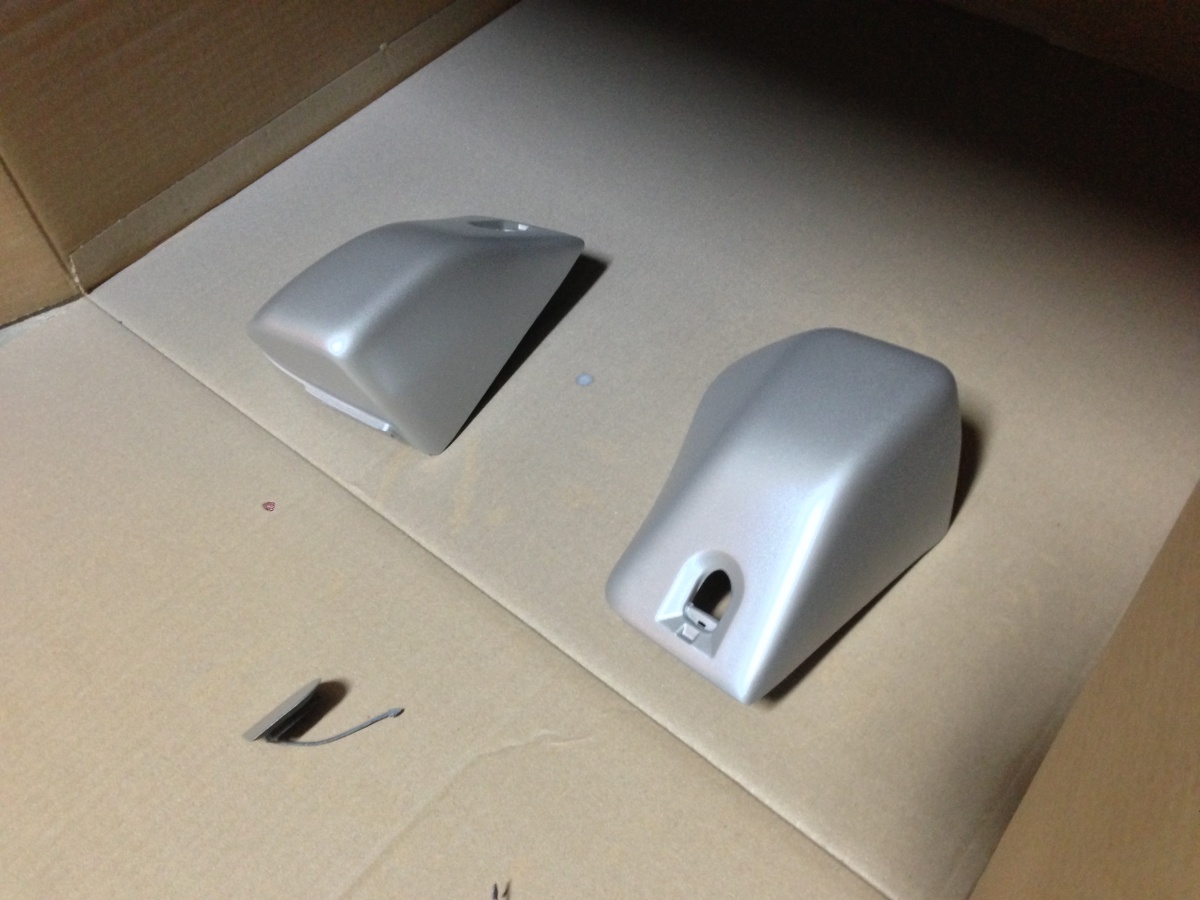

4) Paint with color of your choice, 3 coats. I ordered a 16oz spray can from an online site. Was way more than enough to cover.
5) Clear coat, 5 layers 15 mins apart. Two choices here, Enamel or Lacquer. People are split on what to use. Enamel is harder but less flexible, since the bumperettes are flexible I used Lacquer which is less prone to cracking I'm told. Start with a light layer, then spray more with each coat. Don't get too crazy or it will run. Let cure for 48 hours.
6) Wet sand with 2000grit using water and soap. Let sand paper soak in water for 10 mins before sanding, help keep hard edges from accidently scratching. Will remove orange peel (where clear coat looks like surface of an orange) and smooth out nicely.
7) Polish with a compound to bring back shine. Parts will be dull looking after wet sanding. Compound will make them super shiny again.
8) Wait 1 week before waxing. Paint and clear is still off gassing for 7 days, do not wax until after that time. You can install before waxing, no big deal once clear is cured.

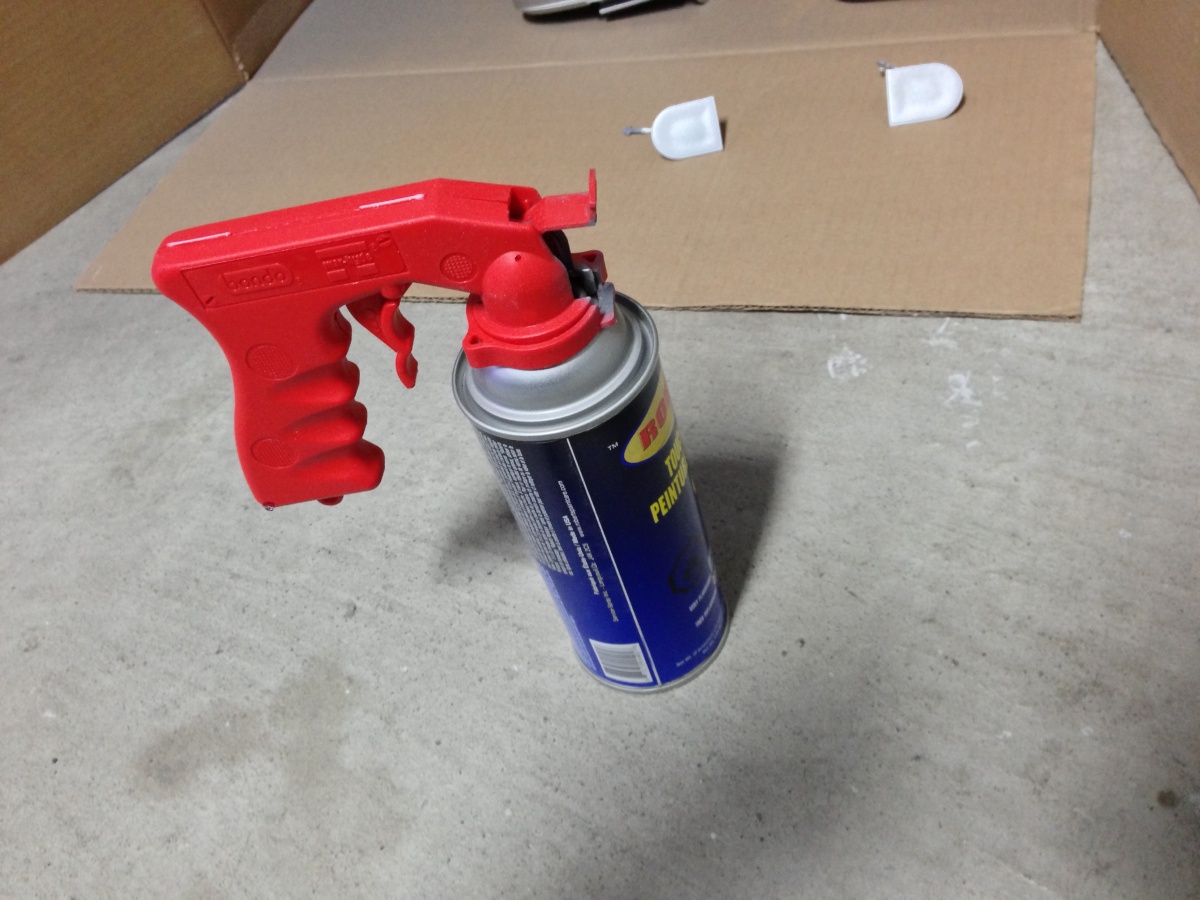

Cost about $70 in paint and supplies to do, was very easy. Just take your time and don't get too excited with paint in any one coat. Much better off to spray multiple light coats. I bought a paint can handle to paint with (pic 3) makes painting with cans so much easier and highly recommended. Running paint or clear is bad bad bad...

[edit] Quick note, ignore the pink dot on the pictures, something happened to the camera in my iphone5 and I need to take it back to Apple.

Attached Thumbnails Click image for larger version

Name:	b01.jpg
Views:	188
Size:	253.3 KB
ID:	227846   Click image for larger version

Name:	b02.jpg
Views:	191
Size:	244.9 KB
ID:	227847   Click image for larger version

Name:	b03.jpg
Views:	609
Size:	263.8 KB
ID:	227848   Click image for larger version

Name:	b04.jpg
Views:	175
Size:	246.4 KB
ID:	227849   Click image for larger version

Name:	b05.jpg
Views:	625
Size:	197.7 KB
ID:	227850


Last edited by King James; 05-26-2013 at 09:11 AM.
  #2
Old 04-03-2013, 02:34 PM
'02996ttx50's Avatar
Registered User
Join Date: May 2009
Location: la
Posts: 7,971
Rep Power: 602
'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !
on my never ending *list*. i was gonna order some from bumperplugs as i'm short on time and skill .. but nice job.

  #3
Old 04-03-2013, 02:37 PM
King James's Avatar
Registered User
Thread Starter
Join Date: Nov 2012
Location: Toronto
Posts: 613
Rep Power: 65
King James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond repute

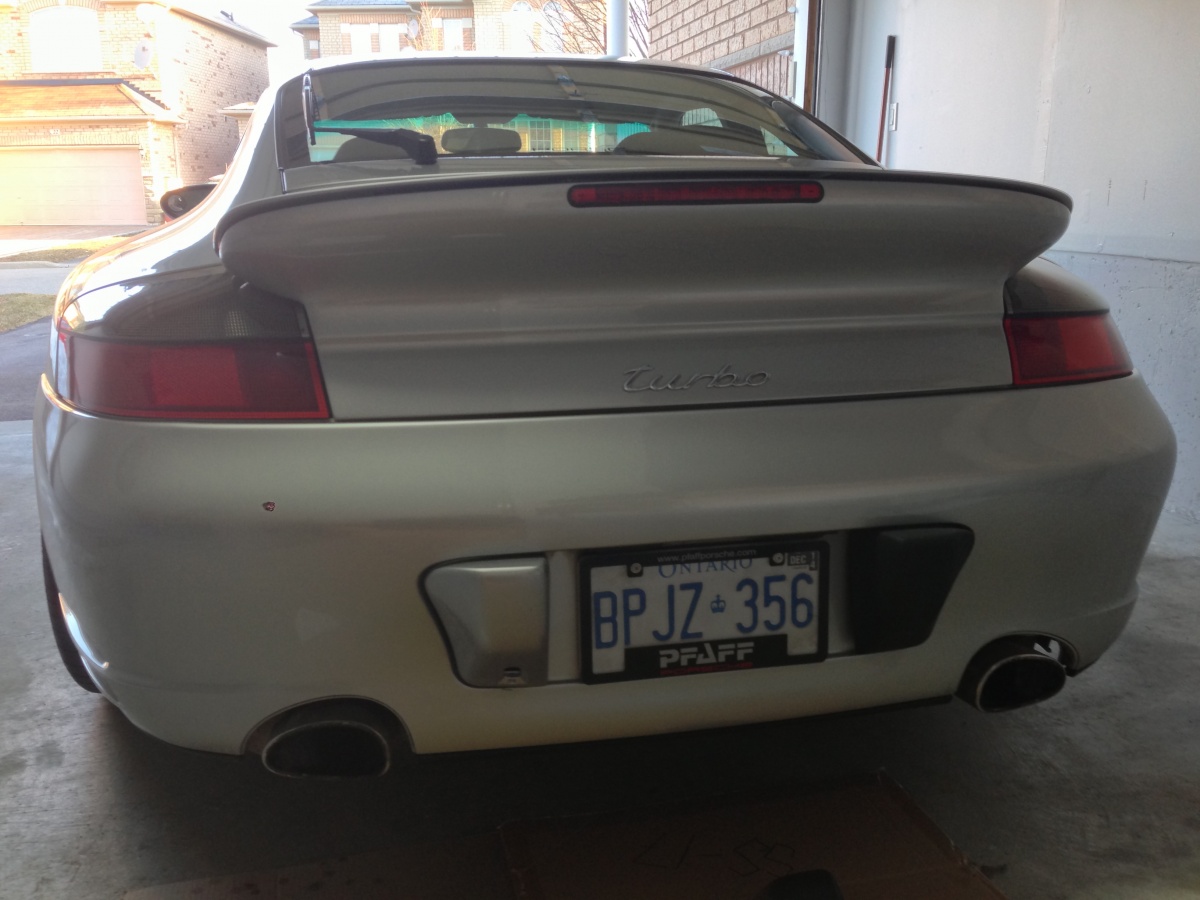

And a few shots of them on the car. Color matches perfectly and looks how the car should have came

Attached Thumbnails Click image for larger version

Name:	b06.jpg
Views:	270
Size:	221.3 KB
ID:	227853   Click image for larger version

Name:	B07.jpg
Views:	183
Size:	288.7 KB
ID:	227854   Click image for larger version

Name:	b08.jpg
Views:	671
Size:	404.7 KB
ID:	227855   Click image for larger version

Name:	b09.jpg
Views:	626
Size:	506.7 KB
ID:	227856
  #4
Old 04-03-2013, 02:39 PM
'02996ttx50's Avatar
Registered User
Join Date: May 2009
Location: la
Posts: 7,971
Rep Power: 602
'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !
agreed. looks weird, the black ones, but all my stuff/bits are black against silver.. so blk bumperettes are a lil less weird. i'm gonna paint then black splitters

  #5
Old 04-03-2013, 09:54 PM
TXTurbo996's Avatar
Registered User
Join Date: May 2008
Location: Dallas TX
Posts: 535
Rep Power: 48
TXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud of
Looks good!

  #6
Old 04-04-2013, 03:31 PM
gdalton's Avatar
Registered User
Join Date: Sep 2012
Location: Los Angeles
Posts: 50
Rep Power: 14
gdalton will become famous soon enough
Looks great, luckly for me mine were already done other wise I would have done this. It makes such a difference!

  #7
Old 04-04-2013, 06:59 PM
MishaDesigns's Avatar
Former Vendor
Join Date: Sep 2004
Location: SOCAL
Posts: 2,139
Rep Power: 0
MishaDesigns has a reputation beyond reputeMishaDesigns has a reputation beyond reputeMishaDesigns has a reputation beyond reputeMishaDesigns has a reputation beyond reputeMishaDesigns has a reputation beyond reputeMishaDesigns has a reputation beyond reputeMishaDesigns has a reputation beyond reputeMishaDesigns has a reputation beyond reputeMishaDesigns has a reputation beyond reputeMishaDesigns has a reputation beyond reputeMishaDesigns has a reputation beyond repute
This gives the car a cleaner look. Nice job; a worthwhile DIY project.

  #8
Old 04-05-2013, 05:50 PM
mrmaass's Avatar
Registered User
Join Date: Jul 2012
Location: Sarasota, FL
Posts: 644
Rep Power: 69
mrmaass has a reputation beyond reputemrmaass has a reputation beyond reputemrmaass has a reputation beyond reputemrmaass has a reputation beyond reputemrmaass has a reputation beyond reputemrmaass has a reputation beyond reputemrmaass has a reputation beyond reputemrmaass has a reputation beyond reputemrmaass has a reputation beyond reputemrmaass has a reputation beyond reputemrmaass has a reputation beyond repute
I wish I had read this before I ordered mine from Bumperplugs.com a few weeks ago but I will definitely adapt the DIY to my center console because I don't want to pay close to $600 to get a painted one.
Nice job!

  #9
Old 04-05-2013, 06:22 PM
smistry007's Avatar
Registered User
Join Date: Jul 2005
Location: Palos Verdes, California
Age: 58
Posts: 550
Rep Power: 70
smistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond repute
nice DIY project
thanks for posting!

  #10
Old 04-06-2013, 12:20 AM
machinegunt's Avatar
Registered User
Join Date: Apr 2012
Location: Boise, Idaho
Age: 50
Posts: 913
Rep Power: 97
machinegunt Is a GOD !machinegunt Is a GOD !machinegunt Is a GOD !machinegunt Is a GOD !machinegunt Is a GOD !machinegunt Is a GOD !machinegunt Is a GOD !machinegunt Is a GOD !machinegunt Is a GOD !machinegunt Is a GOD !machinegunt Is a GOD !
Nice!!!

  #11
Old 04-06-2013, 09:44 PM
nick49's Avatar
Registered User
Join Date: May 2010
Location: Utah
Posts: 1,062
Rep Power: 105
nick49 Is a GOD !nick49 Is a GOD !nick49 Is a GOD !nick49 Is a GOD !nick49 Is a GOD !nick49 Is a GOD !nick49 Is a GOD !nick49 Is a GOD !nick49 Is a GOD !nick49 Is a GOD !nick49 Is a GOD !
Thanks for posting. I love DIY projects. It puts the owners heart and soul, sweat into the car.

I heard you can wipe down the parts with acetone to remove the pebbled finish. I might try my rocker panels and front spoiler lip.

  #12
Old 04-07-2013, 05:37 AM
hdp951s's Avatar
Registered User
Join Date: Apr 2013
Location: Eastern NC
Posts: 140
Rep Power: 26
hdp951s is a splendid one to beholdhdp951s is a splendid one to beholdhdp951s is a splendid one to beholdhdp951s is a splendid one to beholdhdp951s is a splendid one to beholdhdp951s is a splendid one to beholdhdp951s is a splendid one to beholdhdp951s is a splendid one to behold
Very nice, thanks for the write up

  #13
Old 04-07-2013, 09:53 AM
King James's Avatar
Registered User
Thread Starter
Join Date: Nov 2012
Location: Toronto
Posts: 613
Rep Power: 65
King James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond reputeKing James has a reputation beyond repute
Originally Posted by nick49
Thanks for posting. I love DIY projects. It puts the owners heart and soul, sweat into the car.

I heard you can wipe down the parts with acetone to remove the pebbled finish. I might try my rocker panels and front spoiler lip.
I tried acetone but it didn't even touch it. Not sure if you have to bathe them in it but wiping from a rag didn't do anything at all.

The initial sanding isn't that big a deal, was about 30 mins a bumperette. Just smooth em down with 120 then 200 to take the coarse lines out. From there it's just painting and light sanding. Pretty easy job and fun too.

  #14
Old 04-07-2013, 10:05 AM
bbywu's Avatar
Registered User
Join Date: Jan 2007
Location: OR Room 5
Posts: 10,784
Rep Power: 1006
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !
From the photos, the quality of your paint job really looks good! Nice job!

  #15
Old 04-07-2013, 11:14 AM
BiteEmNBeatEm's Avatar
Registered User
Join Date: Jun 2010
Location: SA, TX
Posts: 544
Rep Power: 47
BiteEmNBeatEm has much to be proud ofBiteEmNBeatEm has much to be proud ofBiteEmNBeatEm has much to be proud ofBiteEmNBeatEm has much to be proud ofBiteEmNBeatEm has much to be proud ofBiteEmNBeatEm has much to be proud ofBiteEmNBeatEm has much to be proud ofBiteEmNBeatEm has much to be proud ofBiteEmNBeatEm has much to be proud of
Originally Posted by King James
So I followed this DIY from Rennlist: http://forums.rennlist.com/rennforum...nted-pics.html

[edit] Quick note, ignore the pink dot on the pictures, something happened to the camera in my iphone5 and I need to take it back to Apple.

I was just about to say that the bumperettes came out so good you can now repair that chip on your bumper till I realized it was on each picture in the same frame place then I saw you edit note at the bottom...LOL

either way good job on the painting, make a huge diffrence, the black bumperettes look outdated
