anything available for more adjustment in rear alignment?

so after I lowered the car, and run 315 tires, the best alignment I could get was a -1.55 on the rear. Im sick of eating the inside line of the tire while the rest of the tire looks unused. Is there any camber plates or anything out there available to help get me to a 0 degree camber?

  #2
Old 10-23-2013, 10:58 AM
sinKing's Avatar
Registered User
Join Date: Feb 2011
Location: Austin
Posts: 1,115
Rep Power: 181
sinKing Is a GOD !sinKing Is a GOD !sinKing Is a GOD !sinKing Is a GOD !sinKing Is a GOD !sinKing Is a GOD !sinKing Is a GOD !sinKing Is a GOD !sinKing Is a GOD !sinKing Is a GOD !sinKing Is a GOD !
What is your rear toe?

  #3
Old 10-23-2013, 09:07 PM
Twinturbofan's Avatar
Registered User
Join Date: Mar 2011
Location: Orange County CA
Posts: 107
Rep Power: 31
Twinturbofan has much to be proud ofTwinturbofan has much to be proud ofTwinturbofan has much to be proud ofTwinturbofan has much to be proud ofTwinturbofan has much to be proud ofTwinturbofan has much to be proud ofTwinturbofan has much to be proud ofTwinturbofan has much to be proud ofTwinturbofan has much to be proud ofTwinturbofan has much to be proud of
I run -2.0 in rear, GT3 ride height, with minimal tire wear problem. I would agree that Incorrect toe is much more likely to be your problem.

  #4
Old 10-23-2013, 09:13 PM
TXTurbo996's Avatar
Registered User
Join Date: May 2008
Location: Dallas TX
Posts: 535
Rep Power: 48
TXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud of
It's your toe in. I run -1.9 rear camber and while the rear does wear a bit faster than the rest of the tire, it's not too bad.

Rear adjustable control arms would help, but you may find you need to roll the fenders with those 315's. I'm running H&R springs with 315's and the local independent Porsche shop said if they pushed out the tires, I'd be at risk of fender rubbing.

  #5
Old 10-23-2013, 10:52 PM
VGLNTE1's Avatar
Registered User
Thread Starter
Join Date: Dec 2011
Location: Illinois
Posts: 1,512
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !

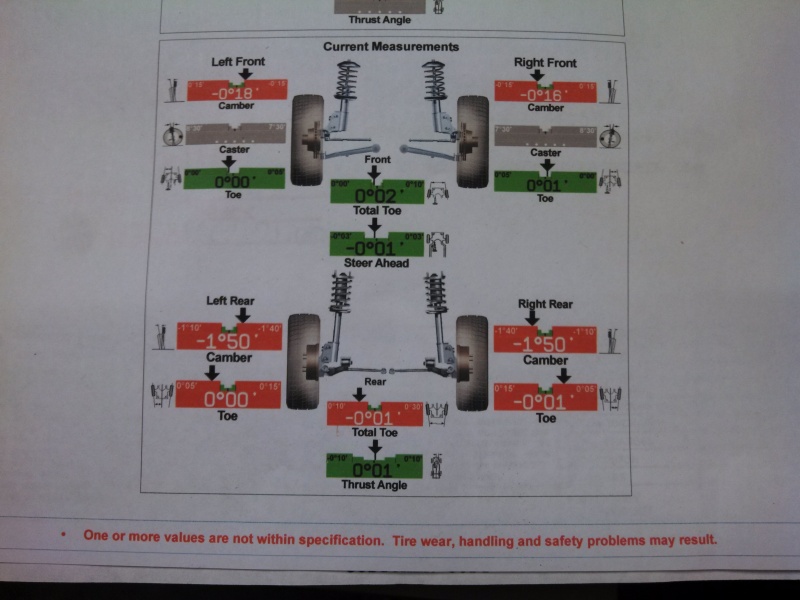

I rolled the fenders, they rubbed horrible. My tires look brand new except for 2" on the inner side. Already bands showing through. Here is my alignment


Attached Thumbnails Click image for larger version

Name:	IMG_20131023_234708_517.jpg
Views:	464
Size:	141.0 KB
ID:	293075
  #6
Old 10-23-2013, 11:06 PM
993GT's Avatar
Registered User
Join Date: Jul 2013
Posts: 1,533
Rep Power: 314
993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !
I'd bet you have some worn rear bushings which are allowing toe in shift under load, should also dial in some rear toe-in while under there...

  #7
Old 10-23-2013, 11:19 PM
VGLNTE1's Avatar
Registered User
Thread Starter
Join Date: Dec 2011
Location: Illinois
Posts: 1,512
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !
Something is sure up and pissing me off. When the car is sitting the tire sits flush. When I took them off,I noticed the wear is so bad, its actually worn down the side of the tire where the lettering is.

  #8
Old 10-23-2013, 11:39 PM
SamboTT@ByDesign's Avatar
Former Vendor
Join Date: Sep 2003
Location: L.A.
Posts: 4,901
Rep Power: 0
SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !
V the car cannot feel right. You will solve your issue by adding in toe. Try .20 in. What is happening is that under load the tires are opening outward shredding themselves. It make s the car feel super loose too.

Try this:
- Max front camber negative. (won't be much). Your rear camber is as low as it will get.
- Front toe 0.0 or green.
- Rear toe .20 in.
You will love the feel and the tires will wear better. It's a bit more rear toe than stock because with 480-500 hp you will squat more than stock and tow out 15-25deg.

I guarantee you will be happy. Let me know if I can help with anything.

  #9
Old 10-23-2013, 11:41 PM
993GT's Avatar
Registered User
Join Date: Jul 2013
Posts: 1,533
Rep Power: 314
993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !
^ exactly...if wanting to run on the 'edge' of alignment numbers, need monoball/bearings vs rubber bushings, way too much deflection under heavy load

  #10
Old 10-24-2013, 07:58 AM
VGLNTE1's Avatar
Registered User
Thread Starter
Join Date: Dec 2011
Location: Illinois
Posts: 1,512
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !

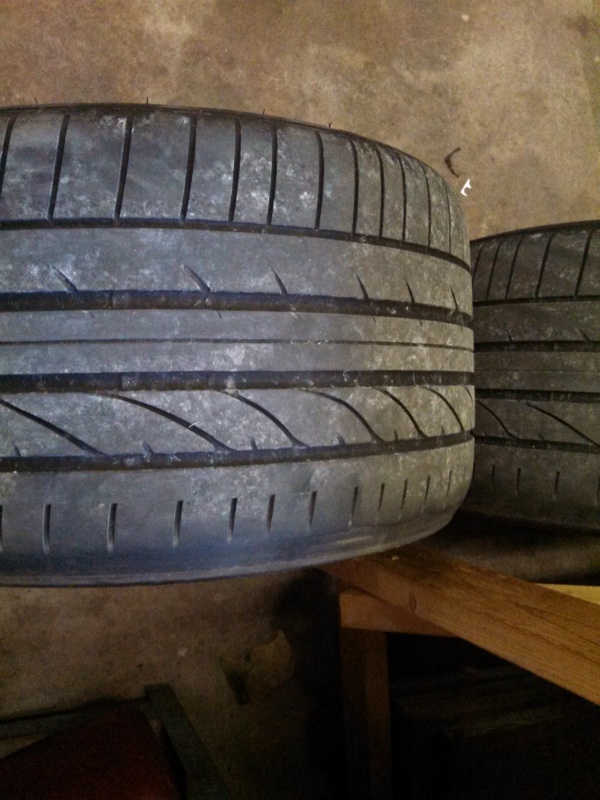

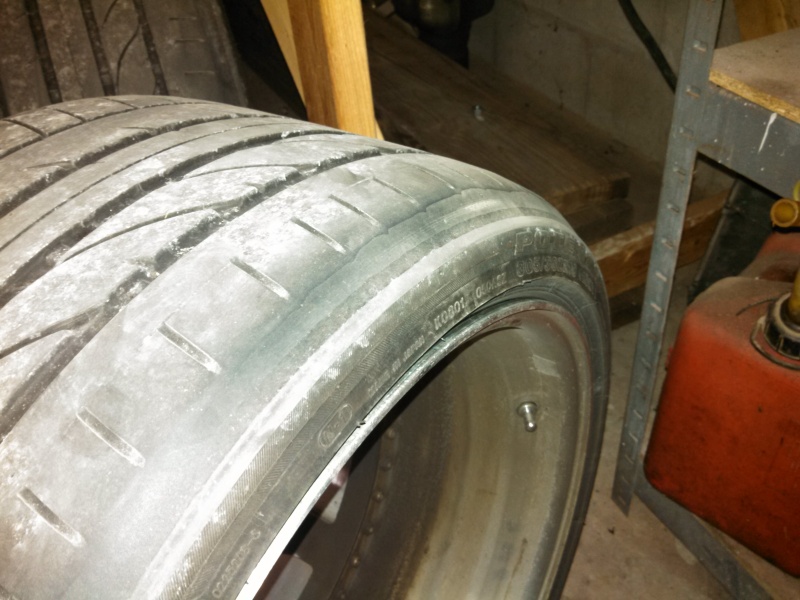

Here is my 5th set of tires in a year


Attached Thumbnails Click image for larger version

Name:	IMG_20131024_085425_851.jpg
Views:	442
Size:	173.9 KB
ID:	293096   Click image for larger version

Name:	IMG_20131024_085409_243.jpg
Views:	442
Size:	186.6 KB
ID:	293097
  #11
Old 10-24-2013, 08:02 AM
VGLNTE1's Avatar
Registered User
Thread Starter
Join Date: Dec 2011
Location: Illinois
Posts: 1,512
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !
Originally Posted by SamboTT
V the car cannot feel right. You will solve your issue by adding in toe. Try .20 in. What is happening is that under load the tires are opening outward shredding themselves. It make s the car feel super loose too.

Try this:
- Max front camber negative. (won't be much). Your rear camber is as low as it will get.
- Front toe 0.0 or green.
- Rear toe .20 in.
You will love the feel and the tires will wear better. It's a bit more rear toe than stock because with 480-500 hp you will squat more than stock and tow out 15-25deg.

I guarantee you will be happy. Let me know if I can help with anything.

I have noticed that after i lowered it, and the alignment it has felt loose under initial load. Like all 4 tires were spinning. How can I adjust this at home? My alignment shop is over an hour away, plus I don't want to spend 300$ for a bolt to turn a couple mm.

  #12
Old 10-24-2013, 10:51 AM
993GT's Avatar
Registered User
Join Date: Jul 2013
Posts: 1,533
Rep Power: 314
993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !
something WAY wrong, that's like 15degrees of camber not 1.5 .....

  #13
Old 10-24-2013, 11:23 AM
VGLNTE1's Avatar
Registered User
Thread Starter
Join Date: Dec 2011
Location: Illinois
Posts: 1,512
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !
What could it be?

  #14
Old 10-24-2013, 11:56 AM
VGLNTE1's Avatar
Registered User
Thread Starter
Join Date: Dec 2011
Location: Illinois
Posts: 1,512
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !
surely setting the toe positive by .20 cant fix this bad of an issue can it?

  #15
Old 10-24-2013, 12:11 PM
daedalus's Avatar
Registered User
Join Date: Jan 2007
Location: Omaha, NE
Posts: 3,084
Rep Power: 183
daedalus Is a GOD !daedalus Is a GOD !daedalus Is a GOD !daedalus Is a GOD !daedalus Is a GOD !daedalus Is a GOD !daedalus Is a GOD !daedalus Is a GOD !daedalus Is a GOD !daedalus Is a GOD !daedalus Is a GOD !
are you on 19's? 19x11 19x12?
