996 Turbo / GT2 Turbo discussion on previous model 2000-2005 Porsche 911 Twin Turbo and 911 GT2.

DIY: How to Replace Porsche Rear Deck Lid Strut 911 996 997 Turbo

Thread Tools

Rate Thread

Old Mar 7, 2016 | 08:18 AM
  #1
MadWhip's Avatar
Thread Starter
|
Registered User
Joined: Apr 2014
Posts: 1,229
From: In My Trunk, IL
Rep Power: 89
MadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond repute
DIY: How to Replace Porsche Rear Deck Lid Strut 911 996 997 Turbo

Even if one Strut goes bad, the rear deck lid will drop/cannot hold the weight. So let's replace 2, why not. Cheap and easy to replace,

Time to replace it? 15min. Make sure someone is holding the lid. (wife or gf) best friend you can trust.

Price: $30-/+ shipped from Amazon, look for BOXI
Tools: small flat head screw driver

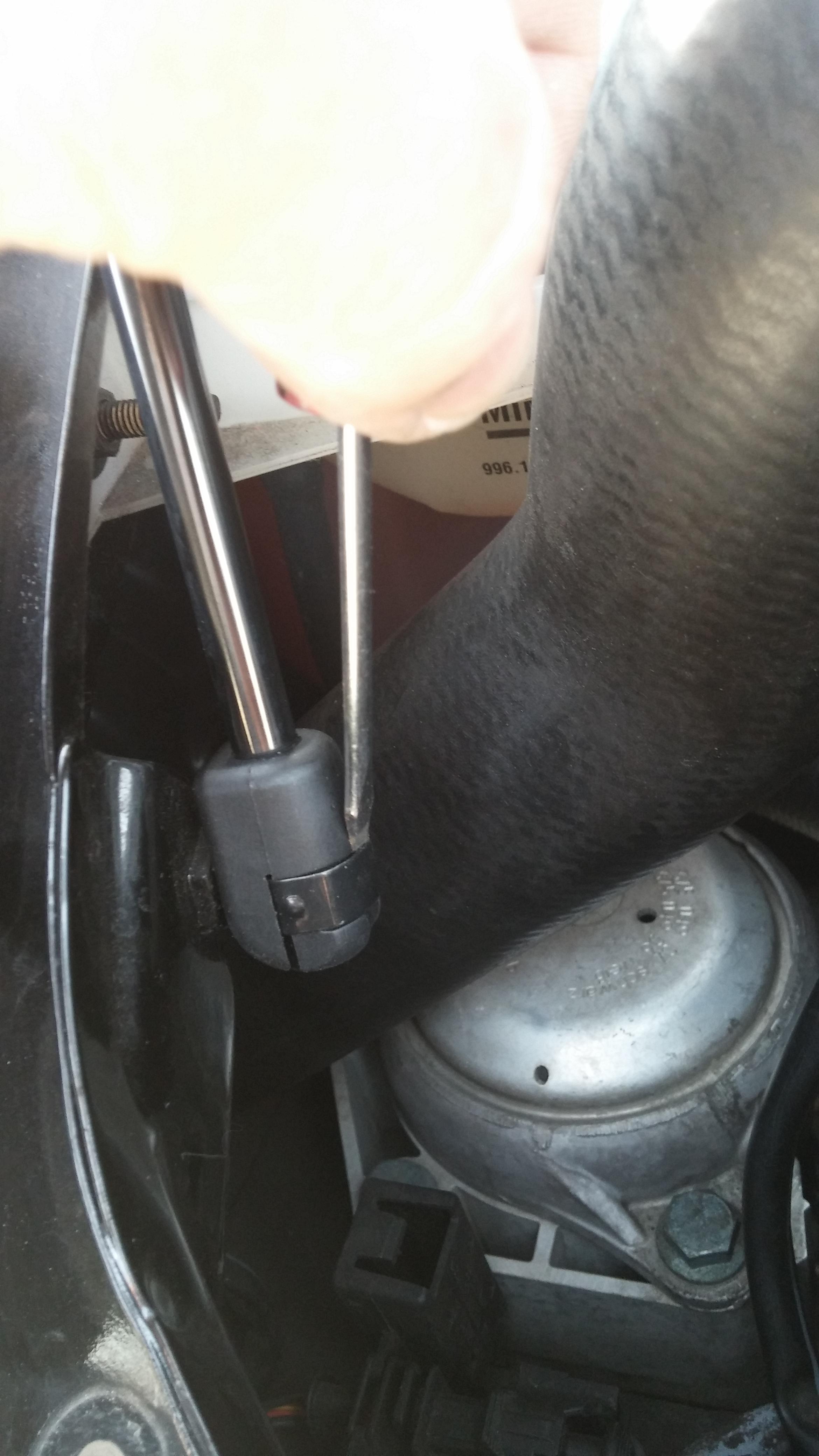

drivers side: just slide the screw driver and pop the clip, make sure you hold it the metal clip, we don't want to drop inside the engine bay. pop the strut out

Click image for larger version

Name:	pM2D1oJ.jpg
Views:	50
Size:	512.8 KB
ID:	539283

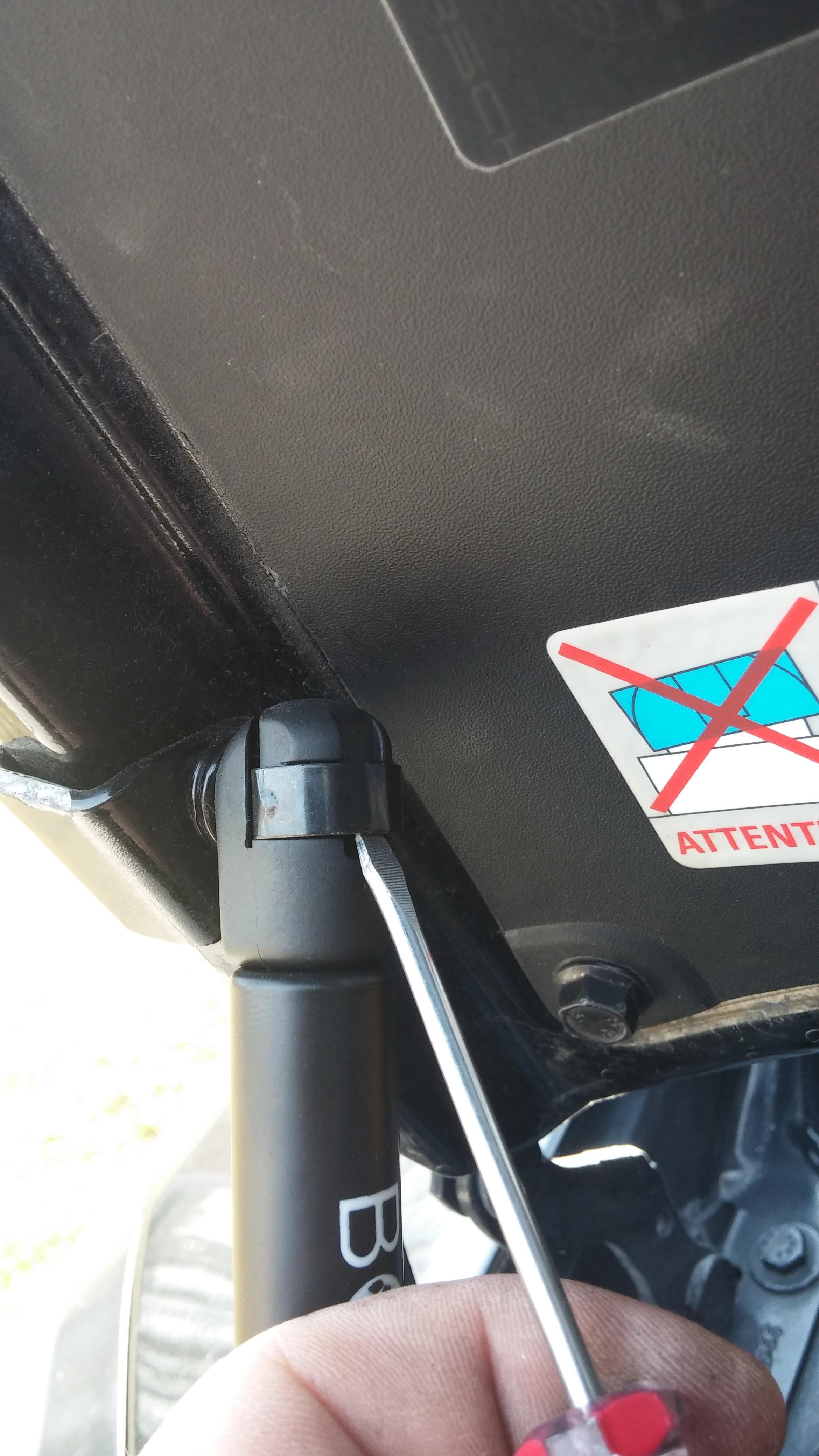

same thing with upper one.

Click image for larger version

Name:	eqp0b86.jpg
Views:	54
Size:	672.0 KB
ID:	539284

take new strut and just snap it on. done, easy right?

now the passenger side:

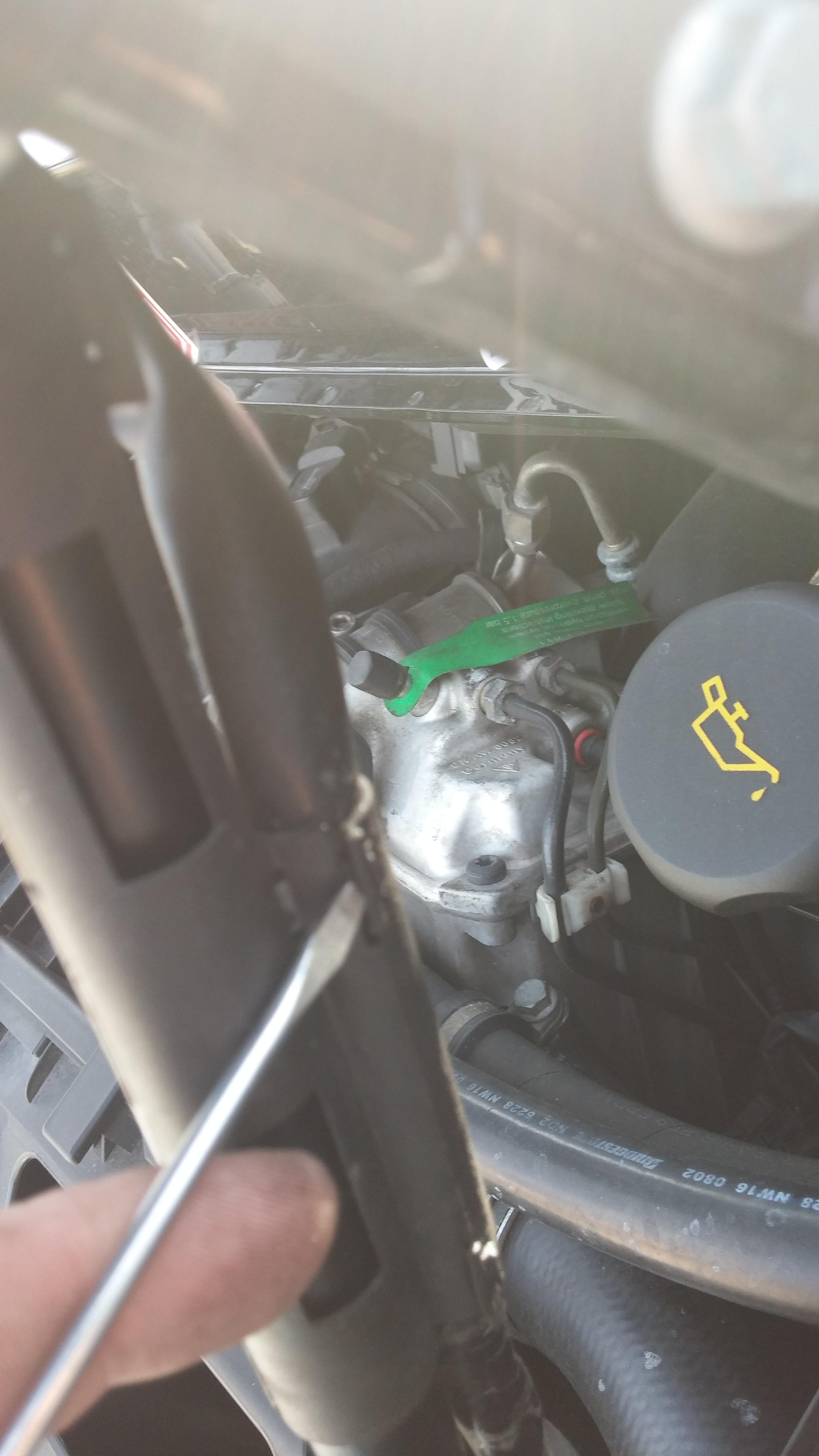

behind the strut you have 2 small clips, just pop them open. move harness to the side. pop the clips, done.

Click image for larger version

Name:	TCEMTzZ.jpg
Views:	48
Size:	422.1 KB
ID:	539285

Easy right?


Last edited by MadWhip; Mar 7, 2016 at 12:27 PM.
Old Jan 9, 2022 | 09:07 PM
  #2
ScubaSteve's Avatar
Registered User
Joined: Jan 2022
Posts: 3
From: Leonardtown, MD
Rep Power: 0
ScubaSteve is infamous around these parts
Does anyone know the PN of the plastic clamp holding the wire bundle to the strut? Mine is missing this part and I want to replace it but can’t find it in any manual.

Old Apr 3, 2022 | 06:16 PM
  #3
int90's Avatar
Registered User
15 Year Member
Joined: Feb 2010
Posts: 61
From: CA
Rep Power: 25
int90 is a name known to allint90 is a name known to allint90 is a name known to allint90 is a name known to allint90 is a name known to allint90 is a name known to all
Part number for the cable guide is 996-610-230-00
