996 Turbo / GT2 Turbo discussion on previous model 2000-2005 Porsche 911 Twin Turbo and 911 GT2.

996tt transmission mount upgrade

Thread Tools

Rate Thread

Old Aug 2, 2016 | 09:13 PM
  #16
pteck's Avatar
Registered User
10 Year Member
Joined: Sep 2014
Posts: 295
From: SD
Rep Power: 70
pteck Is a GOD !pteck Is a GOD !pteck Is a GOD !pteck Is a GOD !pteck Is a GOD !pteck Is a GOD !pteck Is a GOD !pteck Is a GOD !pteck Is a GOD !pteck Is a GOD !pteck Is a GOD !
^ That's the one I ordered.

Did this with my 42k mile mounts that looked a bit more worn than the OPs pictures. Was trying it for kicks as I had nothing to lose as I could easily order a 997 one if it didn't work to my expectations. It feels great!

Old Aug 2, 2016 | 09:32 PM
  #17
03EvoIII's Avatar
Registered User
Joined: Sep 2011
Posts: 1,266
From: Colorado
Rep Power: 94
03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute
^^awesome! Going to try this!!

Old Aug 3, 2016 | 02:18 AM
  #18
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 628
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
home depot has it as well

Old Aug 3, 2016 | 02:20 AM
  #19
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 628
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
Originally Posted by G-Rat
Do you do this with a new mount or can you "refurbish" a used one?

Also, whats the window weld product called and where can you get it? Or do you have a pic of the tube?
thats my old broken unit. was broken in 3 places. its actually called window weld found at home depot

Old Nov 29, 2017 | 08:31 PM
  #20
kurt99655's Avatar
Registered User
Joined: Nov 2017
Posts: 1
From: San Francisco
Rep Power: 0
kurt99655 is infamous around these parts
For those how look for alternative solutions / have doubt/hesitant to try sth. I am sharing my "solution":
On my 02 Carrera the trans mount blew during a recent AX event. Still good for daily drive, but highway curved driveup's are no fun anymore. I thought there must be a quick and dirty fix to stiffen the bearing w/o car lift or even removing the trans mount (sth. between getting from office and just before dinner... ).

Planned to at least remove the mount to have a look what can be done, but it turned out that even if I wanted to replace the mount I would have to wait until the next engine out since LHS bolt going from Mount into Transmission was seized and would require more space efforts to remove than I can afford with only 10 inch the car up in the rear. By then I knew that the mount hub was entirely detatched from the mounting body (mount completely destroyed) , and that the only true solution I considered spending money on would have been the Renn-line bushings through pelican, but which would have been at least 2 days away to get in, and I am not a person with patience....

However, to my attention came hotmelt gluestix along with a glue-gun from JOANN ( which includes 8 glue stix) in my wife's craft toolbox a few days before...The glue sticks did feel about the right (stiffer than Silicone rubber, and w/o measuring my guess is somewhere several-10 MPa storage modulus ). Laying under the car I filled the space between metal and hub of the mount as much as I could reach (from inside and outside). It looks ugly, yet I was done within less than one hour from lifting the car until ready for a spin.
During the test drive I notice insignificantly more average noise level, and there are no nasty sounds anymore during hard acceleration in tight turns. I tortured the car about 30 min and measured temperature (laser thermometer, pointed to mount just after driving ) - to figure not to exceed 40 deg C - hence no issues with softening by heat for this material.
Having invested 9.99 USD in a set of glue gun sticks, I would not hesitate to repeat if this breaks anytime within the next 1k miles or so. I believe my "solution" is very rough , yet has potential to be lasting with little more care.

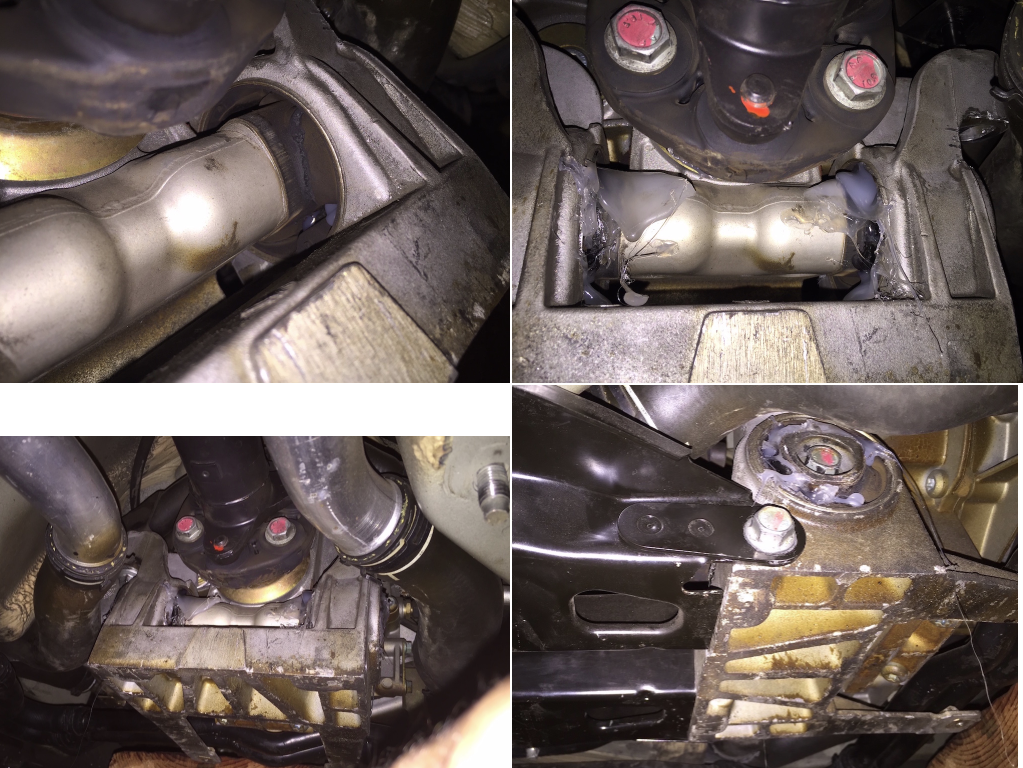

Here some pix:



__________________________
02 Porsche Carrera C4 Cabriolet
06 Porsche Cayenne Turbo S
97 Audi Cabriolet
.
