Broke valve spring. I think.

I am fairly sure a valve spring broke. Myself and a friend were on our way to gingerman race way for a Sunday night scca Thing and all of a sudden as we were passing a few cars there was a flashing engi e light. Misfire cylinder 2. At the next left hand turn there was a not normal sound coming from the engine. I will post a sound clip. It actually does start and run fine but not good to run. I bought some springs from a different engine. Going to pin and put in 750cc injectors at the same time. We will check the cylinders and determine if post one are needed. It has 125,000 miles. Will post pictures along the way.
Reply With Quote
  #2
Old 09-28-2017, 10:41 AM
pat's Avatar
pat pat is offline
Registered User
Thread Starter

Join Date: Dec 2009
Location: indiana
Age: 56
Posts: 834
Rep Power: 69
pat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond repute


The used ones i got

Reply With Quote
  #3
Old 09-28-2017, 11:21 AM
VAGscum's Avatar
Registered User

Join Date: Oct 2008
Location: Portland Oregon
Posts: 1,631
Rep Power: 178
VAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond repute
Quote:
Originally Posted by pat


The used ones i got

Are you installing used springs?
Reply With Quote
  #4
Old 09-28-2017, 02:47 PM
pat's Avatar
pat pat is offline
Registered User
Thread Starter

Join Date: Dec 2009
Location: indiana
Age: 56
Posts: 834
Rep Power: 69
pat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond repute
I am thinking about it. I have heard of so few broken valve springs. I wanted to hear some comments on that . My as least cost part of me says many. The other part says don't bother get new if we are going to do all that anyway.
Reply With Quote
  #5
Old 09-28-2017, 02:54 PM
brnrdtns's Avatar
Registered User

Join Date: Jan 2012
Location: Boise
Posts: 1,131
Rep Power: 103
brnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond repute
It is more likely that you had a lifter come apart. This is a common problem for people who run high rpm a lot. 2001 cars are the worst. Don't drive the car, cut up your oil filter to check for metal.
Reply With Quote
  #6
Old 09-28-2017, 03:20 PM
VAGscum's Avatar
Registered User

Join Date: Oct 2008
Location: Portland Oregon
Posts: 1,631
Rep Power: 178
VAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond reputeVAGscum has a reputation beyond repute
Quote:
Originally Posted by pat
I am thinking about it. I have heard of so few broken valve springs. I wanted to hear some comments on that . My as least cost part of me says many. The other part says don't bother get new if we are going to do all that anyway.
I would look at cost for new springs and any other potential failure areas to address with the heads off. At your mileage to pull a head and not address a few other areas may be a bad plan.
Reply With Quote
  #7
Old 09-28-2017, 04:31 PM
pat's Avatar
pat pat is offline
Registered User
Thread Starter

Join Date: Dec 2009
Location: indiana
Age: 56
Posts: 834
Rep Power: 69
pat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond repute

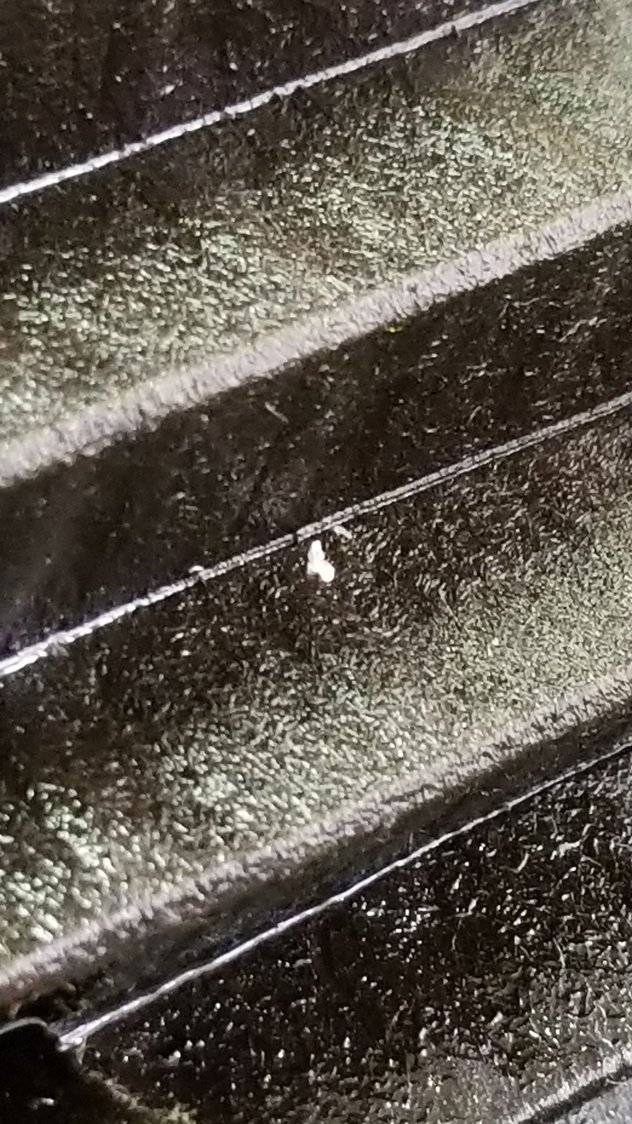

Dissent look good










Reply With Quote
  #8
Old 09-28-2017, 05:17 PM
brnrdtns's Avatar
Registered User

Join Date: Jan 2012
Location: Boise
Posts: 1,131
Rep Power: 103
brnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond repute
You might have caught it early enough. Is that aluminum? Those don't look that big, though you won't know until you take it apart. The bigger pieces tear up the oil pump.
Reply With Quote
  #9
Old 09-28-2017, 06:35 PM
Registered User

Join Date: Jun 2009
Location: Livermore, CA
Posts: 1,985
Rep Power: 131
Macster has a reputation beyond reputeMacster has a reputation beyond reputeMacster has a reputation beyond reputeMacster has a reputation beyond reputeMacster has a reputation beyond reputeMacster has a reputation beyond reputeMacster has a reputation beyond reputeMacster has a reputation beyond reputeMacster has a reputation beyond reputeMacster has a reputation beyond reputeMacster has a reputation beyond repute
Quote:
Originally Posted by pat View Post
I am thinking about it. I have heard of so few broken valve springs. I wanted to hear some comments on that . My as least cost part of me says many. The other part says don't bother get new if we are going to do all that anyway.
Don't use used springs. Especially ones that have been loose and banging into one another. This can result in surface "dings" which can lead to a stress fracture.
Reply With Quote
  #10
Old 09-28-2017, 10:04 PM
VGLNTE1's Avatar
Registered User

Join Date: Dec 2011
Location: Illinois
Posts: 1,488
Rep Power: 122
VGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond repute
New springs are your last worry at thus point. You need a full tear down.
Reply With Quote
  #11
Old 09-28-2017, 10:28 PM
32krazy!'s Avatar
Registered User

Join Date: Dec 2008
Location: tn
Age: 56
Posts: 6,876
Rep Power: 672
32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute
going thru this myself with a brand new exhaust lifter that failed. to ensure a solid motor this is a complete teardown and oil pump and crank inspection. shoot me a pm ill tell you what im dealing with
Reply With Quote
  #12
Old 09-29-2017, 07:42 AM
pwdrhound's Avatar
Registered User

Join Date: Jul 2010
Posts: 4,680
Rep Power: 418
pwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond repute
Allow the filter element to fully drain. That will make any metal stand out clearly. Wrap the filter on paper towels and that will draw the oil out.
Reply With Quote
  #13
Old 09-29-2017, 10:06 AM
jpflip's Avatar
Registered User

Join Date: Mar 2008
Location: Montreal Canada
Age: 62
Posts: 2,659
Rep Power: 243
jpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond repute
Sorry for you Pat ;-( Was it your black or grey turbo that failed (auto, or 6 speed) ? Was it stock or tuned (higher rpm)?
Reply With Quote
  #14
Old 09-29-2017, 06:22 PM
pat's Avatar
pat pat is offline
Registered User
Thread Starter

Join Date: Dec 2009
Location: indiana
Age: 56
Posts: 834
Rep Power: 69
pat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond repute
Sorry for you Pat ;-( Was it your black or grey turbo that failed (auto, or 6 speed) ? Was it stock or tuned (higher rpm)?
__________________
2002 996TT seal gray... 997 shifter, UMW tune, Kline exhaust, RS engine mounts.


I know jp. It was the black one . Tip with all the mods... That said I just poked gearstar were the other tip is for the silver car. They will have that back to me in 2 weeks and I can put that in and be back on line . This will give time to do a full tear down . Looks like I will go with new rods and bolts to get the full power out of the k16 billets.
Reply With Quote
  #15
Old 09-29-2017, 06:33 PM
jpflip's Avatar
Registered User

Join Date: Mar 2008
Location: Montreal Canada
Age: 62
Posts: 2,659
Rep Power: 243
jpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond repute
Quote:
Originally Posted by pat View Post
Sorry for you Pat ;-( Was it your black or grey turbo that failed (auto, or 6 speed) ? Was it stock or tuned (higher rpm)?
__________________
2002 996TT seal gray... 997 shifter, UMW tune, Kline exhaust, RS engine mounts.


I know jp. It was the black one . Tip with all the mods... That said I just poked gearstar were the other tip is for the silver car. They will have that back to me in 2 weeks and I can put that in and be back on line . This will give time to do a full tear down . Looks like I will go with new rods and bolts to get the full power out of the k16 billets.
It will be a very interesting project!!! I hope you will not found anything major inside the engine...Keep us up to date Pat!!!!
