Wiper delete DIY, lose 3.2 lbs in 20mins!


  #1
Old 06-12-2006, 09:57 PM
rwm514's Avatar
Registered User
Thread Starter
Join Date: Nov 2005
Location: Arizona
Posts: 1,088
Rep Power: 58
rwm514 will become famous soon enoughrwm514 will become famous soon enough
Wiper delete DIY, lose 3.2 lbs in 20mins!

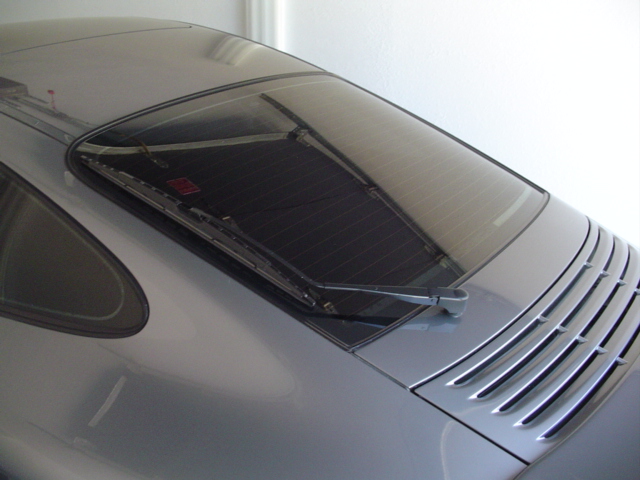

Finally ordered my rear wiper delete plug from bumperplugs, $15. I was really hating the look of the rear wiper. Seemed silly on a 996tt. I was a little nervous about removing the interior panel to get to the motor but it was no problem.
First step is to pull the plastic housing off the wiper arm base and remove the 13mm nut, this is on the exterior of the car. Next, get inside the car and pull straight out on the upper corner of the panel just in front of the wiper. It has 5 sturdy clips which hold it in place from the top. Once the plastic panel is removed, you will see some insulation which is easily removed. 2 10mm nuts and 1 10mm bolt hold the motor in place, remove these. Next pull the bottom of the motor towards you to allow the top threaded rod to come thru the body. You also need to unclip 1 wiring harness. To replace the interior panel you need to put the metal clips back on the body of the car. Mine were still on the plastic panel. Then just line it up and push it back on until all 5 clips snap into place. Last clean around the hole and put a very small amt of silicone on the plug. Push it in and spin it a little to distribute the caulk. A little excess silicone is bound to get on the body. A dry rag removed it easily. The removed pieces weighed 3.2lbs.
I am very pleased with the results!

Attached Images

Last edited by rwm514; 06-22-2006 at 02:47 PM.
  #2
Old 06-12-2006, 09:59 PM
rwm514's Avatar
Registered User
Thread Starter
Join Date: Nov 2005
Location: Arizona
Posts: 1,088
Rep Power: 58
rwm514 will become famous soon enoughrwm514 will become famous soon enough

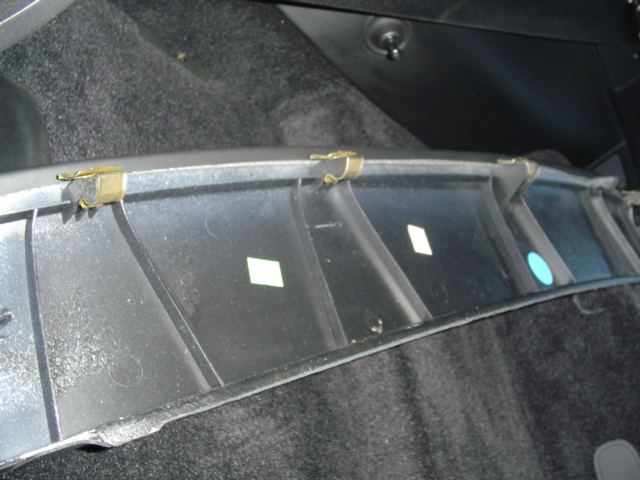

Here is the back of the panel with 4 of the 5 clips still on.

Attached Images
  #3
Old 06-12-2006, 10:00 PM
rwm514's Avatar
Registered User
Thread Starter
Join Date: Nov 2005
Location: Arizona
Posts: 1,088
Rep Power: 58
rwm514 will become famous soon enoughrwm514 will become famous soon enough
The motor still in place

Attached Images
  #4
Old 06-12-2006, 11:50 PM
BigBadBen's Avatar
Registered User
Join Date: Feb 2005
Location: Kelowna, BC, Canada
Posts: 639
Rep Power: 82
BigBadBen has a reputation beyond reputeBigBadBen has a reputation beyond reputeBigBadBen has a reputation beyond reputeBigBadBen has a reputation beyond reputeBigBadBen has a reputation beyond reputeBigBadBen has a reputation beyond reputeBigBadBen has a reputation beyond reputeBigBadBen has a reputation beyond reputeBigBadBen has a reputation beyond reputeBigBadBen has a reputation beyond reputeBigBadBen has a reputation beyond repute
Did the same to my car last week...looks much cleaner now, never used the wiper anyway....

  #5
Old 06-13-2006, 12:42 AM
03-turbo911's Avatar
Senior Member
Join Date: Jul 2003
Location: Bahrain
Posts: 4,997
Rep Power: 222
03-turbo911 is a splendid one to behold03-turbo911 is a splendid one to behold03-turbo911 is a splendid one to behold03-turbo911 is a splendid one to behold03-turbo911 is a splendid one to behold03-turbo911 is a splendid one to behold03-turbo911 is a splendid one to behold
Nice write-up. I have mine removed as well and it looks much cleaner that way.

  #6
Old 06-13-2006, 12:47 AM
Q8_TwinTurbo's Avatar
Registered User
Join Date: Sep 2004
Location: Kuwait
Posts: 400
Rep Power: 42
Q8_TwinTurbo has much to be proud ofQ8_TwinTurbo has much to be proud ofQ8_TwinTurbo has much to be proud ofQ8_TwinTurbo has much to be proud ofQ8_TwinTurbo has much to be proud ofQ8_TwinTurbo has much to be proud ofQ8_TwinTurbo has much to be proud ofQ8_TwinTurbo has much to be proud ofQ8_TwinTurbo has much to be proud of
rwm514,
Thanks for posting that wiper delete DIY. I will be doing it soon.

  #7
Old 06-13-2006, 01:49 AM
Registered User
Join Date: Dec 2005
Location: London
Posts: 172
Rep Power: 20
egbert is on a distinguished road
Looks much better.

  #8
Old 06-13-2006, 01:58 AM
MeanMachine's Avatar
Registered User
Join Date: Sep 2005
Location: Kuwait City,Kuwait
Posts: 7,745
Rep Power: 327
MeanMachine is a glorious beacon of lightMeanMachine is a glorious beacon of lightMeanMachine is a glorious beacon of lightMeanMachine is a glorious beacon of lightMeanMachine is a glorious beacon of light
Looks way better

  #9
Old 06-13-2006, 10:28 AM
TKDalumni's Avatar
Registered User
Join Date: Dec 2005
Location: Down the street on the left
Age: 41
Posts: 3,286
Rep Power: 148
TKDalumni is just really niceTKDalumni is just really niceTKDalumni is just really niceTKDalumni is just really nice
I'm going to add this onto my to-do list!!

  #10
Old 06-13-2006, 11:12 AM
Join Date: Sep 2005
Location: Irvine/Las Vegas
Age: 43
Posts: 1,127
Rep Power: 59
USCTrojanMan29 is on a distinguished road
Originally Posted by rwm514
Finally ordered my rear wiper delete plug from bumperplugs, $15. I was really hating the look of the rear wiper. Seemed silly on a 996tt. I was a little nervous about removing the interior panel to get to the motor but it was no problem. Just get in there and pull straight out on the upper corner of the panel just in front of the wiper. It has 5 sturdy clips which hold it in place from the top. Once the plastic panel is removed, you will see some insulation which is easily removed. 2 10mm nuts and 1 10mm bolt hold the motor in place, remove these. Next pull the bottom of the motor towards you to allow the top threaded rod to come thru the body. You also need to unclip 1 wiring harness. To replace the interior panel you need to put the metal clips back on the body of the car. Mine were still on the plastic panel. Then just line it up and push it back on until all 5 clips snap into place. Last clean around the hole and put a very small amt of silicone on the plug. Push it in and spin it a little to distribute the caulk. A little excess silicone is bound to get on the body. A dry rag removed it easily. The removed pieces weighed 3.2lbs.
I am very pleased with the results!
Excellent write-up...this is a mod I've been wanting to do and now that I have some instructions I will be placing my order for the plug...

  #11
Old 06-13-2006, 05:22 PM
rwm514's Avatar
Registered User
Thread Starter
Join Date: Nov 2005
Location: Arizona
Posts: 1,088
Rep Power: 58
rwm514 will become famous soon enoughrwm514 will become famous soon enough
Originally Posted by USCTrojanMan29
Excellent write-up...this is a mod I've been wanting to do and now that I have some instructions I will be placing my order for the plug...
Glad it helped!

  #12
Old 06-13-2006, 05:40 PM
fdb996c2's Avatar
Registered User
Join Date: Jun 2004
Location: San Francisco
Posts: 1,523
Rep Power: 76
fdb996c2 will become famous soon enoughfdb996c2 will become famous soon enough
Good move. The wiper is ugly, and I was surprised how heavy it was. Getting rid of it was one of the first things I did (well, Sharkwerks did) after I got the car.

  #13
Old 06-13-2006, 06:03 PM
roadsterdoc's Avatar
Member
Join Date: Apr 2005
Location: The Woodlands, TX
Age: 52
Posts: 1,935
Rep Power: 100
roadsterdoc is a splendid one to beholdroadsterdoc is a splendid one to beholdroadsterdoc is a splendid one to beholdroadsterdoc is a splendid one to beholdroadsterdoc is a splendid one to beholdroadsterdoc is a splendid one to beholdroadsterdoc is a splendid one to behold
Nice write up. Rep points for you!

  #14
Old 06-13-2006, 06:41 PM
WOODTSTER's Avatar
Registered User
Join Date: Jan 2006
Location: MPLS, MN USA
Age: 58
Posts: 5,736
Rep Power: 460
WOODTSTER has a reputation beyond reputeWOODTSTER has a reputation beyond reputeWOODTSTER has a reputation beyond reputeWOODTSTER has a reputation beyond reputeWOODTSTER has a reputation beyond reputeWOODTSTER has a reputation beyond reputeWOODTSTER has a reputation beyond reputeWOODTSTER has a reputation beyond reputeWOODTSTER has a reputation beyond reputeWOODTSTER has a reputation beyond reputeWOODTSTER has a reputation beyond repute
This is a must do,
the wiper is unsightly and "flutters" above 170 MPH...

MK

  #15
Old 06-13-2006, 06:53 PM
jlee's Avatar
Registered User
Join Date: Apr 2004
Location: Calabasas, California
Posts: 574
Rep Power: 41
jlee is just really nicejlee is just really nicejlee is just really nicejlee is just really nice
On the 997tt, the rear wiper is a no-cost option that you have to specify to get. I guess Porsche finally realized that a lot of people would rather not have the rear wipers.
