how to change the oil seperator

well i am not done with the project but have enough photos to show everyone what it is all about, and it is a pain in the BUTT!!!

i can see why it is recommended to drop the engine, as it is very difficult to do while in the car

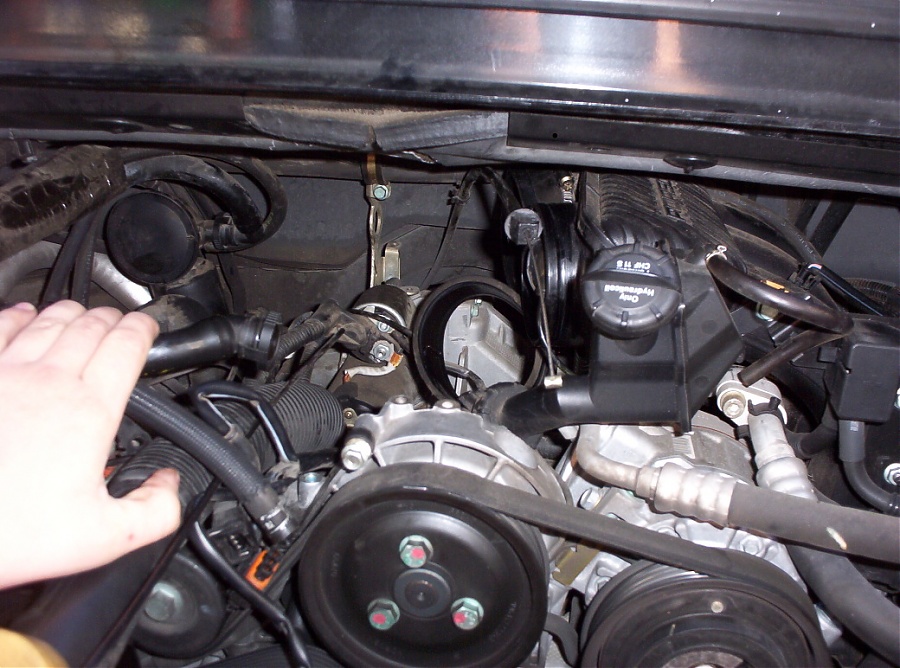

Step 1 - remove air box, throttle body and plenum's - no pics of this as it is pretty self explanatory....be careful with the vacuum lines especially if the car is older as the plastic lines become very frail, i am replacing a lot of them because they cracked so easily, which is kind of a good thing as i wont have vacuum leaks later on

step 2 - once you remove the plenums you can reach back and feel the oil separator with your hand, fee around and get a good bearing of where everything is by feel, look at your new unit and get a visual of where the 2 bolts are on the oil separator. once you locate them jack up the car and relocate the 2 bolts from underneath the car, you should be able to remove the 2 bolts with a 10mm deep socket and wrench.

step 3 - now that the 2 bolts have been remove the oil separator can be wiggled, which is important because now you can wiggle it out far enough to get a socket to the last bolt on the driver side intake, you can now remove the drivers side intake, a pic is below so you can see the bolt hoes, there are 6 of them one on each side of the runner

Step 4 - once you have removed the passenger side upper intake you can have a clear sight of the oil separator, pic is below, you can now remove the 2 water lines, the vacuum line that ran to the throttle body, you are only left with 2 hoses connected at this point in time and a pressed in fitting

Step 5 - this step you need to preform very carefully so not to damage anything else or cut the wrong thing - take a knife and cut the rubber belows, this is a ton easier than trying to take off the clamps, but there is some risk here, after that is separated you should be able to bring the unit up just enough to remove the last hose. and the bellow and clamp that is left on the engine

step 6 - mount all the hoses in the new unit and press the unit into the pressed fitting on the engine, it is recommended to use screw type hose clamps to make install easier

step 7 reinstall intake

Step8 - bolt the 2 bolts in the oil separator from the wheel well

step 9 - mount plenums and throttle body and air box and you should be done!
