997TT MK.1 PCM 3 conversion DONE :)
Registered User
Joined: Feb 2006
Posts: 194
From: Belgium
Rep Power: 35
The gateway in the pet file is the same for all models 07-09.
Only one number : 997.610.107.03
The number Serg provided, 997.610.107.04, looks to be an updated version of the same gateway. Usually when the last number changes it's an improved (same) part.
The 997.2 tt pet file lists the '.04' part.
I am sure Serg is correct as he will have tested the '.03' part but very strange that '09 TT's use the '.03' (at least in the pet file)
Only one number : 997.610.107.03
The number Serg provided, 997.610.107.04, looks to be an updated version of the same gateway. Usually when the last number changes it's an improved (same) part.
The 997.2 tt pet file lists the '.04' part.
I am sure Serg is correct as he will have tested the '.03' part but very strange that '09 TT's use the '.03' (at least in the pet file)
Registered User
Joined: Jan 2013
Posts: 38
From: GTA
Rep Power: 15
Hello guys,
Sorry for my late reply.
We were incredibly busy in the past weeks with our recent builds,
and one of them is actually our new developed engine with over 4.3 liter...
We are preparing all of our cars for track day events and accelerations runs.
I received Sport button console and some other parts, i will continue our PCM development in the coming weeks.
As you may know preparing a "kit" is not easy, since all of them will be remote installation, i'm trying to prepare something that will be easy for all people.
I will keep you posted.
Cheers,
Emre
Sorry for my late reply.
We were incredibly busy in the past weeks with our recent builds,
and one of them is actually our new developed engine with over 4.3 liter...
We are preparing all of our cars for track day events and accelerations runs.
I received Sport button console and some other parts, i will continue our PCM development in the coming weeks.
As you may know preparing a "kit" is not easy, since all of them will be remote installation, i'm trying to prepare something that will be easy for all people.
I will keep you posted.
Cheers,
Emre
Registered User
Joined: Feb 2006
Posts: 194
From: Belgium
Rep Power: 35
I am close in ordering all parts including gateway of course !
Some more questions for the 997 pioneers :

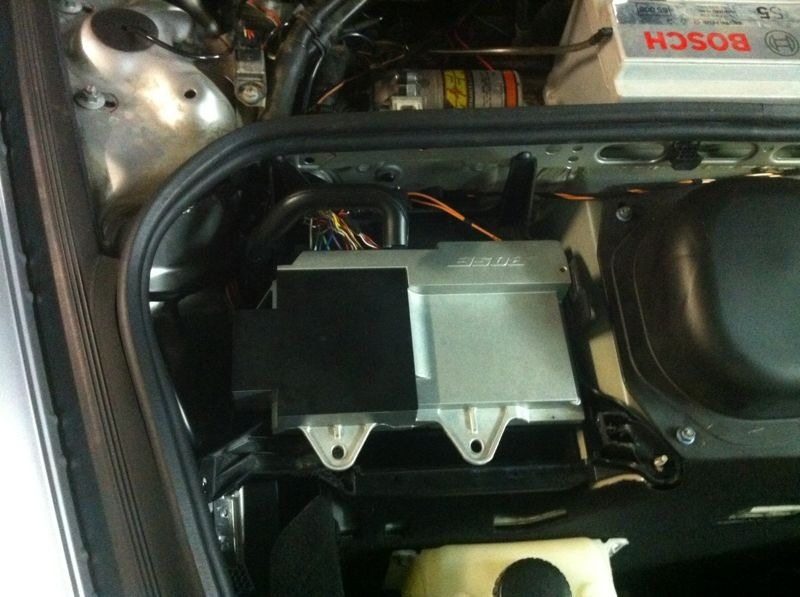

1/ does the new Bose amp fit in the same spot as the old DVD unit/Bose Amp ?
2/ does it require drilling or are the fixation points (3) of new amp corresponding to old removed bracket ?
3/ were is the gateway located ?
Serg, I too believe the gateway 04 is needed for PCM3, that is what I said in the beginning. But again, in the pet file of 07-09 the new part is not listed.
Some more questions for the 997 pioneers :
1/ does the new Bose amp fit in the same spot as the old DVD unit/Bose Amp ?
2/ does it require drilling or are the fixation points (3) of new amp corresponding to old removed bracket ?
3/ were is the gateway located ?
Serg, I too believe the gateway 04 is needed for PCM3, that is what I said in the beginning. But again, in the pet file of 07-09 the new part is not listed.
Registered User
Joined: Mar 2012
Posts: 213
From: Drama Greece
Rep Power: 27
1. Yes
2 you can adjust the old DVD base
3. No need new gateway ,if you change it you will need code to activate all the factions.
With the old gateway car not see the PCM 3 and work like you pcm2.1 if you change gateway you mesh up all the thinks,
Gateway is behind the glove box.
2 you can adjust the old DVD base
3. No need new gateway ,if you change it you will need code to activate all the factions.
With the old gateway car not see the PCM 3 and work like you pcm2.1 if you change gateway you mesh up all the thinks,
Gateway is behind the glove box.
Registered User
Joined: Feb 2006
Posts: 194
From: Belgium
Rep Power: 35
Paul , since you asked a 1000 questions to Serg I am sure you do not mind me asking you too a 1000 questions I hope
1/ Gateway : you used the old gateway and everything works ?
2/ Are you saying you did not need to re-code the PCM3 to work in your car ?
3/ I suppose by adjusting you mean drill new holes in the bracket ?
Wonder how the '09's have the amp attached , can't find '09 bracket in pet
1/ Gateway : you used the old gateway and everything works ?
2/ Are you saying you did not need to re-code the PCM3 to work in your car ?
3/ I suppose by adjusting you mean drill new holes in the bracket ?
Wonder how the '09's have the amp attached , can't find '09 bracket in pet
Registered User
Joined: Feb 2006
Posts: 194
From: Belgium
Rep Power: 35
What do you mean , which base and for what ? Is there something under the seat as well that has to come out , now I am confused.
