So Im finding it hard to get a definite answer. Can anyone confirm if there is any difference ? I can get some 08 stock turbos for my 997 tt, which is a 2007 car?
I have been grinding through the parts catalogue and it shows different part numbers for 05-07 and 08-09 cars? The turbos look identical to mine. Can someone confirm for me if this is going to work !?

many thanks



Is the same



thanks JJT



Yes identical. Gen 2 are different



Thanks RIckrst

Thanks. They have corroded badly. The UK climate is not good for 911 turbo setup, lots of rain and salted roads!







I dont imagine anyone here has suffered from such bad corrosion? but Im having a nightmare getting the water line out (and possible the return and oil line on top) . Does anyone know if these can be replaced with the engine in? or lowered on its mounts? It looks gnarly for access. Just wondering if I am going to need to remove the engine to replace these damn things!

Is it the same setup on a 996tt?


You mention having to get the newer turbos programmed (the actuators) will I be able to drive it to somewhere with PIWIS? We dont have the options of numerous experienced tuning shops where I am located in the country unfortunately.

I would have expected them to be calibrated as they are off a stock 997 turbo?

THANKS!



When I asked about actuator adaptations the other day everyone said they aren't necessary.

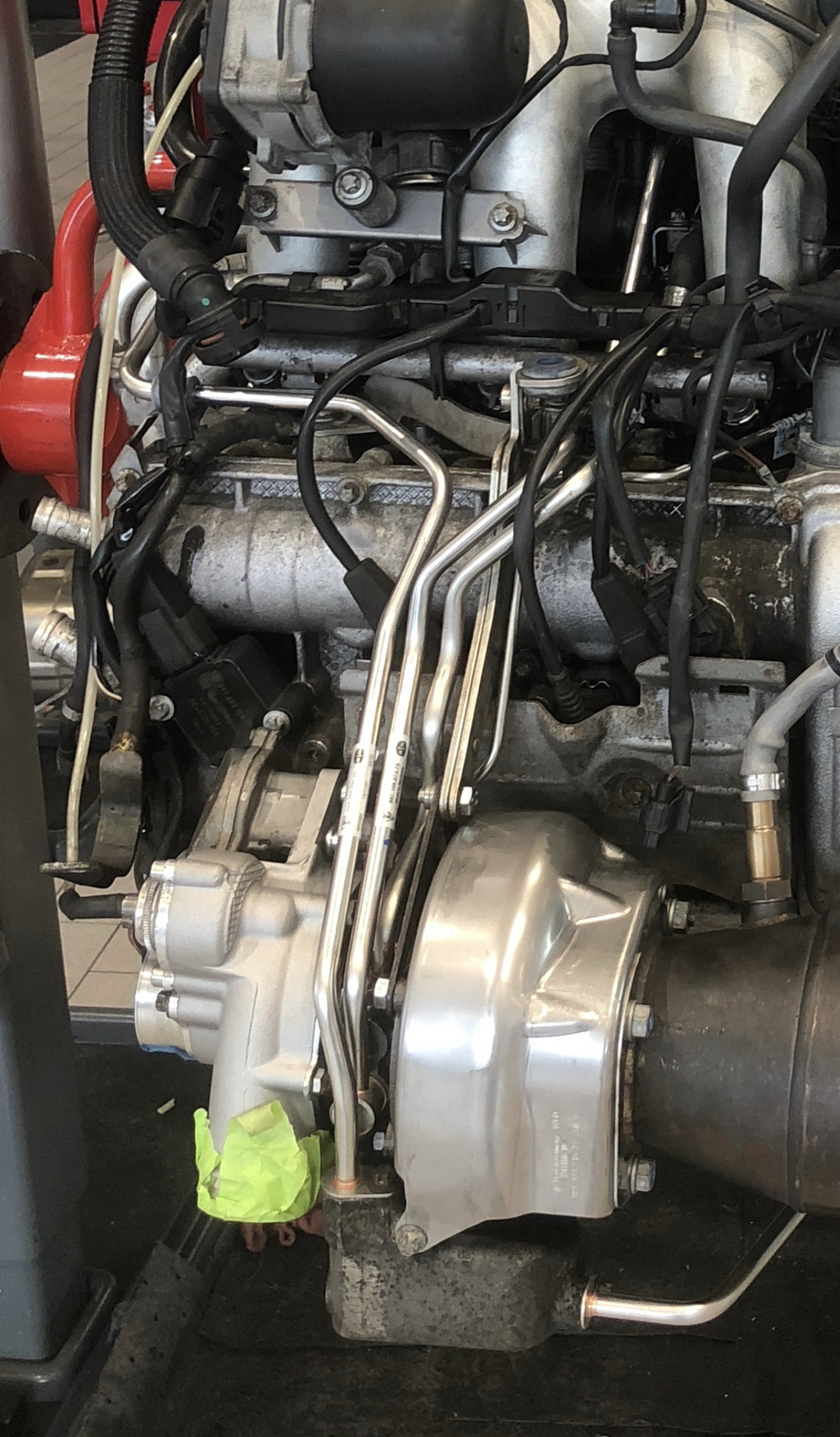

Here is a pic of where those lines run. It looks difficult with engine in.



Thanks for the heads up on the actuator adapations.

Looks like it will be a while before I find out looking at that picture of where the lines go !!

Thanks for that, much appreciated, but it looks nasty for access. Maybe the engine will have to come out then..!



it's difficult but not impossible



Thanks JJT!
Have you had to replace them all on both sides then? or just think they are do able?

I wonder how long it will take to get the engine out as a first go on axle stands. Will it be quicker guys? Ive got an engine crane, was thinking of having the car low (ish), get the engine ready to come out except mounts, jack under tranny, lift the car higher onto stands, and use the engine crane to lower it down with the tranny.
Would be way easier on a ramp, but I bet plenty have done it on here? Having said that, its staying in if they can be done with it in.



It looks like at least one (or two in fact) goes under the inlet manifold. I just cant see how I could get that replaced with the engine in the car?



I went in for a routine spark plug/coils service last year and ended up replacing my turbos due to excessive corrosion at all the attachment points. The car was from northeast US. According to my indy, because of the rust the turbos were basically fused in there and after getting them out, he couldn't promise they could clean up well enough to attach back. He did advise that taking the engine out was pretty much necessary, so that's what they did.

I definitely resolved that if I ever replace this car with another 997 Turbo, it won't be from somewhere that sees winter weather.



Thanks Skwerl. Appreciate the info. I am not 100%, I have heard from one person around here that they did them (or some) in situ, but then there is always someone who says that on the internet.!!
I have looked at the work involved taking the motor out, and it doesnt seem too bad. Im going to have a read up on tonight and if I cant get the turbo lines out I have no option.
Did your indy manage to reuse the old turbo lines with new orings? or fit a full new set? From memory they arent cheap. $1000 worth springs to mind for some reason, vs $10 in o rings. So I will do my utmost to get them out even if i have to kill the turbos!



Engine out can be a blessing.....tons to do/fix/get in front of, while in there.



Actually, no, I did have to replace those too, again because of the corrosion/fusion - the main mechanic said he soaked everything, breaker-barred it, even went at it with a torch trying to get them apart but couldn't do it. I guess all those heat cycles + rust was just too much. You're right that the lines were something around $1000.

On the plus side, they've done a million Mezger engine removals so they were able to get it out and back in in like 5 hours. They said they probably could have done the operation with the engine in the car but they're so fast at it that pulling it was actually less labor overall.



That's what worries me. Spiralling costs as I find stuff!.... I was thinking sharkwerks coolant elbows depending on what condition mine are in (they may have already been replaced with OEM as it was under warranty until not too long ago), not sure what else? anything else I find I suppose! I read the thread about 'engine out what to do' but it went a bit crazy with people saying 'all orings' and things. WIll have to take a lot off I guess if I have to do it so will see if that happens!
