Euro aspherical driver' mirror installed (and comparison to stock)

Thread Tools

Rate Thread

Old Jun 20, 2010 | 05:51 PM
  #1
Ricardo Canada's Avatar
Thread Starter
|
Registered User
Joined: Mar 2008
Posts: 109
From: Calgary
Rep Power: 23
Ricardo Canada is infamous around these parts
Euro aspherical driver' mirror installed (and comparison to stock)

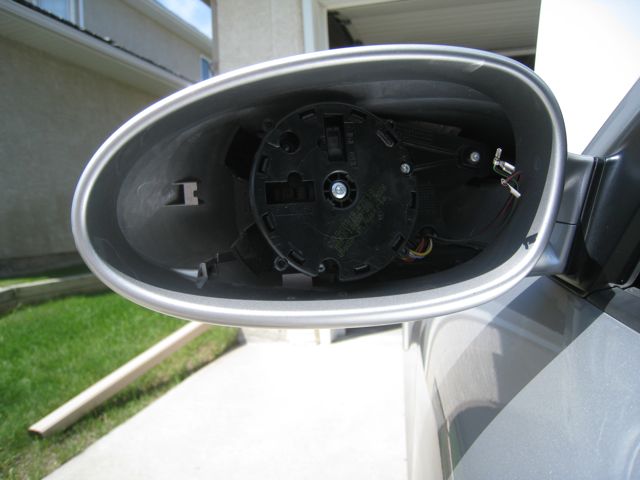

Got this as a gift from a friend about a month ago and finally installed it today (also by my friend). Installation was relatively easy. Aim mirror towards window as far as it goes, pop off stock mirror and remove heater connections. Attach wires on new mirror, align tabs and pop back on.

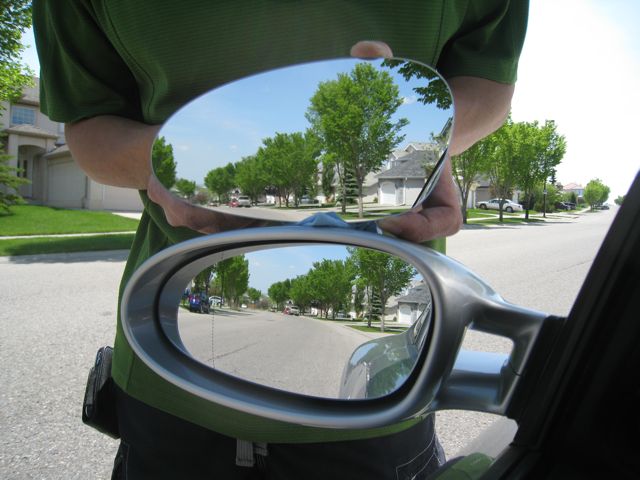

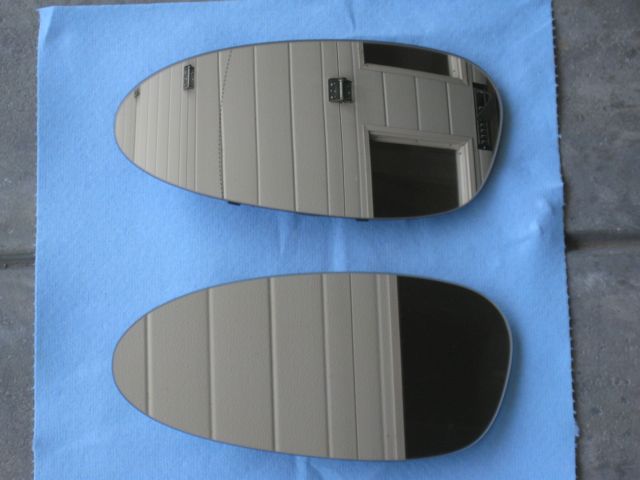

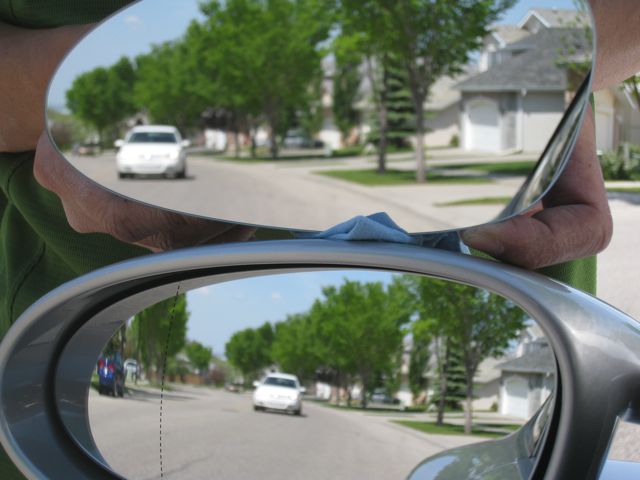

The Euro driver is both convex and aspherical (outer edge has increased curvature). Absolutely no blind spots on driver side, now I want one on the passenger side!

Attached Images
Old Jun 20, 2010 | 05:55 PM
  #2
camhabib's Avatar
Registered User
Joined: May 2009
Posts: 336
From: Boston
Rep Power: 59
camhabib has a reputation beyond reputecamhabib has a reputation beyond reputecamhabib has a reputation beyond reputecamhabib has a reputation beyond reputecamhabib has a reputation beyond reputecamhabib has a reputation beyond reputecamhabib has a reputation beyond reputecamhabib has a reputation beyond reputecamhabib has a reputation beyond reputecamhabib has a reputation beyond reputecamhabib has a reputation beyond repute
Interesting mod. Any word on where to pick one of these up, and about how much?

Old Jun 20, 2010 | 06:56 PM
  #3
NC 997's Avatar
Registered User
Joined: Jun 2010
Posts: 669
From: Sandhills of NC
Rep Power: 58
NC 997 has a brilliant futureNC 997 has a brilliant futureNC 997 has a brilliant futureNC 997 has a brilliant futureNC 997 has a brilliant futureNC 997 has a brilliant futureNC 997 has a brilliant futureNC 997 has a brilliant futureNC 997 has a brilliant futureNC 997 has a brilliant futureNC 997 has a brilliant future
Originally Posted by camhabib
any word on where to pick one of these up, and about how much?
+1..

Old Jun 20, 2010 | 08:10 PM
  #4
Gpjli's Avatar
Registered User
Joined: Apr 2007
Posts: 1,352
From: long island
Rep Power: 87
Gpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud of
It is possible to adjust the standard mirrors so there is a seamless image from left side thru rearview to right side w no blind spot. The advantage is that there is less size distortion than with cave/vex mirrors. I won't review the procedure here unless ne1 needs it

Old Jun 20, 2010 | 08:19 PM
  #5
Ricardo Canada's Avatar
Thread Starter
|
Registered User
Joined: Mar 2008
Posts: 109
From: Calgary
Rep Power: 23
Ricardo Canada is infamous around these parts
Originally Posted by Gpjli
It is possible to adjust the standard mirrors so there is a seamless image from left side thru rearview to right side w no blind spot. The advantage is that there is less size distortion than with cave/vex mirrors. I won't review the procedure here unless ne1 needs it
I agree and I had my mirrors adjusted that way prior to installing the aspheric. It just gives a broader range of coverage (no blind spot and I can still see the rear fender). The distortion does not bother me.

My friend ordered it from the local Porsche dealer. I will post the part number tomorrow.


Last edited by Ricardo Canada; Jun 20, 2010 at 08:43 PM.
Old Jun 21, 2010 | 07:41 AM
  #6
Ricardo Canada's Avatar
Thread Starter
|
Registered User
Joined: Mar 2008
Posts: 109
From: Calgary
Rep Power: 23
Ricardo Canada is infamous around these parts
Porsche Part number is 997 731 035 01 Mirror Glass Aspherical Model I098/271

Old Jun 21, 2010 | 12:33 PM
  #7
Rxxxdruggist's Avatar
Registered User
15 Year Member
Joined: Mar 2010
Posts: 82
From: Arcadia
Rep Power: 22
Rxxxdruggist is a jewel in the roughRxxxdruggist is a jewel in the roughRxxxdruggist is a jewel in the rough
SUNCOAST sells them as a set

Old Jun 22, 2010 | 12:41 AM
  #8
lawjdc's Avatar
Registered User
Joined: Oct 2005
Posts: 210
From: Reno, Nevada
Rep Power: 29
lawjdc is infamous around these parts
These mirrors were one of the first mods I did, to both my 997 C2S and my GT3. Absolutely no blind spots and very minimal distortion. Got mine at Suncoast. Highly recommended!

Old Jun 22, 2010 | 12:58 PM
  #9
Gpjli's Avatar
Registered User
Joined: Apr 2007
Posts: 1,352
From: long island
Rep Power: 87
Gpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud of
Originally Posted by lawjdc
These mirrors were one of the first mods I did, to both my 997 C2S and my GT3. Absolutely no blind spots and very minimal distortion. Got mine at Suncoast. Highly recommended!
I was referring to the size/distance perceptual changes you get with a convex or concave mirror as distortions, not to imperfections in the mirror itself. If you like this mod great but there are no blind spots in a properly set up stock mirror arrangement. You should be able to track an approaching car from the rearview mirror into the sideview mirror and into your field of vision on either side (assuming normal biocular sight). You need to rotate the side mirrors outward to generate a seamless 180 deg field of vision. The upside is that size and distance remain more natural and consistent imo, esp. on the drivers side.


Last edited by Gpjli; Jun 22, 2010 at 01:14 PM.
Old Jun 22, 2010 | 01:33 PM
  #10
Minok's Avatar
Registered User
Joined: Aug 2008
Posts: 1,282
From: Pacific Northwest
Rep Power: 70
Minok has a spectacular aura aboutMinok has a spectacular aura about
Originally Posted by Gpjli
I was referring to the size/distance perceptual changes you get with a convex or concave mirror as distortions, not to imperfections in the mirror itself. If you like this mod great but there are no blind spots in a properly set up stock mirror arrangement. You should be able to track an approaching car from the rearview mirror into the sideview mirror and into your field of vision on either side (assuming normal biocular sight). You need to rotate the side mirrors outward to generate a seamless 180 deg field of vision. The upside is that size and distance remain more natural and consistent imo, esp. on the drivers side.
The issue I have with the stock mirror is more about what can I see in the traditional blind spot that is more than 1 lane over. On a multi-lane highway like the interstates, tracking a car that is over one lane in the blind spot area would require adjusting my drivers side mirror in such a way that I can no longer see my rear fender... so this is if interest to me.

I'm wondering if these come in auto-dimming.

Old Jun 22, 2010 | 08:40 PM
  #11
Gpjli's Avatar
Registered User
Joined: Apr 2007
Posts: 1,352
From: long island
Rep Power: 87
Gpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud ofGpjli has much to be proud of
Originally Posted by Minok
The issue I have with the stock mirror is more about what can I see in the traditional blind spot that is more than 1 lane over. On a multi-lane highway like the interstates, tracking a car that is over one lane in the blind spot area would require adjusting my drivers side mirror in such a way that I can no longer see my rear fender... so this is if interest to me.

I'm wondering if these come in auto-dimming.
You do need to move your head for a quick peak way out there laterally. I've had some experience with convex drivers side mirror. The larger the field the smaller the images and the harder it is to judge position and speed of approaching vehicles. It's a question of priorities I guess. Enjoy.

Old Jun 22, 2010 | 11:56 PM
  #12
DrPeter's Avatar
Registered User
Joined: Feb 2005
Posts: 496
From: Newport Beach, CA
Rep Power: 43
DrPeter has a spectacular aura aboutDrPeter has a spectacular aura aboutDrPeter has a spectacular aura about
One of the best safety mods that I have ever done. I remember it was a little pricey. I made a mental note at the time, that if I ever get a chance to order a new Porsche to have it equipped with these mirrors.

Old Jun 23, 2010 | 11:31 AM
  #13
lee7758's Avatar
Registered User
Joined: Feb 2009
Posts: 163
From: Vancouver, Canada
Rep Power: 24
lee7758 is infamous around these parts
Originally Posted by Gpjli
It is possible to adjust the standard mirrors so there is a seamless image from left side thru rearview to right side w no blind spot. The advantage is that there is less size distortion than with cave/vex mirrors. I won't review the procedure here unless ne1 needs it
+1 That's true!

Old Jun 23, 2010 | 12:20 PM
  #14
SuncoastRyan's Avatar
Basic Sponsor
Joined: Feb 2009
Posts: 967
From: SRQ, FL
Rep Power: 64
SuncoastRyan is a splendid one to beholdSuncoastRyan is a splendid one to beholdSuncoastRyan is a splendid one to beholdSuncoastRyan is a splendid one to beholdSuncoastRyan is a splendid one to beholdSuncoastRyan is a splendid one to beholdSuncoastRyan is a splendid one to behold
We have the aspheric set of mirrors on our website here: http://www.suncoastparts.com/product//aspherics.html

Please let me know if you have any questions.

__________________
Ryan
Suncoast Parts
877-923-1700
ryan@suncoastparts.com

Old Oct 29, 2012 | 02:24 PM
  #15
Nick-NY's Avatar
Registered User
Joined: Dec 2007
Posts: 267
From: Gotham
Rep Power: 37
Nick-NY is a splendid one to beholdNick-NY is a splendid one to beholdNick-NY is a splendid one to beholdNick-NY is a splendid one to beholdNick-NY is a splendid one to beholdNick-NY is a splendid one to beholdNick-NY is a splendid one to behold
Originally Posted by SuncoastRyan
We have the aspheric set of mirrors on our website here: http://www.suncoastparts.com/product//aspherics.html

Please let me know if you have any questions.
Link no worky.
Any idea if they are still sold as a set?
