DIY steering wheel removal help

Has anyone done this lately on a 997?
i'm ordering a rewrap, and have to remove my wheel and send it away.
any tips, techniques, or suggestions are welcome.

thanks,
NAV

Old Jan 7, 2014 | 10:00 AM
  #2
Hatzenbach's Avatar
Registered User
Joined: Mar 2009
Posts: 286
From: San Fran Bay Area, CA
Rep Power: 30
Hatzenbach has a spectacular aura aboutHatzenbach has a spectacular aura about
Look in the diy section for steering wheel swap

Old Jan 7, 2014 | 10:19 AM
  #3
Wheeler's Avatar
Registered User
Joined: Oct 2013
Posts: 341
From: KC Area
Rep Power: 26
Wheeler is infamous around these parts
Timely! I'm want to send mine to those boys in Dallas to get mine done!

Old Jan 7, 2014 | 10:23 AM
  #4
Nav5's Avatar
Thread Starter
|
Registered User
Joined: Aug 2013
Posts: 34
From: Las Vegas
Rep Power: 14
Nav5 is infamous around these parts
looking forward to it, but the process of removing it is giving me apprehension.
i read the DIY thread, and there is a part about removing the airbag, people are saying it takes a ton of pressure to make it happen. i just don't want to dork something up.

i'll post pics when i finally finish. gonna start today on it.

cheers,
NAV

Old Jan 7, 2014 | 08:32 PM
  #5
Hatzenbach's Avatar
Registered User
Joined: Mar 2009
Posts: 286
From: San Fran Bay Area, CA
Rep Power: 30
Hatzenbach has a spectacular aura aboutHatzenbach has a spectacular aura about
No stress here please.
A complete steering wheel swap takes maybe 30 min

Old Jan 7, 2014 | 08:45 PM
  #6
swc's Avatar
swc
Registered User
15 Year Member
Joined: Oct 2006
Posts: 497
From: Lansdale, PA
Rep Power: 81
swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !
I just did it. Very easy! From start to finish no more than 1 hour. I also followed diy threads here. Without multifunction buttons, it will be even easier and faster. GL!

Old Jan 7, 2014 | 09:10 PM
  #7
Buddhamonk's Avatar
Registered User
Joined: May 2013
Posts: 390
From: PDX
Rep Power: 30
Buddhamonk has a spectacular aura aboutBuddhamonk has a spectacular aura aboutBuddhamonk has a spectacular aura about
where do you guys get that special torx tool?

Old Jan 7, 2014 | 09:38 PM
  #8
swc's Avatar
swc
Registered User
15 Year Member
Joined: Oct 2006
Posts: 497
From: Lansdale, PA
Rep Power: 81
swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !
Originally Posted by Buddhamonk
where do you guys get that special torx tool?
You can use regular T-55 torx bit. I bought it from local parts store for $5.

Old Jan 8, 2014 | 01:07 PM
  #9
Nav5's Avatar
Thread Starter
|
Registered User
Joined: Aug 2013
Posts: 34
From: Las Vegas
Rep Power: 14
Nav5 is infamous around these parts
Wire removal

Guys.
After getting the steering wheel off, I had to figure out how to remove the wires from the airbag. Last thing I wanted to do was mess up something electrical.
The black ground wire is easy, slides right off.

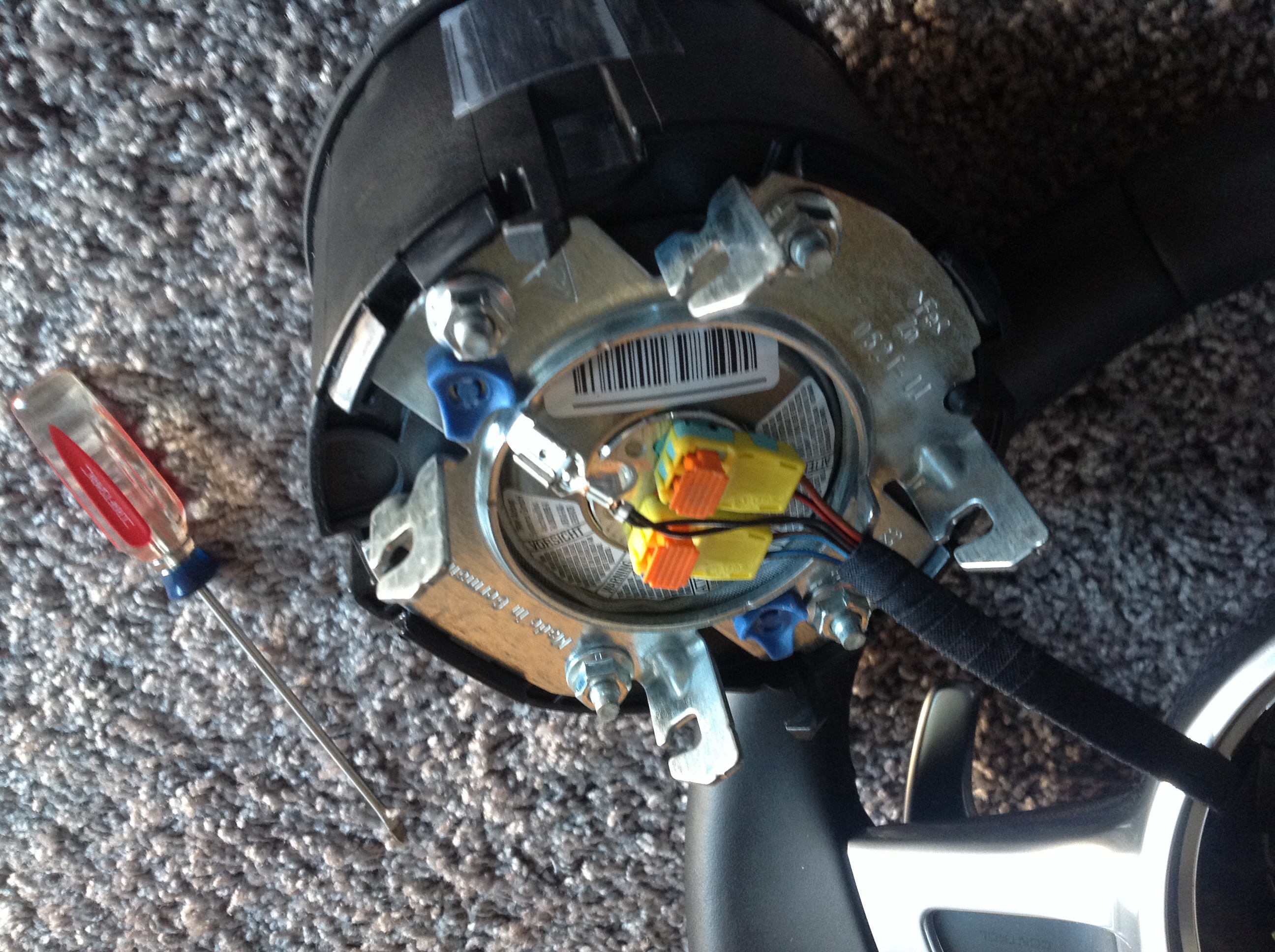

The other 2 I had to figure out. Hopefully the picture will show it, but the orange piece slides up. I used a small regular screwdriver. Once that is unlocked, the harness easily comes out of the airbag.

Thanks to all that aided me in this endeavor.

Cheers,
NAV

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	87
Size:	1.58 MB
ID:	318761
Old Jan 8, 2014 | 01:28 PM
  #10
PasPar2's Avatar
Registered User
Joined: Dec 2008
Posts: 947
From: NYC
Rep Power: 61
PasPar2 is a name known to allPasPar2 is a name known to allPasPar2 is a name known to allPasPar2 is a name known to allPasPar2 is a name known to allPasPar2 is a name known to all
the longest part of my DIY paddle shifter wheel install was figuring out how to get those wire connecters off... the entire DIY, took 20 minutes and I never did anything like that before. go ahead an DIY this. its easy.

Old Jan 8, 2014 | 02:37 PM
  #11
PrecisionPorsch's Avatar
Basic Sponsor
Joined: Feb 2009
Posts: 2,286
From: USA
Rep Power: 0
PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !
one tip... push the airbag in slightly (like you're pressing the horn) when you are trying to release it. It should help

Edwin

Old Jan 8, 2014 | 02:43 PM
  #12
Dubbin''s Avatar
Registered User
Joined: Sep 2013
Posts: 30
From: Montreal
Rep Power: 14
Dubbin' is infamous around these parts
This should not be too difficult. If you are worried about this DIY because you think the Airbag can pop, don't worry. If the battery is unplugged there is no way the airbag can deploy. It needs electrical current.

Mark

Old Jan 8, 2014 | 03:06 PM
  #13
Wheeler's Avatar
Registered User
Joined: Oct 2013
Posts: 341
From: KC Area
Rep Power: 26
Wheeler is infamous around these parts
Originally Posted by Dubbin'
This should not be too difficult. If you are worried about this DIY because you think the Airbag can pop, don't worry. If the battery is unplugged there is no way the airbag can deploy. It needs electrical current.

Mark
That would add an element of excitement to the project though! Like that old game "Operation".

Old Jan 9, 2014 | 08:42 AM
  #14
Dubbin''s Avatar
Registered User
Joined: Sep 2013
Posts: 30
From: Montreal
Rep Power: 14
Dubbin' is infamous around these parts
Originally Posted by Wheeler
That would add an element of excitement to the project though! Like that old game "Operation".
Lol I remember that. Haha.

Mark

Old Jan 9, 2014 | 12:35 PM
  #15
ryem3's Avatar
Registered User
Joined: May 2009
Posts: 3,335
From: Rye, NY
Rep Power: 201
ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !
