Ipad Mini in-dash install and 997.2 climate control unit in 997.1
#1
Ipad Mini in-dash install and 997.2 climate control unit in 997.1
I was inspired by user JoelPierla to install an iPad Mini in-dash to replace my PCM 2.1. I was originally looking at options to play music/podcasts from my phone into the original PCM, and was set on a Dension unit for about $500.
However after seeing JoelPierla's thread, I decided replacing the whole PCM would be a better choice because of the added functionality of an iPad.
Here is his thread:
https://www.6speedonline.com/forums/...ini-997-a.html
I also used tips from user pfbz in his thread (including the Porsche wallpaper)
https://www.6speedonline.com/forums/...-996-mkii.html
I followed most of JoelPierla's instructions, but I used a different pre-amp, which controls volume with a **** since I didn't want to have to look at the screen while driving to adjust volume.
Basically my setup is as follows:
iPad audio out 3.5mm goes to pre-amp (through noise isolator)
pre-amp then gives speaker output which is now attached to the original PCM harness using a Euromotorsports adapter (so I didn't have to hack up any of the car's harness, making this completely reversible)
Power is from C6 switched 12v on footwell fuse box, which powers the ipad using a 5v USB adapter which the iPad lightning cable is plugged into
This also powers the pre-amp
The bezel is a modified 997.2 GT2RS radio elimination shelf.
The bezel stays attached with magnets glued onto the back, which are attracted to the ipad at the same locations a case would attach.
The iPad is a Mini Retina 4g model, andhas a matte screen protector to reduce glare. It has been jailbroken using evasi0n to make it act more like an OEM piece.
The main reason I jailbroke is so that the screen turns on when I put the key in and turns off when I take it out, rather than manually turning it on or off, or having it set on a timer (using Activator). There are probably other things I will change in the future, but that is the main thing for now.
997.2 Climate Control Panel -
EDIT: The 997.2 unit does not engage the 997.1 AC compressor. Please see this thread for more info - I am still unclear on the solution.
https://www.6speedonline.com/forums/...n-done-19.html
In addition to being nicer and newer, it is black and matches the radio elimination shelf I bought for the iPad install. I also purchased a 997.2 cubby (under the sport button control pannel thing), to match (this was only about $20. The last thing that needed to match was the sport mode/PASM/PSM off switch panel, which I painted black myself to match everything else. I considered buying a 997.2 piece but heard rumors that it isn't plug and play, and I didn't feel like rewiring anything.
Couple things I would still like to do:
I do not like the look of the shiny chrome ***** of the pre-amp. I will remove these and install black ones instead. I already sanded them down a little so they have a brushed look instead of a chrome look, but I still think it would look better if it was all black.
Another thing is the bezel isn't 100% lined up correctly, so I need to reposition the magnets so that it lines up better.

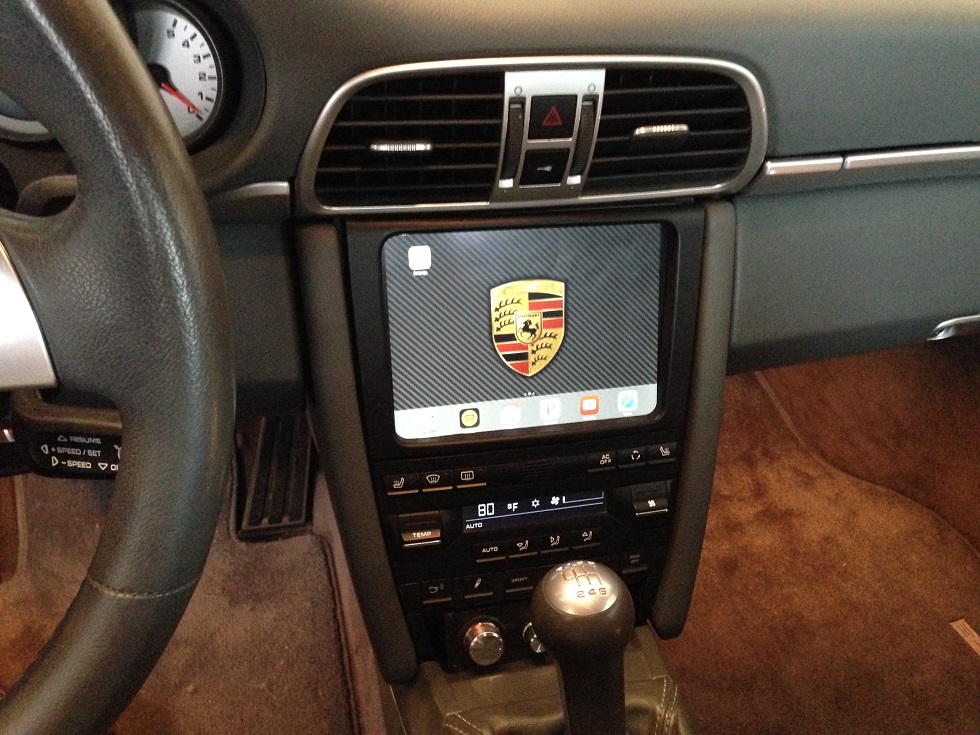

Here is a [bad phone] picture of the setup, I can answer any questions about it.
Thanks again to JoelPierla and pfbz for their informational threads.
However after seeing JoelPierla's thread, I decided replacing the whole PCM would be a better choice because of the added functionality of an iPad.
Here is his thread:
https://www.6speedonline.com/forums/...ini-997-a.html
I also used tips from user pfbz in his thread (including the Porsche wallpaper)
https://www.6speedonline.com/forums/...-996-mkii.html
I followed most of JoelPierla's instructions, but I used a different pre-amp, which controls volume with a **** since I didn't want to have to look at the screen while driving to adjust volume.
Basically my setup is as follows:
iPad audio out 3.5mm goes to pre-amp (through noise isolator)
pre-amp then gives speaker output which is now attached to the original PCM harness using a Euromotorsports adapter (so I didn't have to hack up any of the car's harness, making this completely reversible)
Power is from C6 switched 12v on footwell fuse box, which powers the ipad using a 5v USB adapter which the iPad lightning cable is plugged into
This also powers the pre-amp
The bezel is a modified 997.2 GT2RS radio elimination shelf.
The bezel stays attached with magnets glued onto the back, which are attracted to the ipad at the same locations a case would attach.
The iPad is a Mini Retina 4g model, andhas a matte screen protector to reduce glare. It has been jailbroken using evasi0n to make it act more like an OEM piece.
The main reason I jailbroke is so that the screen turns on when I put the key in and turns off when I take it out, rather than manually turning it on or off, or having it set on a timer (using Activator). There are probably other things I will change in the future, but that is the main thing for now.
997.2 Climate Control Panel -
EDIT: The 997.2 unit does not engage the 997.1 AC compressor. Please see this thread for more info - I am still unclear on the solution.
https://www.6speedonline.com/forums/...n-done-19.html
In addition to being nicer and newer, it is black and matches the radio elimination shelf I bought for the iPad install. I also purchased a 997.2 cubby (under the sport button control pannel thing), to match (this was only about $20. The last thing that needed to match was the sport mode/PASM/PSM off switch panel, which I painted black myself to match everything else. I considered buying a 997.2 piece but heard rumors that it isn't plug and play, and I didn't feel like rewiring anything.
Couple things I would still like to do:
I do not like the look of the shiny chrome ***** of the pre-amp. I will remove these and install black ones instead. I already sanded them down a little so they have a brushed look instead of a chrome look, but I still think it would look better if it was all black.
Another thing is the bezel isn't 100% lined up correctly, so I need to reposition the magnets so that it lines up better.
Here is a [bad phone] picture of the setup, I can answer any questions about it.
Thanks again to JoelPierla and pfbz for their informational threads.
Last edited by Littlemilla3; 04-27-2014 at 12:02 PM.
#6
+1...would also like to know. Did I forget to say, "great job on the conversion!"
#7
This looks so slick. I want to do the same. Can you link us to some of the parts you purchased? Mine is a 997.2 but it looks similar from your picture.
Trending Topics
#8
I don't have any pictures of the climate control modifications, but I'll try to come up with a diagram and post it.
#9
Here is how I modified the climate control mounting plastic to make the 997.2 unit fit in my 997.1 car console. I made all modifications on the car, rather than on the unit itself. I guess you might be able to do it the other way around, I'm not sure.
Basically there are three areas where there is not enough clearance. The 997.2 unit is slightly larger in these areas and causes interference with the console. To alleviate this problem, I filed down these three areas inside the console area to make more clearance.
First I'll post pictures of the two units to show the differences

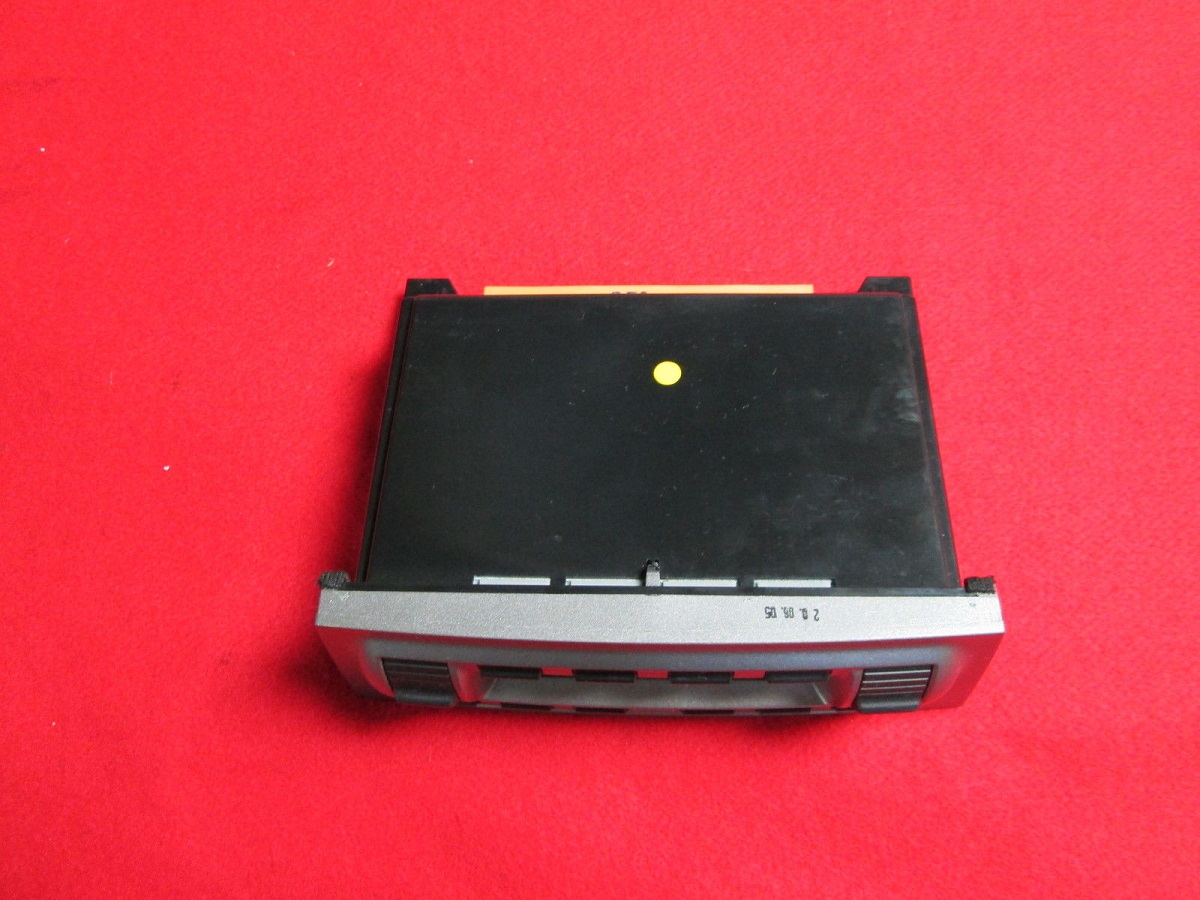

997.1

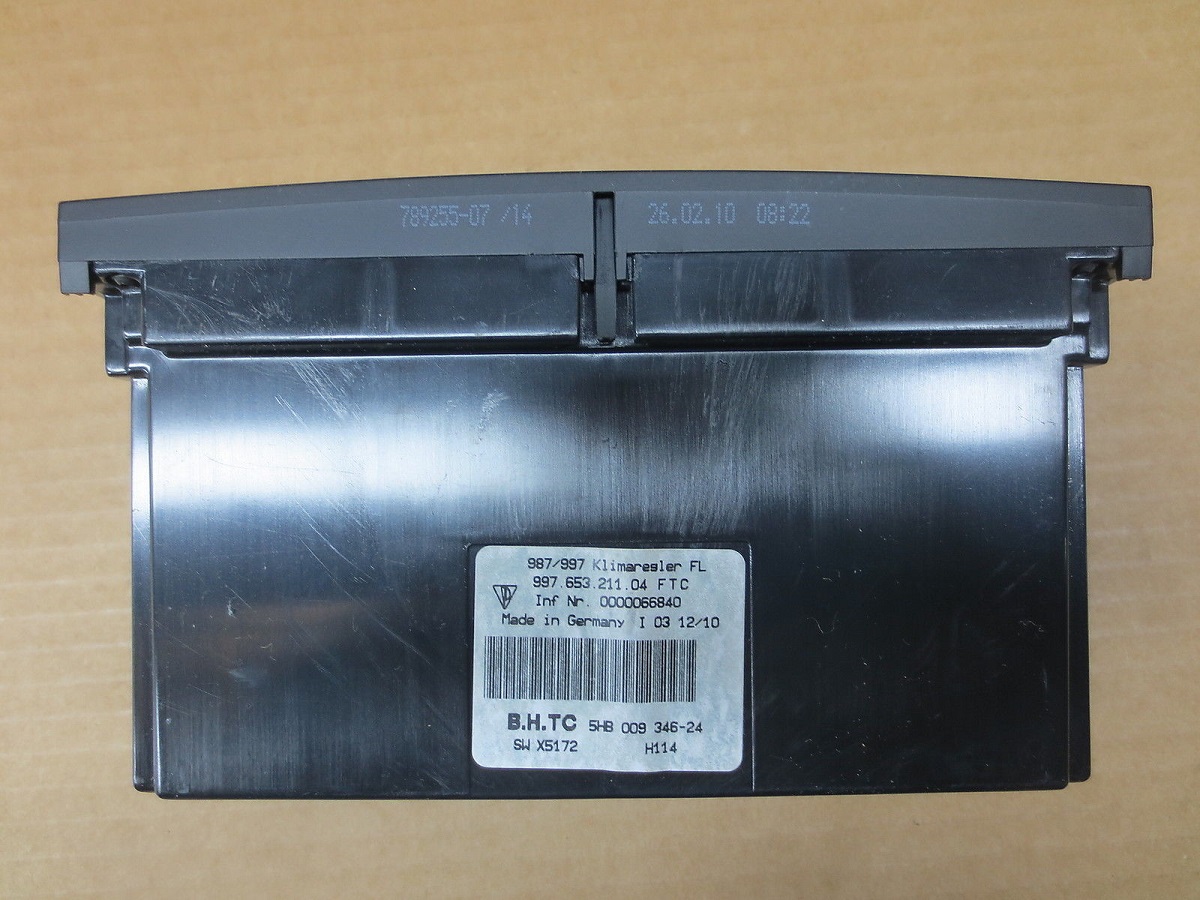

997.2
This is an inferior view of the two units. I outlined in red the part of the 997.2 unit which causes interference. The solution is to notch out some of the plastic (on the console, not on the unit) where this slides over.
Continued on next post...
Basically there are three areas where there is not enough clearance. The 997.2 unit is slightly larger in these areas and causes interference with the console. To alleviate this problem, I filed down these three areas inside the console area to make more clearance.
First I'll post pictures of the two units to show the differences
997.1
997.2
This is an inferior view of the two units. I outlined in red the part of the 997.2 unit which causes interference. The solution is to notch out some of the plastic (on the console, not on the unit) where this slides over.
Continued on next post...
#10

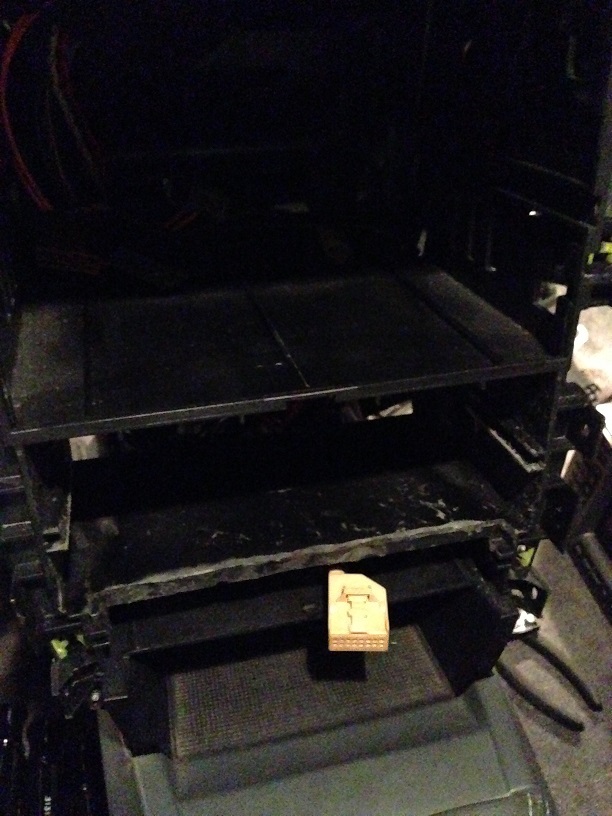

Here is a (very horrible) picture I took in the middle of the process. This after rough cuts, so it looks much nicer now than it does in this picture (filed nicely, etc.), but it'll give you an idea of what's involved.
So in the picture with the big yellow circle, that is the area I had to notch to make room for the "hump" that I outlined in the red box in one of the pictures above. I used a dremel with a cutoff wheel and then filed it to make it look nice. (about ~1cm notched out)
The two smaller yellow circles highlight the other two areas which need to be modified. This U-channel-like extension slides into the side of the climate unit, and the 997.2 unit's grooves are less deep so the U-channel-thingy needs to be filed down roughly 2-3mm bilaterally.

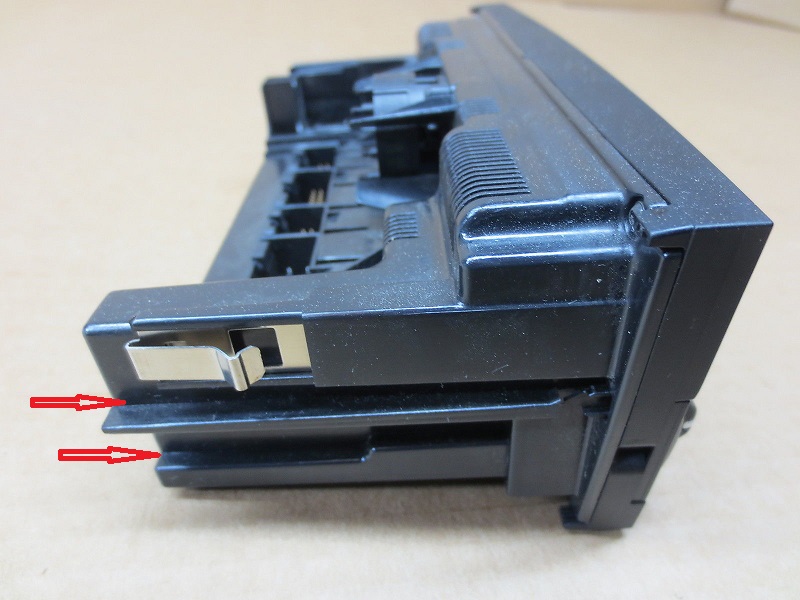

Here is a picture of the side of the climate control unit
The two red arrows show the two grooves which the U-channel-thing slide into. These two grooves are too shallow on the 997.2 unit so you can see why the U-channel-thing needs to be filed down.
RECAP:
So there are three areas which need to be modified.
1: notch out the plastic below the climate control unit roughly 1cm to clear the area I outlined in the red box above
2+3: file down about 2-3mm of each side (L+R) of the little plastic U-channel tabs which slide into the climate unit, seen in the picture above
All other mounting points fit correctly, including metal tabs which actually hold the unit in place.
So in the picture with the big yellow circle, that is the area I had to notch to make room for the "hump" that I outlined in the red box in one of the pictures above. I used a dremel with a cutoff wheel and then filed it to make it look nice. (about ~1cm notched out)
The two smaller yellow circles highlight the other two areas which need to be modified. This U-channel-like extension slides into the side of the climate unit, and the 997.2 unit's grooves are less deep so the U-channel-thingy needs to be filed down roughly 2-3mm bilaterally.
Here is a picture of the side of the climate control unit
The two red arrows show the two grooves which the U-channel-thing slide into. These two grooves are too shallow on the 997.2 unit so you can see why the U-channel-thing needs to be filed down.
RECAP:
So there are three areas which need to be modified.
1: notch out the plastic below the climate control unit roughly 1cm to clear the area I outlined in the red box above
2+3: file down about 2-3mm of each side (L+R) of the little plastic U-channel tabs which slide into the climate unit, seen in the picture above
All other mounting points fit correctly, including metal tabs which actually hold the unit in place.
Last edited by Littlemilla3; 01-11-2014 at 07:24 PM.
#11
Harness adapter:
http://www.ebay.com/itm/05-08-PORSCH...item4ac072de42
(this is for a 997.1 NON-BOSE car. I do not know how different 997.2 wiring is and if you have Bose, it is probably going to make everything more difficult)
GT2RS radio removal shelf
http://www.suncoastparts.com/product...2rselectronics
Amp
Amazon.com : 2013 New Version!! Upgraded LP-2020A+ Lepai Tripath Class-T Hi-Fi Audio Mini Amplifier with US Power Supply Black, US Shipping!!! : Audio Component Amplifiers : Electronics
Cigarette lighter socket
USB 5v cigarette lighter adapter
Amazon.com: Satechi Smart Converter USB Port Cigarette Adapter for iPad 2 & 3, Mini, iPhone 4S , 5, 5S, 5C, Samsung Galaxy S II, S III, SIV, BlackBerry Playbook, HTC One, SV, Flyer, Android Phones (2.4 AMP) (Single USB Port): Cell Phones & Accessories
3.5mm audio cable
Amazon.com: 2 feet 3.5mm Male Right Angle to 3.5mm Male Right Angle Gold Stereo Audio Cable, Nylon Reinforced, Premium Quality Cable: Electronics
Ground loop isolator
Lightning right angle adapter (harvested from this dock)
Amazon.com: ELONGPRO Desktop Data Sync & Charger Cradle Mount Dock Docking Station for Apple iPhone 5 (White) F8i: Cell Phones & Accessories
Plus various consumables, e.g. heat shrink, solder, etc.
#14
Rather than dremel the controller holder - does anybody know if the holder from a 997.2 can be fitted?
see below, for 40 Euro I would rather use the OEM part no?
http://www.ebay.de/itm/Porsche-911-9...item2ec3a22a92
any thoughts/people that have done this?
Thanks Mike
see below, for 40 Euro I would rather use the OEM part no?
http://www.ebay.de/itm/Porsche-911-9...item2ec3a22a92
any thoughts/people that have done this?
Thanks Mike
