My 2007 997 C4S failed Smog. It does not have any mods or the X51 package

The Smog papers states:

OBD II Monitor Not Ready
1. Secondary Air System
2. Oxygen sensor

My Durametric shows:
P1682 - secondary air valve final stage


Questions:
1. Anyone had this P1682 issue before? FYI, my CEL is NOT on.
2. Anyone knows where the AIS is located? Is it behind the alternator?


Much appreciated!



This link may be of some help:

http://rennlist.com/forums/997-forum...ault-code.html



I actually have an entry to that post a few years back. Similar to the OP, I don't have the PSE.

Thanks.



I also have located the pump and it runs via Durametric. The Kombi valve was also removed, cleaned and I cal blow Air through it. The electric switch valve was also cleaned and I can blow Air through it once I apply voltage through it.

Thanks.



Have you disconnected your battery recently? I've read that the emissions system takes a long time to run all its diagnostics before it can be smog tested. The Not Ready condition may not actually be a failure, just that the system can't be checked yet.



The battery was replaced 6 months ago. Before posting this thread, I did the "drive cycle" 3 times at midnight without success.

As an update, All 5 Smog items (cat efficiency, o2 sensors, heater, etc) are in Pass status as of Yesterday. And yes, Prior to yesterday, 3 items were in Fail status.

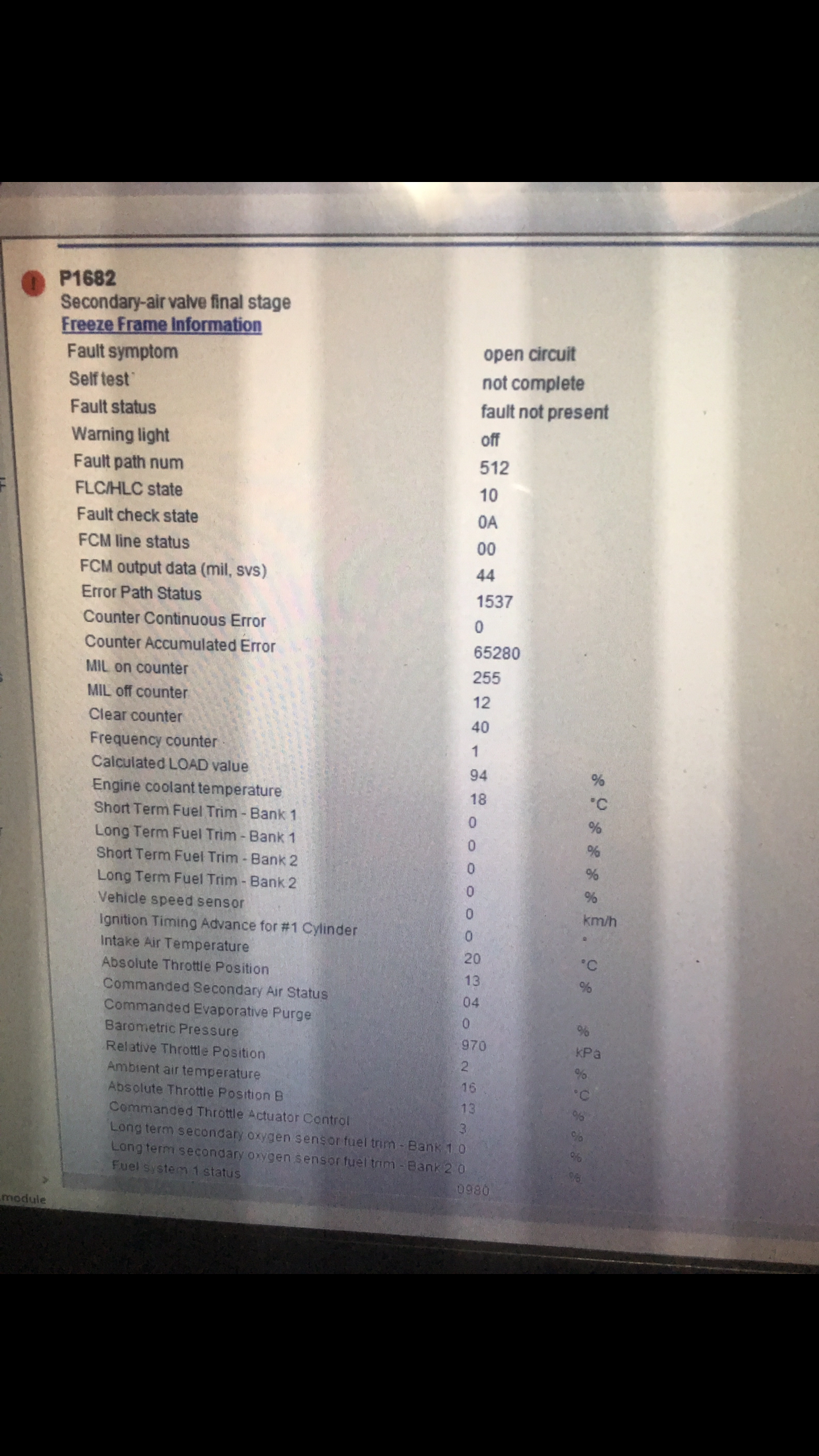

Though 5 items are passing, i still have P1682. Hope this pic/detail helps:



I had the same issue after I cleared some codes. Took 2 weeks of daily driving to clear the last stage for the air pump. I kept checking for it to clear with the Durametric after each drive.



Did you get the P1682 and then it disappeared after 2 weeks?

thanks.



Can't remember the code, but it was the readiness check for the secondary air pump in durametric that I waited to pass.



Thanks for the clarification.
