Alarm module location?
Registered User
Joined: Oct 2023
Posts: 42
Rep Power: 4

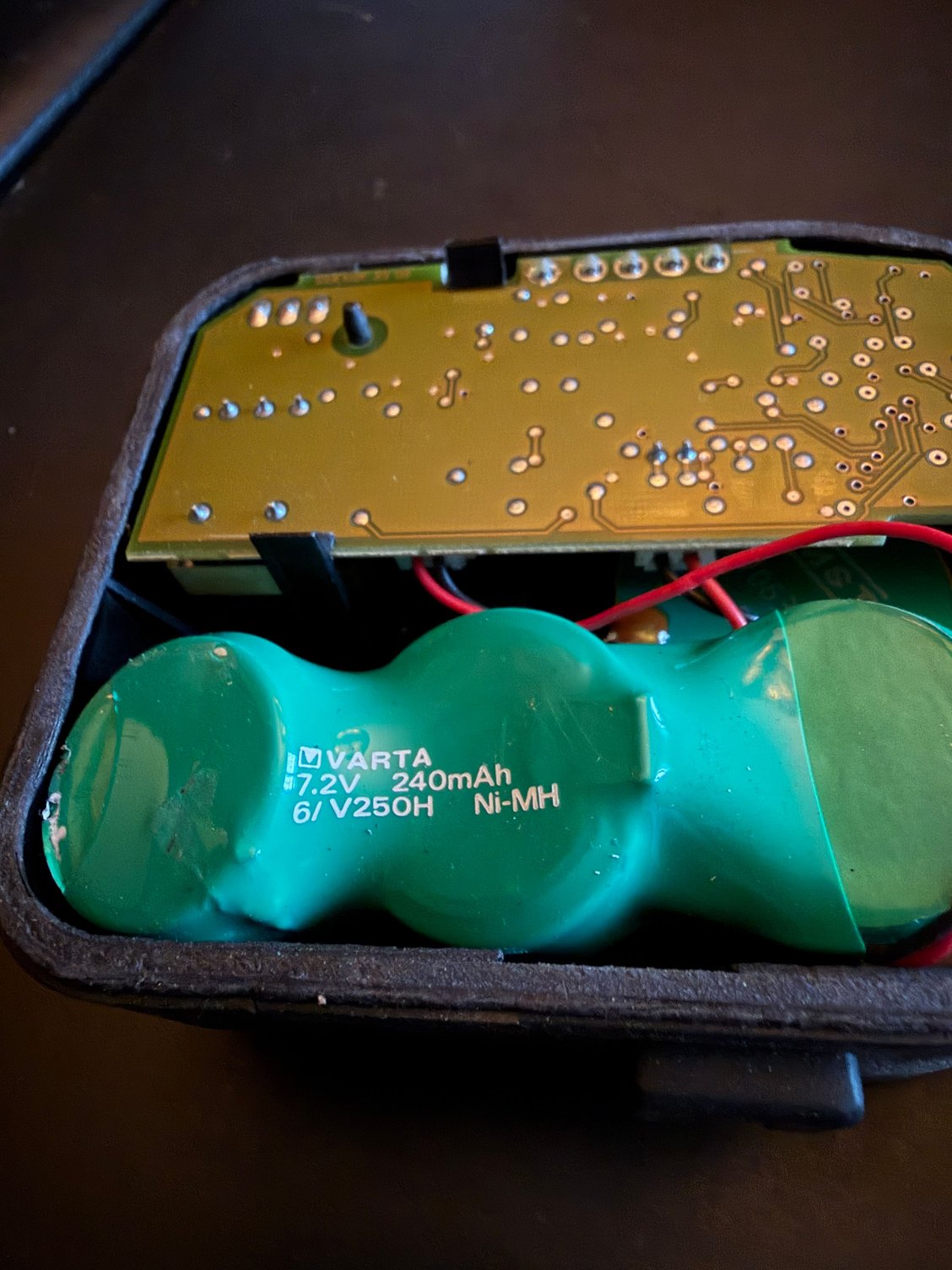

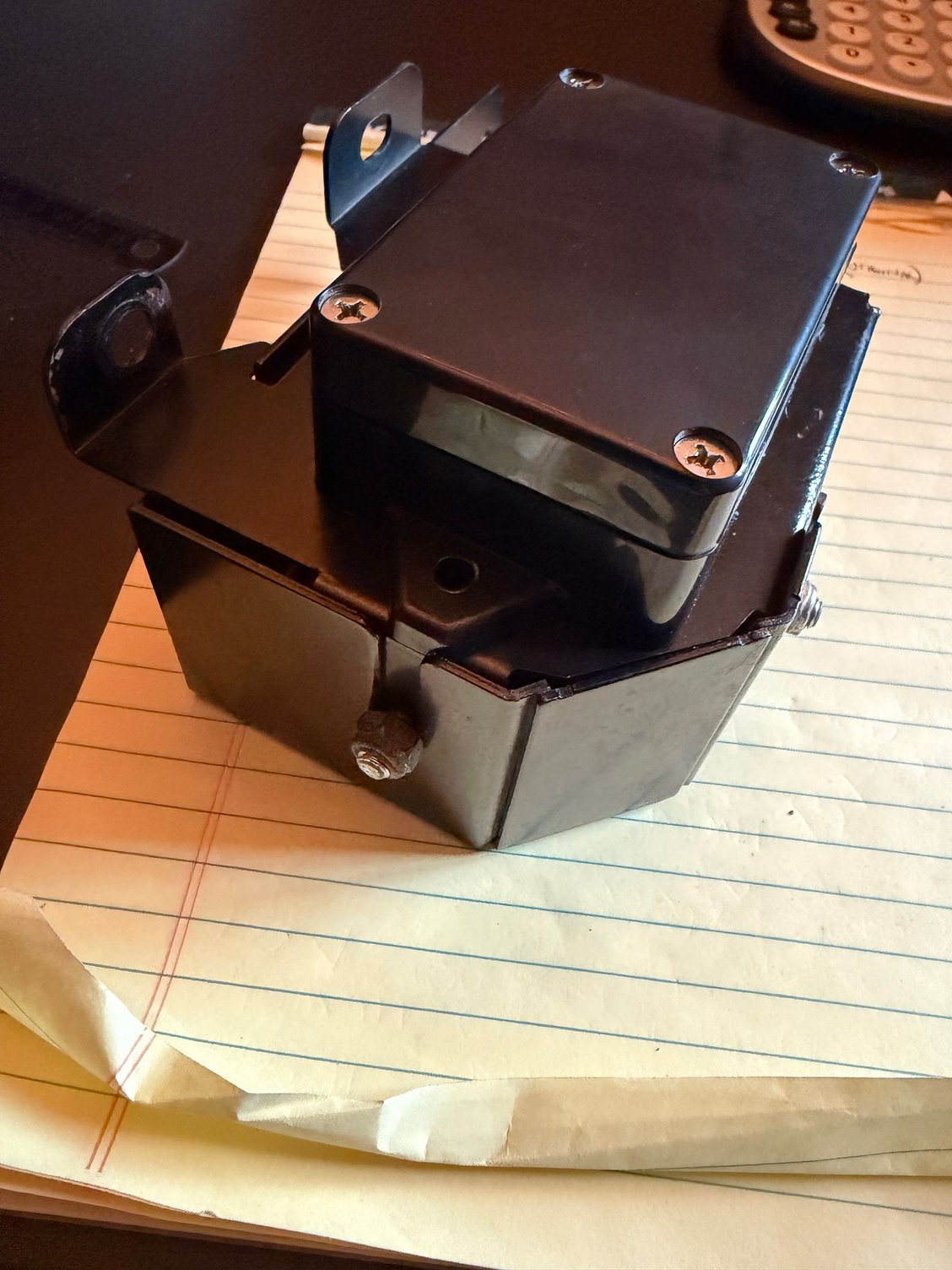

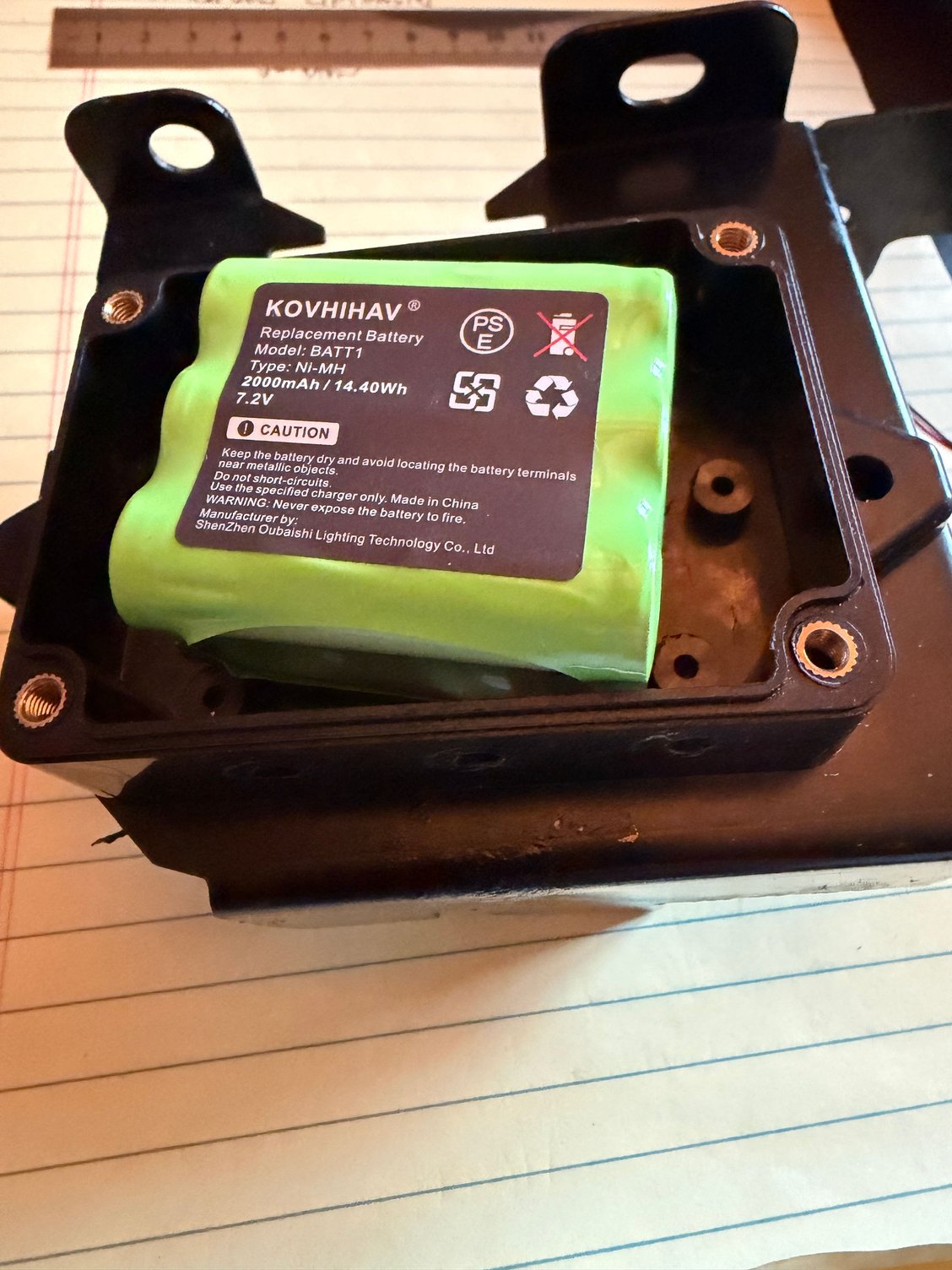

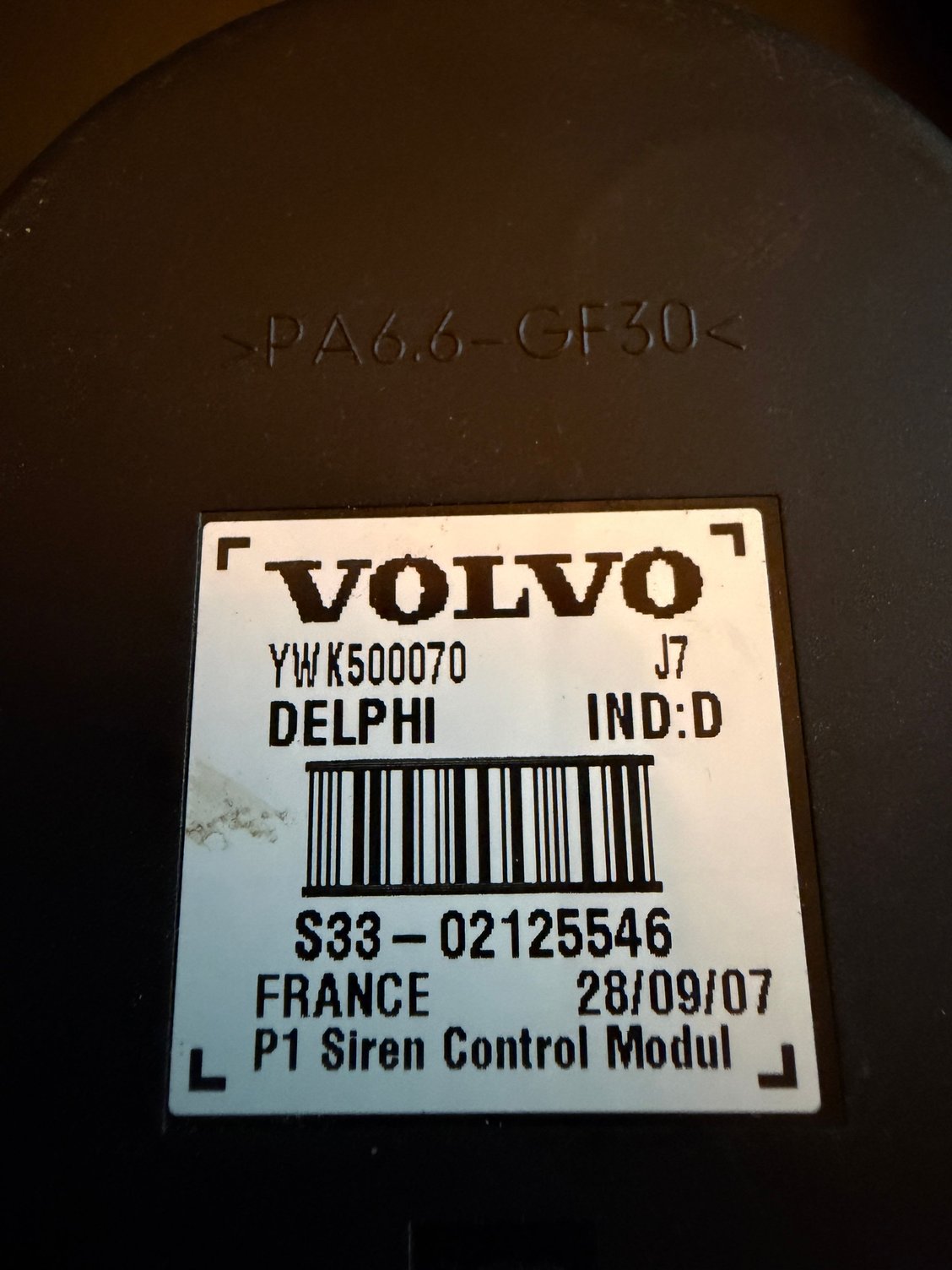

Just thought I would update you guys in case someone else finds this useful in the future. So I couldn't find any replacement black plastic high-spec tilt Volvo siren YWK500050 or YWK 500070. I ended up buying a metal high-spec tilt FoMoCo siren from a Range Rover 6G9N-19G229-DG. Used examples can be found as cheap as £15 on eBay, although it may be worth swapping out the battery for a new one (and perhaps trying to mount the battery externally so it can be easily replaced and doesn't leak acid and fry the circuit board in few years time). I had to modify the old bracket slightly to make the new-style siren fit but it was very straightforward. Alarm system service message has gone and I tested the siren is working by waving my hand inside the cabin with the car locked and window open.
Registered User
Joined: Apr 2023
Posts: 570
From: Santa Rosa, CA
Rep Power: 49
Don't ask me how I did it because I have no idea
Registered User
Joined: Apr 2023
Posts: 570
From: Santa Rosa, CA
Rep Power: 49
Just thought I would update you guys in case someone else finds this useful in the future. So I couldn't find any replacement black plastic high-spec tilt Volvo siren YWK500050 or YWK 500070. I ended up buying a metal high-spec tilt FoMoCo siren from a Range Rover 6G9N-19G229-DG. Used examples can be found as cheap as £15 on eBay, although it may be worth swapping out the battery for a new one (and perhaps trying to mount the battery externally so it can be easily replaced and doesn't leak acid and fry the circuit board in few years time). I had to modify the old bracket slightly to make the new-style siren fit but it was very straightforward. Alarm system service message has gone and I tested the siren is working by waving my hand inside the cabin with the car locked and window open.
Registered User
Joined: Oct 2024
Posts: 1
Rep Power: 0
Thank you very much for sharing on this forum. The info was very helpful while repairing my wife's 2010 Volvo XC60. When armed, the alarm would go off. I read about the battery issue, but the local independent Volvo repair shop said it was due to drains in the area.
The alarming stopped after I removed the rusted module, 6G9N-19G229-AH, and the vehicle seemed to operate fine. I wanted a new part, but Volvo wanted $343. I found that Ford carries a part for Mustangs, DS7Z-19G229-A, and found a supplier with a good return policy that shipped it for $69.
The new module seems to work great with no false alarms. The only difference is that this module makes a honking sound, instead of a whistling sound when alarming. Just wanted to share. Good luck!
The alarming stopped after I removed the rusted module, 6G9N-19G229-AH, and the vehicle seemed to operate fine. I wanted a new part, but Volvo wanted $343. I found that Ford carries a part for Mustangs, DS7Z-19G229-A, and found a supplier with a good return policy that shipped it for $69.
The new module seems to work great with no false alarms. The only difference is that this module makes a honking sound, instead of a whistling sound when alarming. Just wanted to share. Good luck!
Registered User
Joined: Apr 2023
Posts: 570
From: Santa Rosa, CA
Rep Power: 49
Thank you very much for sharing on this forum. The info was very helpful while repairing my wife's 2010 Volvo XC60. When armed, the alarm would go off. I read about the battery issue, but the local independent Volvo repair shop said it was due to drains in the area.
The alarming stopped after I removed the rusted module, 6G9N-19G229-AH, and the vehicle seemed to operate fine. I wanted a new part, but Volvo wanted $343. I found that Ford carries a part for Mustangs, DS7Z-19G229-A, and found a supplier with a good return policy that shipped it for $69.
The new module seems to work great with no false alarms. The only difference is that this module makes a honking sound, instead of a whistling sound when alarming. Just wanted to share. Good luck!
The alarming stopped after I removed the rusted module, 6G9N-19G229-AH, and the vehicle seemed to operate fine. I wanted a new part, but Volvo wanted $343. I found that Ford carries a part for Mustangs, DS7Z-19G229-A, and found a supplier with a good return policy that shipped it for $69.
The new module seems to work great with no false alarms. The only difference is that this module makes a honking sound, instead of a whistling sound when alarming. Just wanted to share. Good luck!
All websites I can find it on charge a 15% to 25% restocking fee...
Thank you.
