Door/Window trim out of alignment?

Reply



Thread Tools Search this Thread Rate Thread
  #1
Old 10-12-2017, 10:21 AM
silver997's Avatar
Registered User
Thread Starter

Join Date: Oct 2011
Location: Passing on the right
Posts: 58
Rep Power: 9
silver997 is on a distinguished road

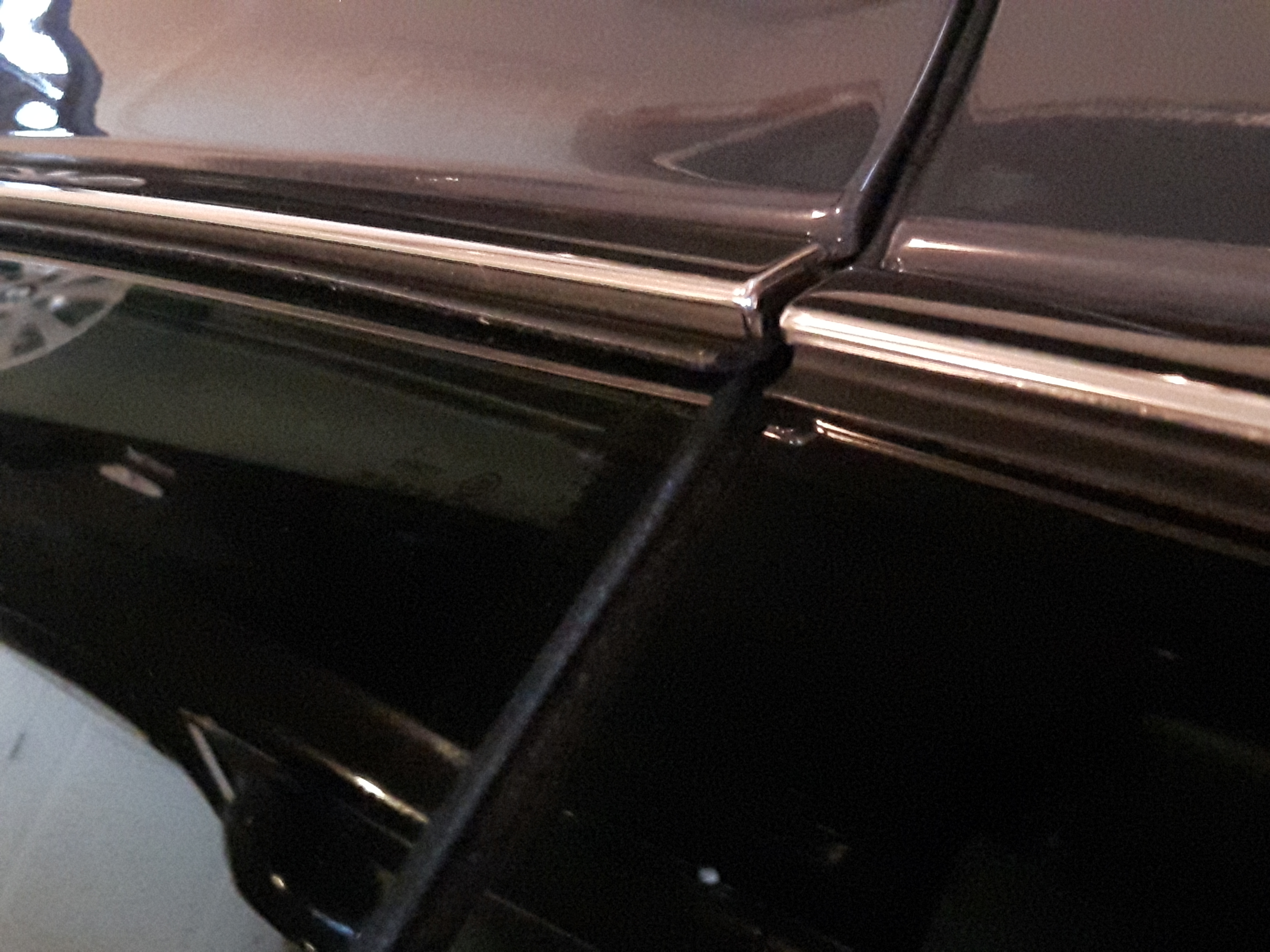

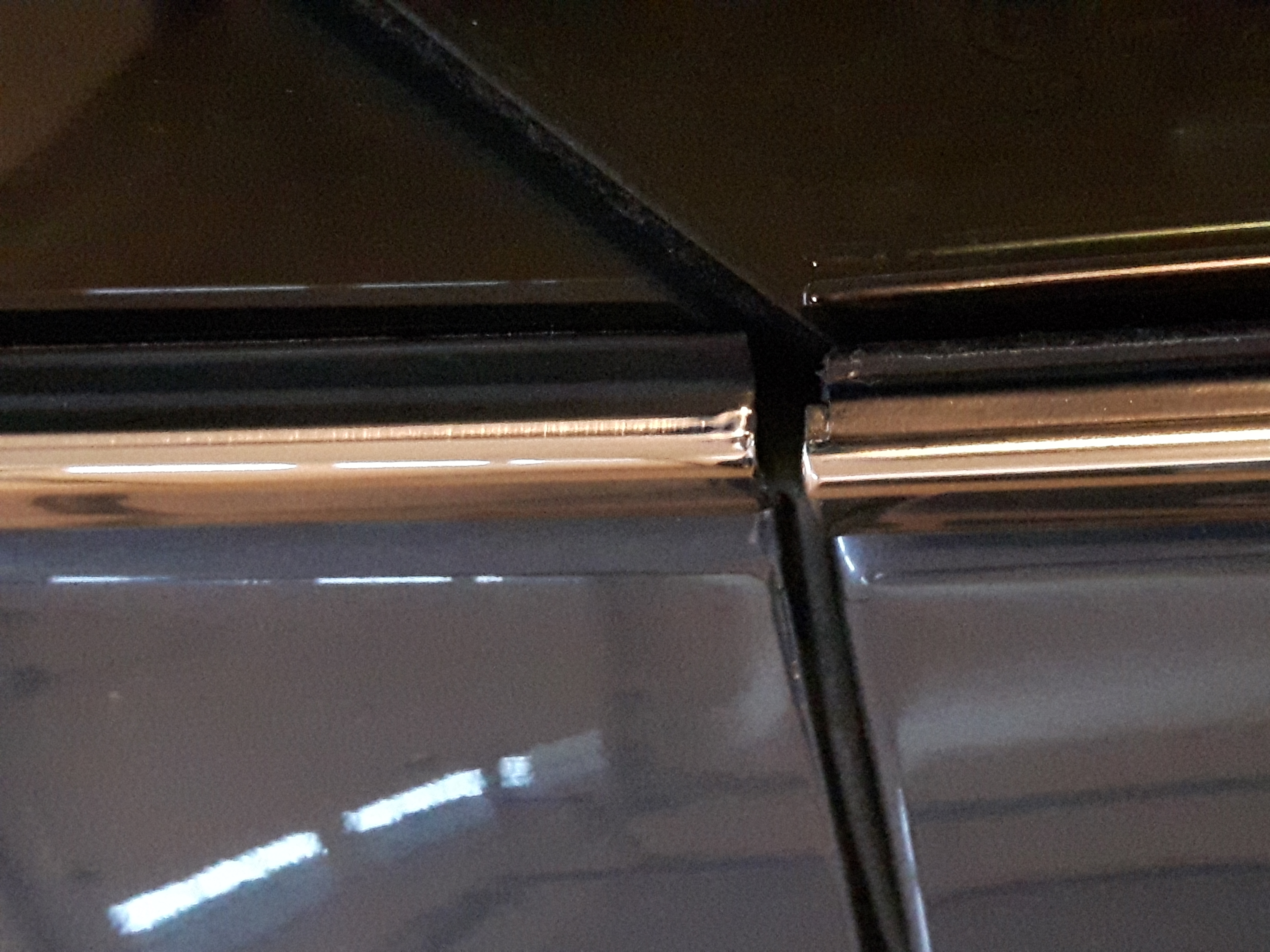

Door/Window trim out of alignment?

Click image for larger version

Name:	20170928_191304.jpg
Views:	24
Size:	3.59 MB
ID:	514245

Click image for larger version

Name:	20170928_191243.jpg
Views:	23
Size:	3.45 MB
ID:	514246

Anybody have this problem? I have to special order the trim piece on the door and it's not returnable. Will replacing the trim piece fix this?
Reply With Quote
  #2
Old 10-12-2017, 10:56 AM
Registered User

Join Date: Jun 2014
Location: Afghanistan
Posts: 722
Rep Power: 35
SheriffDep is just really niceSheriffDep is just really niceSheriffDep is just really niceSheriffDep is just really nice
Not sure trim will fix that. Has the door ever been adjusted?

I had a door on a Corvette adjusted years ago, and after that it caused me nothing but issues. I almost suggest leaving it be. Trim wont help. You would have to have less material under it for the top part to lay lower, and the same on the door to get it flatter. New trim will be the same as your trim now. IMHO
Reply With Quote
  #3
Old 10-12-2017, 11:16 AM
silver997's Avatar
Registered User
Thread Starter

Join Date: Oct 2011
Location: Passing on the right
Posts: 58
Rep Power: 9
silver997 is on a distinguished road
The door has never been adjusted. AFAIK. No accidents. Both driver and passenger sides are like this. When I push on the door trim there is no flex or give to it. It's like the rubber portion has hardened or something.
Reply With Quote
  #4
Old 10-12-2017, 11:35 AM
Registered User

Join Date: Jun 2014
Location: Afghanistan
Posts: 722
Rep Power: 35
SheriffDep is just really niceSheriffDep is just really niceSheriffDep is just really niceSheriffDep is just really nice
Quote:
Originally Posted by silver997 View Post
The door has never been adjusted. AFAIK. No accidents. Both driver and passenger sides are like this. When I push on the door trim there is no flex or give to it. It's like the rubber portion has hardened or something.
Not sure how they install. Rich at REDPANT.lol should know. However, it is possible the rubber below the trim piece did harden, which then pushed it up enough to be noticeable. Without knowing exactly how they are installed and knowing what materials are below the metal trim, I cannot help with that. But that is a possibility.

If that is not the case, then I likely wouldn't touch it. More issues may arise that aren't acceptable as this might be.
Reply With Quote
  #5
Old 10-12-2017, 11:49 AM
embdenb's Avatar
Registered User

Join Date: Sep 2015
Location: Florida
Age: 72
Posts: 465
Rep Power: 26
embdenb is a name known to allembdenb is a name known to allembdenb is a name known to allembdenb is a name known to allembdenb is a name known to allembdenb is a name known to all
Quote:
Originally Posted by SheriffDep View Post
Not sure trim will fix that. Has the door ever been adjusted?

I had a door on a Corvette adjusted years ago, and after that it caused me nothing but issues.IMHO
+1
Trim is not your problem, the door itself is out of alignment. This issue is aligning the door trim while maintaining the door gap to the fender and body.
If you are not sure what to do have a qualified body shop look at it.
Reply With Quote
  #6
Old 10-12-2017, 01:31 PM
RolexDaytona1's Avatar
Registered User

Join Date: Mar 2010
Location: West Palm Beach FL
Posts: 240
Rep Power: 18
RolexDaytona1 has a spectacular aura aboutRolexDaytona1 has a spectacular aura about
Roughly the same on my 2006 with 70k miles.


Keep us posted.
Reply With Quote
  #7
Old 10-12-2017, 04:45 PM
silver997's Avatar
Registered User
Thread Starter

Join Date: Oct 2011
Location: Passing on the right
Posts: 58
Rep Power: 9
silver997 is on a distinguished road

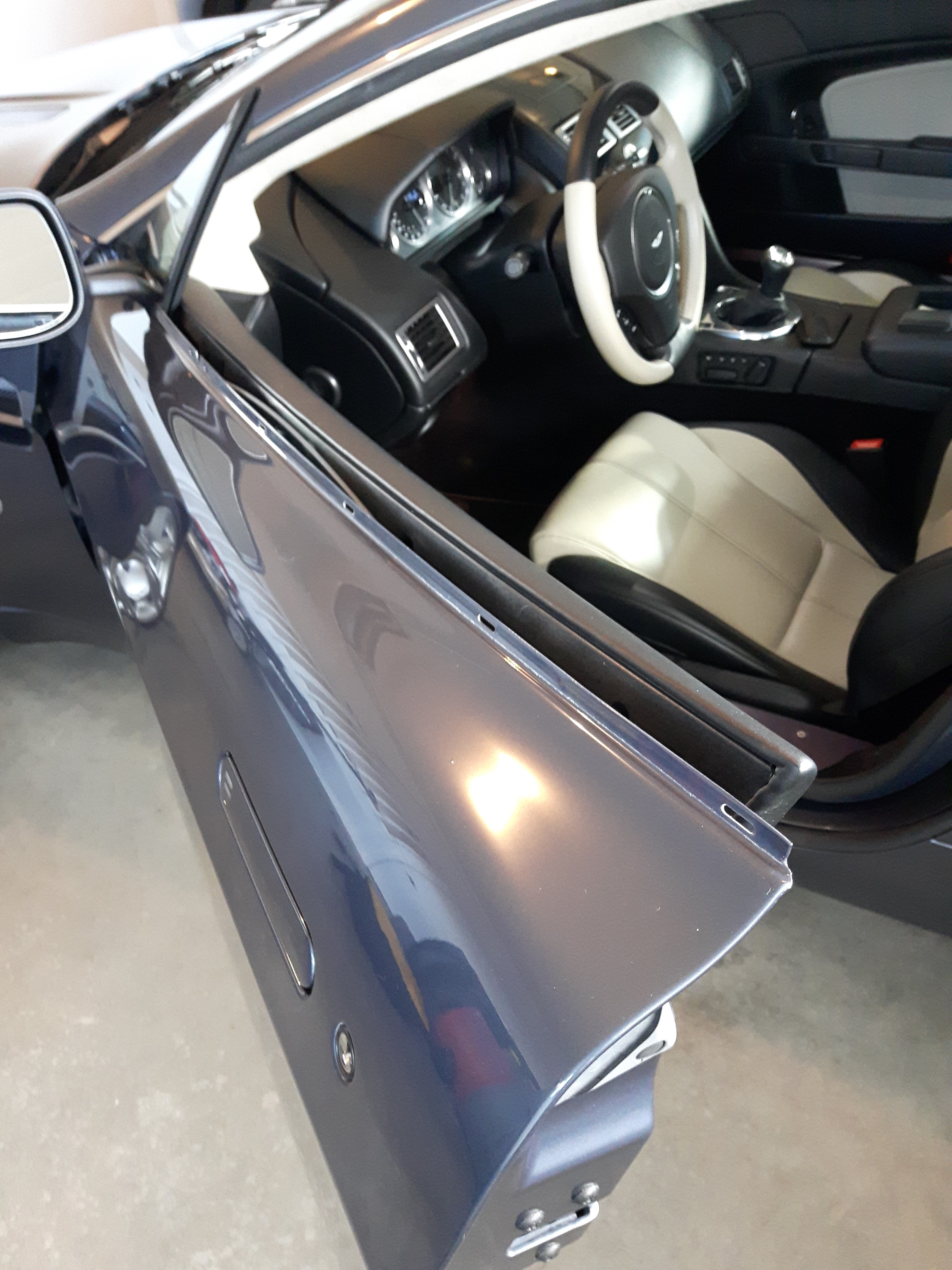

Open the door roll down the window. The trim just pulls off. Lift up carefully.
Click image for larger version

Name:	20171012_150852.jpg
Views:	13
Size:	2.75 MB
ID:	514270

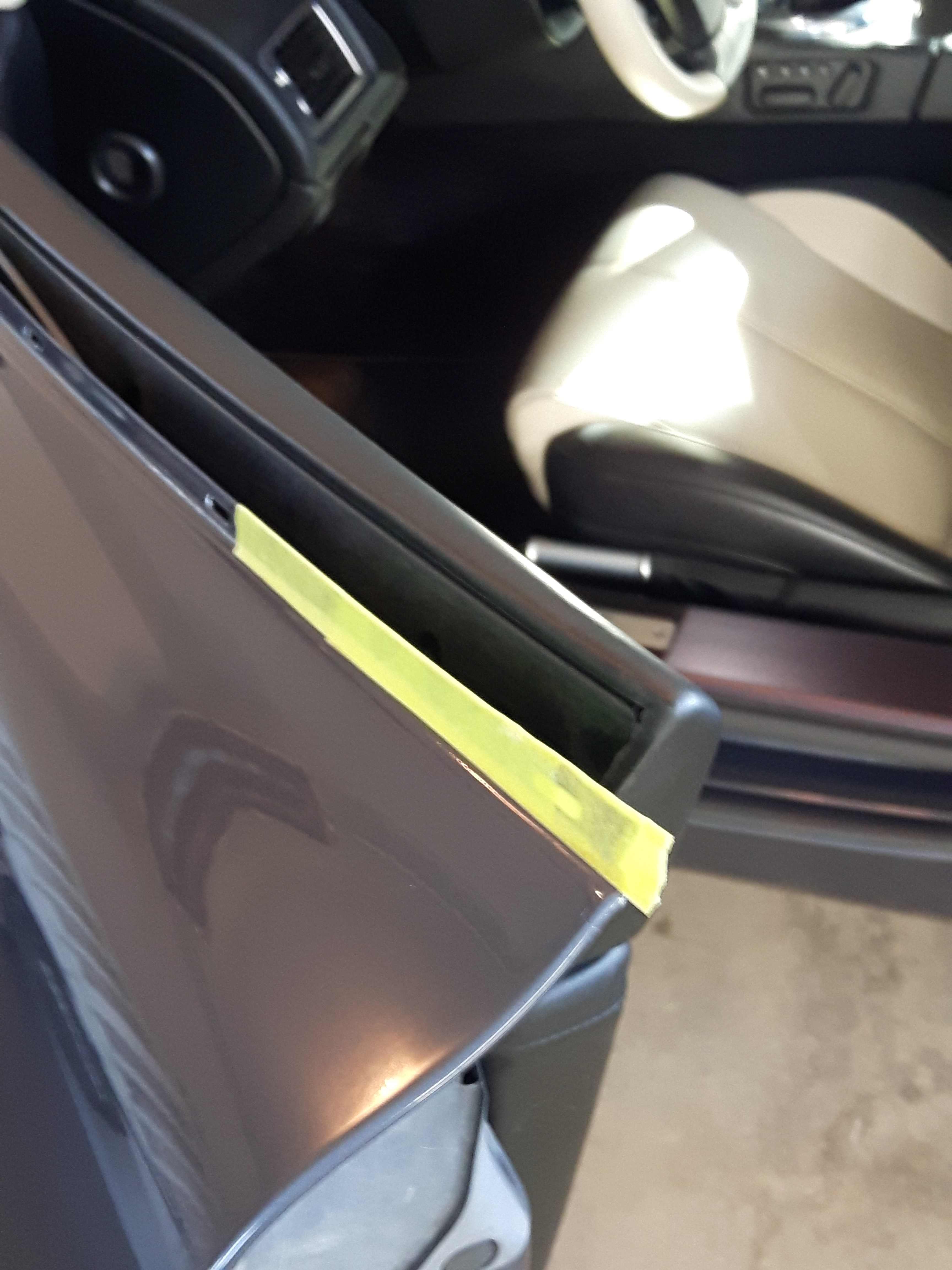

Tape off the edge and gently with pliers bend the metal in towards the interior. This might take a couple of tries to get just the right amount of bend into the edge. Be careful not to crack the paint.
Click image for larger version

Name:	20171012_152201.jpg
Views:	12
Size:	1.70 MB
ID:	514271

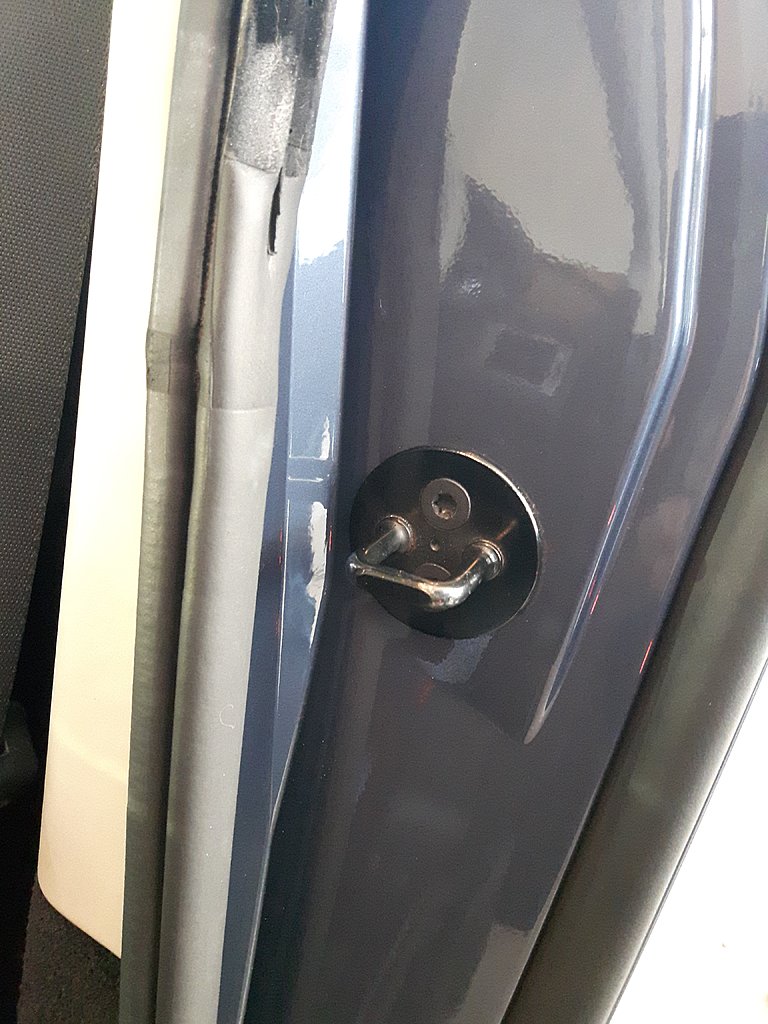

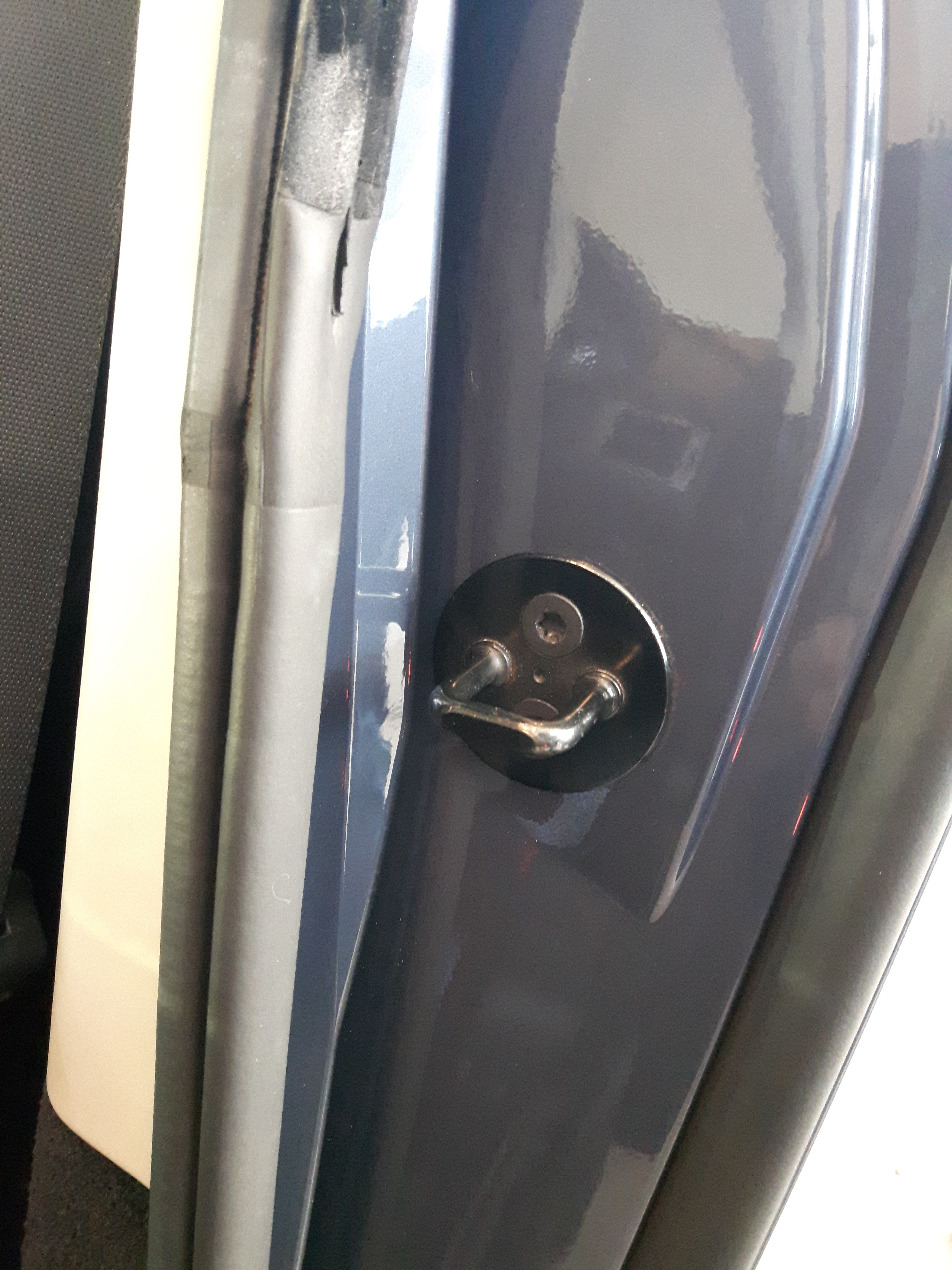

I also loosened the door striker and adjusted it a couple of mm towards the interior.
Click image for larger version

Name:	20171012_154708.jpg
Views:	13
Size:	2.56 MB
ID:	514272

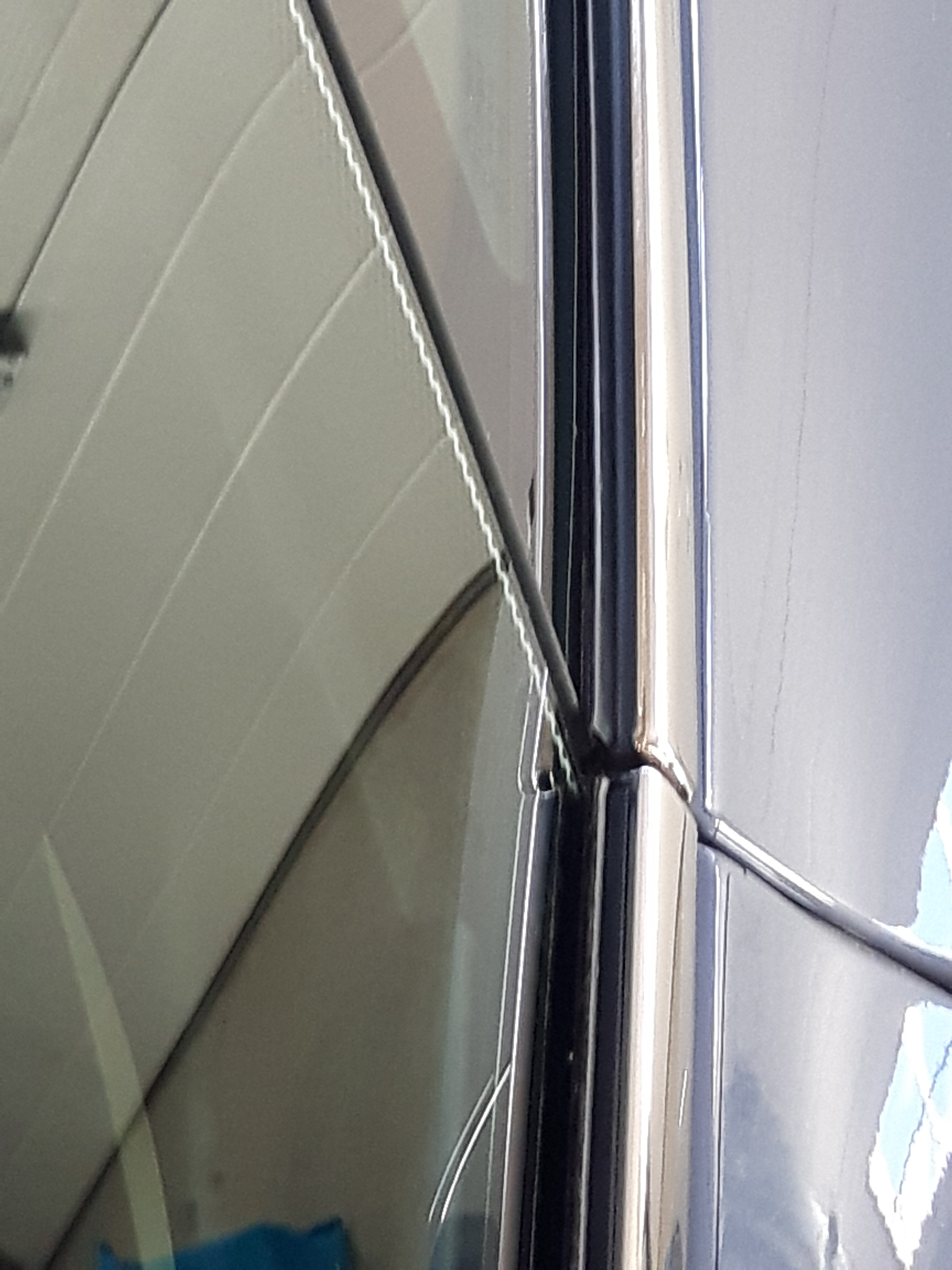

The results......
Click image for larger version

Name:	20171012_153644.jpg
Views:	12
Size:	1.29 MB
ID:	514273

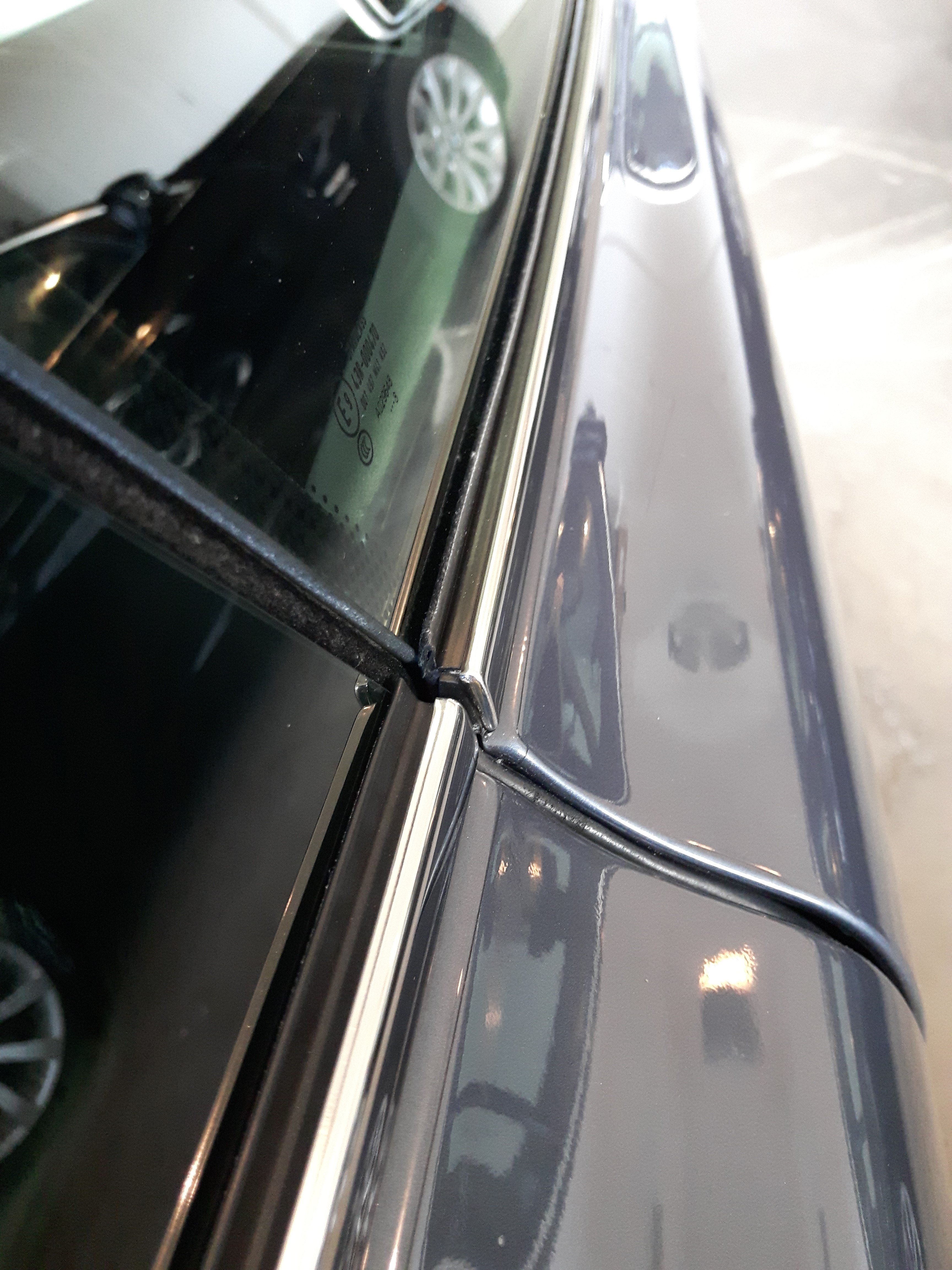

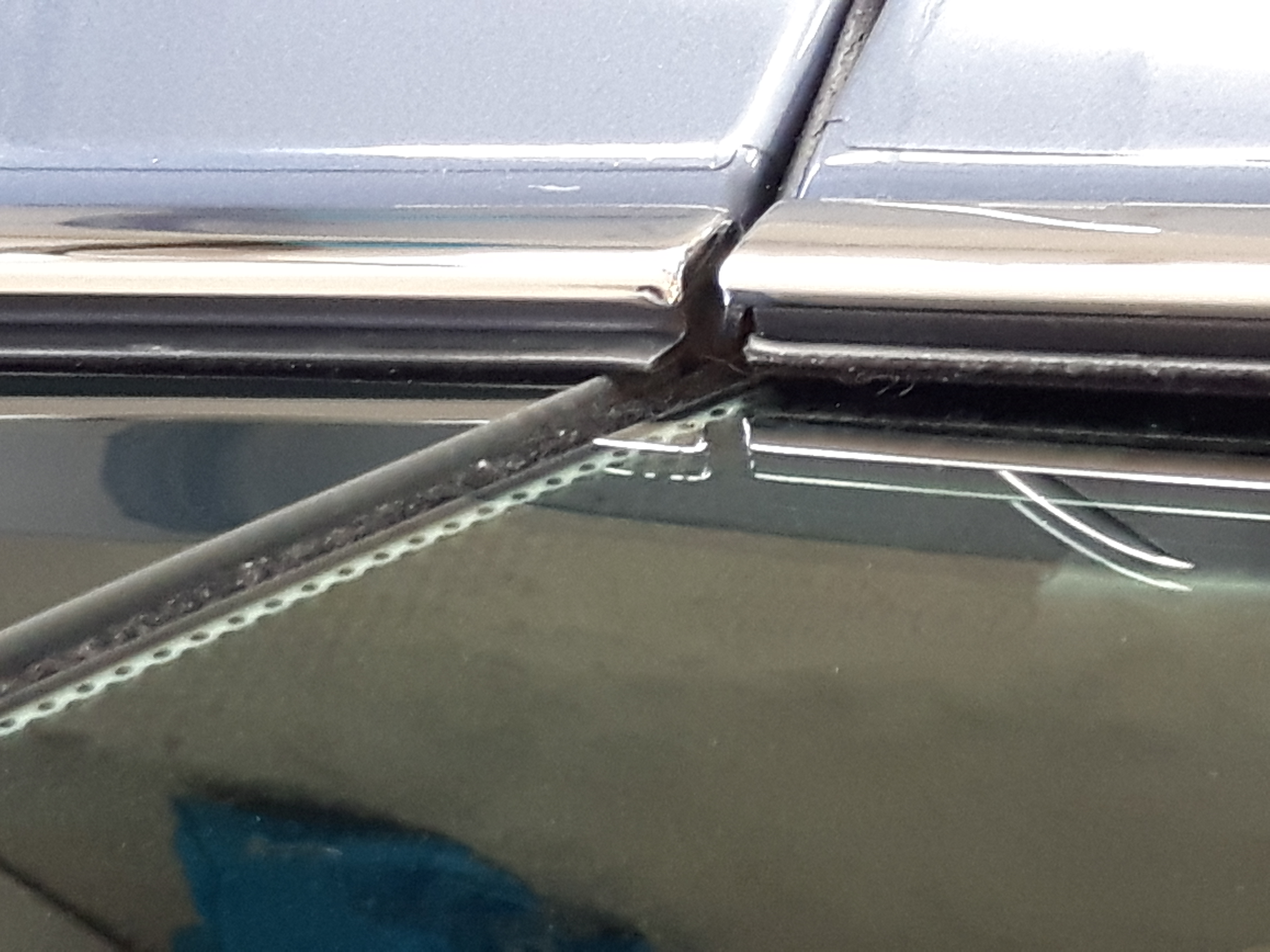

Here is the passenger side. Looked the same as the drivers before I started
Click image for larger version

Name:	20171012_155423.jpg
Views:	14
Size:	2.74 MB
ID:	514275
Attached Thumbnails
Click image for larger version

Name:	20171012_155337.jpg
Views:	13
Size:	2.22 MB
ID:	514274
Reply With Quote
  #8
Old 10-12-2017, 06:53 PM
Registered User

Join Date: Oct 2016
Location: Eagle Creek Or
Age: 60
Posts: 186
Rep Power: 9
era2076 is on a distinguished road
Nice work - Thank you for posting.

chr
Reply With Quote
  #9
Old 10-13-2017, 10:50 AM
Registered User

Join Date: Jun 2012
Location: Los Angeles
Posts: 453
Rep Power: 24
rohnin is on a distinguished road
My brand new car came with worse alignment issues: doors (like yours), trunk, and worst of all the rear wings badge! Very disappointed in quality control
Reply With Quote
  #10
Old 10-15-2017, 10:09 PM
Registered User

Join Date: Aug 2013
Location: Atl, GA
Posts: 552
Rep Power: 28
shootermcgav1n has a spectacular aura aboutshootermcgav1n has a spectacular aura about
interesting, looks like my trim piece is just a bit loose then, thanks for the pics.
Reply With Quote
  #11
Old 10-16-2017, 04:11 AM
Registered User

Join Date: Jul 2015
Location: USA
Posts: 293
Rep Power: 14
larryg is on a distinguished road
Interestingly my 14' Vantage came with perfectly aligned doors.
The round gas filler cover however had some alignment problems that were easily rectified with 1/16th inch nylon washers.
Reply With Quote
