Headlight Gaskets for 2011-2014 958 - 6SpeedOnline - Porsche Forum and Luxury Car Resource



Cayenne 958 Porsche's 958 SUV. Cayenne, Cayenne S, and Cayenne Turbo message forum.
Sponsored by: Champion Porsche

Headlight Gaskets for 2011-2014 958

Reply



Thread Tools Search this Thread Rate Thread
  #1
Old 03-07-2018, 02:18 PM
jayi836's Avatar
Registered User
Thread Starter

Join Date: Dec 2010
Location: Simi Valley,CA
Posts: 253
Rep Power: 19
jayi836 will become famous soon enoughjayi836 will become famous soon enough
Headlight Gaskets for 2011-2014 958

Anyone seen a DIY for making replacement headlight gaskets?
mine are brittle and gooey to the touch.
Replaced my horns this past weekend and noticed what a sad shape they were in.

Dealer says not available for this model, but available for the 2015 and up models. or the 955's
Reply With Quote
  #2
Old 03-19-2018, 09:26 PM
Registered User

Join Date: Mar 2018
Location: California
Age: 66
Posts: 4
Rep Power: 0
Macporsche015 is on a distinguished road
Headlight Gaskets for 2011-2014 958

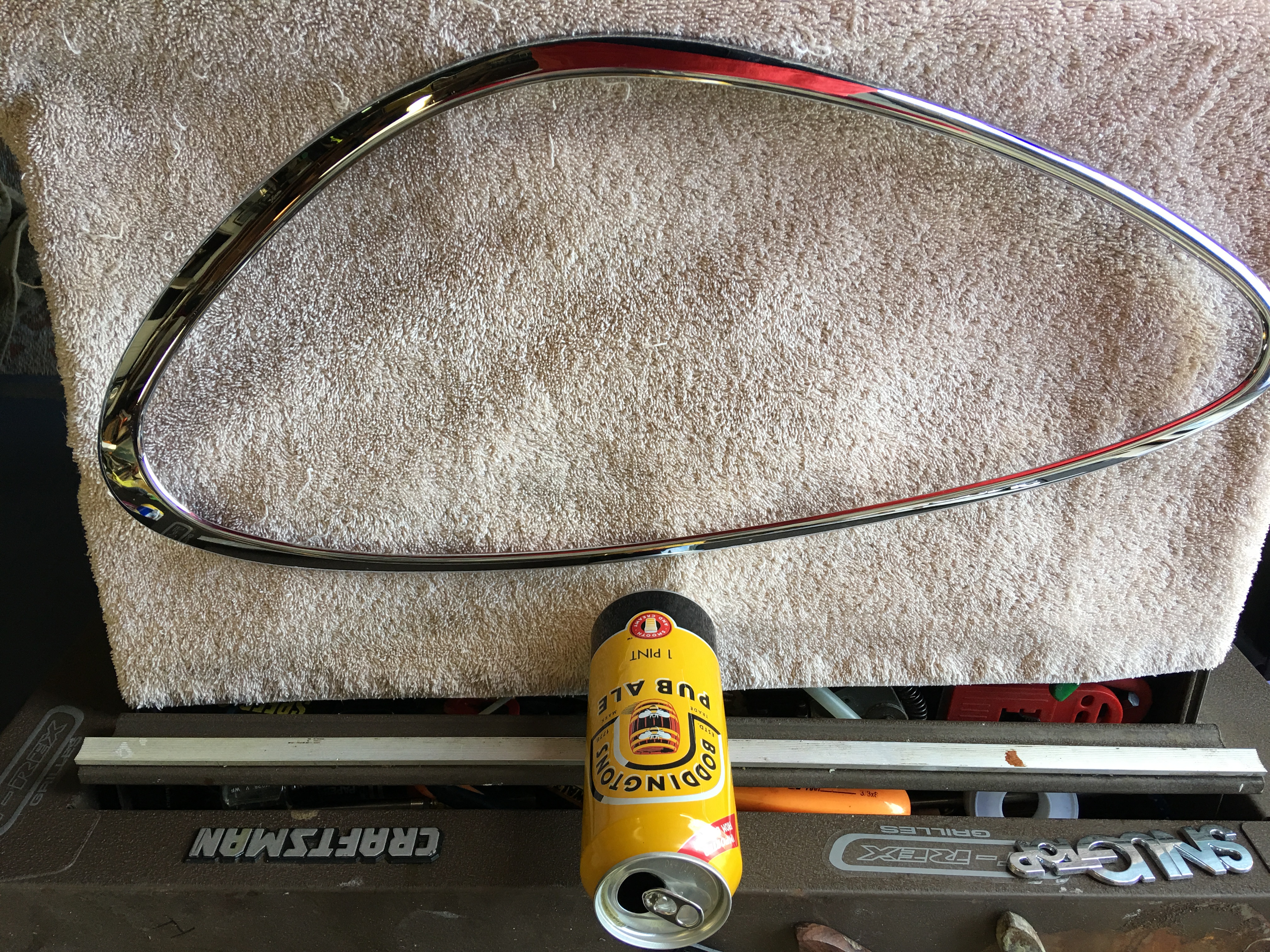

in Porsche's ultimate boner decisions, this gasket can not be replaced, it is part of the HL assy......... so my fix was these headlight rings to cover up the matreial ............
Attached Thumbnails
Click image for larger version

Name:	IMG_0080.JPG
Views:	15
Size:	4.62 MB
ID:	522629   Click image for larger version

Name:	IMG_0085.JPG
Views:	13
Size:	2.32 MB
ID:	522630
Reply With Quote
  #3
Old 03-20-2018, 08:01 AM
jayi836's Avatar
Registered User
Thread Starter

Join Date: Dec 2010
Location: Simi Valley,CA
Posts: 253
Rep Power: 19
jayi836 will become famous soon enoughjayi836 will become famous soon enough
Nice work, I didn't even know that was available.
I have a few "High-Temperature Hollow Rubber Flange-Mount Seals" picked up from Mc Master-Carr.

Will attempt a repair in the next few weeks looking for something to bond the old frame to the new rubber seals, thoughts?

3M™ Scotch-Weld™ Plastic & Rubber Instant Adhesive or 3M Super Weatherstrip Adhesive.



Reply With Quote
  #4
Old 03-20-2018, 04:27 PM
deilenberger's Avatar
Registered User

Join Date: Mar 2011
Location: Spring Lake, NJ, US of A
Posts: 1,393
Rep Power: 104
deilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond repute
Where are the trim rings available from?
Reply With Quote
  #5
Old 03-20-2018, 09:44 PM
Registered User

Join Date: Mar 2018
Location: California
Age: 66
Posts: 4
Rep Power: 0
Macporsche015 is on a distinguished road
Head light bezel

I found the on EBay Motors
Reply With Quote
  #6
Old 03-20-2018, 09:45 PM
Registered User

Join Date: Mar 2018
Location: California
Age: 66
Posts: 4
Rep Power: 0
Macporsche015 is on a distinguished road
https://www.ebay.com/itm/Porsche-Cayenne-2011-2012-2013-2014-Headlight-Chrome-Trim-Set-2-pcs/172961729122?hash=item2845528a62:g:Vh0AAOSwdSRZ-98F&vxp=mtr

Last edited by GT3 Chuck; 04-16-2018 at 12:02 PM.
Reply With Quote
  #7
Old 03-21-2018, 10:32 AM
deilenberger's Avatar
Registered User

Join Date: Mar 2011
Location: Spring Lake, NJ, US of A
Posts: 1,393
Rep Power: 104
deilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond repute
Quote:
Originally Posted by Macporsche015 View Post
https://www.ebay.com/itm/Porsche-Cayenne-2011-2012-2013-2014-Headlight-Chrome-Trim-Set-2-pcs/172961729122?hash=item2845528a62:g:Vh0AAOSwdSRZ-98F&vxp=mtr
Thanks. Can we see a picture of them installed on your P!G? TIA!

And - how do they attach?

Last edited by GT3 Chuck; 04-16-2018 at 12:02 PM.
Reply With Quote
  #8
Old 04-03-2018, 11:41 AM
Registered User

Join Date: Mar 2018
Location: California
Age: 66
Posts: 4
Rep Power: 0
Macporsche015 is on a distinguished road
i had them wrapped when I Blacked out the rest of the car, the are attached with a super sticky two sided tape............ my one beef is the still do not cover the black gasket material completly. Might need to run a bead around them, I was looking at the 3M sealant used to install windsheilds, should have the UV properties needed. Pictures attached.

Reply With Quote
  #9
Old 04-05-2018, 08:41 AM
deilenberger's Avatar
Registered User

Join Date: Mar 2011
Location: Spring Lake, NJ, US of A
Posts: 1,393
Rep Power: 104
deilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond repute
Bummer that they don't cover the rubber. My rubber gaskets look OK - but I think I'm going to R&R the headlights and give them a silicone grease treatment..
Reply With Quote
  #10
Old 04-09-2018, 01:30 PM
Registered User

Join Date: Feb 2012
Posts: 297
Rep Power: 29
RAudi Driver has much to be proud ofRAudi Driver has much to be proud ofRAudi Driver has much to be proud ofRAudi Driver has much to be proud ofRAudi Driver has much to be proud ofRAudi Driver has much to be proud ofRAudi Driver has much to be proud ofRAudi Driver has much to be proud ofRAudi Driver has much to be proud of
Hang tight guys. I have rolls of light gray butyl. This is the original stuff used to seal headlights for most manufacturers.

I don't know what Porsche uses and mine might not be the same, assuming they are using rubber gaskets. However, it would probably work in place of the rubber gaskets and provides a perfect lifelong seal for the headlights. You can also trim the areas that it will squeeze from the headlights and it should look perfect.

I'll toss up a few pics later this afternoon asset rI get back from a meeting and picking up my son from school
Reply With Quote
  #11
Old 04-10-2018, 08:55 AM
KKTurbo's Avatar
Registered User

Join Date: Apr 2017
Location: Near Los Angeles
Posts: 3
Rep Power: 0
KKTurbo is an unknown quantity at this point
Macporsche015, how secure do the rings feel? Can the rings withstand the wind when driving 100+ mph? Not that I drive that fast...(crossed fingers behind my back). I would hate to have one fly off and hit the windshield or someone behind me. Looks great though!
Reply With Quote
  #12
Old 04-10-2018, 09:16 AM
Elberoth's Avatar
Registered User

Join Date: Mar 2018
Location: Warsaw
Age: 42
Posts: 37
Rep Power: 0
Elberoth is an unknown quantity at this point
I wonder if Porsche will start offering the gaskets when more ppl start reporting the problem. Replacing the complete headlights assys is not a solution.
Reply With Quote
  #13
Old 04-16-2018, 10:44 AM
jayi836's Avatar
Registered User
Thread Starter

Join Date: Dec 2010
Location: Simi Valley,CA
Posts: 253
Rep Power: 19
jayi836 will become famous soon enoughjayi836 will become famous soon enough
I had some time to test fit the sample gaskets I ordered. Color a bit off
These were 1/4", I ordered some 3/16"

McMaster-Carr, High-Temperature Hollow Rubber Flange-Mount Seals, Temp range -100-480 PN#1129A978







These bulge a bit on the top






east fit with a hole punch no adheasive







What great quality


Last edited by jayi836; 04-17-2018 at 07:44 AM.
Reply With Quote
  #14
Old 04-16-2018, 10:50 AM
jayi836's Avatar
Registered User
Thread Starter

Join Date: Dec 2010
Location: Simi Valley,CA
Posts: 253
Rep Power: 19
jayi836 will become famous soon enoughjayi836 will become famous soon enough
New part on order, Water- and Weather-Resistant Hollow Rubber Flange-Mount Seals Temp range -20-200 PN.1142A37 ,A bit concerned with the temp range.
I prefer the 480 version but not available in this size.

Last edited by jayi836; 04-16-2018 at 11:05 AM.
Reply With Quote
  #15
Old 04-16-2018, 06:35 PM
deilenberger's Avatar
Registered User

Join Date: Mar 2011
Location: Spring Lake, NJ, US of A
Posts: 1,393
Rep Power: 104
deilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond reputedeilenberger has a reputation beyond repute
Jay - these look like a much-needed alternative to the not available part from Porsche.. can't wait to hear which one looks/fits the best. If these are made of Viton - use of some silicone grease - worked into the rubber - will help protect them from your California sunshine and ozone. We don't have that problem in NJ - we just have humidity and rain. Lots of humidity and rain so far this spring.

Reply With Quote
