GT3/GT2 Performance and Track Discussion on the Porsche GT3 and GT2

Stroker Kit 3.6 to 4.0

Thread Tools

Rate Thread

Old Mar 2, 2013 | 09:22 PM
  #241
ur20v's Avatar
Registered User
Joined: Nov 2009
Posts: 346
From: Western Australia
Rep Power: 36
ur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to all
I'm still holding hope to be in on this.

I may push to the boundaries though as 82x104.1 may not be enough!

Jay

Old Mar 2, 2013 | 10:58 PM
  #242
ADAMNSONS's Avatar
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 437
From: Laguna Beach, CA
Rep Power: 37
ADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to behold
Well… you could opt for the 105.4mm Capricorn sleeves and 82mm stroke that will give you 4292.8cc. 105.4x84 would be 4397.5cc. I wish I had a GT3 motor to try and do that with

Old Mar 3, 2013 | 01:32 AM
  #243
ur20v's Avatar
Registered User
Joined: Nov 2009
Posts: 346
From: Western Australia
Rep Power: 36
ur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to all
Now your talking... 4.4 litre GT3 should be just right!

Old Mar 3, 2013 | 02:48 AM
  #244
greekm3's Avatar
Registered User
Joined: Jul 2005
Posts: 292
Rep Power: 32
greekm3 is infamous around these parts
I love this thread...ADAMNSONS did great job...just a questions...do you think in 997.1 turbo with 3.8lt upgrade kit is better to install Ti rods?..i saw uner like 9ff and RUF use Ti rods

Old Mar 3, 2013 | 03:12 AM
  #245
ur20v's Avatar
Registered User
Joined: Nov 2009
Posts: 346
From: Western Australia
Rep Power: 36
ur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to all
You would be better to use steel rods, if you over boost and or get a missfire you could bend Ti rods, not an issue on NA cars due to the lower pressures involved.

I have run Ti rods on high HP race engines with success but its risky and obviously RUF are happy with the gamble because of a great tune/tunner!

Jay

Old Mar 3, 2013 | 04:11 AM
  #246
greekm3's Avatar
Registered User
Joined: Jul 2005
Posts: 292
Rep Power: 32
greekm3 is infamous around these parts
Originally Posted by ur20v
You would be better to use steel rods, if you over boost and or get a missfire you could bend Ti rods, not an issue on NA cars due to the lower pressures involved.

I have run Ti rods on high HP race engines with success but its risky and obviously RUF are happy with the gamble because of a great tune/tunner!

Jay
Hi jay,thanks

this moment i run carillo ..with 1.5bar boost...i am thinking to go up to 1,7-1.8 maybe...and i am wondering if is better to go for Ti...i asked a porsche dealer here in europe the price and the asking for GT3RS titanium rods 7000euro.. the part number is 997 103 020 8 H MD and the dimensions of the rods is 130mm/23mm...

Old Mar 3, 2013 | 04:41 AM
  #247
ur20v's Avatar
Registered User
Joined: Nov 2009
Posts: 346
From: Western Australia
Rep Power: 36
ur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to all
CP-Carillo, Pauter, Crawer, Trick Titanium, Arrow and others make Ti and Al rods also. give them a shout and seek their advice.

Jay

Old Mar 3, 2013 | 04:44 AM
  #248
ur20v's Avatar
Registered User
Joined: Nov 2009
Posts: 346
From: Western Australia
Rep Power: 36
ur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to all
Making the connection

See here for a little read...

Attached Files
File Type: pdf
Making the Connection.pdf (443.2 KB, 475 views)
Old Mar 3, 2013 | 04:54 AM
  #249
ur20v's Avatar
Registered User
Joined: Nov 2009
Posts: 346
From: Western Australia
Rep Power: 36
ur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to allur20v is a name known to all
If you are SURE of your tuner knows what he (or she) is doing and all safety nets and controls are in place plus a big, bright in your face over boost light. Spark Plugs are of the correct range for the new service and replaced every 6000 miles and fresh high octane fuel and a tip top fuel system including uprated (twin pumps-lift and pressure) and uprated boost hoses and intercoolers you should be good to go...

Old Mar 3, 2013 | 05:05 AM
  #250
greekm3's Avatar
Registered User
Joined: Jul 2005
Posts: 292
Rep Power: 32
greekm3 is infamous around these parts
Originally Posted by ur20v
See here for a little read...
Thanks jay..very intresting...

Old Mar 3, 2013 | 10:21 AM
  #251
ADAMNSONS's Avatar
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 437
From: Laguna Beach, CA
Rep Power: 37
ADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to behold
I will have to agree with Jay.
I don't think you need the Ti in a turbo application. You could but …
7000euro is quite a bit. We can get Ti rods fro around 7K US$ but that is 4K more than steel ones. I think 4K spent somewhere else would be a better idea; on your cylinder heads with some cams will probably yield the most gains!!
By the way, I think you should go bigger… Like 4.0, 4.1


Last edited by ADAMNSONS; Mar 3, 2013 at 10:26 AM.
Old Mar 3, 2013 | 12:10 PM
  #252
greekm3's Avatar
Registered User
Joined: Jul 2005
Posts: 292
Rep Power: 32
greekm3 is infamous around these parts
Hi adamnsons, I have already cam exhaust from gt3, crankshaft from gt3rs and mahle kit at 3.8 ltr,...in any case, 4.1 sound sweet

Old Mar 3, 2013 | 01:03 PM
  #253
ADAMNSONS's Avatar
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 437
From: Laguna Beach, CA
Rep Power: 37
ADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to beholdADAMNSONS is a splendid one to behold
102mm pistons?

Old Mar 3, 2013 | 10:50 PM
  #254
modoz's Avatar
Registered User
Joined: Aug 2012
Posts: 30
From: East Coast Australia
Rep Power: 15
modoz is infamous around these parts
Hi Adam

I could easily be persuaded to go for Ti rods but I would like some assurance that there will be no issues with clearance for the 104.1 x 82 set up.

Would you please be able to check into this for me and if no issue I will go this way

regards

Mike

Old Mar 4, 2013 | 06:25 AM
  #255
greekm3's Avatar
Registered User
Joined: Jul 2005
Posts: 292
Rep Power: 32
greekm3 is infamous around these parts
Originally Posted by ADAMNSONS
102mm pistons?

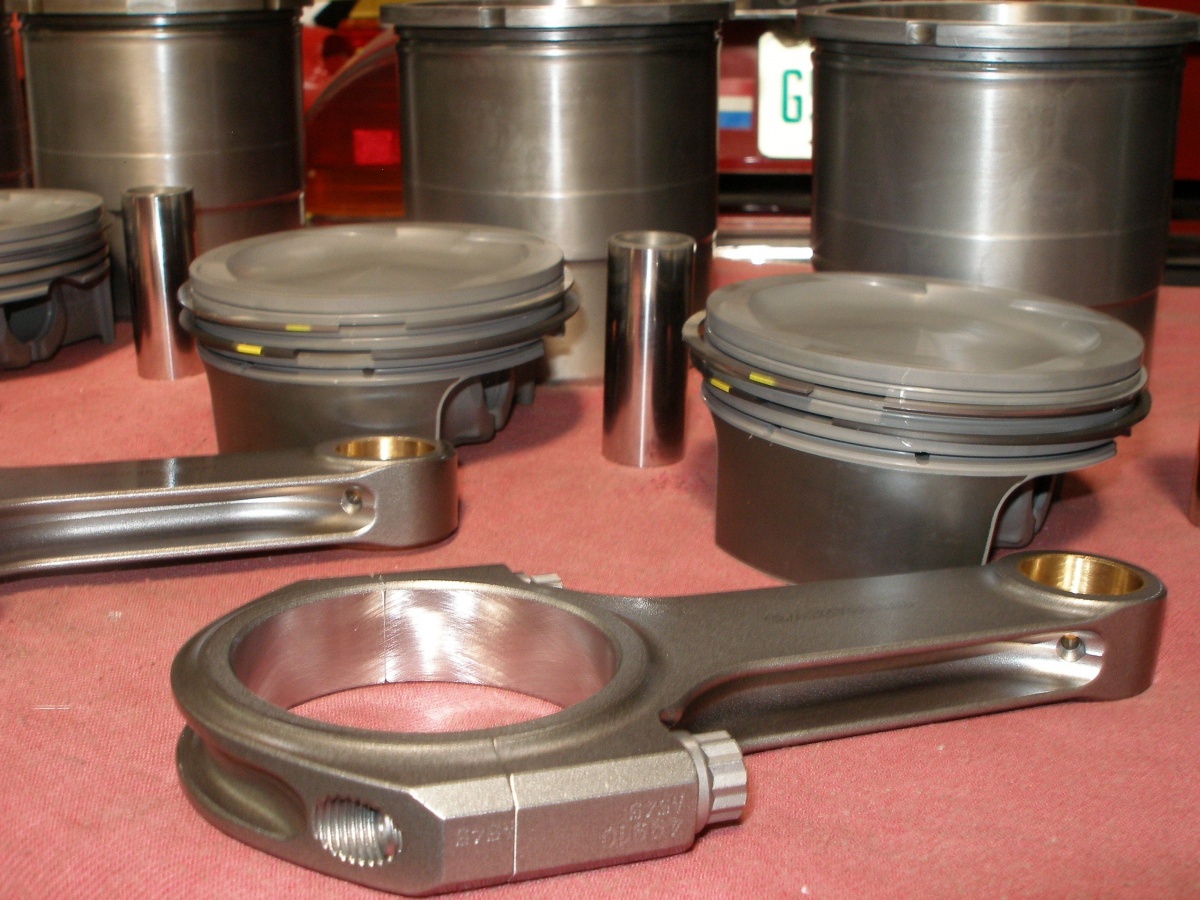

that is pistons before install..

Attached Thumbnails Click image for larger version

Name:	piston1.jpg
Views:	159
Size:	354.2 KB
ID:	217581
