Panamera The 4-dour coupe by Porsche

15mm spacers for Panamera


  #1
Old 07-18-2018, 08:36 AM
Registered User
Thread Starter
Join Date: Mar 2012
Location: TX
Posts: 1,601
Rep Power: 77
ciaka is a name known to allciaka is a name known to allciaka is a name known to allciaka is a name known to allciaka is a name known to allciaka is a name known to all
15mm spacers for Panamera

I did this recently, and wanted to post up the before/after pics.
Originally my car came with the 5mm spacers, but IMO they were useless - 5mm, thats less than thickness of a q-tip end - yup, useless.
One thing to keep in mind, is that I already did rear spacers install last week. So all pics have rear spacers in them (sorry, no comparison pics), however you can see the after result and compare the fronts to give you idea of how far the wheels get moved out with spacers in place.


The install was with the 20 inch Turbo 2 wheels, sizes:
- 255-40-R20 front
- 295-35-R20 rear



To do the job:

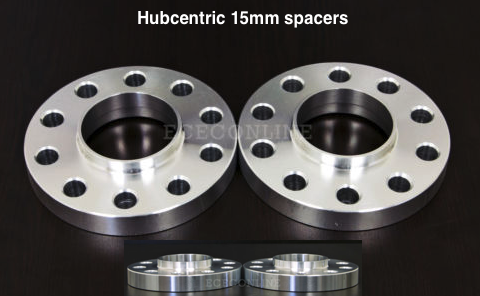

- Purchased 15mm spacers, one for each corner, total 4.

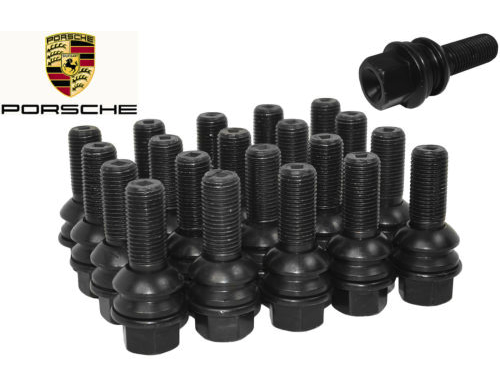

- Purchased 44mm wheel lug bolts (black) with R14 swivel washer - 5 per wheel, total 20 bolts.
- Brake cleaner for cleaning brakes while I was at it


I must say the 15mm spacers appear to be optimal for spacers on stock wheels for the Panamera.
If I installed thicker spacers, I think when the car lowers down, it would come extremely close, if not touch, the inner wheel well of the car.
So if you contemplate installing spacers, it is something to think about.

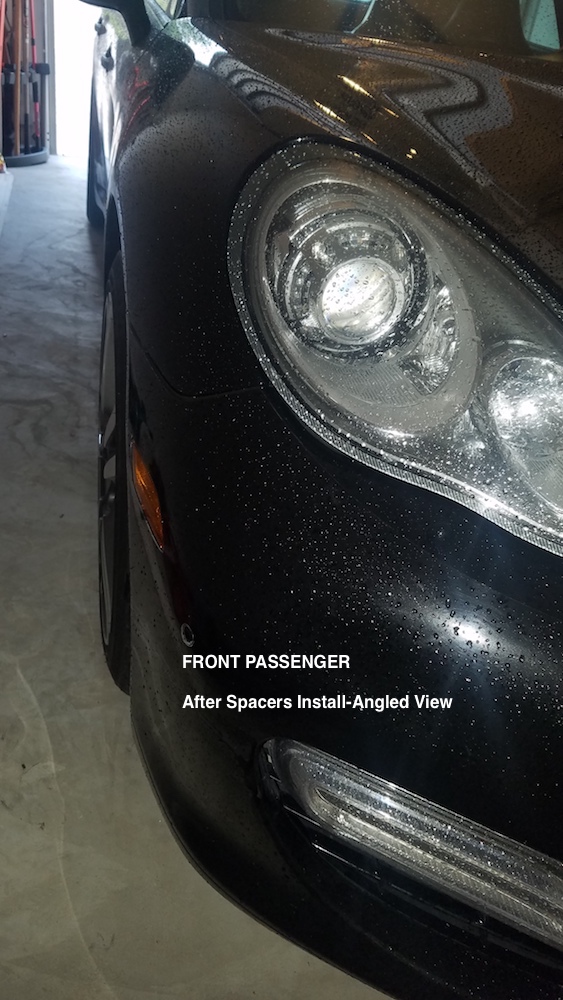

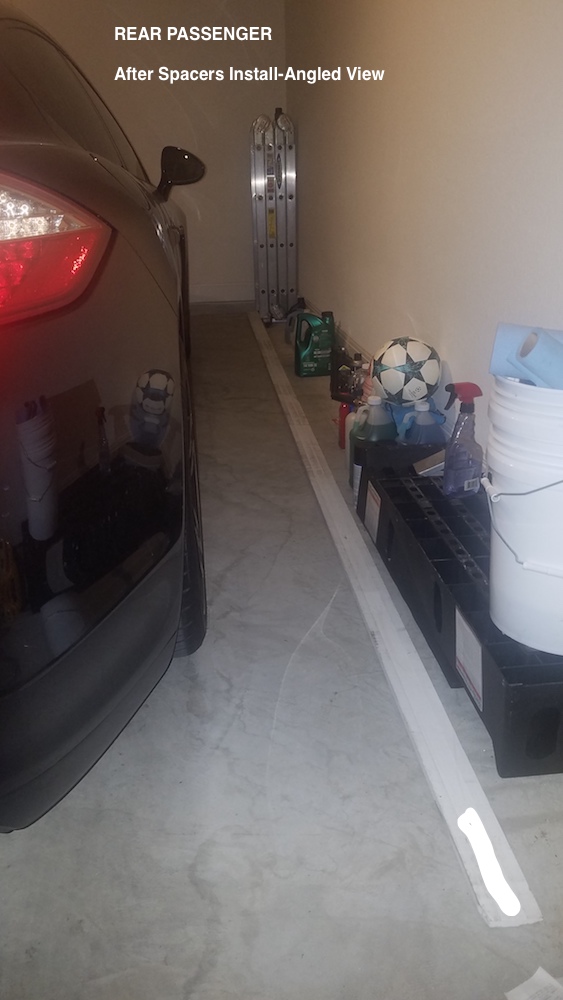

Here are some pics...before and after...

Attached Images
  #2
Old 07-18-2018, 08:55 AM
DogWood's Avatar
Registered User
Join Date: Apr 2018
Location: Bend, Oregon
Age: 56
Posts: 459
Rep Power: 20
DogWood is on a distinguished road
looks good

  #3
Old 07-18-2018, 08:56 AM
LGARCIA's Avatar
Registered User
Join Date: Jun 2018
Location: South Florida
Age: 46
Posts: 229
Rep Power: 10
LGARCIA will become famous soon enough
It made a difference for sure, like you said 15mm seems to be the right amount for those wheels, nice job!!

  #4
Old 09-25-2018, 12:34 PM
mrwilliamsburg's Avatar
Registered User
Join Date: Sep 2018
Location: Virginia
Age: 49
Posts: 12
Rep Power: 0
mrwilliamsburg is an unknown quantity at this point
I too installed 15mm spacers on all 4 corners of my Panamera Turbo with the Turbo II wheels and the difference is striking. They really fill up the wheel wells now and make it appear like it has a significantly wider stance. I was really surprised by what a huge difference this made!

  #5
Old 09-25-2018, 12:44 PM
Registered User
Thread Starter
Join Date: Mar 2012
Location: TX
Posts: 1,601
Rep Power: 77
ciaka is a name known to allciaka is a name known to allciaka is a name known to allciaka is a name known to allciaka is a name known to allciaka is a name known to all
And does not make your 200k car look raunchy, like some Pontiac with 45mm spacers on, half tire sticking out.
I found that the 15mm is optimal at least for me. This way, if you lower and raise your Panamera, it will not affect how wheel fits in the well. Fills the well nicely and aesthetically.
Great to hear good results.



Originally Posted by mrwilliamsburg View Post
I too installed 15mm spacers on all 4 corners of my Panamera Turbo with the Turbo II wheels and the difference is striking. They really fill up the wheel wells now and make it appear like it has a significantly wider stance. I was really surprised by what a huge difference this made!

  #6
Old 01-25-2019, 10:42 PM
Registered User
Join Date: Dec 2018
Age: 40
Posts: 99
Rep Power: 0
Kayvan1347 is an unknown quantity at this point
Originally Posted by ciaka View Post
I did this recently, and wanted to post up the before/after pics.
Originally my car came with the 5mm spacers, but IMO they were useless - 5mm, thats less than thickness of a q-tip end - yup, useless.
One thing to keep in mind, is that I already did rear spacers install last week. So all pics have rear spacers in them (sorry, no comparison pics), however you can see the after result and compare the fronts to give you idea of how far the wheels get moved out with spacers in place.


The install was with the 20 inch Turbo 2 wheels, sizes:
- 255-40-R20 front
- 295-35-R20 rear



To do the job:

- Purchased 15mm spacers, one for each corner, total 4.
- Purchased 44mm wheel lug bolts (black) with R14 swivel washer - 5 per wheel, total 20 bolts.
- Brake cleaner for cleaning brakes while I was at it


I must say the 15mm spacers appear to be optimal for spacers on stock wheels for the Panamera.
If I installed thicker spacers, I think when the car lowers down, it would come extremely close, if not touch, the inner wheel well of the car.
So if you contemplate installing spacers, it is something to think about.

Here are some pics...before and after...
hi
where did you buy your 15 mm spacer from?
i do have the same wheels (Turbo II) too. And I think 15 mm all wheels looks great too.
Thanks

  #7
Old 01-26-2019, 09:08 AM
Registered User
Thread Starter
Join Date: Mar 2012
Location: TX
Posts: 1,601
Rep Power: 77
ciaka is a name known to allciaka is a name known to allciaka is a name known to allciaka is a name known to allciaka is a name known to allciaka is a name known to all
I got them off ebay. Hub centric wheel spacers 15mm.
Due to all of them being turned out or cncd, you should be good to go with them.
Make sure you get longer bolts, I think I put details in the thread, for type and length.


Originally Posted by Kayvan1347 View Post

hi
where did you buy your 15 mm spacer from?
i do have the same wheels (Turbo II) too. And I think 15 mm all wheels looks great too.
Thanks

  #8
Old 01-27-2019, 08:51 AM
Roofmuny's Avatar
Registered User
Join Date: Oct 2017
Location: Apex NC
Age: 33
Posts: 59
Rep Power: 0
Roofmuny is an unknown quantity at this point
https://www.ecstuning.com/b-ecs-part...001366ecs15kt/

thinking about buying these, I assume the bolts should work fine? It didnít have a size that I could see...also did anyone buy new lug nut locks or what?

  #9
Old 01-28-2019, 05:19 PM
cerbomark's Avatar
Registered User
Join Date: Feb 2012
Location: upstate, NY
Posts: 2,472
Rep Power: 226
cerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond repute
I just went without locks. When you get them the bolts should be longer than your OEM bolts by at least the width of the spacer.

  #10
Old 01-28-2019, 05:25 PM
Registered User
Join Date: Dec 2018
Age: 40
Posts: 99
Rep Power: 0
Kayvan1347 is an unknown quantity at this point
Originally Posted by ciaka View Post
I got them off ebay. Hub centric wheel spacers 15mm.
Due to all of them being turned out or cncd, you should be good to go with them.
Make sure you get longer bolts, I think I put details in the thread, for type and length.
hi
just checking if you had any scratches happen after you install the 15 mm spacer on the surface paint of the car?
Thanks

  #11
Old 01-28-2019, 05:28 PM
Roofmuny's Avatar
Registered User
Join Date: Oct 2017
Location: Apex NC
Age: 33
Posts: 59
Rep Power: 0
Roofmuny is an unknown quantity at this point
I would assume because they come with the spacers that it will be plenty of space I hope

  #12
Old 01-28-2019, 05:28 PM
cerbomark's Avatar
Registered User
Join Date: Feb 2012
Location: upstate, NY
Posts: 2,472
Rep Power: 226
cerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond repute
Originally Posted by Kayvan1347 View Post

hi
just checking if you had any scratches happen after you install the 15 mm spacer on the surface paint of the car?
Thanks
It will certainly throw more slinging along the sides.

  #13
Old 01-28-2019, 05:30 PM
cerbomark's Avatar
Registered User
Join Date: Feb 2012
Location: upstate, NY
Posts: 2,472
Rep Power: 226
cerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond reputecerbomark has a reputation beyond repute
Originally Posted by Roofmuny View Post
I would assume because they come with the spacers that it will be plenty of space I hope
Yes, but you can now match everything up before installing them to be 100% sure and have peace of mind.

  #14
Old 01-28-2019, 05:39 PM
Roofmuny's Avatar
Registered User
Join Date: Oct 2017
Location: Apex NC
Age: 33
Posts: 59
Rep Power: 0
Roofmuny is an unknown quantity at this point
Absolutely

  #15
Old 01-30-2019, 11:09 PM
Registered User
Join Date: Jun 2015
Location: los alto, california
Posts: 283
Rep Power: 16
dougcayenne has a spectacular aura aboutdougcayenne has a spectacular aura about
Ciaka,

Please send out the link where you bought the spacers set from. Thank you for the link to door lights at ebay. I just received them this afternoon. Will do a quick installation tomorrow morning before going to the office. LOL ...

Thank you.
