What else should I do while dropping the engine?

Thread Tools

Rate Thread

Old Oct 19, 2013 | 03:24 PM
Share
  #1
brichacek's Avatar
Thread Starter
|
Registered User
Joined: Apr 2013
Posts: 221
From: Winnipeg, MB
Rep Power: 23
brichacek is infamous around these partsbrichacek is infamous around these parts
What else should I do while dropping the engine?
So in a few months I'll be dropping the engine on my 996 Turbo to do a bit of work on it. We'll be replacing the turbos with K24 billets, putting in a new clutch, and a few other things.

However, what are some other things I should do with the engine out? I've heard that welding the coolant pipes is a great idea. Does anyone have any more information about this, and is there anything else that I should consider doing?

Thanks guy!
M

Reply
Old Oct 19, 2013 | 03:30 PM
Share
  #2
Wealth Manager's Avatar
Registered User
Joined: Apr 2009
Posts: 1,236
From: NY
Rep Power: 110
Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !
Rods and rod bolts.........

Reply
Old Oct 19, 2013 | 03:30 PM
Share
  #3
TXTurbo996's Avatar
Registered User
15 Year Member
Joined: May 2008
Posts: 536
From: Dallas TX
Rep Power: 50
TXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud of
Welding coolant pipes, aftermarket intake piping, GT2 slave conversion, coils/plugs, etc.

Reply
Old Oct 19, 2013 | 03:39 PM
Share
  #4
brichacek's Avatar
Thread Starter
|
Registered User
Joined: Apr 2013
Posts: 221
From: Winnipeg, MB
Rep Power: 23
brichacek is infamous around these partsbrichacek is infamous around these parts
Originally Posted by TXTurbo996
Welding coolant pipes, aftermarket intake piping, GT2 slave conversion, coils/plugs, etc.
The GT2 conversion I will be doing as well. For intake piping I was leaning towards a Y-pipe of some kind?

Reply
Old Oct 19, 2013 | 05:07 PM
Share
  #5
2swoosh's Avatar
Banned
Joined: Jun 2011
Posts: 759
From: cherry hill, nj
Rep Power: 60
2swoosh has a brilliant future2swoosh has a brilliant future2swoosh has a brilliant future2swoosh has a brilliant future2swoosh has a brilliant future2swoosh has a brilliant future2swoosh has a brilliant future2swoosh has a brilliant future2swoosh has a brilliant future2swoosh has a brilliant future2swoosh has a brilliant future
dropping...
body,tranny,motor mounts maybe

Reply
Old Oct 19, 2013 | 05:15 PM
Share
  #6
PAULIEWALNUTS's Avatar
Registered User
Joined: Jun 2006
Posts: 3,822
From: HOUSTON
Rep Power: 430
PAULIEWALNUTS Is a GOD !PAULIEWALNUTS Is a GOD !PAULIEWALNUTS Is a GOD !PAULIEWALNUTS Is a GOD !PAULIEWALNUTS Is a GOD !PAULIEWALNUTS Is a GOD !PAULIEWALNUTS Is a GOD !PAULIEWALNUTS Is a GOD !PAULIEWALNUTS Is a GOD !PAULIEWALNUTS Is a GOD !PAULIEWALNUTS Is a GOD !

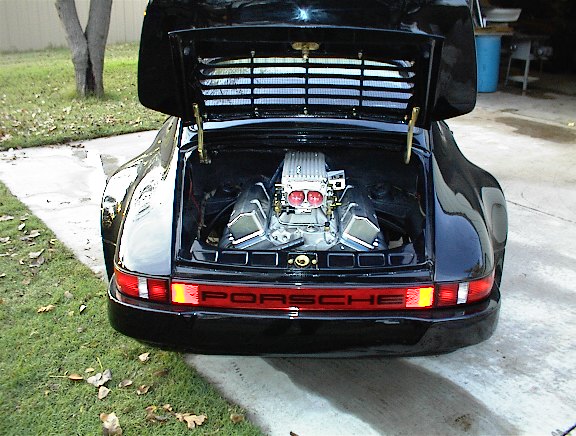

Click image for larger version Name: ConversionPic02_TN.jpg Views: 129 Size: 75.8 KB ID: 291500

Attached Thumbnails Click image for larger version Name: Pic02.jpg Views: 104 Size: 95.0 KB ID: 291503
Last edited by PAULIEWALNUTS; Oct 19, 2013 at 05:19 PM.
Reply
Old Oct 19, 2013 | 05:16 PM
Share
  #7
dubyaTT's Avatar
Registered User
Joined: Mar 2013
Posts: 87
From: Urbana
Rep Power: 21
dubyaTT is a glorious beacon of lightdubyaTT is a glorious beacon of lightdubyaTT is a glorious beacon of lightdubyaTT is a glorious beacon of lightdubyaTT is a glorious beacon of light
Coolant hoses would be a good idea as well.

Anything that is still OEM and hard to get to.

This will be obvious after it's dropped.

Reply

Trending Topics

Old Oct 19, 2013 | 05:24 PM
Share
  #8
brichacek's Avatar
Thread Starter
|
Registered User
Joined: Apr 2013
Posts: 221
From: Winnipeg, MB
Rep Power: 23
brichacek is infamous around these partsbrichacek is infamous around these parts
Does anyone have a link on welding the coolant pipes? When I asked the Porsche mechanics here in the city about it they weren't familiar with it

Reply
Old Oct 19, 2013 | 06:24 PM
Share
  #9
thomapa1's Avatar
Registered User
Joined: Mar 2011
Posts: 315
From: Alpharetta, GA
Rep Power: 32
thomapa1 is a glorious beacon of lightthomapa1 is a glorious beacon of lightthomapa1 is a glorious beacon of lightthomapa1 is a glorious beacon of lightthomapa1 is a glorious beacon of light
Originally Posted by brichacek
So in a few months I'll be dropping the engine on my 996 Turbo to do a bit of work on it. We'll be replacing the turbos with K24 billets, putting in a new clutch, and a few other things.

However, what are some other things I should do with the engine out? I've heard that welding the coolant pipes is a great idea. Does anyone have any more information about this, and is there anything else that I should consider doing?

Thanks guy!
M
I'd consider replacing as many hoses , clamps as practical especially if never done before. do silicone hoses now if you want to. Along with the recommended slave conversion- coolant weld. Doing wastegates as well? Diverted valves?
Would hate to see this bill!

Reply
Old Oct 19, 2013 | 06:40 PM
Share
  #10
brichacek's Avatar
Thread Starter
|
Registered User
Joined: Apr 2013
Posts: 221
From: Winnipeg, MB
Rep Power: 23
brichacek is infamous around these partsbrichacek is infamous around these parts
Yes, I'll be doing wastegates and diverter valves as well. I was just wondering if you guys could think of what hoses and such I may need to replace. The bill is not going to be pretty...

Reply
Old Oct 19, 2013 | 07:28 PM
Share
  #11
John@SpeedTech's Avatar
Basic Sponsor
15 Year Member
Joined: Apr 2008
Posts: 3,332
From: NorthEast US
Rep Power: 240
John@SpeedTech Is a GOD !John@SpeedTech Is a GOD !John@SpeedTech Is a GOD !John@SpeedTech Is a GOD !John@SpeedTech Is a GOD !John@SpeedTech Is a GOD !John@SpeedTech Is a GOD !John@SpeedTech Is a GOD !John@SpeedTech Is a GOD !John@SpeedTech Is a GOD !John@SpeedTech Is a GOD !
Originally Posted by brichacek
The GT2 conversion I will be doing as well. For intake piping I was leaning towards a Y-pipe of some kind?
You would be much better off putting in a Hi-Flow intake plenum with enlarged piping to help feed your new turbos additional air. You can easily install a Y-Pipe with the motor in the car any time - it's a lot more difficult to install a plenum with the motor in and IMO, it's a better mod for you at this stage, than a Y-Pipe.

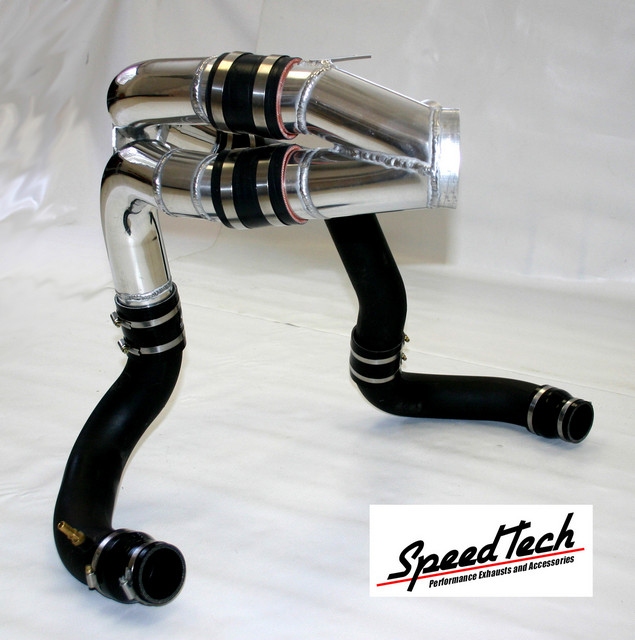

Here is an example of our premium SpeedTech Hi-Flow Plenum with hard piping - this is what I would recommend:




Plenum Web Link: http://www.speedtechexhausts.com/ast1_018.htm


-

Attached Thumbnails Click image for larger version Name: IMG_7698_sized_watermark.sized.jpg Views: 399 Size: 85.9 KB ID: 291525
__________________
991.2 GT3 RS Weissach Racing Yellow
991.2 Turbo S GT Silver
991.2 GT3 Chalk (Manual)
2022 Cayenne White
former 1972 911T white, 1984 911 3.2 Targa black, 993 cab white, 993TT arena red, 993TT silver, 996TT speed yellow, 991.1 GT3 white
www.speedtechexhausts.com
info@speedtechexhausts.com
Testimonials facebook SpeedTech Exhaust Videos
Last edited by John@SpeedTech; Oct 19, 2013 at 07:30 PM.
Reply
Old Oct 19, 2013 | 08:33 PM
Share
  #12
z06801's Avatar
Registered User
Joined: Jul 2010
Posts: 830
From: NSL
Rep Power: 70
z06801 has a reputation beyond reputez06801 has a reputation beyond reputez06801 has a reputation beyond reputez06801 has a reputation beyond reputez06801 has a reputation beyond reputez06801 has a reputation beyond reputez06801 has a reputation beyond reputez06801 has a reputation beyond reputez06801 has a reputation beyond reputez06801 has a reputation beyond reputez06801 has a reputation beyond repute
Originally Posted by PAULIEWALNUTS
thats what i was going to say put a LS7 back in, I'm actually putting a LS into my sons 944 turbo, don't know if I could do it to the 911. Check water pump for signs of leaking

Last edited by z06801; Oct 20, 2013 at 01:01 PM.
Reply
Old Oct 19, 2013 | 08:45 PM
Share
  #13
ttpopo's Avatar
Registered User
15 Year Member
Joined: Apr 2010
Posts: 874
From: Hawaii
Rep Power: 72
ttpopo has a reputation beyond reputettpopo has a reputation beyond reputettpopo has a reputation beyond reputettpopo has a reputation beyond reputettpopo has a reputation beyond reputettpopo has a reputation beyond reputettpopo has a reputation beyond reputettpopo has a reputation beyond reputettpopo has a reputation beyond reputettpopo has a reputation beyond reputettpopo has a reputation beyond repute
water pump. mine looked perfect when i dropped the motor 2k miles ago. then it crapped out. lotsa labor $$$ for a $250 part.

Reply
Old Oct 19, 2013 | 09:38 PM
Share
  #14
pat's Avatar
pat
Registered User
Joined: Dec 2009
Posts: 875
From: indiana
Rep Power: 80
pat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond repute
Coolent overflow unit.

Reply
Old Oct 20, 2013 | 02:52 AM
Share
  #15
Mad Ness's Avatar
Registered User
Joined: Sep 2009
Posts: 834
From: somewhere out there
Rep Power: 65
Mad Ness has a brilliant futureMad Ness has a brilliant futureMad Ness has a brilliant futureMad Ness has a brilliant futureMad Ness has a brilliant futureMad Ness has a brilliant futureMad Ness has a brilliant futureMad Ness has a brilliant futureMad Ness has a brilliant futureMad Ness has a brilliant futureMad Ness has a brilliant future
https://www.6speedonline.com/forums/...ssion-out.html
