DIY In Tank Fuel Pump Upgrade. (pic heavy)
#31
So piecing this together from the photos, I think this is a complete parts list for 6an in tank to fuel rail setup e85 compatible setup. I am using 6an all the way through with a 40 micron stainless steel fuel filter then to 1100cc injectors. This is just the setup that I have chosen, yours may differ. I would look at spending $1150 for the entire setup with the biggest cost being injectors.

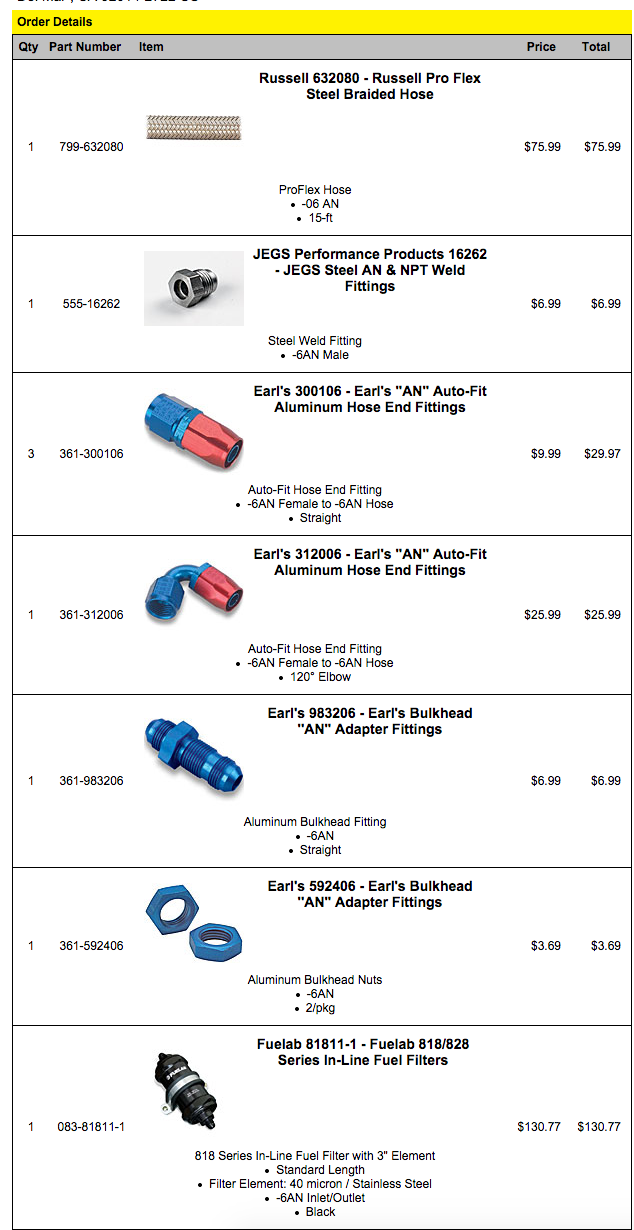

I've attached a screen shot of my jegs order for an fittings and lines - I am sure you can find cheaper (ebay) but I opted for jegs to make sure if any returns were needed there would not be an issue.
-Fuel Injector Clinic IS901-1100H - 1100cc FIC Porsche 996 Turbo Fuel Injector Clinic Injector Set (High-Z)
-Walbro F90000267 internal E85 fuel pump with installation kit ( fuel strainer, fuel hose, harness pigtail, 2 clamps, 2 wire connectors)
-Russell 632080 - Russell Pro Flex Steel Braided Hose 15' ( 1)
-JEGS Performance Products 16262 - JEGS Steel AN & NPT Weld Fittings ( 1)
-Earl's 300106 - Earl's ''AN'' Auto-Fit Aluminum Hose End Fittings ( 3)
-Earl's 312006 - Earl's ''AN'' Auto-Fit Aluminum Hose End Fittings ( 1)
-Earl's 983206 - Earl's Bulkhead ''AN'' Adapter Fittings ( 1)
-Earl's 592406 - Earl's Bulkhead ''AN'' Adapter Fittings ( 1)
-Fuelab 81811-1 - Fuelab 818/828 Series In-Line Fuel Filters ( 1)
-AEM 1-3007 - AEM High Volume Fuel Crush Washers ( 2)
-Dorman 487402 - Autograde No. 6 Hose Fitting O‑ring ( 1)
Hope this helps someone else out in their build!
I've attached a screen shot of my jegs order for an fittings and lines - I am sure you can find cheaper (ebay) but I opted for jegs to make sure if any returns were needed there would not be an issue.
-Fuel Injector Clinic IS901-1100H - 1100cc FIC Porsche 996 Turbo Fuel Injector Clinic Injector Set (High-Z)
-Walbro F90000267 internal E85 fuel pump with installation kit ( fuel strainer, fuel hose, harness pigtail, 2 clamps, 2 wire connectors)
-Russell 632080 - Russell Pro Flex Steel Braided Hose 15' ( 1)
-JEGS Performance Products 16262 - JEGS Steel AN & NPT Weld Fittings ( 1)
-Earl's 300106 - Earl's ''AN'' Auto-Fit Aluminum Hose End Fittings ( 3)
-Earl's 312006 - Earl's ''AN'' Auto-Fit Aluminum Hose End Fittings ( 1)
-Earl's 983206 - Earl's Bulkhead ''AN'' Adapter Fittings ( 1)
-Earl's 592406 - Earl's Bulkhead ''AN'' Adapter Fittings ( 1)
-Fuelab 81811-1 - Fuelab 818/828 Series In-Line Fuel Filters ( 1)
-AEM 1-3007 - AEM High Volume Fuel Crush Washers ( 2)
-Dorman 487402 - Autograde No. 6 Hose Fitting O‑ring ( 1)
Hope this helps someone else out in their build!
Last edited by steeze; 12-15-2014 at 09:48 PM.
#33
Hey John,
Can use this as a replacement, seems to work for a couple years before replacement again. http://www.jegs.com/i/Gates/465/27093/10002/-1
Cheers,
Rob
Can use this as a replacement, seems to work for a couple years before replacement again. http://www.jegs.com/i/Gates/465/27093/10002/-1
Cheers,
Rob
#34
Hey John,
Can use this as a replacement, seems to work for a couple years before replacement again. http://www.jegs.com/i/Gates/465/27093/10002/-1
Cheers,
Rob
Can use this as a replacement, seems to work for a couple years before replacement again. http://www.jegs.com/i/Gates/465/27093/10002/-1
Cheers,
Rob
#35
[url=https://flic.kr/p/rogbSg]
#37
#38
I've researched this up, down and sideways, and there is no real option for a quality submersible fuel hose except the Gates fuel line. Do not use anything that is not marked as such. They are sold in 1' sections at bout $35 each and you will need two pieces which will be separated by the check valve. Total length of hose ends up around 18".
[url=https://flic.kr/p/rogbSg]
[url=https://flic.kr/p/rogbSg]
#39
Nice one. Question. Your still running the stock passenger rail with the fuel pressure on it. Any reason why you did this??
Also, where did you get the an fittings for the fuel rail??
Thanks
#41
In a parrellel rail setup - the stock fuel rails are fine as the flow is effectively halved through each rail. The advantage to bigger rails is more volume which minimizes the injector pulse effect - but I'm not convinced it's an issue unless your running massive injectors.
#42
In a parrellel rail setup - the stock fuel rails are fine as the flow is effectively halved through each rail. The advantage to bigger rails is more volume which minimizes the injector pulse effect - but I'm not convinced it's an issue unless your running massive injectors.
#43

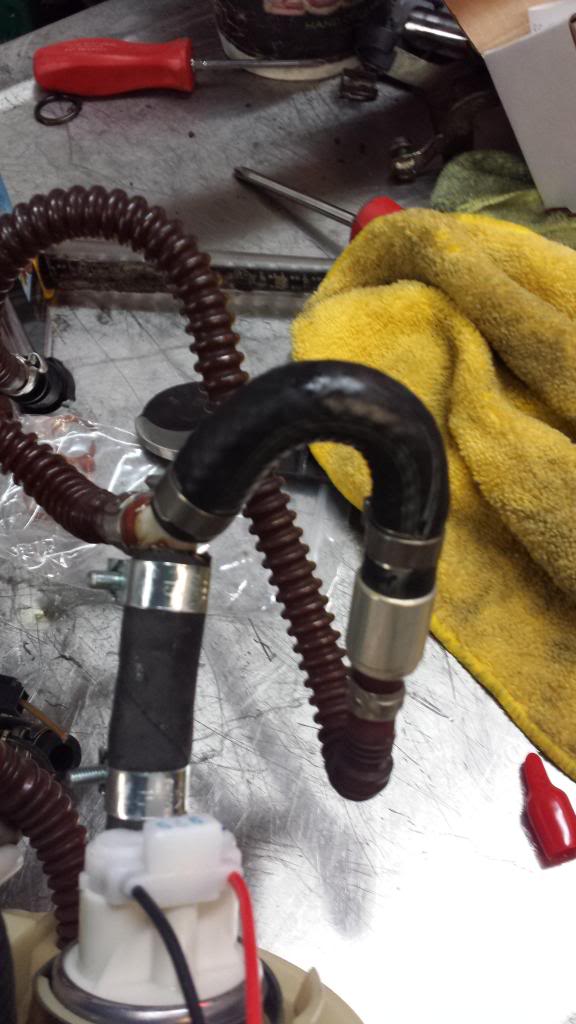

I replaced the "U" and at the plastic accordion pipe. You will not find anyone that makes a submersible "U" shaped fuel line like the OEM one. I just found it easier to replace both as it was the only viable option. This applies to OEM fuel kit also.
#44
What is the purpose of the "U-shaped" fuel line, other than housing the check valve? In every image I have looked at, it seems the line can just be straight, as the accordion line ends up facing a similar direction anyways. It seems the accordion line by itself can do the same thing...??? Please educate me.
#45
I got the fittings from Torques-uk (ebay) but you need a M16X1.5 female to -6 male and the female fitting has to have a 60degree cone in it. You could just tig weld some steel -6 weld on fittings on but these just screw on. Theres a company in the UK called Think Automotive who are very helpful as well
