DIY oil change Mezger M64 block engine M96/70 M97/70
Registered User
Joined: Nov 2006
Posts: 470
From: NCal
Rep Power: 47
This is very good and appreciated. I edited a copy to pass on to a couple of friends. A couple of comments.
The Mezger crankcase is VERY strong. The centeline where the 2 case halfs are bolted together has been "the" best jacking point for 911s since day one. I have always used a small piece of soft wood, or even a shop rag, to keep the jack from digging in. I may try the hockey puck but am concerned about the possibility of it slipping. I would never hesitate to use this as a jacking point.
Re: Draining 996 turbocharger oil. Yes, it is supposed to be done. So is the filter housing. I have been around these a long time and am doubtful most mechanics do this. Nice idea if you want to be 100%. Similar to changing that $$$ tiny O ring. Conversely, if it is so important, why didn't they add drain plugs on the 997tt? [The answer is that they realized they weren't needed and it has nothing to do with a different design. My old 930 also lacks this feature on any of the turbochargers I have used..with no ill effects.
Last, FYI, the Factory update calls for oil changes every 2 years on my under used 6-2. [shame on me] If you do oil analysis you may start to wonder about throwing away perfectly fine oil. [Yes, I know... I used to race and the saying was "Oil is cheaper than engines!" ] Still, I get bothered about tossing good oil.. "just because".
JR
The Mezger crankcase is VERY strong. The centeline where the 2 case halfs are bolted together has been "the" best jacking point for 911s since day one. I have always used a small piece of soft wood, or even a shop rag, to keep the jack from digging in. I may try the hockey puck but am concerned about the possibility of it slipping. I would never hesitate to use this as a jacking point.
Re: Draining 996 turbocharger oil. Yes, it is supposed to be done. So is the filter housing. I have been around these a long time and am doubtful most mechanics do this. Nice idea if you want to be 100%. Similar to changing that $$$ tiny O ring. Conversely, if it is so important, why didn't they add drain plugs on the 997tt? [The answer is that they realized they weren't needed and it has nothing to do with a different design. My old 930 also lacks this feature on any of the turbochargers I have used..with no ill effects.
Last, FYI, the Factory update calls for oil changes every 2 years on my under used 6-2. [shame on me] If you do oil analysis you may start to wonder about throwing away perfectly fine oil. [Yes, I know... I used to race and the saying was "Oil is cheaper than engines!" ] Still, I get bothered about tossing good oil.. "just because".
JR
Registered User
Joined: May 2013
Posts: 7
From: San Diego
Rep Power: 0

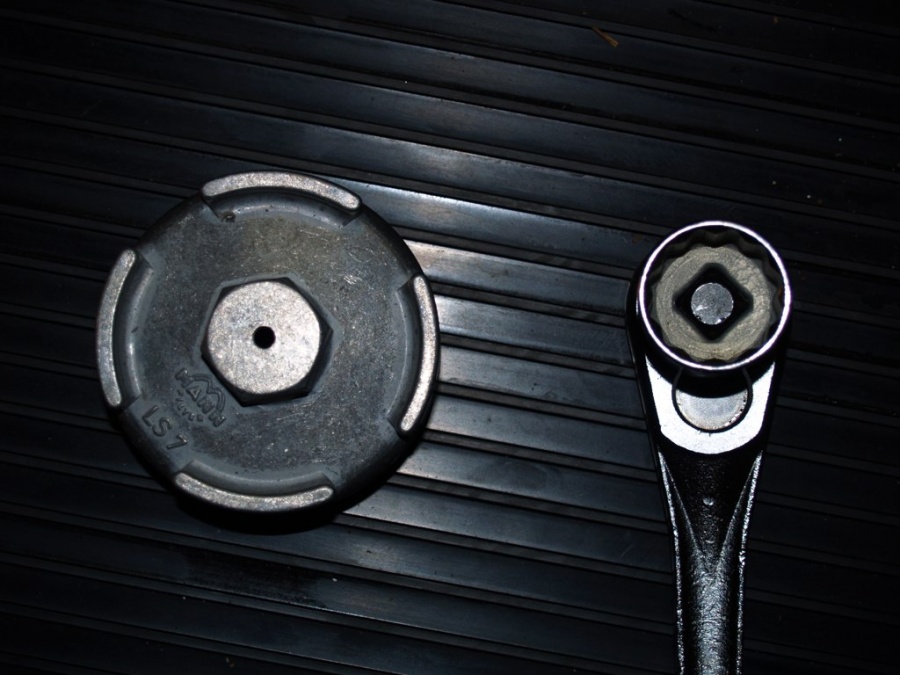

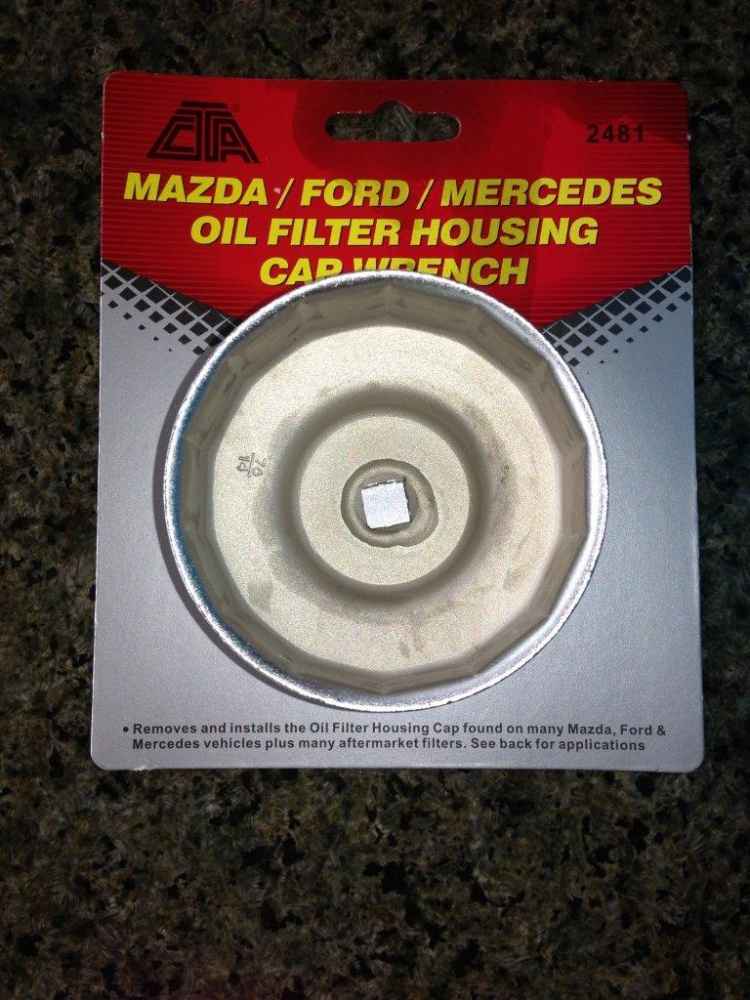

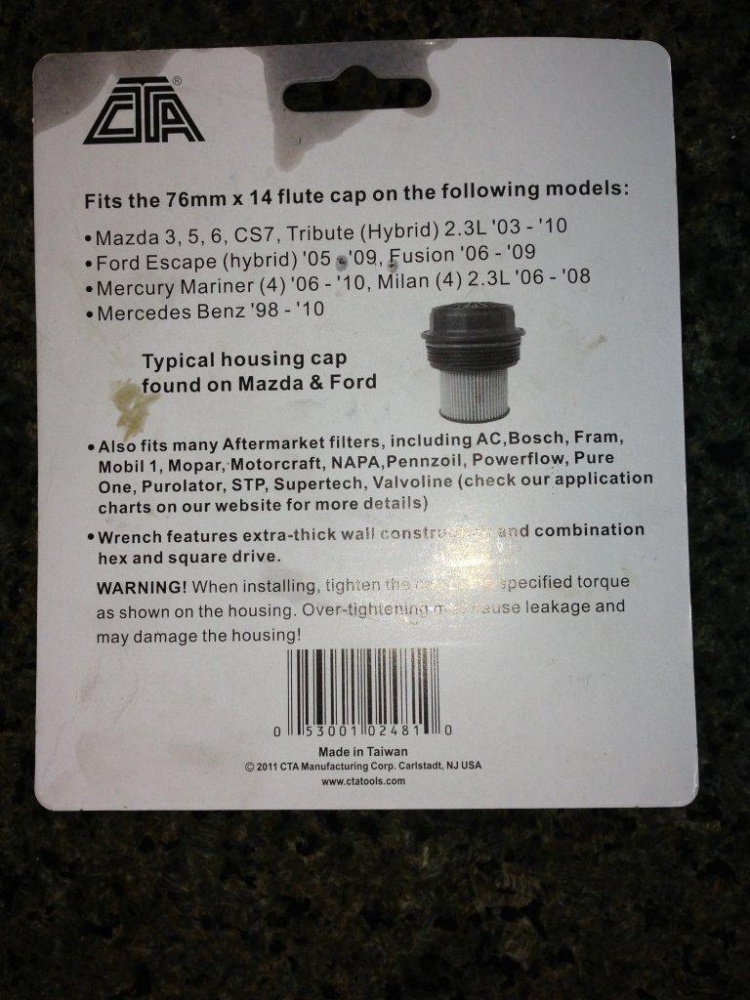

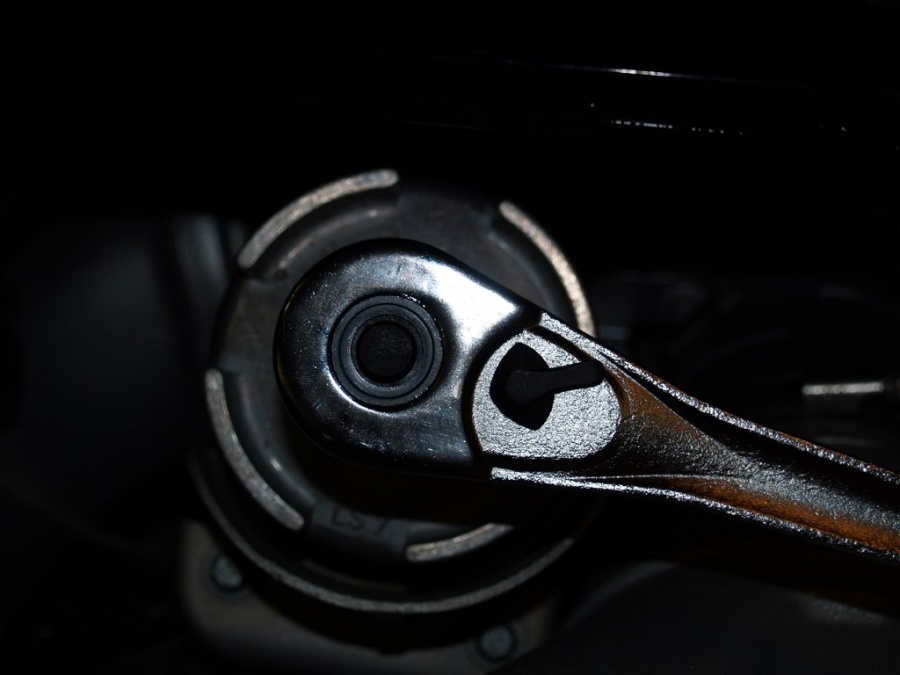

Great post, BBYWU. I recently got a 2004 996 Turbo, and this post helped tremendously with my first oil change! I looked for an oil filter wrench locally and found one at Pep Boys that fit perfectly. It is 76MM with 14 flats(flutes). They had a regular oil filter cap wrench, and they also one made specifically for an oil filter housing that is very similar to the one on the Porsche. The cap wrench for the housing is made for a Mazda, Ford or Mercedes, but fit the Porsche perfectly. I attached pics of the cap wrench. I also took Skeeter's advice and got the filter from Suncoast. They include all 4 crush rings for the turbo engine (crankcase, oil tank, and 2 turbo oil containers). For those of you who chose to drain the 2 turbo oil containers (I did), that takes an 8MM hex wrench.
Thread Starter
|
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
Glad I was able to help!
Nice job. I think DIY oil changes on this car are easy, and most dealerships really charge too much for the amount of time it takes to do this easy task.
Nice job. I think DIY oil changes on this car are easy, and most dealerships really charge too much for the amount of time it takes to do this easy task.
Registered User
Joined: May 2013
Posts: 7
From: San Diego
Rep Power: 0
Thanks BBYWU. This forum is a lifesaver for the DIYer! I do have a question I was hoping that you, or another poster, can help with. According to "Porsche 996 - The Essential Companion" the torque for the turbo oil container drain plugs is 70Nm (52lb-ft). I read in another post that the torque for them is 22 lb-ft. The Bentley manual does not cover the M96.70 engine, so I've run out of reliable resources to figure out which one is correct. Can you tell me the correct torque? For now, I have it at 22 lb-ft, and I'm keeping an eye out for leaks!
Registered User
Joined: May 2013
Posts: 7
From: San Diego
Rep Power: 0
Neither. There are 4 bolts for the "full" oil change on the twin turbo engine: the crankcase, the oil tank, and two "turbocharger oil container" drain plugs. It's the two turbocharger oil container drain plugs (one for each turbocharger) that I'm referring to on the M96.70 twin turbo engine. The two bolts come out with an 8MM hex wrench, and they have aluminum crush washers.
Registered User
Joined: Oct 2009
Posts: 421
From: New Orleans
Rep Power: 55
Neither. There are 4 bolts for the "full" oil change on the twin turbo engine: the crankcase, the oil tank, and two "turbocharger oil container" drain plugs. It's the two turbocharger oil container drain plugs (one for each turbocharger) that I'm referring to on the M96.70 twin turbo engine. The two bolts come out with an 8MM hex wrench, and they have aluminum crush washers.
Most people leave these alone for fear of ruining the tank. I dont know the actual torque value, but I bet its less than 52ftlbs. Pretty sure you would strip the threads right out at 52.
