Filler Flap Doesn't Stay Open
Filler Flap Doesn't Stay Open
My filler flap seems to have lost a counter weight or something as now it will no longer stay up when I open it. It seems to have happend when I closed the filler flap as it had a slight resistance. All pieces seem to be there...
I just had some work done on my car and when it was returned, my fuel filler door won't stay open either. Going to the dealer tuesday to have it fixed (along with a few other things). It appears as though there's a spring missing, but I'm going to take a look at other 911s on the showroom floor. Will update once I get a clue as to what the problem is.
Trending Topics
Sometimes the spring in the flap pops loose or breaks. Part #997 504 711 00. My spring came loose in early 2006 & I snapped it back into place. It's been good ever since.
Mine is not broken (at least I think) so I think it poped out. Any advice on how to fix this?

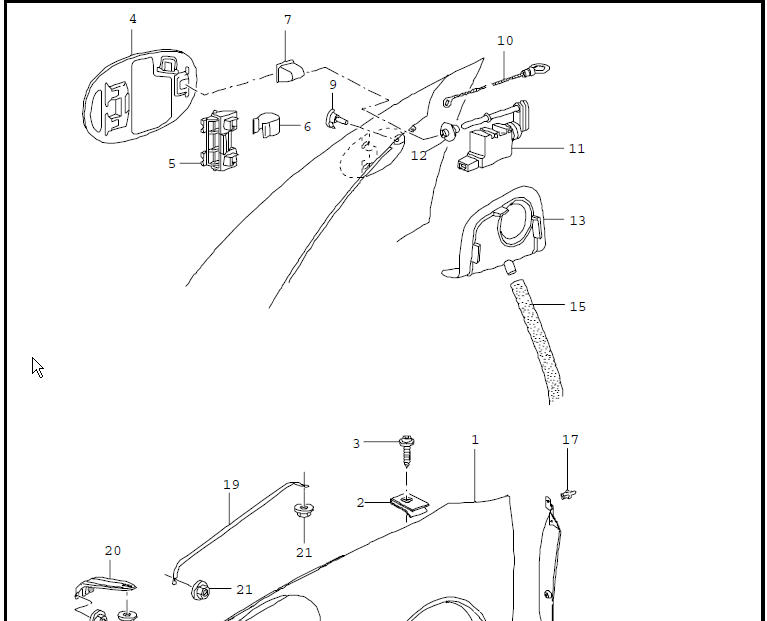

Diagram from the Porsche Parts web site: http://www.mcenter.su/porsche/E_997_KATALOG.pdf

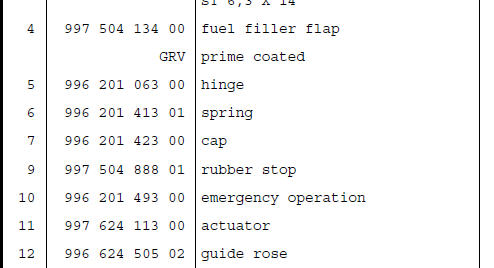

The spring is #6
The spring is #6
I had the same problem - but it was not the metal spring causing my issue. My problem was related to the plastic hinge that mounts the filler flap door to the body (part #5 in the above diagram). The metal spring rests on a very tiny ledge on the backside of that mount and it finally cracked and gave way. It was a $14 part at the dealer. They had them in stock as it is apparently a known issue with this part. The replacement they provided me appeared to be a little beefier in design. Took me about 4 minutes to install.
Last edited by mkatkins; Jul 12, 2011 at 02:07 PM.
