Aston Martin DB7, DB9, DBS, Vantage V8, Vanquish, and Classic models

Coolant level sensor

Thread Tools

Rate Thread

Old Dec 29, 2014 | 03:25 AM
  #1
Carlos_ctr's Avatar
Thread Starter
|
Registered User
Joined: Nov 2014
Posts: 6
From: Barcelona
Rep Power: 0
Carlos_ctr is infamous around these parts
Coolant level sensor

Hello,

Recentlu I have bought a 2007 vantage roadster? I've been reading you for a long time while I was waiting for my car.

I have a flashing warning light of low coolant level and I have read that is a "normal" light on this cars.

I want to change the sensor but can't find the part number. I think is this one 1R12-37-10166 but want to be sure.

Do you know if there is any Volvo jar etc compatible sensor???

Thanks and best regards

Carlos

Old Dec 29, 2014 | 03:28 PM
  #2
dicktahoe's Avatar
Registered User
Joined: Aug 2010
Posts: 599
From: Incline Village, NV
Rep Power: 43
dicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of light
Originally Posted by Carlos_ctr
Hello,

Recentlu I have bought a 2007 vantage roadster? I've been reading you for a long time while I was waiting for my car.

I have a flashing warning light of low coolant level and I have read that is a "normal" light on this cars.

I want to change the sensor but can't find the part number. I think is this one 1R12-37-10166 but want to be sure.

Do you know if there is any Volvo jar etc compatible sensor???

Thanks and best regards

Carlos
Maybe the coolant is a little low. So add between 1-cup to 2-cups of Distilled Water to the coolant reservoir and see if the light goes out. Don't worry about the very slight dilution of the coolant--it's insignificant.

Old Feb 8, 2024 | 01:37 AM
  #3
Pangerz's Avatar
Registered User
Joined: Jan 2021
Posts: 48
Rep Power: 0
Pangerz is infamous around these parts
Hey guys does anyone know an alternative part for the Coolant Level Sensor? AM part 1R12-37-10166.

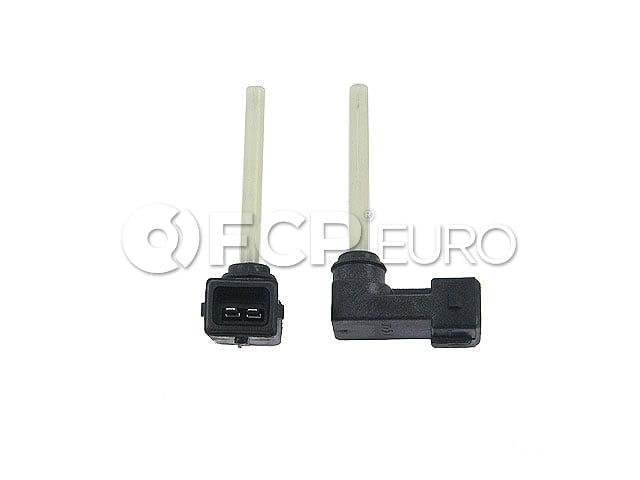

Jaguar Part LNA5740AB looks identical. Can anyone confirm this??

https://www.fcpeuro.com/products/jag...hoCCUQQAvD_BwE


Old Feb 8, 2024 | 09:53 PM
  #4
J doubleU's Avatar
Registered User
10 Year Member
Joined: Mar 2013
Posts: 2,408
From: So Cal
Rep Power: 261
J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !
Usual fault is in the reservoir itself. For that price it's worth trying. Have you checked the wiring and connection? I would try disconnecting it first and see if the warning changes.

Old Feb 9, 2024 | 10:08 AM
  #5
95viper's Avatar
Registered User
Joined: Jul 2023
Posts: 92
Rep Power: 0
95viper is infamous around these parts
Search this forum for coolant sensor, temp, fault as I see multiple threads on this and alternate part numbers

Old Feb 10, 2024 | 08:55 PM
  #6
Pangerz's Avatar
Registered User
Joined: Jan 2021
Posts: 48
Rep Power: 0
Pangerz is infamous around these parts
Originally Posted by 95viper
Search this forum for coolant sensor, temp, fault as I see multiple threads on this and alternate part numbers
I've already done this otherwise I wouldn't and couldn't have resurrected a 2014 thread. Also you haven't bothered reading the thread before searching the forum and writing an unhelpful response - level sensor, not temp.

Originally Posted by J doubleU
Usual fault is in the reservoir itself. For that price it's worth trying. Have you checked the wiring and connection? I would try disconnecting it first and see if the warning changes.
Thanks for the suggestion - have had a look and everything looks in order. There's a few other threads about this warning light coming on and I'm pretty sure I just need to replace the coolant Level sensor - will update when fixed! Warning only comes on temporarily under hard acceleration.


Last edited by Pangerz; Feb 10, 2024 at 08:57 PM.
Old Feb 10, 2024 | 09:14 PM
  #7
95viper's Avatar
Registered User
Joined: Jul 2023
Posts: 92
Rep Power: 0
95viper is infamous around these parts
Originally Posted by Pangerz
I've already done this otherwise I wouldn't and couldn't have resurrected a 2014 thread. Also you haven't bothered reading the thread before searching the forum and writing an unhelpful response - level sensor, not temp.


Thanks for the suggestion - have had a look and everything looks in order. There's a few other threads about this warning light coming on and I'm pretty sure I just need to replace the coolant Level sensor - will update when fixed! Warning only comes on temporarily under hard acceleration.
Wow what a dik. I said to search for all three as the part numbers for all of those sensors, including level if you are too lazy, are in multiple posts. No wonder why you don’t have this fixed.

Old Feb 10, 2024 | 09:39 PM
  #8
Pangerz's Avatar
Registered User
Joined: Jan 2021
Posts: 48
Rep Power: 0
Pangerz is infamous around these parts
Originally Posted by 95viper
Wow what a dik. I said to search for all three as the part numbers for all of those sensors, including level if you are too lazy, are in multiple posts. No wonder why you don’t have this fixed.
My response was quite polite considering how rude and unhelpful you are. You're straight up incorrect. The alt part number for the coolant level sensor hasn't been listed yet. That's why I'm trying to confirm this in hopes of benefitting the community with some new info.

Old Feb 12, 2024 | 08:22 PM
  #9
UltraMarine's Avatar
Registered User
Joined: Dec 2021
Posts: 237
Rep Power: 20
UltraMarine is a name known to allUltraMarine is a name known to allUltraMarine is a name known to allUltraMarine is a name known to allUltraMarine is a name known to allUltraMarine is a name known to all
I believe the OE part was NGK 74820 , and is common with the Land Rover part #

Old Mar 8, 2025 | 03:30 PM
  #10
EJ_Rapide's Avatar
Registered User
Joined: Apr 2023
Posts: 570
From: Santa Rosa, CA
Rep Power: 49
EJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond repute
I believe I am having a slight leak at the tank and/or a faulty sensor.
I could feel some fluid under the tank when shoving my hand...
So I am looking at replacing both the tank and sensor.
Do we know of a Jaguar / Ford equivalent for the expansion tank 4G43-19B518-BD?
Thanks in advance!

Old Mar 8, 2025 | 04:02 PM
  #11
yvr's Avatar
yvr
Registered User
10 Year Member
Joined: Jan 2012
Posts: 1,049
From: Vancouver
Rep Power: 115
yvr Is a GOD !yvr Is a GOD !yvr Is a GOD !yvr Is a GOD !yvr Is a GOD !yvr Is a GOD !yvr Is a GOD !yvr Is a GOD !yvr Is a GOD !yvr Is a GOD !yvr Is a GOD !
Last time I bought that tank it came with a sensor already installed as part of the tank price. Check that's still the case if you're ordering a new one.

Old Mar 9, 2025 | 12:44 AM
  #12
PhuketPaul's Avatar
Registered User
Joined: Jan 2022
Posts: 67
Rep Power: 8
PhuketPaul is infamous around these partsPhuketPaul is infamous around these parts
The part number is 1R12-37-10166

Land rover part PCJ500030LR seems to be compatible

Old Mar 9, 2025 | 11:44 AM
  #13
EJ_Rapide's Avatar
Registered User
Joined: Apr 2023
Posts: 570
From: Santa Rosa, CA
Rep Power: 49
EJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond repute
I'm ordering a sensor alone to replace, and will check if it fixes the issue and the slight leak.
Plan B is to replace the expansion tank at the whole.
Thanks for the help.

Old Mar 11, 2025 | 08:48 AM
  #14
Marmot's Avatar
Registered User
5 Year Member
Joined: Feb 2021
Posts: 332
From: Florida
Rep Power: 20
Marmot has a spectacular aura aboutMarmot has a spectacular aura about
That's a five dollar sensor at O'Reilly's. I just got one for my wife's Range Rover Sport and it's the same part number provided for Land Rover. Rock Auto has them for 12 bucks or so as well.


Old Apr 5, 2025 | 03:06 PM
  #15
EJ_Rapide's Avatar
Registered User
Joined: Apr 2023
Posts: 570
From: Santa Rosa, CA
Rep Power: 49
EJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond reputeEJ_Rapide has a reputation beyond repute

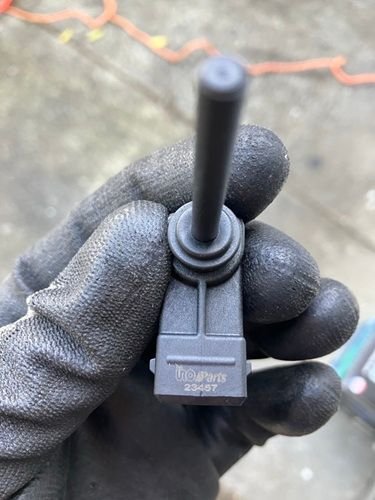

Just completed the job this morning, pretty straightforward.
Now going to take the car for a spin and see if I still get that low coolant level message...
Thanks!
