V8V Trunk Gap?

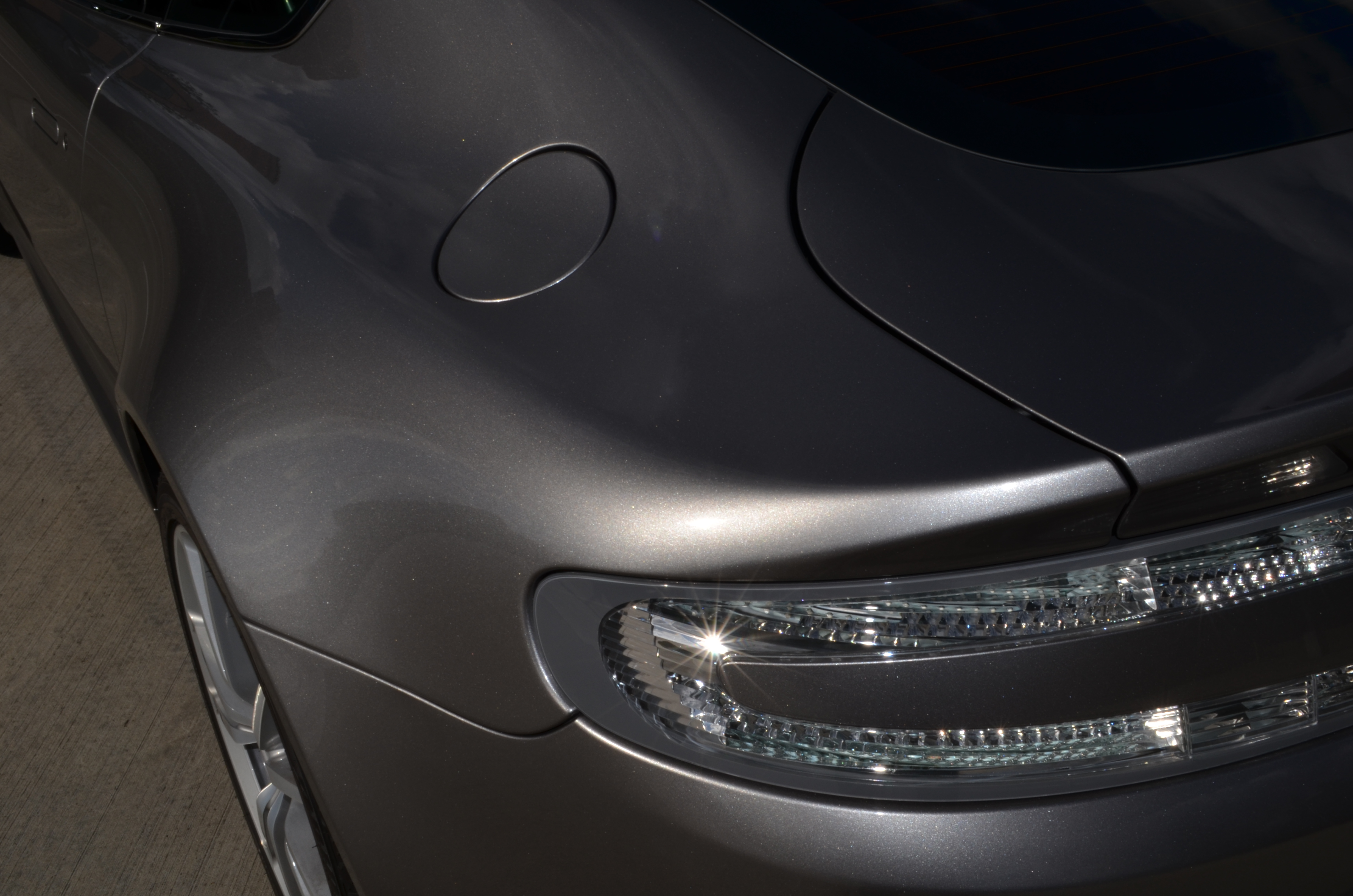

One thing I've noticed and have wondered about is the gap between the rear lights and the trunk seems to be off a bit as they are not completely flush. Everything aligns properly and there are no other issues. Normal?

Attached Thumbnails Click image for larger version

Name:	gap.jpg
Views:	62
Size:	319.0 KB
ID:	416693
  #2
Old 03-20-2015, 08:03 PM
TGED's Avatar
Registered User
Join Date: Oct 2011
Location: Toronto
Posts: 773
Rep Power: 43
TGED is on a distinguished road
What about the other side?

  #3
Old 03-20-2015, 08:43 PM
spf1410's Avatar
Registered User
Join Date: Mar 2013
Location: Portland, OR
Posts: 309
Rep Power: 25
spf1410 has a spectacular aura aboutspf1410 has a spectacular aura about

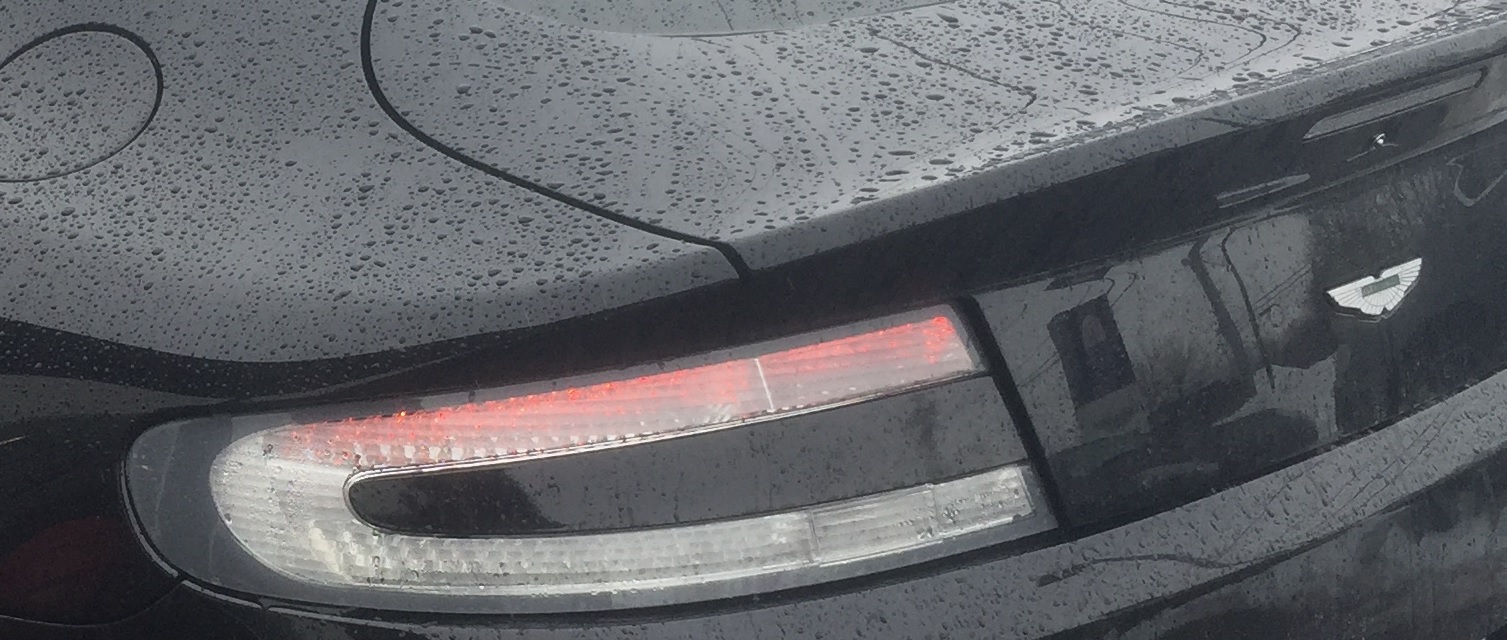

Here is a photo of mine I took last summer. Nearly the same angle.

Attached Thumbnails Click image for larger version

Name:	DSC_0066.JPG
Views:	49
Size:	2.87 MB
ID:	416745
  #4
Old 03-21-2015, 12:25 AM
Townshend's Avatar
Registered User
Thread Starter
Join Date: Jan 2006
Location: Chicago
Posts: 115
Rep Power: 23
Townshend is on a distinguished road
Originally Posted by spf1410
Here is a photo of mine I took last summer. Nearly the same angle.

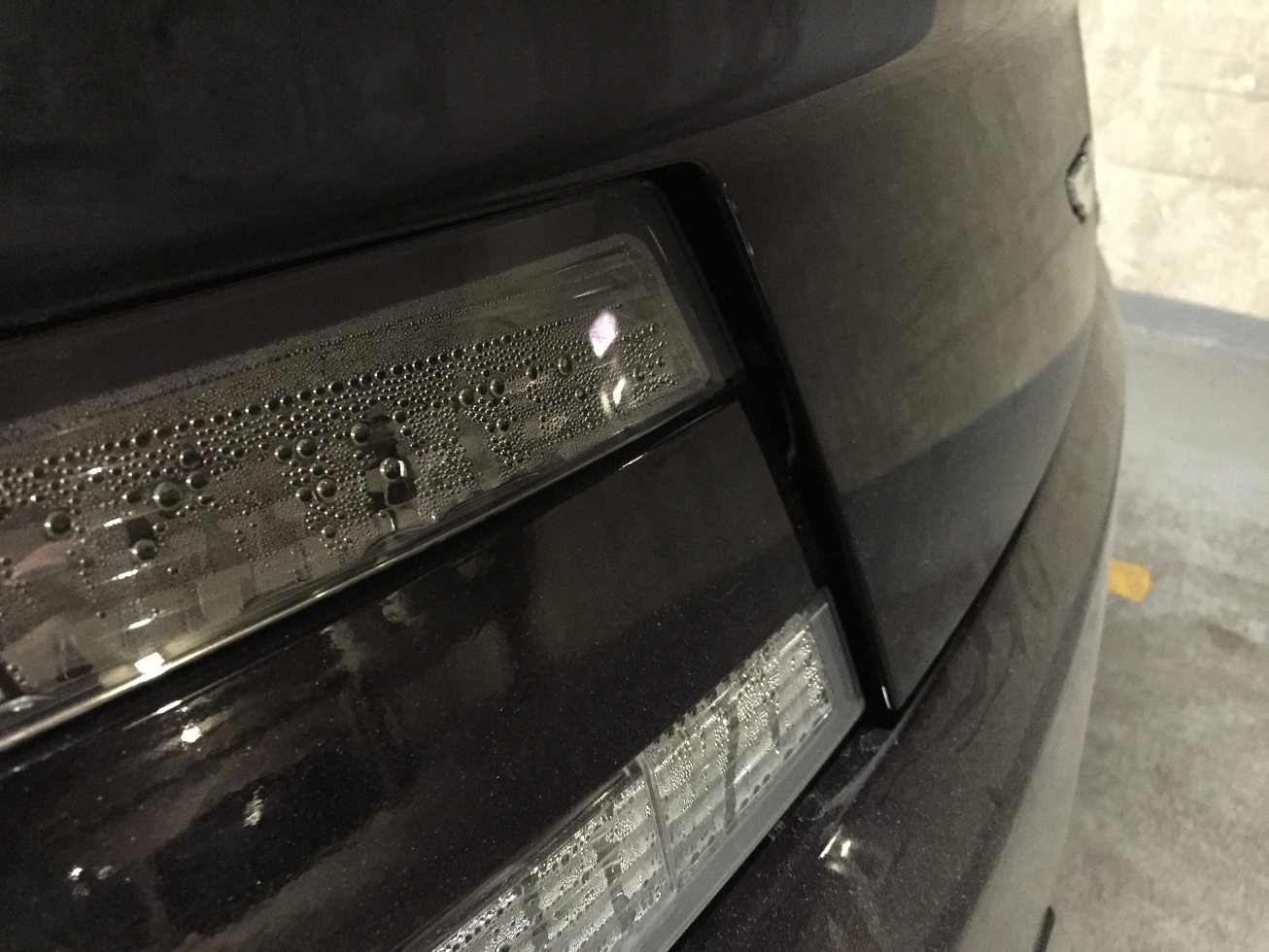

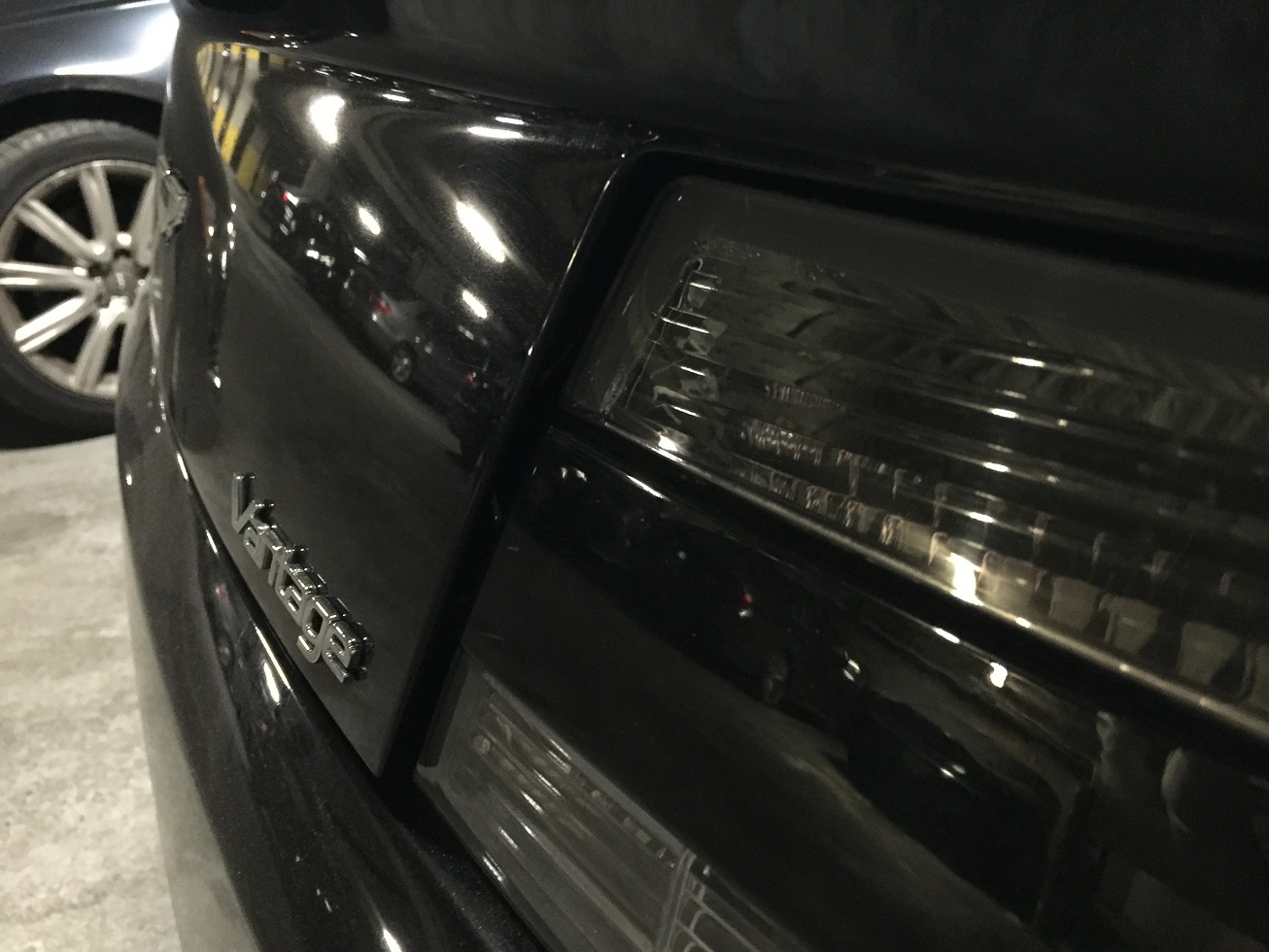

spf thank you for the shot. Your angle is the same as mine where it is flush there, I'm referring more to these angles. Here are both sides. Everything fits properly and seems to all align correctly.

Attached Thumbnails Click image for larger version

Name:	IMG_5381.JPG
Views:	55
Size:	363.4 KB
ID:	416761   Click image for larger version

Name:	IMG_5382.JPG
Views:	38
Size:	307.2 KB
ID:	416762
  #5
Old 03-21-2015, 10:18 AM
midwestamv8's Avatar
Registered User
Join Date: Jul 2014
Location: Denver
Posts: 201
Rep Power: 28
midwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud of
Your tail lights are out of adjustment is all. There are three bolts on the rear of each light. Remove the inner trunk lining, loosen the bolts for each light slightly, adjust the lights so they match up with the body lines, and re-tighten. There are rubber seals that are supposed to be replaced if you remove the lights, but they may be okay if you just adjust them slightly. If you get leaking after the adjustment you'll need to replace the seals.

EDIT: It also looks like you have condensation in your driver side ligt.

  #6
Old 03-21-2015, 10:22 AM
Townshend's Avatar
Registered User
Thread Starter
Join Date: Jan 2006
Location: Chicago
Posts: 115
Rep Power: 23
Townshend is on a distinguished road
Originally Posted by midwestamv8
Your tail lights are out of adjustment is all. There are three bolts on the rear of each light. Remove the inner trunk lining, loosen the bolts for each light slightly, adjust the lights so they match up with the body lines, and re-tighten. There are rubber seals that are supposed to be replaced if you remove the lights, but they may be okay if you just adjust them slightly. If you get leaking after the adjustment you'll need to replace the seals.

EDIT: It also looks like you have condensation in your driver side ligt.
This is great, thank you a ton for the suggestion. Yes, there is a little condensation on the driver side tail light, will have to check the rubber seals. My first tinkering with the car, looking forward to it actually. Thank you!

  #7
Old 03-22-2015, 07:50 PM
Townshend's Avatar
Registered User
Thread Starter
Join Date: Jan 2006
Location: Chicago
Posts: 115
Rep Power: 23
Townshend is on a distinguished road
A follow up, you nailed it. Easy fix. Thanks again!

  #8
Old 03-22-2015, 09:03 PM
midwestamv8's Avatar
Registered User
Join Date: Jul 2014
Location: Denver
Posts: 201
Rep Power: 28
midwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud ofmidwestamv8 has much to be proud of
Originally Posted by Townshend
A follow up, you nailed it. Easy fix. Thanks again!
Glad I could help!
