DIY AC help

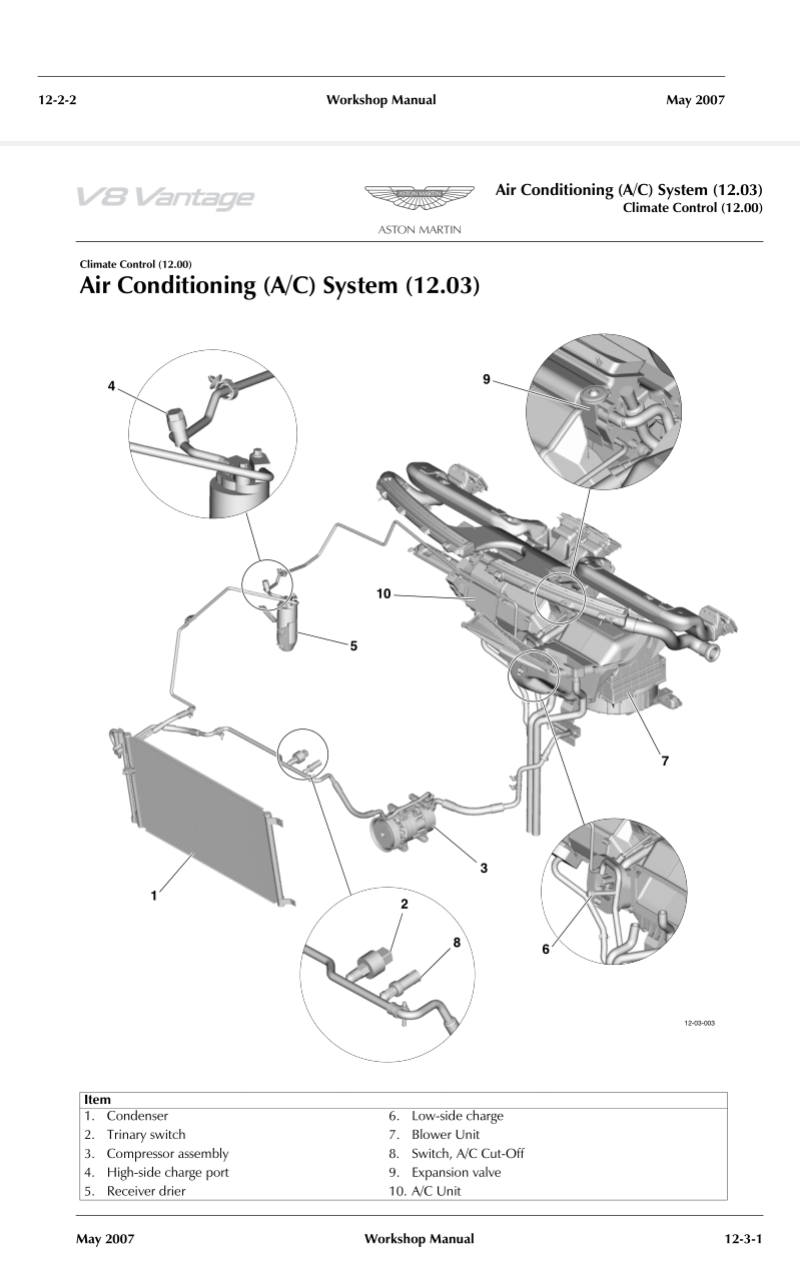

Anyone know an easy way to access low side charge (6) on AC system? any help would be most appreciated and will be sure to post experience.

Attached Thumbnails Click image for larger version

Name:	Screenshot_2016-06-17-09-54-15.png
Views:	57
Size:	259.9 KB
ID:	451272
  #2
Old 06-17-2016, 09:50 AM
embdenb's Avatar
Registered User
Join Date: Sep 2015
Location: Florida
Age: 74
Posts: 673
Rep Power: 35
embdenb is a name known to allembdenb is a name known to allembdenb is a name known to allembdenb is a name known to allembdenb is a name known to allembdenb is a name known to all
My guess is from underneath the car?

  #3
Old 06-17-2016, 10:08 AM
Registered User
Join Date: Nov 2015
Location: St. Pete
Age: 55
Posts: 603
Rep Power: 29
randyb will become famous soon enoughrandyb will become famous soon enough
Follow the low side hose out of the compressor, you will probably find it on the upper side of the firewall by the looks of the diagram.

  #4
Old 06-17-2016, 11:39 AM
oo7's Avatar
oo7
oo7 is offline
Registered User
Thread Starter
Join Date: Feb 2013
Location: pa
Posts: 489
Rep Power: 27
oo7 will become famous soon enoughoo7 will become famous soon enough
Thanks for the input. Have followed and it disappears. There appears to be a longish neck on it, and was hoping it to be accessible with minimal disassembly. I am hoping Irish07 sees this post.

  #5
Old 06-17-2016, 11:59 AM
Registered User
Join Date: Apr 2009
Location: NoVa
Posts: 4,386
Rep Power: 289
telum01 has a reputation beyond reputetelum01 has a reputation beyond reputetelum01 has a reputation beyond reputetelum01 has a reputation beyond reputetelum01 has a reputation beyond reputetelum01 has a reputation beyond reputetelum01 has a reputation beyond reputetelum01 has a reputation beyond reputetelum01 has a reputation beyond reputetelum01 has a reputation beyond reputetelum01 has a reputation beyond repute
I'm going to be under my car tonight or tomorrow. If you don't have an answer by then, I'll see if I can find it. I know where those two drain hoses dump out under the car, just can't remember off the top of my head which side of the firewall they're on.

  #6
Old 06-17-2016, 03:51 PM
Registered User
Join Date: Jan 2016
Location: Washington
Age: 50
Posts: 9
Rep Power: 0
robertwroth is on a distinguished road
Drain hoses

I was actually looking to find the drain hoses as well (want to put some AC cleaner in there to address a bit of a smell in the system), but wasn't sure where these are. Are they about an inch or so around and toward the passenger (right side US) side of the car? Thx

  #7
Old 06-17-2016, 07:50 PM
J doubleU's Avatar
Registered User
Join Date: Mar 2013
Location: So Cal
Posts: 974
Rep Power: 50
J doubleU is a glorious beacon of lightJ doubleU is a glorious beacon of lightJ doubleU is a glorious beacon of lightJ doubleU is a glorious beacon of lightJ doubleU is a glorious beacon of lightJ doubleU is a glorious beacon of light
That diagram doesn't show the low side service port correctly. Are you looking for the service connection to charge or recover the 134a ?

  #8
Old 06-18-2016, 08:20 AM
oo7's Avatar
oo7
oo7 is offline
Registered User
Thread Starter
Join Date: Feb 2013
Location: pa
Posts: 489
Rep Power: 27
oo7 will become famous soon enoughoo7 will become famous soon enough
Yes, The low side seems to be behind something, and the blow up, I am assuming, is beneath. I would love to be incorrect in my assumption...

  #9
Old 06-18-2016, 09:22 AM
J doubleU's Avatar
Registered User
Join Date: Mar 2013
Location: So Cal
Posts: 974
Rep Power: 50
J doubleU is a glorious beacon of lightJ doubleU is a glorious beacon of lightJ doubleU is a glorious beacon of lightJ doubleU is a glorious beacon of lightJ doubleU is a glorious beacon of lightJ doubleU is a glorious beacon of light
The low side service port is on the drivers side below the coolant reservoir. Basically opposite side of the high side location.

  #10
Old 06-20-2016, 09:16 AM
irish07's Avatar
Registered User
Join Date: Sep 2011
Location: British Columbia, Canada
Posts: 1,428
Rep Power: 100
irish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond repute
Yep like J DoubleU mentioned..

But I hope you don't have low pressure and your using one of those auto parts store fill cans to try and solve the issue. That stuff is garbage, it's not even refrigerant

  #11
Old 06-20-2016, 11:55 AM
oo7's Avatar
oo7
oo7 is offline
Registered User
Thread Starter
Join Date: Feb 2013
Location: pa
Posts: 489
Rep Power: 27
oo7 will become famous soon enoughoo7 will become famous soon enough
Originally Posted by irish07 View Post
Yep like J DoubleU mentioned..

But I hope you don't have low pressure and your using one of those auto parts store fill cans to try and solve the issue. That stuff is garbage, it's not even refrigerant
Having it done at a local place that specializes in the Denso AC units, and the are evacuating the system and doing it all by the book according to AM specs.


Last edited by oo7; 06-20-2016 at 12:13 PM.
  #12
Old 06-20-2016, 12:11 PM
oo7's Avatar
oo7
oo7 is offline
Registered User
Thread Starter
Join Date: Feb 2013
Location: pa
Posts: 489
Rep Power: 27
oo7 will become famous soon enoughoo7 will become famous soon enough
Thankfully, The manual appears to be incorrect, as the low side is easily accessible as seen from the pic posted. In fact had the manual not indicated a specific place, it would most likely have been found. (gave up after seeing diagram) Thanks you very much J doubleU for the info.

  #13
Old 06-20-2016, 12:25 PM
irish07's Avatar
Registered User
Join Date: Sep 2011
Location: British Columbia, Canada
Posts: 1,428
Rep Power: 100
irish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond reputeirish07 has a reputation beyond repute
Actually the workshop manual is correct, just it's for a RHD. If you look at the pic, the evap mounts on the left side of the vehicle, yet your evap lines mount on the right side. That should of been the dead give away..regardless you found it! :-)

  #14
Old 06-20-2016, 02:27 PM
oo7's Avatar
oo7
oo7 is offline
Registered User
Thread Starter
Join Date: Feb 2013
Location: pa
Posts: 489
Rep Power: 27
oo7 will become famous soon enoughoo7 will become famous soon enough
Originally Posted by irish07 View Post
Actually the workshop manual is correct, just it's for a RHD. If you look at the pic, the evap mounts on the left side of the vehicle, yet your evap lines mount on the right side. That should of been the dead give away..regardless you found it! :-)
Yet another brain misfire. Never gave RHD a thought as everything else looked per manual diagram. Will post 90k miles report soon.
