Bentley GT 2006,Speaker wiring colour codes


  #151
Old 04-13-2019, 06:21 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point
Originally Posted by TeamJones1962 View Post
nah man....I don’t...just saying how it might have seemed. I bought mines way before you posted so I was more so like eh oh well it’s done now. But we’re good. No problems.
Then why mention it ... total pointless.

Anyway here are the speakers I'm installing ...


Tweeters Front & Rear

Rear Door Bass



Audison Front Door & Rear Seat Mids

Audison Front Door 6.5

Audison 8" Sub


Last edited by Rico.Adams; 04-13-2019 at 06:43 PM.
  #152
Old 04-14-2019, 08:53 PM
Registered User
Join Date: Nov 2018
Location: MI
Age: 49
Posts: 97
Rep Power: 0
British is an unknown quantity at this point
That looks awesome. What amp? Iím seriously jealous.

  #153
Old 04-15-2019, 02:53 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point
Originally Posted by British View Post
That looks awesome. What amp? Iím seriously jealous.
I have a 5 channel & a 4 channel amp with a field control, The 5 channel amp will run the Front Door 6.5's & the Rear Mids & both Front & Rear Tweeters Via 2 pairs of Crossover & the Sub, The 4 channel amp with the Field Controller with a 11 band EQ will run the Front Door Mids & the Rear Door Bass. I'll post the amps & 11 band EQ later ...

  #154
Old 04-18-2019, 06:09 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point

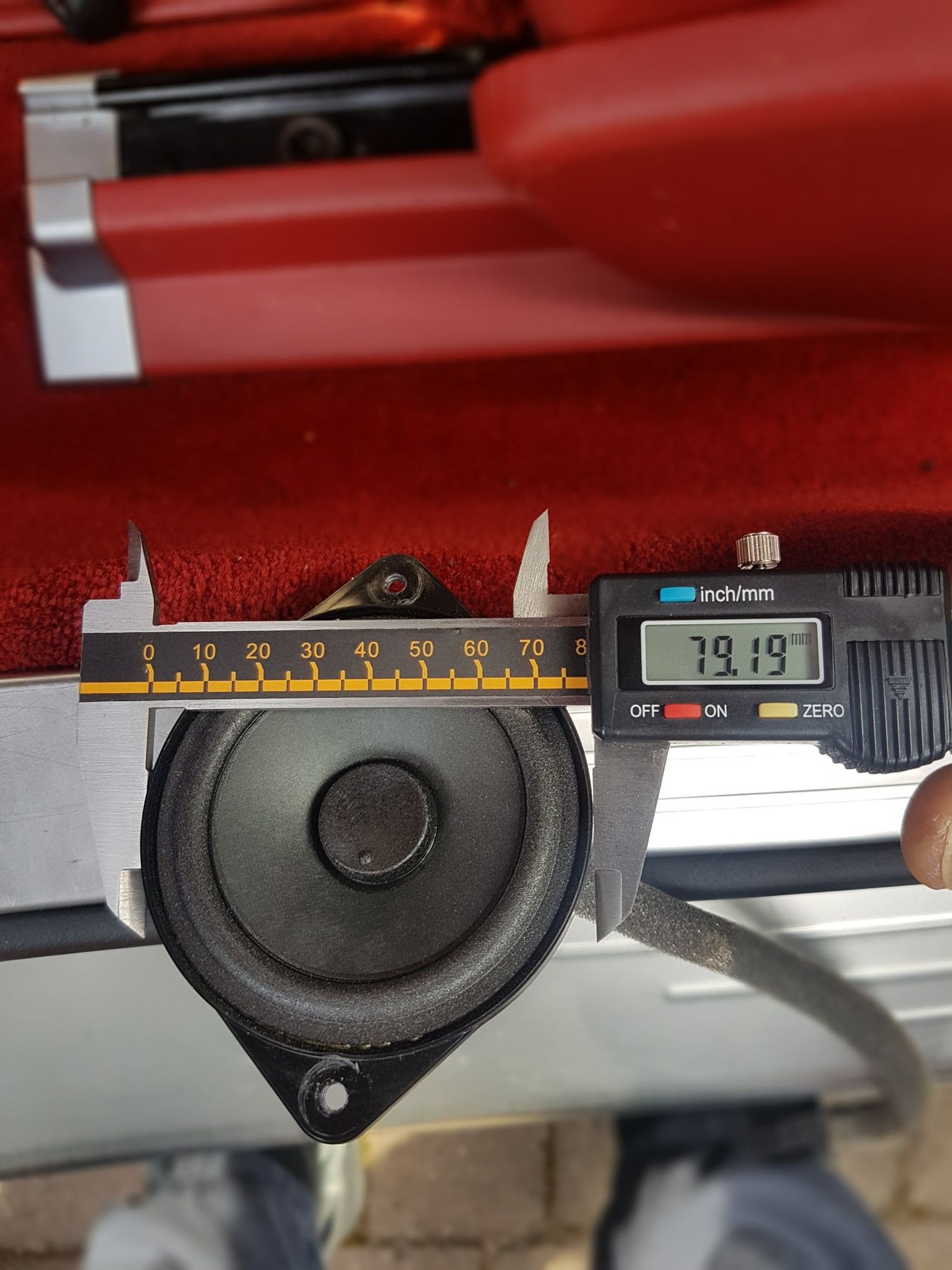

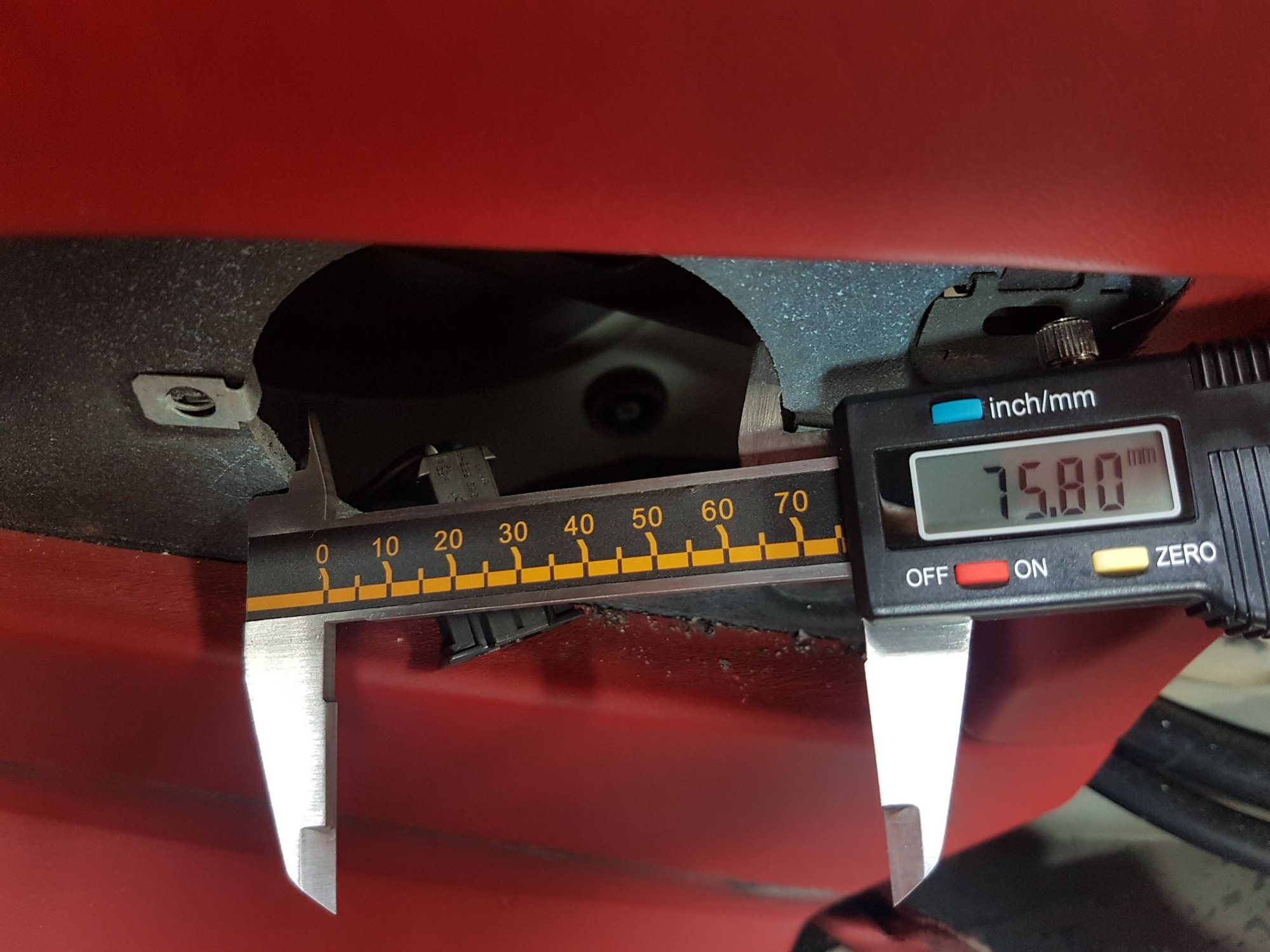

Rear seat Mids, removal, Remove the bottom seat by tugging at the bottom it will snap out of its lugs, then remove the centre bolt (torque) the back of the seat will fall, remove it, the grill will snap out by sticking your finger in the side & pull, the rest is in the pics.

If larger mids are required they can be done but a lot more work, this would consist of removing the side panel & inserting & fixing the Mid from the rear of the panel ...






Last edited by Rico.Adams; 04-18-2019 at 08:55 AM.
  #155
Old 04-19-2019, 05:05 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point

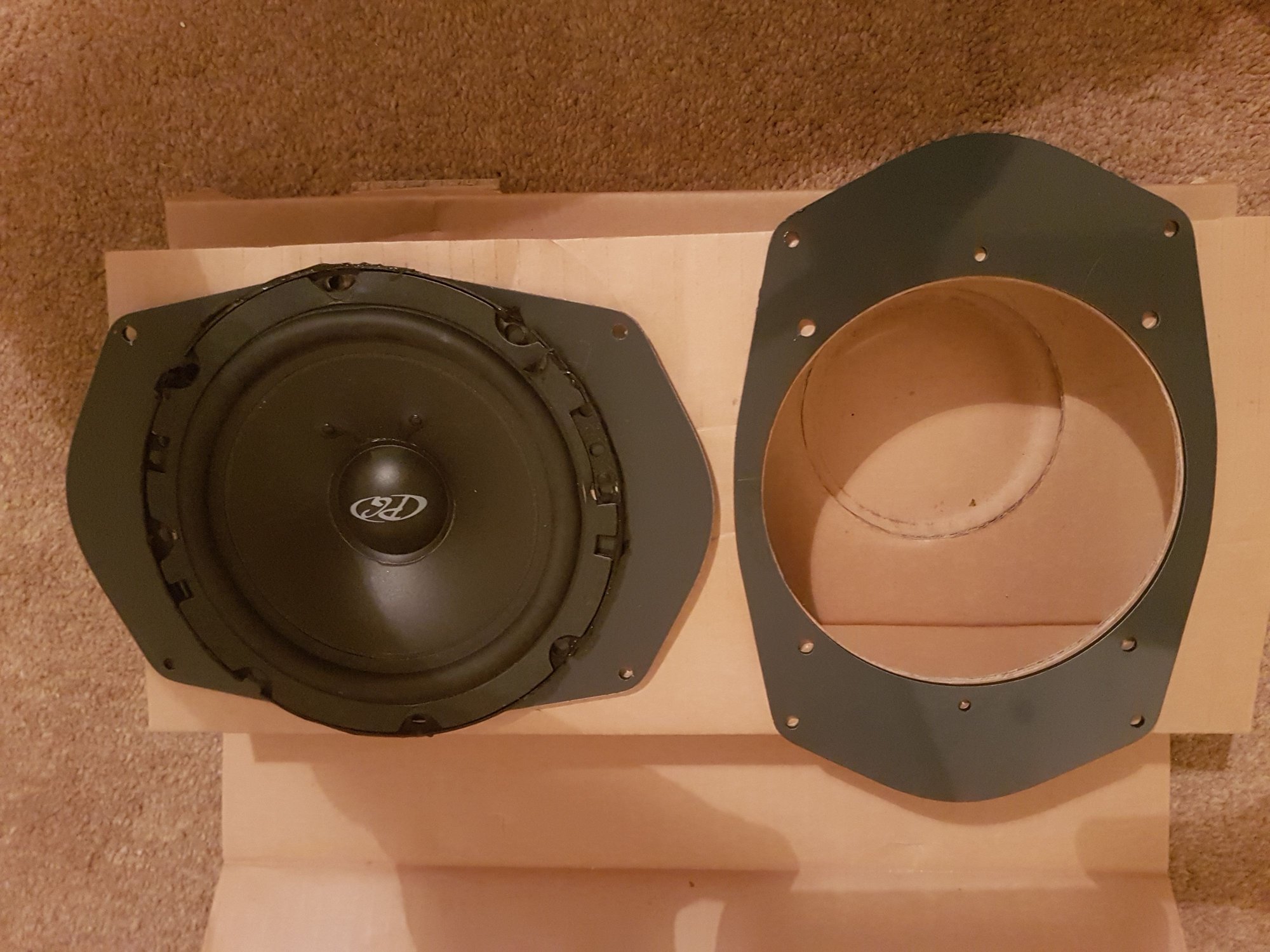

Replacing the 6x9 to 6.5 need adapters, take a profile from the 6x9 ...



  #156
Old 04-20-2019, 11:41 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point
Once the BenHur is installed no need to keep the old cd & nav units in the glovebox, out they go & in goes the 11 Band EQ & a panel I made up with a 12v socket, Battery Meter & USB charging point ...

Hows that Johnny, better than on the front panel ...


  #157
Old 04-22-2019, 12:46 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point

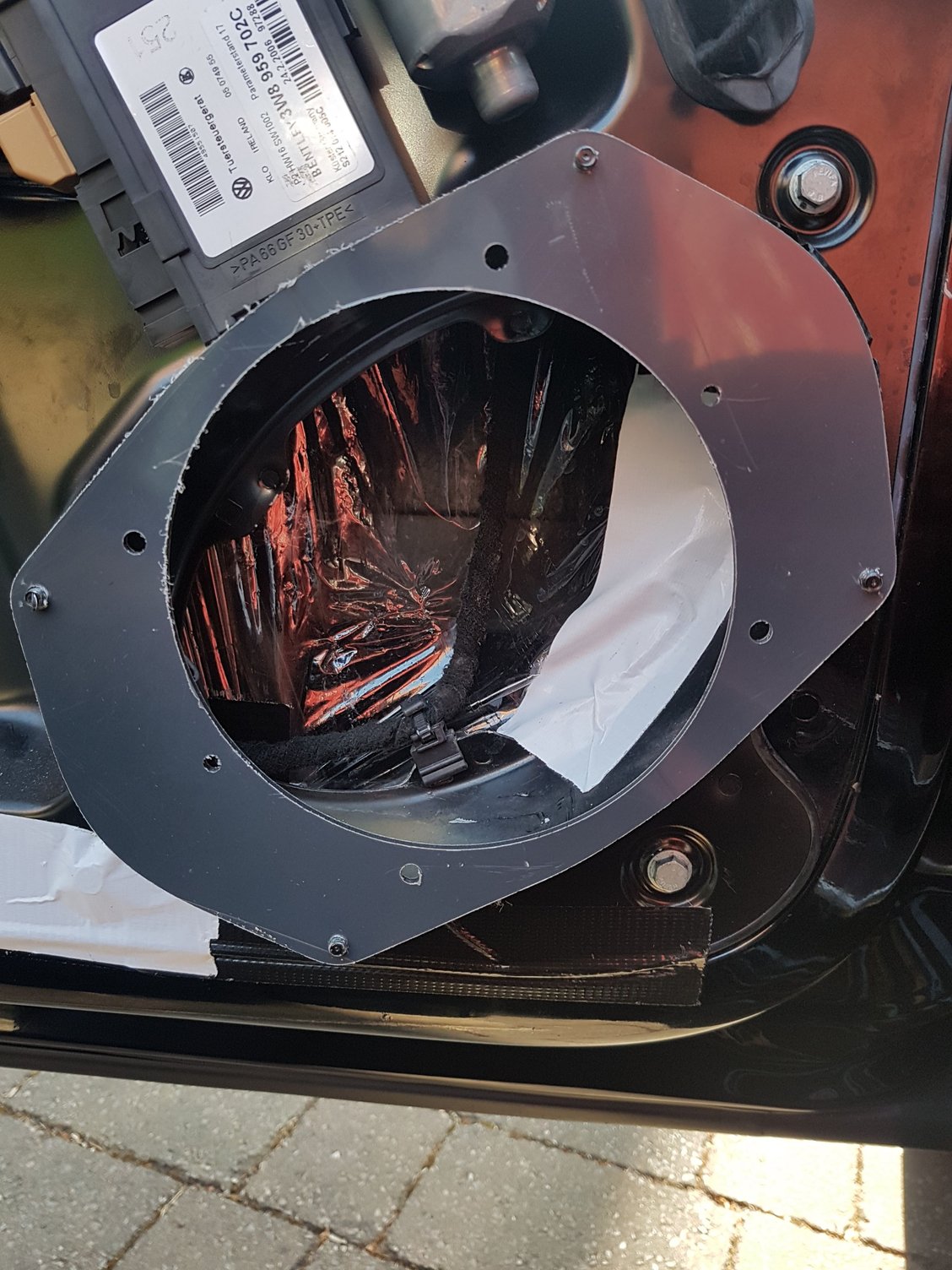

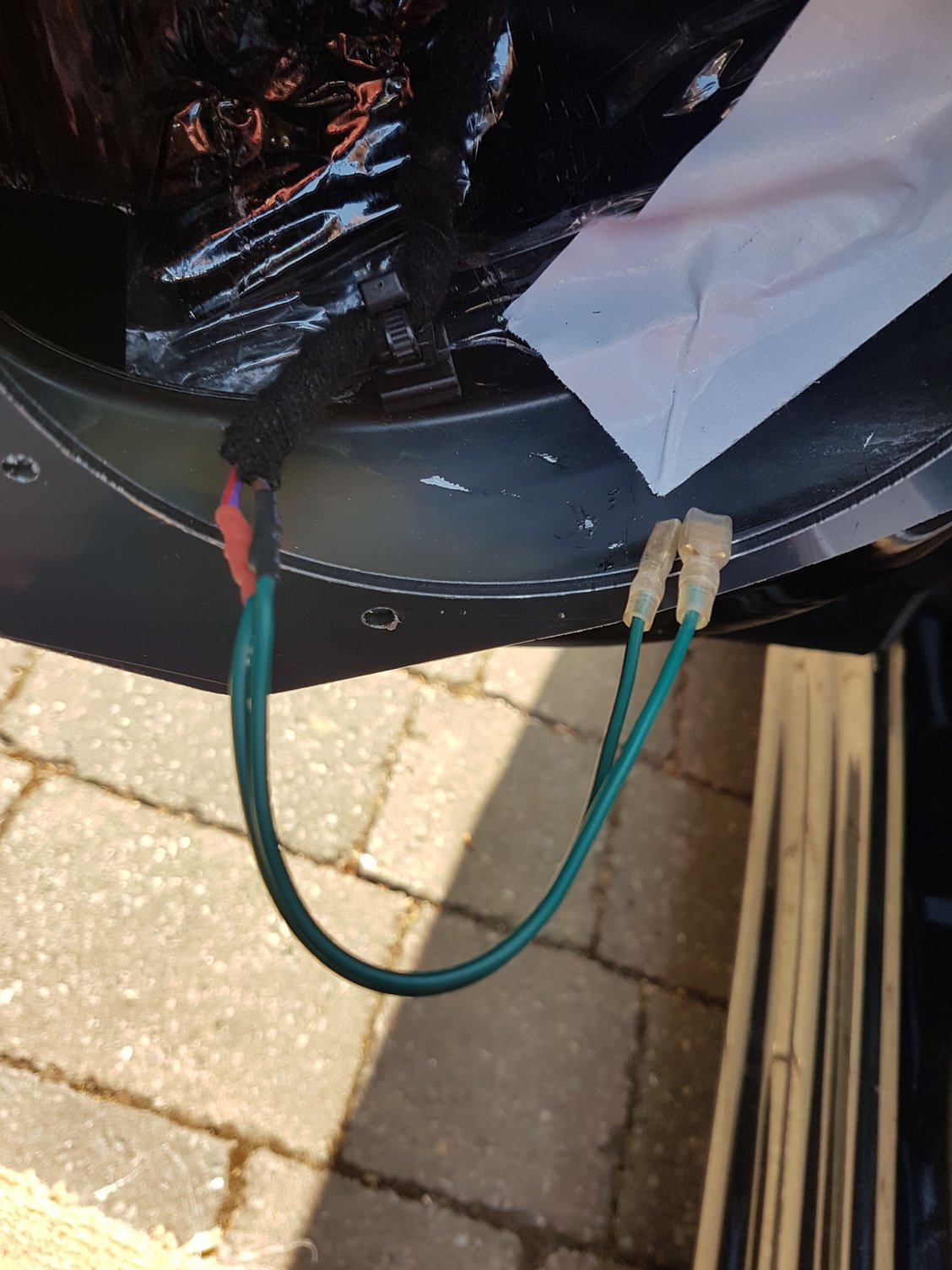

Took the door card off today to finish the carbon fibre panels & i installed the speaker plates, removed the 6x8's & installed the 6.5's, they not the speakers I'm installing as Im waiting for delivery, fitted these to see how they fit, perfect ...





  #158
Old 04-22-2019, 05:48 PM
Registered User
Join Date: Oct 2015
Age: 45
Posts: 209
Rep Power: 12
TeamJones1962 is on a distinguished road
I talk to an installer from YouTube that did a damn good system on our cars and he made it seem like it was some type of PhD was needed to make the adapters for our doors.
Nice 👍🏾! I don have the tools needed to make some so Iím just going to buy some good ones from somewhere. How thick did you make yours?

Are you you going to take that secondary panel off to get access to the inner shell of the door and install sound deadening or no?

  #159
Old 04-23-2019, 12:45 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point
Originally Posted by TeamJones1962 View Post
I talk to an installer from YouTube that did a damn good system on our cars and he made it seem like it was some type of PhD was needed to make the adapters for our doors.
Nice 👍🏾! I don have the tools needed to make some so Iím just going to buy some good ones from somewhere. How thick did you make yours?

Are you you going to take that secondary panel off to get access to the inner shell of the door and install sound deadening or no?
Hi TeamJones, PHD no just need a laser cutter which costs 80k, Lol but i know a man who has one & i gave him a profile taken from the 6x9, he made them out of 5mm alloy tuff & waterproof, yes I will be sound proofing before I install the correct speakers ...

  #160
Old 04-23-2019, 07:27 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point

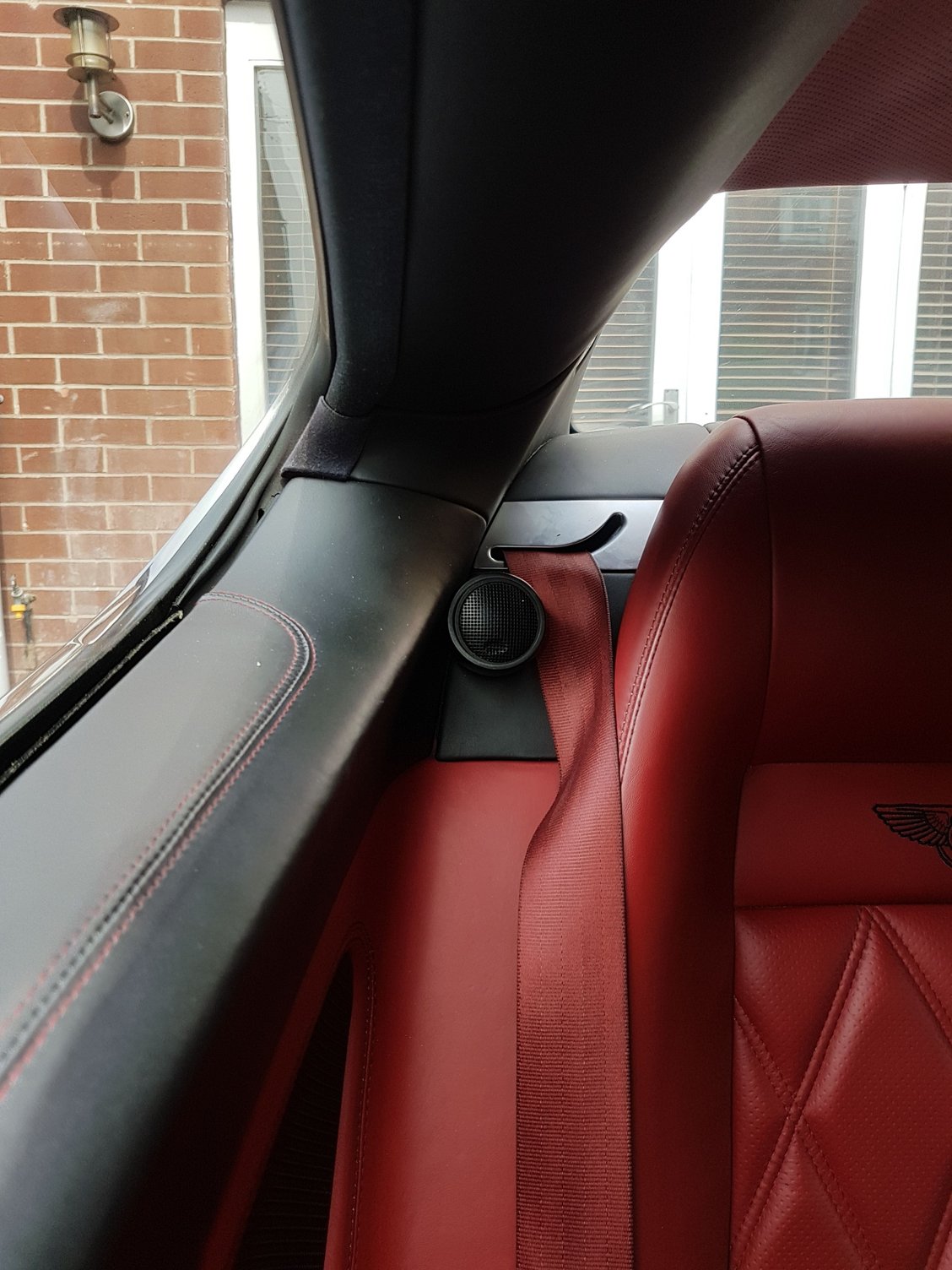

Installed the rear tweeters as for a odd reason car did have any, only 10 speakers, now I have 12 ...




Last edited by Rico.Adams; 04-23-2019 at 07:31 AM.
  #161
Old 04-26-2019, 04:30 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point

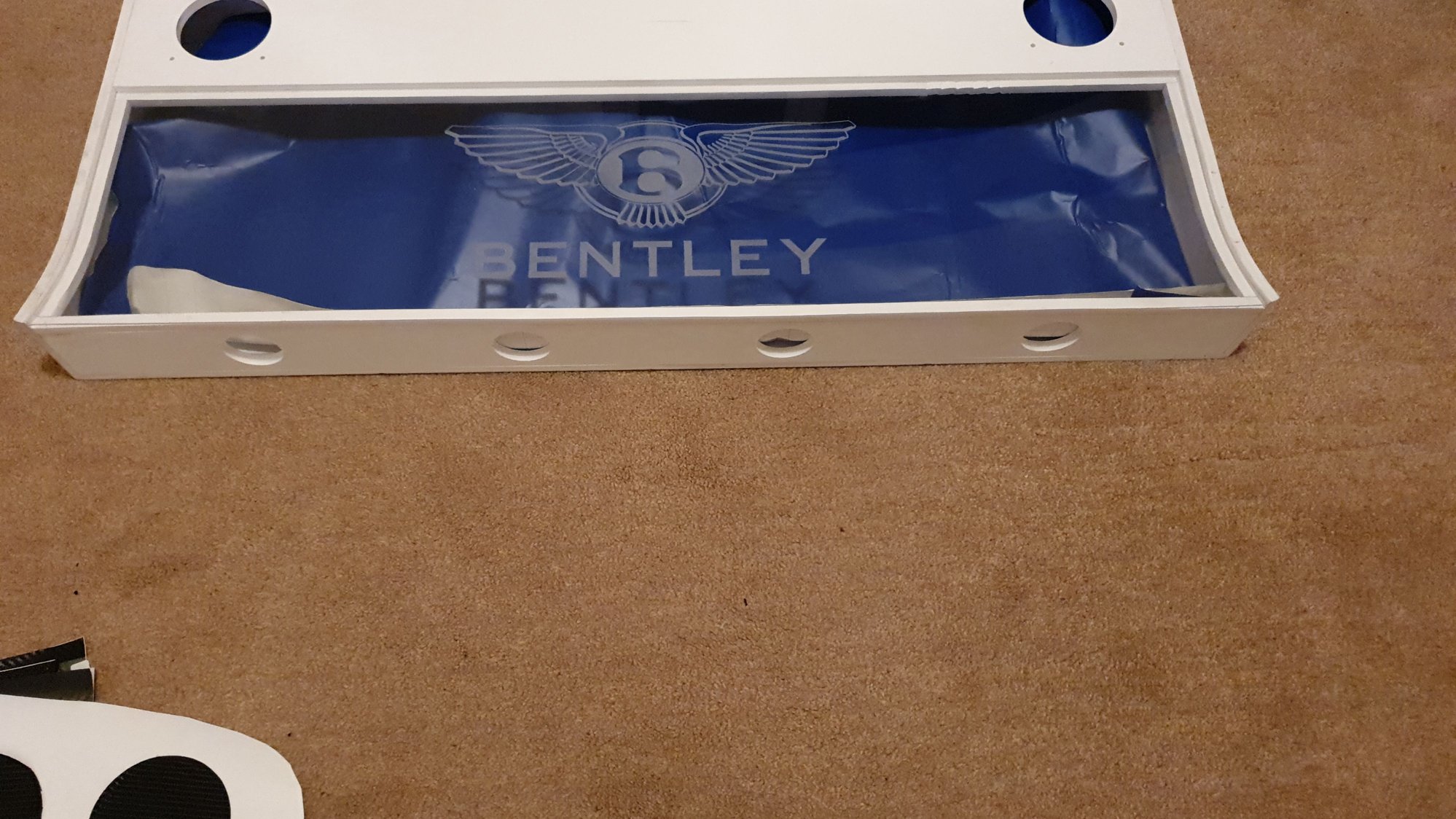

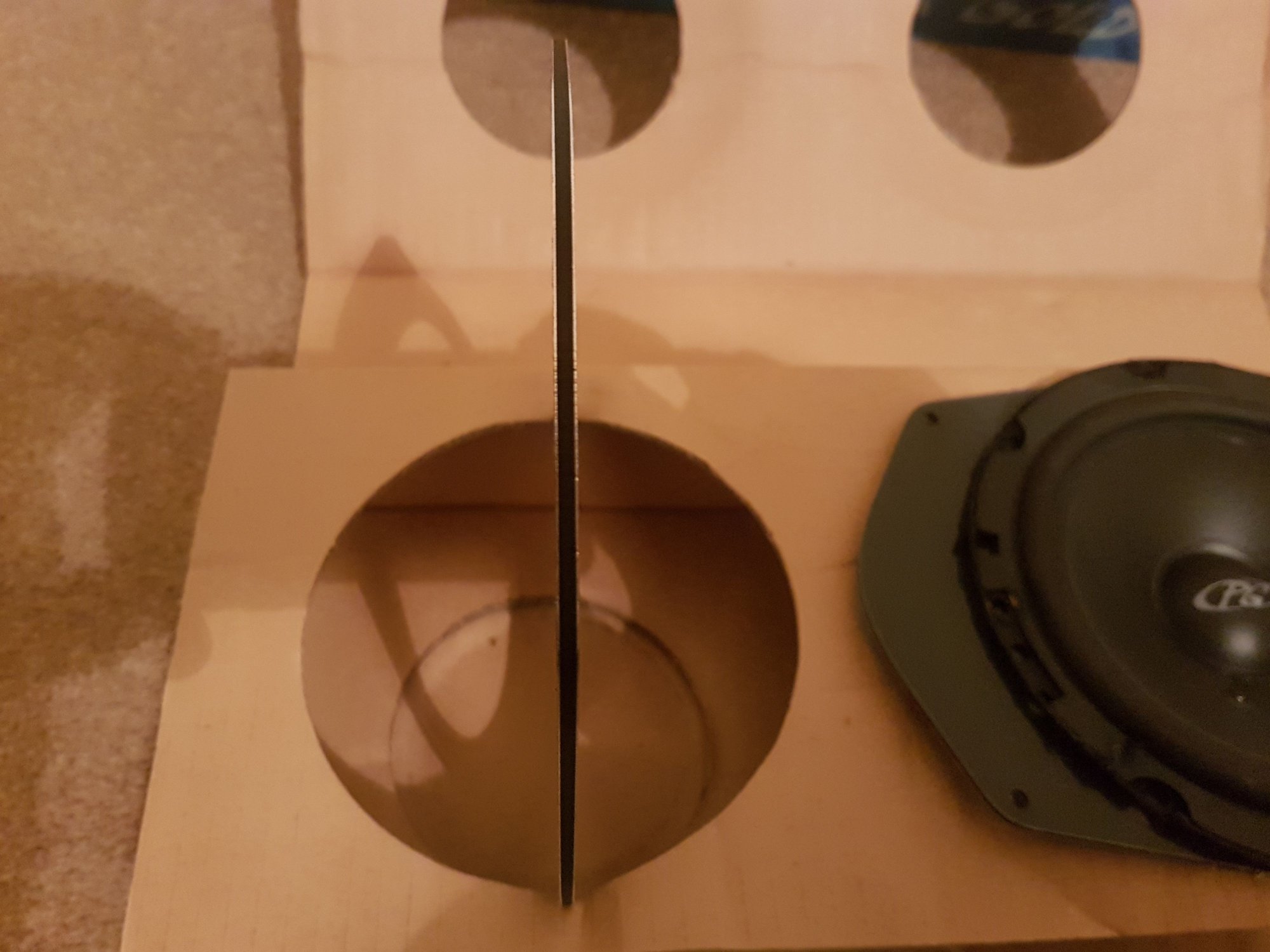

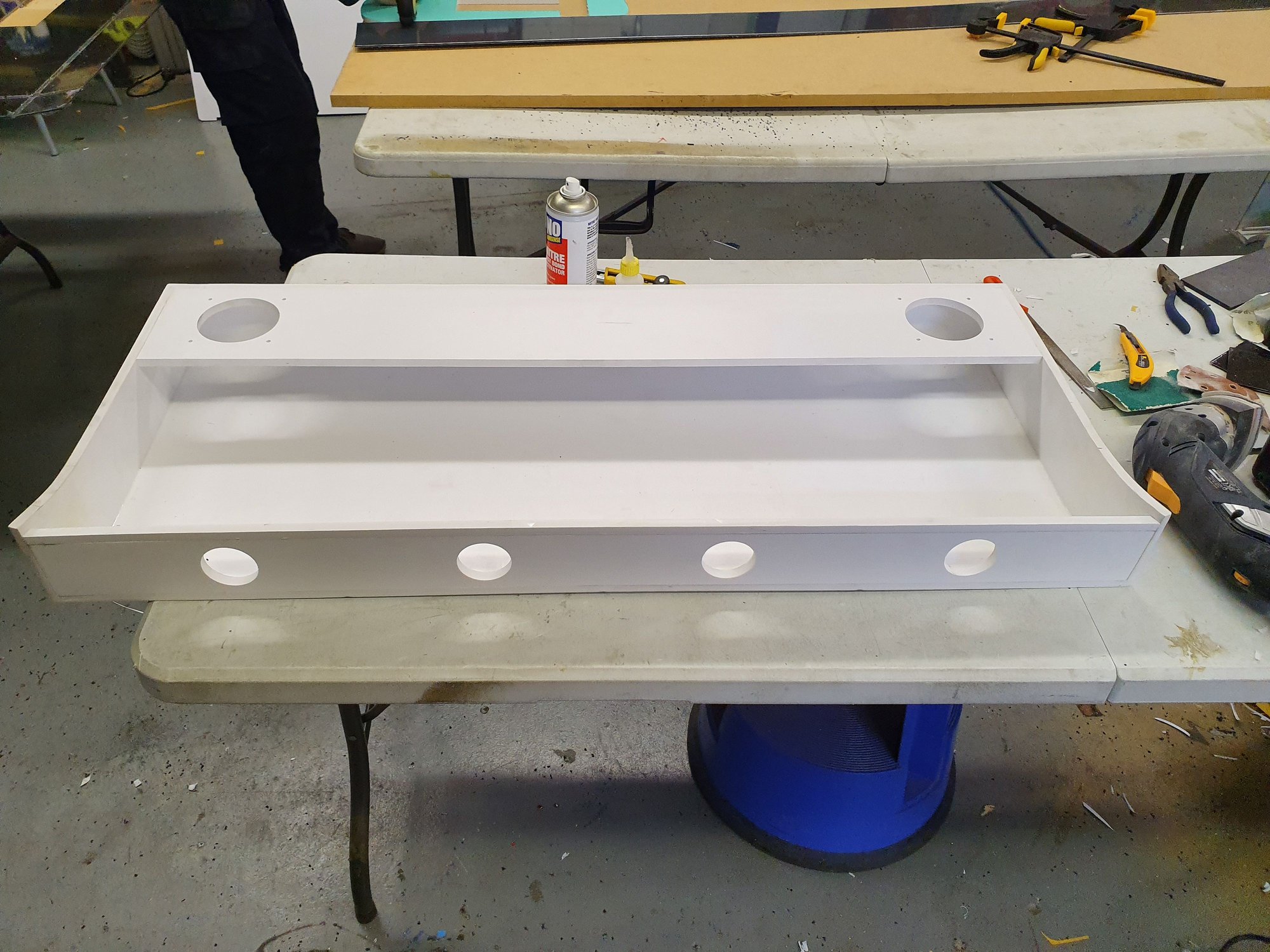

Been busy today constructing the Amp Box, here how I got on so far, got the box all made up needs rapping in Black, the 4 small holes are for air intake, the 2 big holes are for fans (exhaust) will be lite up in Blue L.e.d's, the box was designed on PC & cut on a CNC Router ...
Etched the clear carbonate with the Bentley logo, it all weights as much as a bag of sugar ...




Last edited by Rico.Adams; 04-26-2019 at 04:33 PM.
  #162
Old 04-27-2019, 07:48 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point

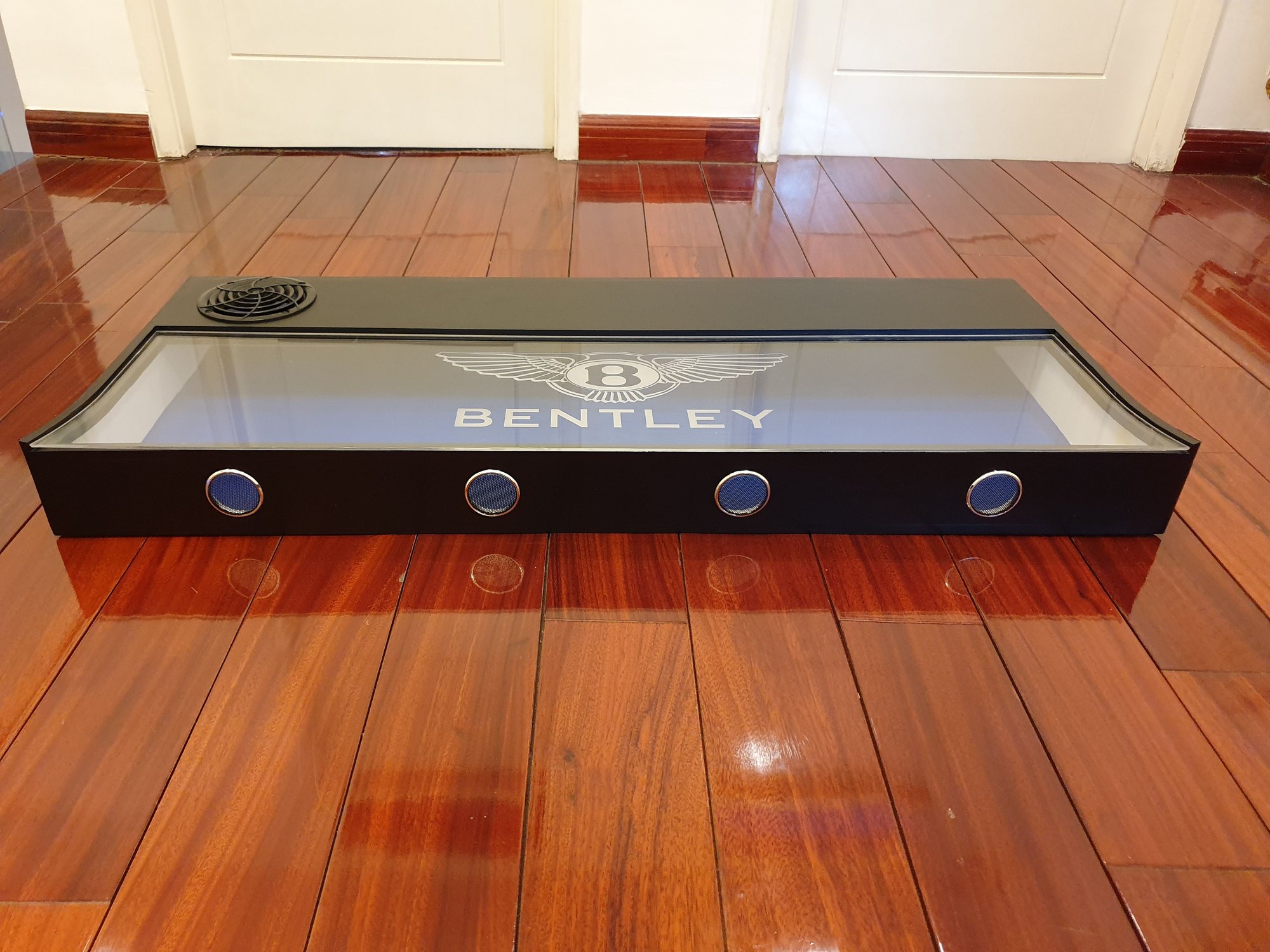

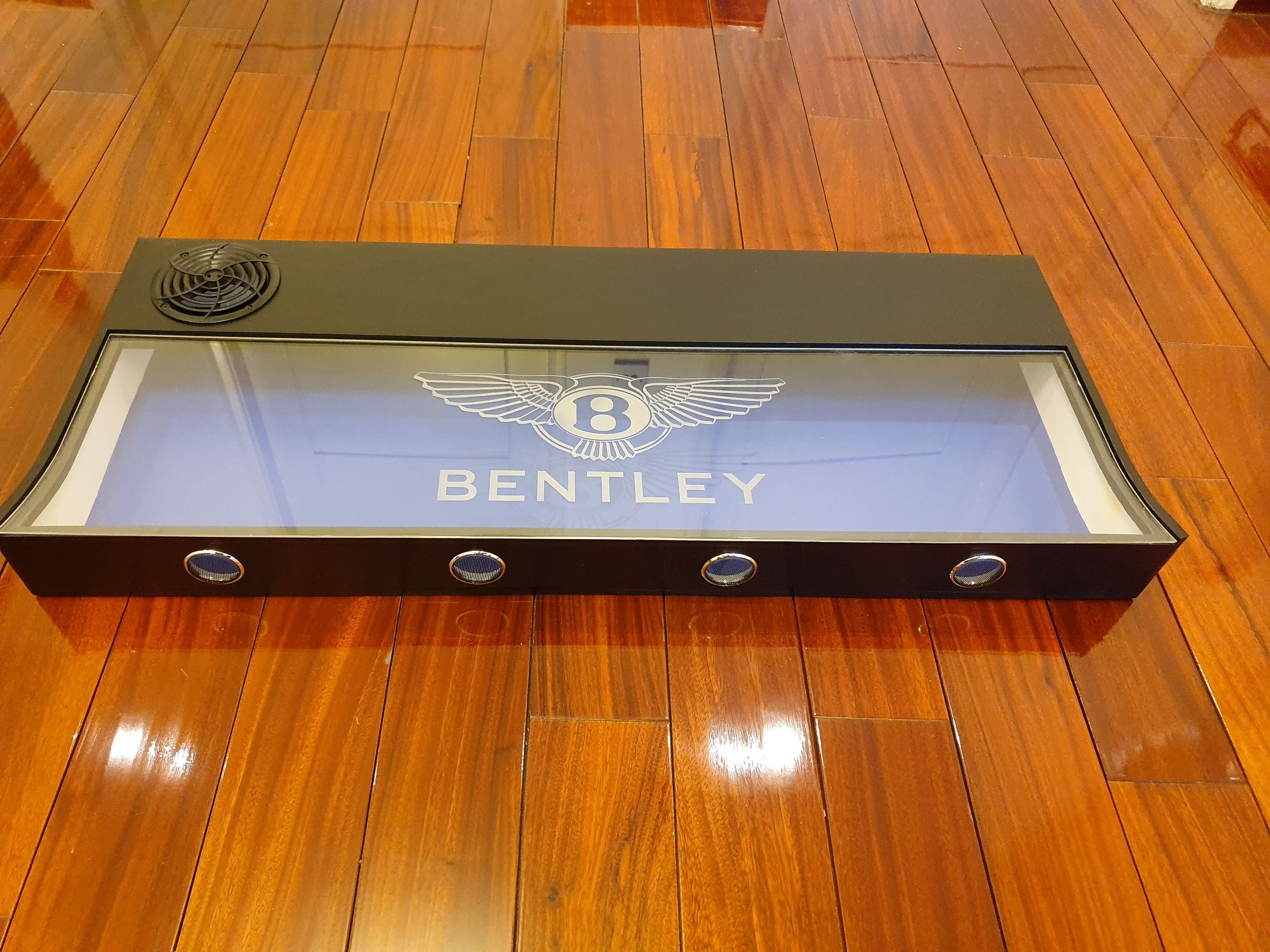

Finished the Amp box, now for the install but not today we got big storms with thunder & lightening ...




  #163
Old 04-27-2019, 10:41 AM
Registered User
Join Date: Oct 2015
Age: 45
Posts: 209
Rep Power: 12
TeamJones1962 is on a distinguished road
Originally Posted by Rico.Adams View Post
Finished the Amp box, now for the install but not today we got big storms with thunder & lightening ...



So how much are you selling these for? 🤣 j/k

Nice!! Canít wait to see the final product.

  #164
Old 04-27-2019, 10:55 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 335
Rep Power: 0
Rico.Adams is an unknown quantity at this point
Originally Posted by TeamJones1962 View Post
So how much are you selling these for? 🤣 j/k

Nice!! Canít wait to see the final product.
Lol ... you want one it fits right in the back of the boot take up as less space as possible. If you really want one id be happy to make you one, your choice of colour in & out & any colour L.e.d's, white, red, blue or green ...

Where is Johnny, not seen him around on here for a few weeks now ...

  #165
Old 04-27-2019, 11:11 AM
Registered User
Join Date: Oct 2015
Age: 45
Posts: 209
Rep Power: 12
TeamJones1962 is on a distinguished road
Johnny keeps himself busy. I like that in him. But his expertise is well sort out here along with others. If I could buy you guys a beer, Pepsi, Coke or a bottle of Johnny Walker I would!!!
