Bentley GT 2006,Speaker wiring colour codes


  #196
Old 05-18-2019, 10:20 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point

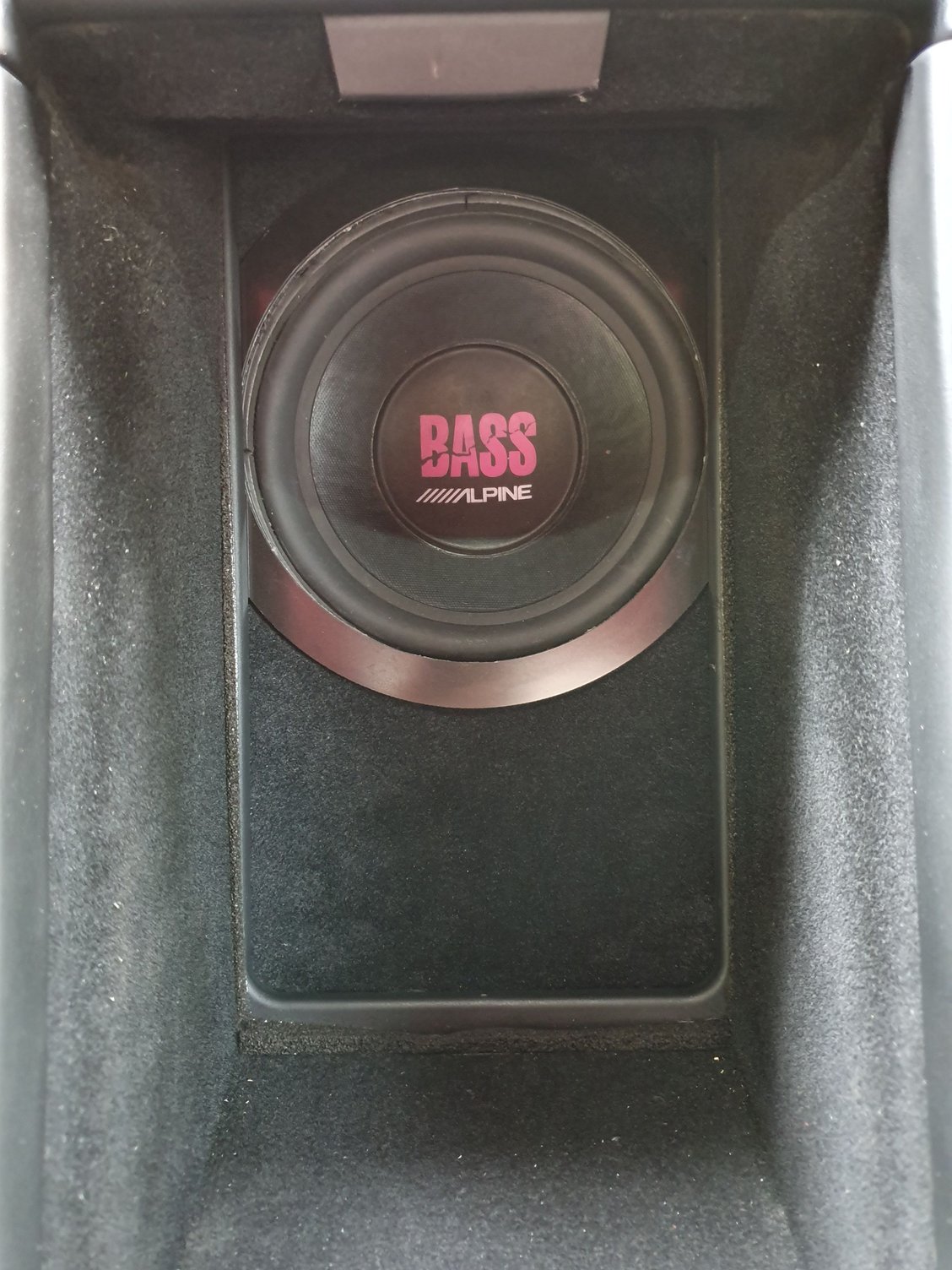

Centre Sub Box complete ...



  #197
Old 05-18-2019, 10:31 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point

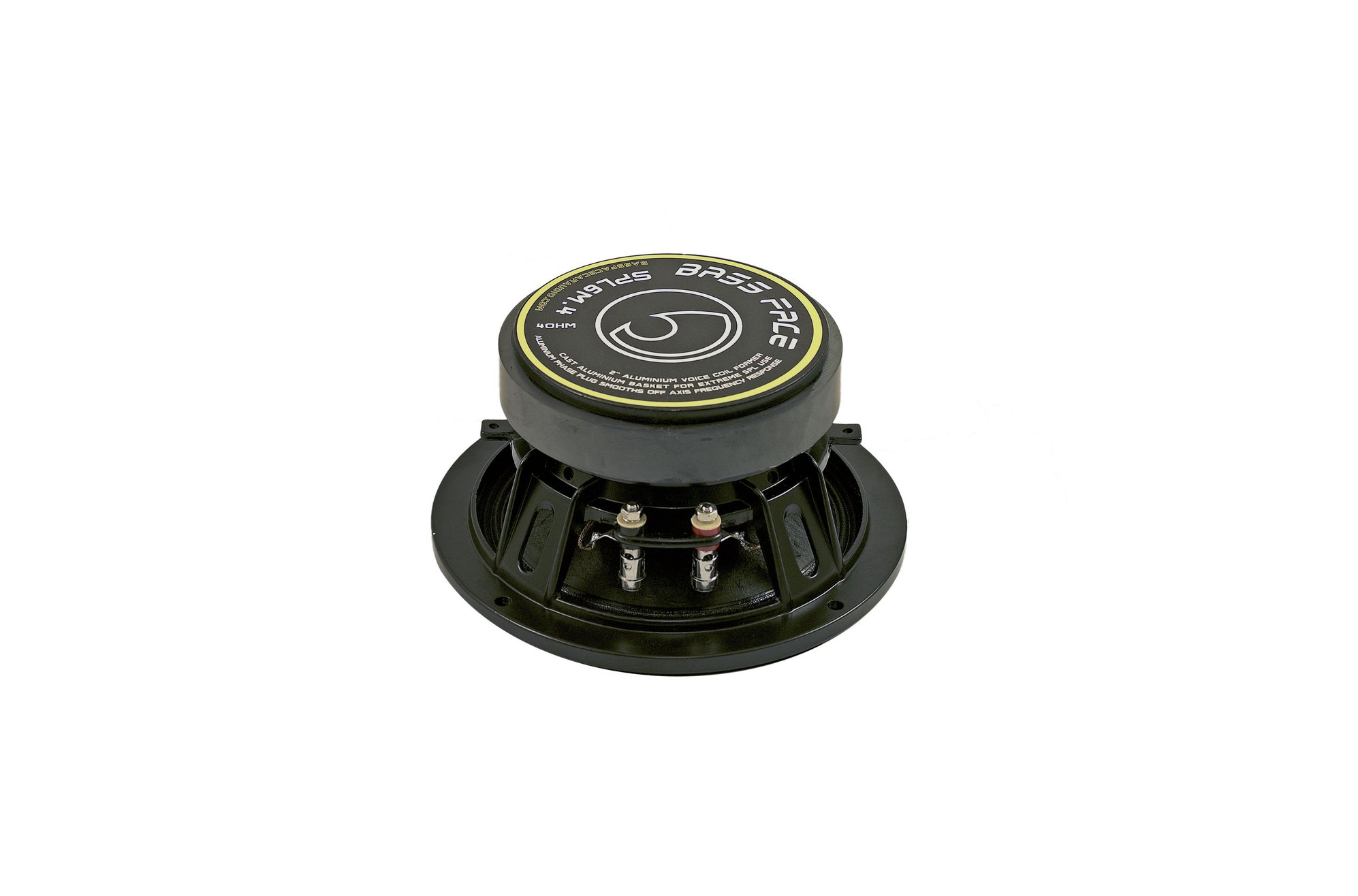

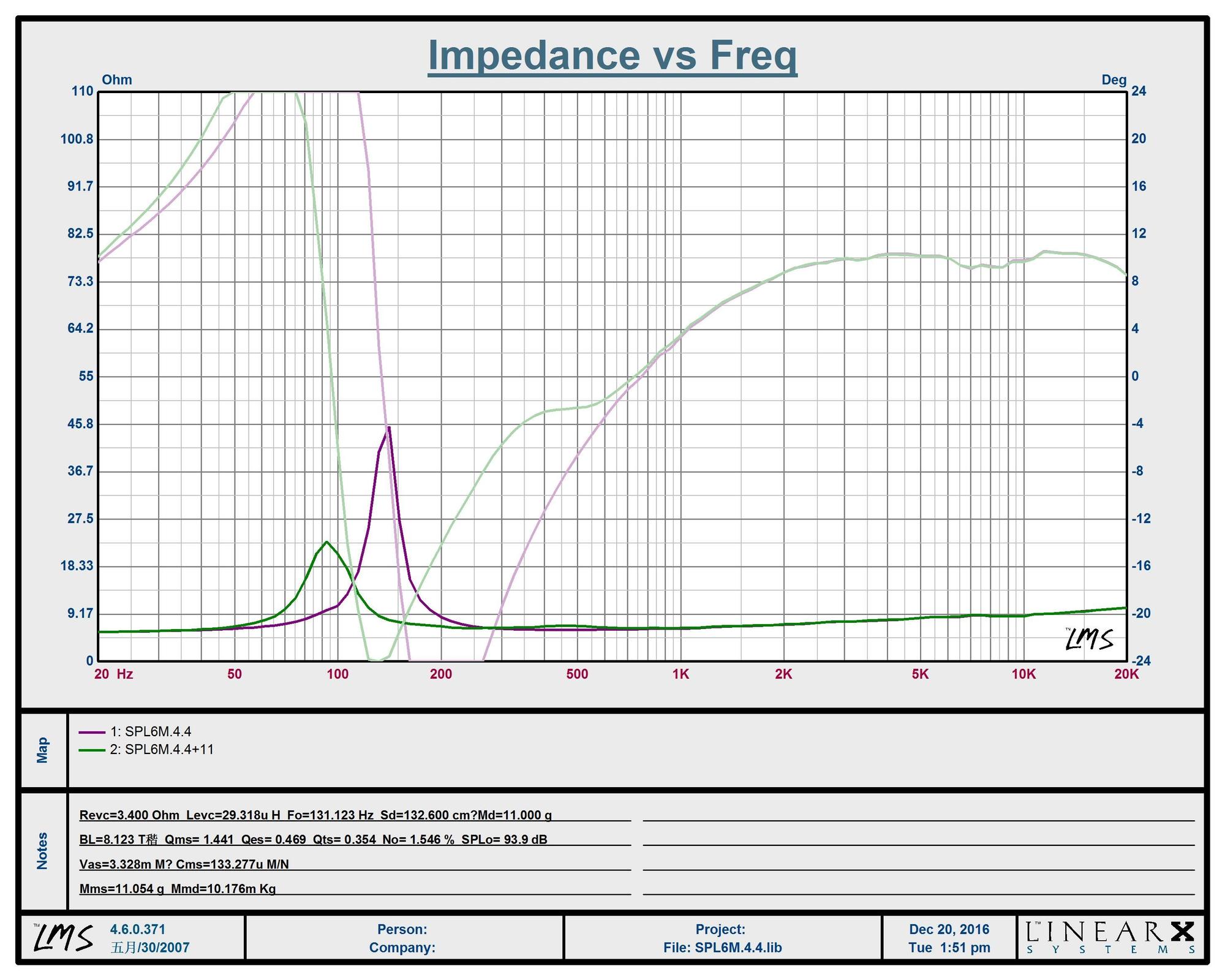

Been waiting weeks for these speakers, got them today. Going in the doors Rear Bass. 300w ...




  #198
Old 05-19-2019, 04:17 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point
Gave the car a good clean today ...



  #199
Old 05-19-2019, 04:50 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point

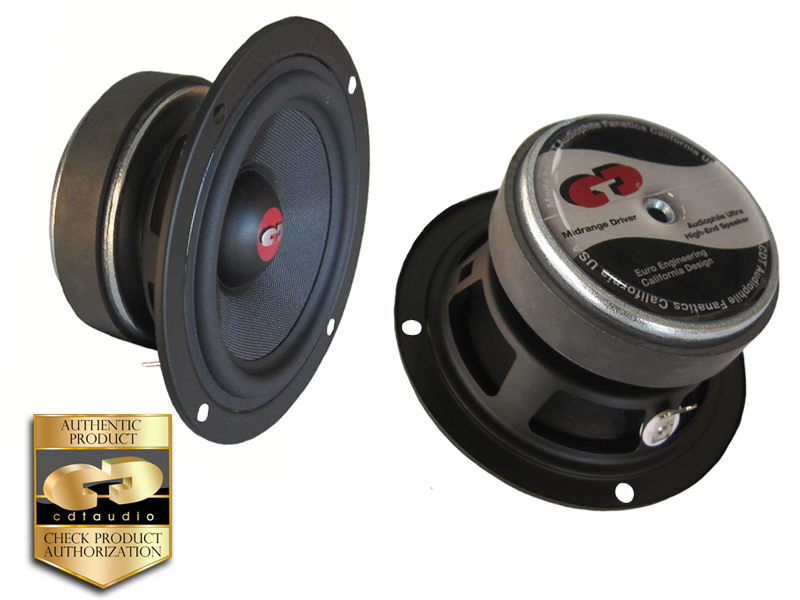

Found the perfect Mids for the Doors, from your side of the pond ...




MX-3F 3” cast mid-woofer
The devil is in the details and so is the magic.
The cone of MX-3F midrange drivers is made of a light, yet rigid, mixed fiber fiberglass. Producing unrivaled midrange that is engineered just for your car to make the most perfect blend with any CDT tweeter and crossover. Small size midrange for the true audiophile listener.





MX-3F
Technical specs and contents
  • 1 pr 3” mid-woofer
    • Frequency response 90Hz-11.000Hz
      • Power handling: 100watt (150Watt Pk) HPF-250Hz
        • Impedance 4 Ohm
          • Sensitivity: 85.9dB
            • Mounting depth: 1.69” (43mm)
              • Cut out diameter: 2.90” (73.7mm)
                • Frame: OD 3.7” (94mm)
                  • Cone:Mix fiber glass
                    • Magnet weight 7.2 Oz
                      • Cone surround rubber
                        • Voice coil: 1.0” (26mm)
                          • Fs: 110Hz


Last edited by Rico.Adams; 05-19-2019 at 04:54 PM.
  #200
Old 05-21-2019, 09:23 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point

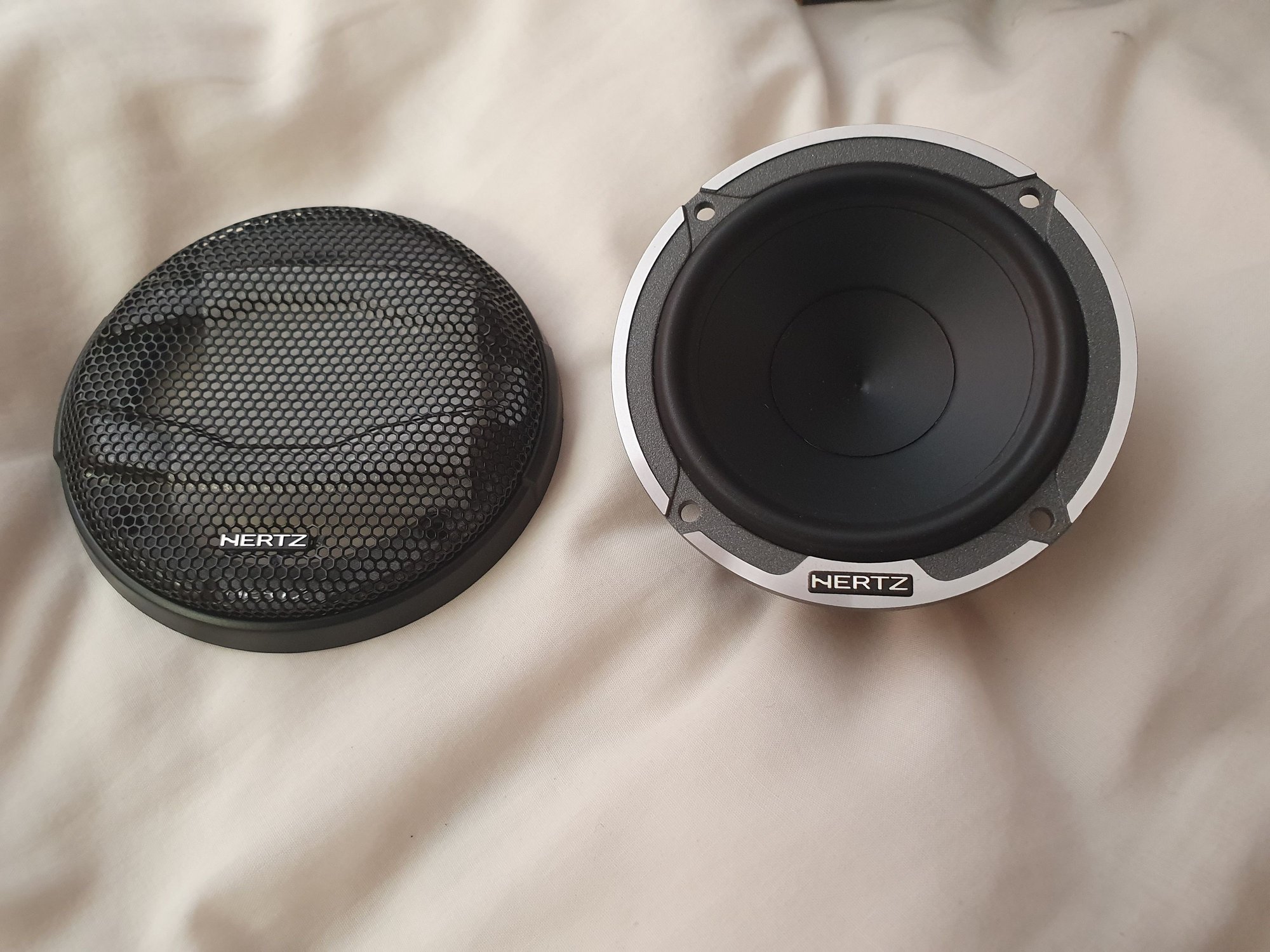

Got the Front Mids today Hertz Mille Pro MP 70.3,100w, 3" ...



  #201
Old 06-02-2019, 03:51 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point

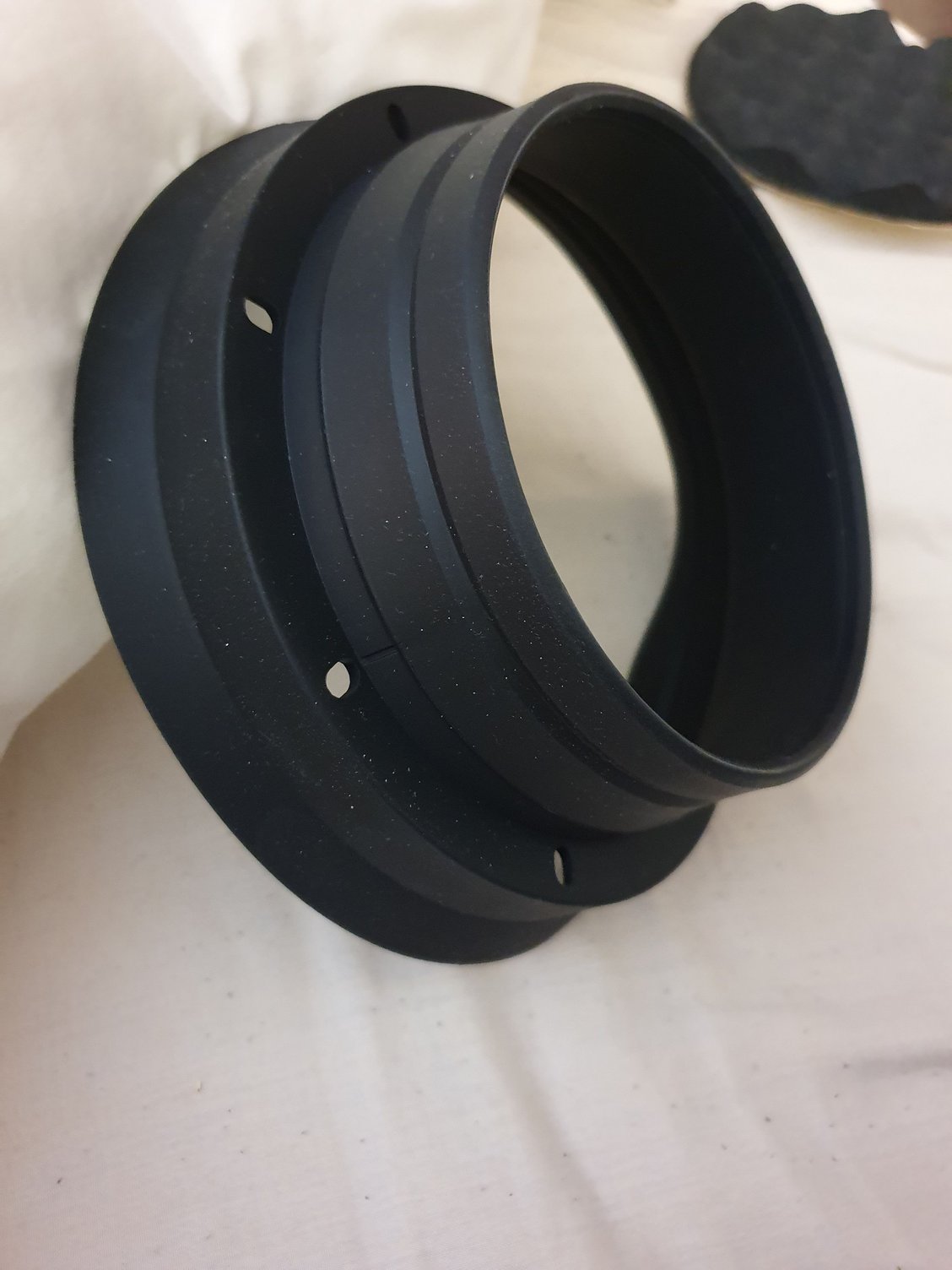

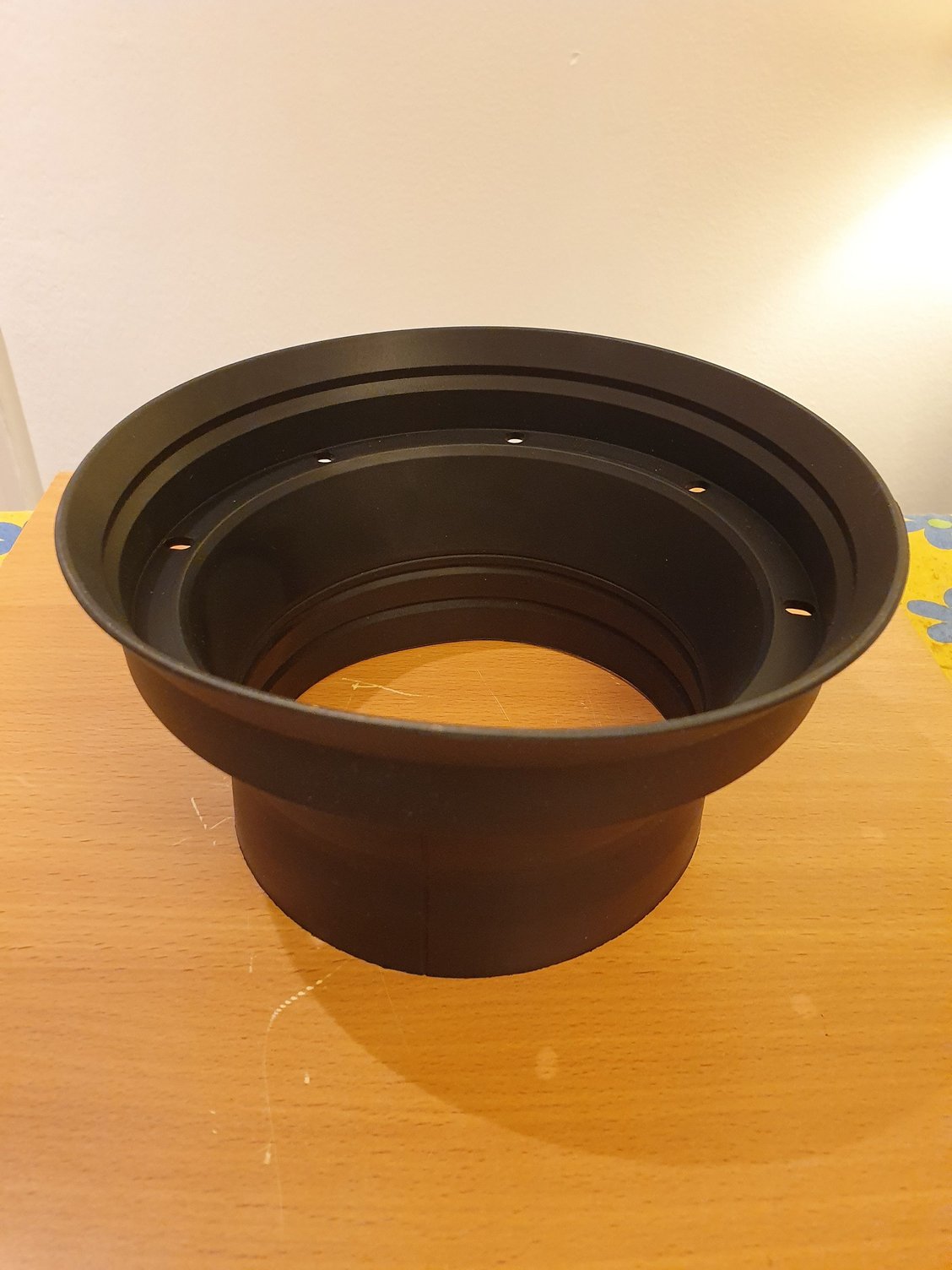

Got some more parts for the 6.5's to make them water tight and direct the sound outwards, Speaker rings and Bafflers ...



  #202
Old 06-05-2019, 02:49 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point
Hello Everyone ... Not been able to add much on this post waiting for parts and the old health is playing up, but soon I'll be on the system and post more, Im hoping to video some of it and when its all done so you guys can listen to the sounds ...

  #203
Old 06-07-2019, 07:36 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point

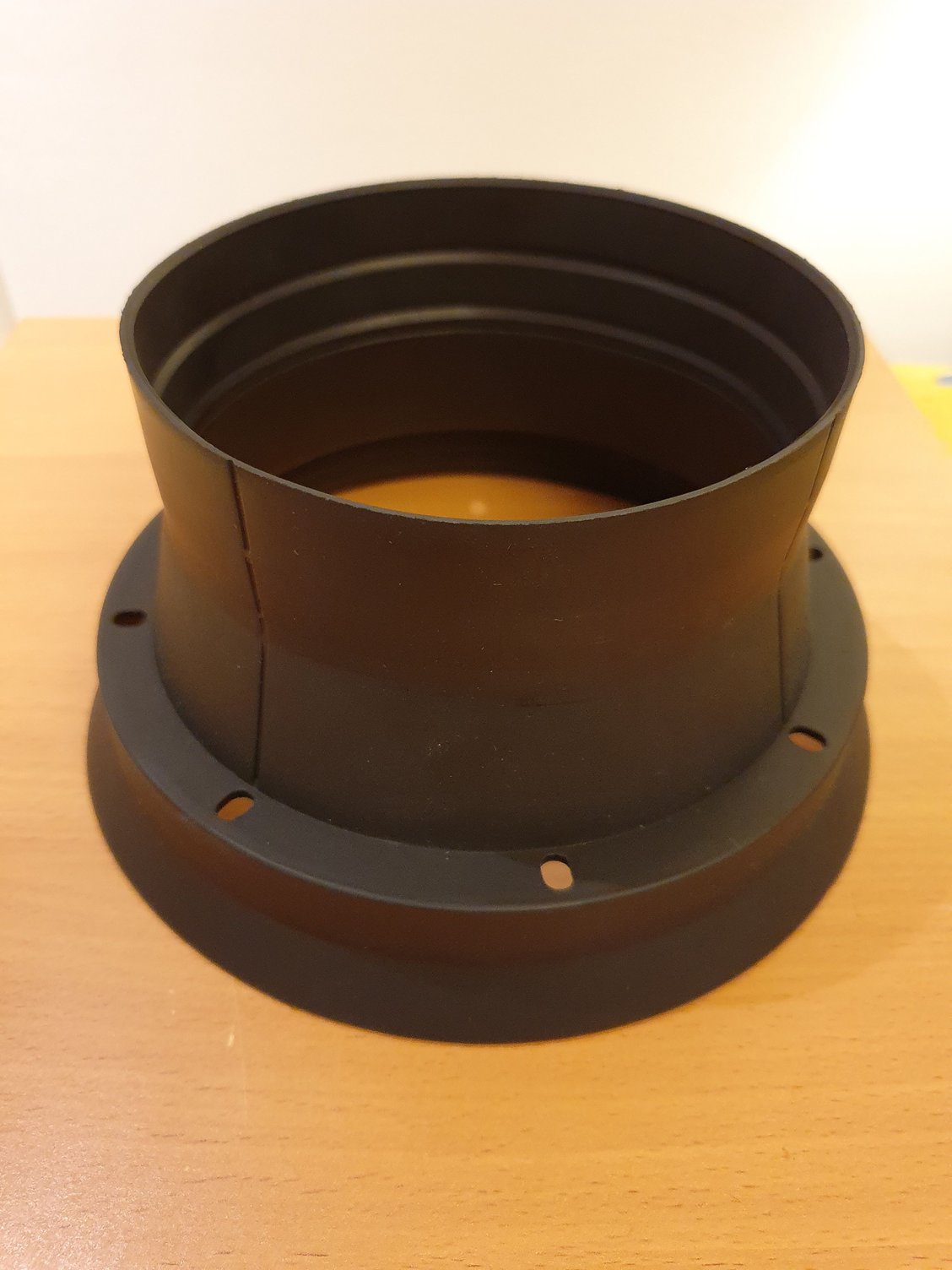

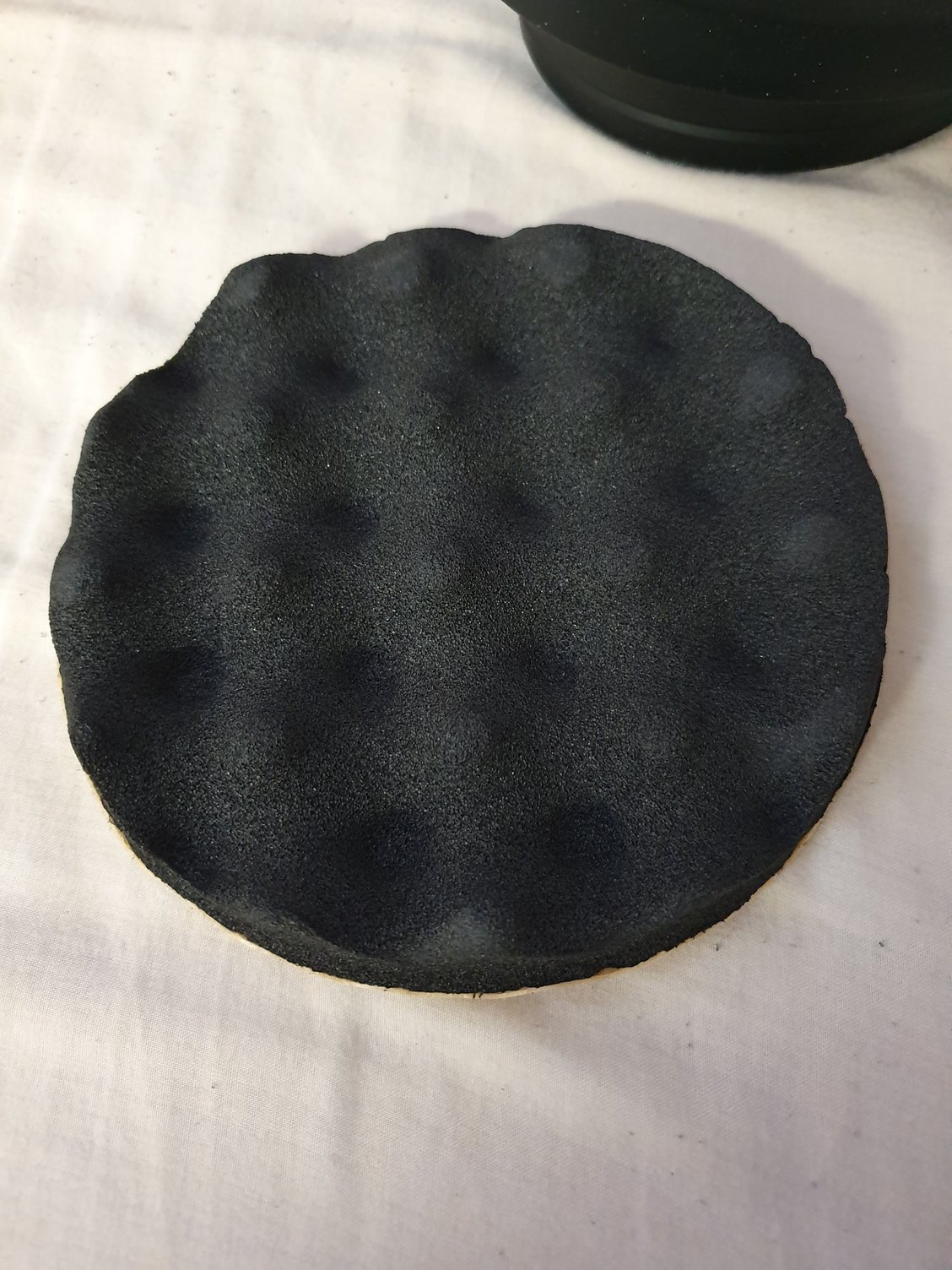

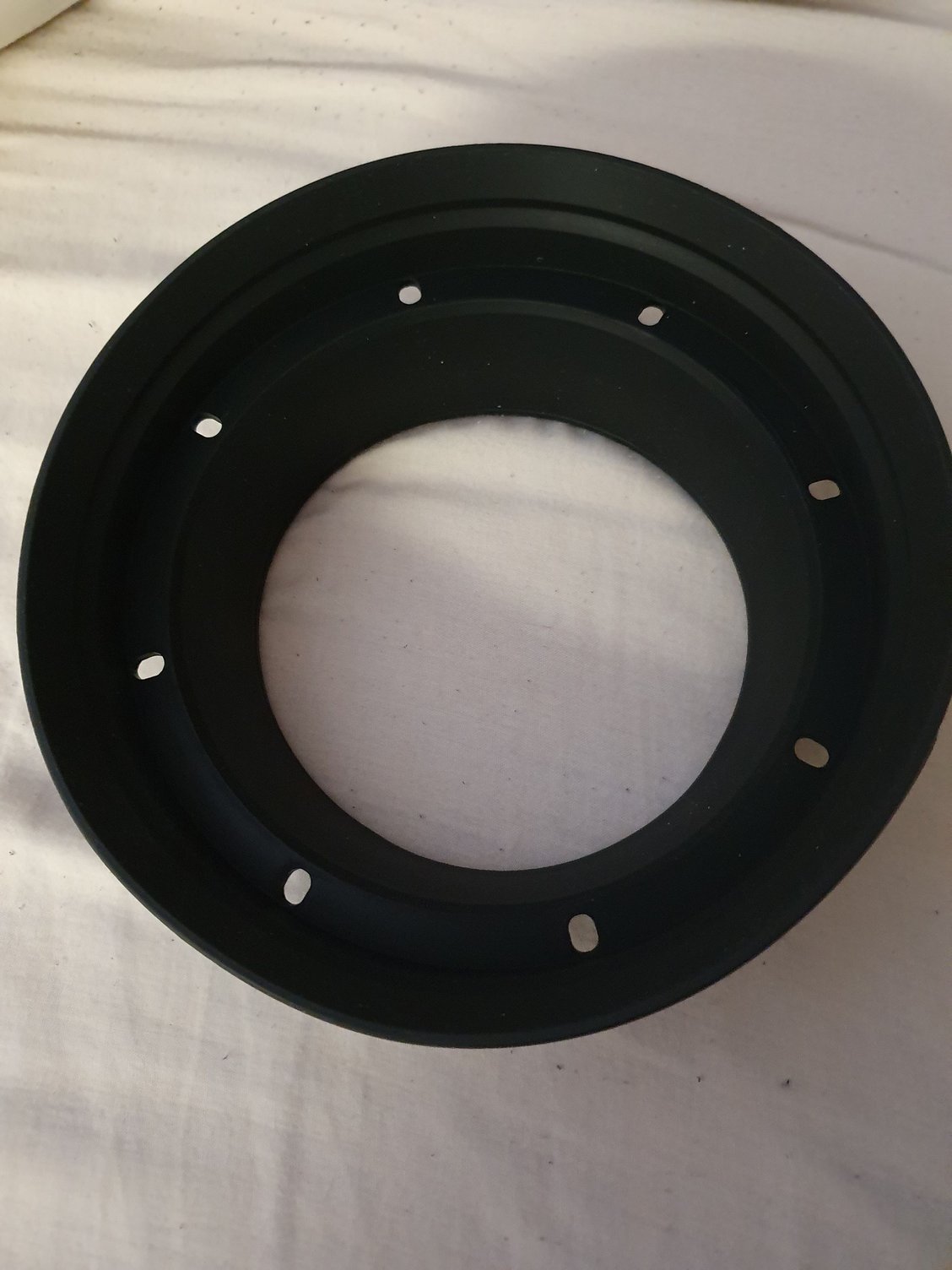

Got the Baffles which fit perfect over the 6.5's, on with finishing the system ...




  #204
Old 06-07-2019, 03:26 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point

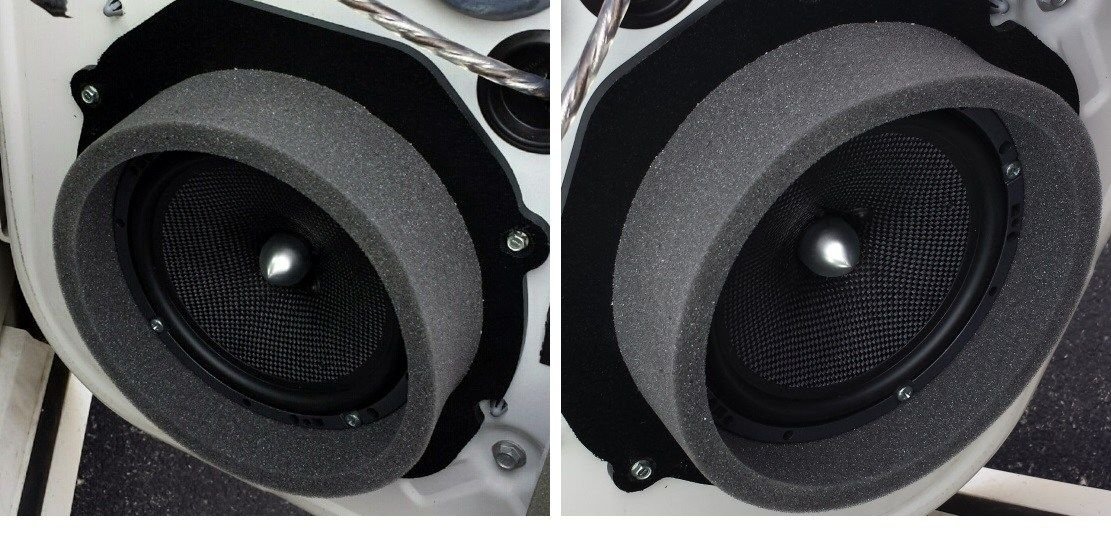

These Baffles are the best things you can buy, they will protect the speaker from water running down the window and drive the sound outwards, there are ones on the market that are compleatly sealed but I don't see the point with these as there is no place for the air to move around from the speaker, buy the open ones as in the pic ...





Last edited by Rico.Adams; 06-07-2019 at 03:34 PM.
  #205
Old 06-19-2019, 02:25 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point

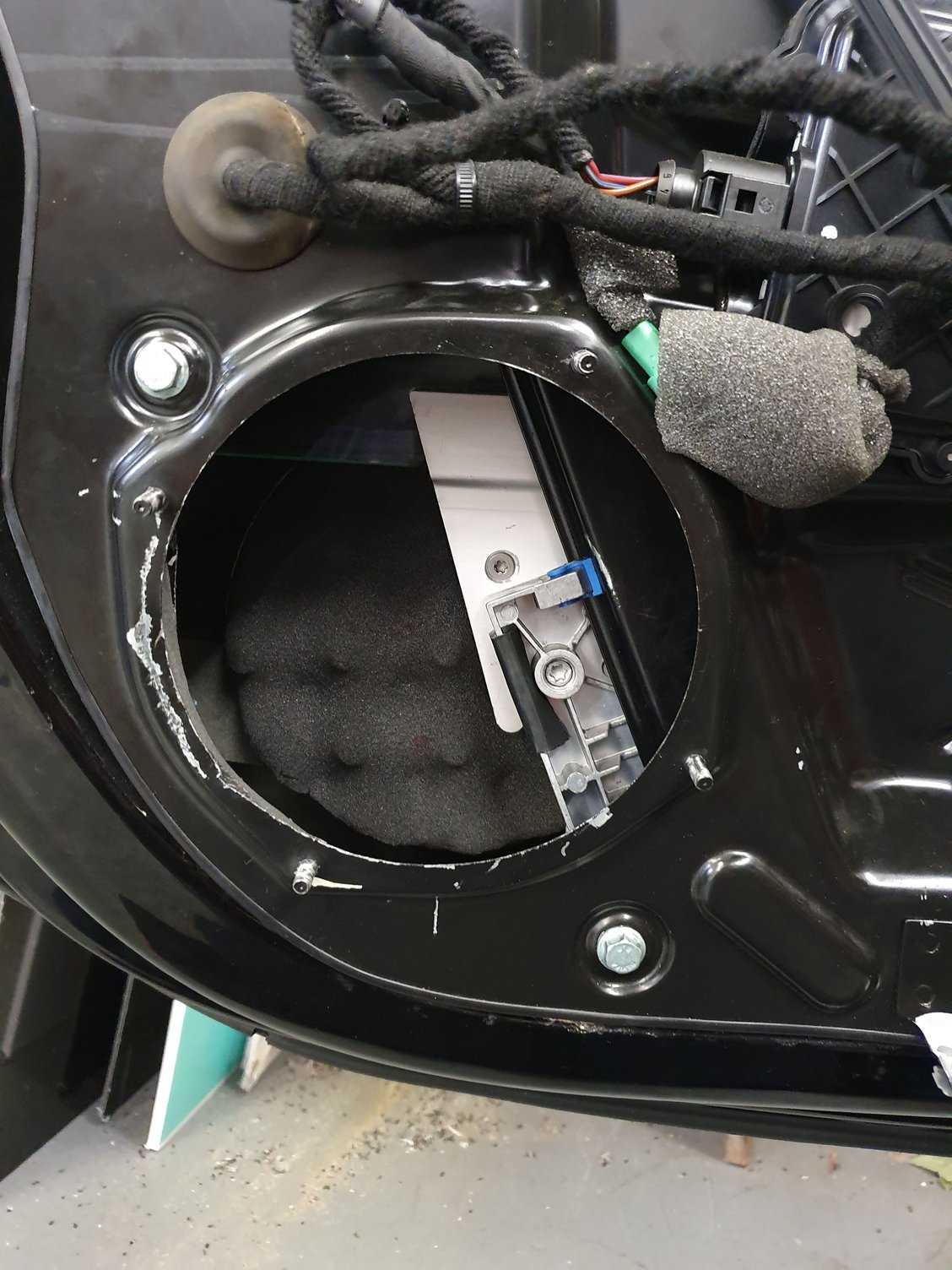

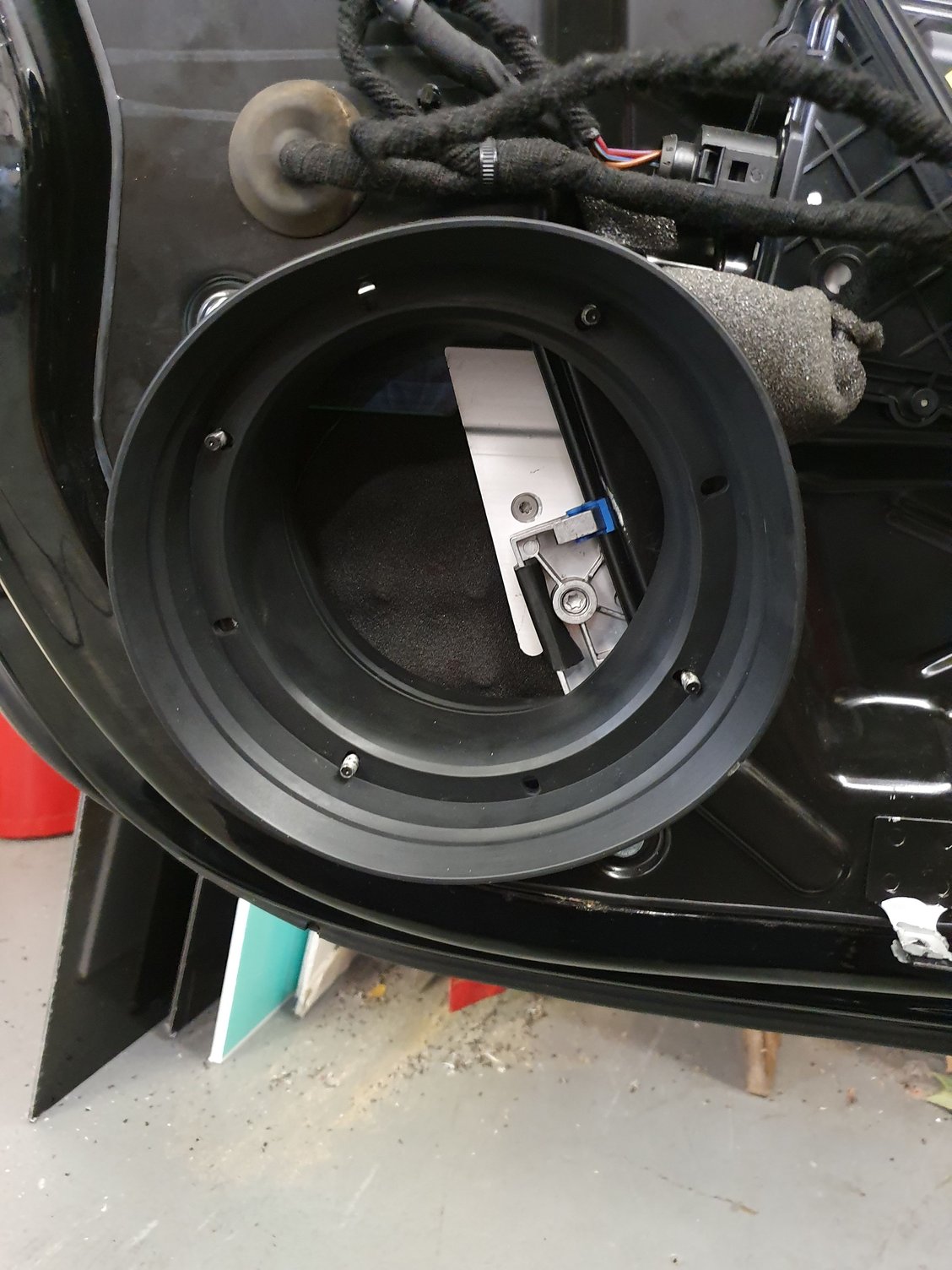

Started installing the last of the speakers, Installed the baffles for the Door Rear Bass speakers ...




  #206
Old 06-20-2019, 04:26 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point
Installed the Bass speaker Rear Doors, that all the speakers installed, all is left is to contact the amps and disconnect the stock amp and I'm good to go, I'll try and take a video of the wiring from the new amps to wiring loom on the stock amp and the sound system when complete ...



  #207
Old Yesterday, 11:43 AM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point

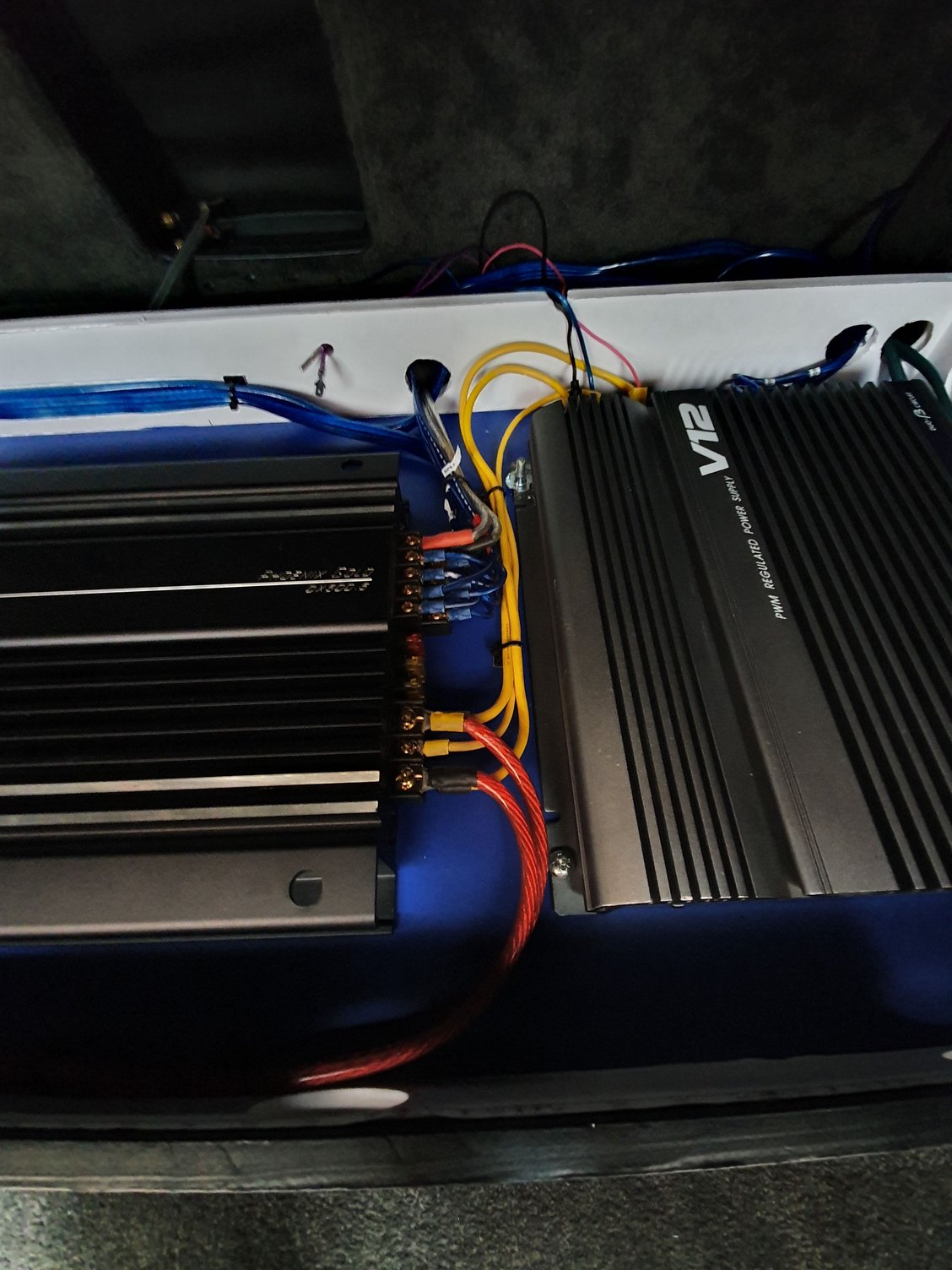

Finally wired up the new amps all put in place including the sub box, just the stock amp to unplug and connect to the new amps ...





  #208
Old Yesterday, 12:11 PM
BWings's Avatar
Registered User
Join Date: Mar 2018
Location: Arizona
Posts: 292
Rep Power: 14
BWings will become famous soon enoughBWings will become famous soon enough
Rico, my friend......Wow, you're doing an amazing job on this system! I cannot comprehend all that you've done, but bet it sounds amazing!

  #209
Old Yesterday, 12:25 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point
Originally Posted by BWings View Post
Rico, my friend......Wow, you're doing an amazing job on this system! I cannot comprehend all that you've done, but bet it sounds amazing!
Hello Steve (BWings) Im better haven't been to great these past few weeks but I try and do a little here and there. How are you my friend hope all is well ...
Yes it sound great just on the stock amp can't wait when I connect the new amps to the new speakers, Im not looking for blasting it while driving down the road, you know bum bum bum Lol, Its all about the sound and listening to all the beats and instruments, Im a jazz guy and love the sax and piano ...
Ive changed all the speaker wasn't easy espesally the rear door bass speakers had to make up new rings to space it out so it doesn't hit the window mechanism, did all the sound proofing in the doors and rear panels, put the volume up can't hardly hear a sound outside ...

  #210
Old Yesterday, 12:46 PM
Rico.Adams's Avatar
Registered User
Thread Starter
Join Date: Apr 2018
Location: England
Age: 54
Posts: 410
Rep Power: 0
Rico.Adams is an unknown quantity at this point

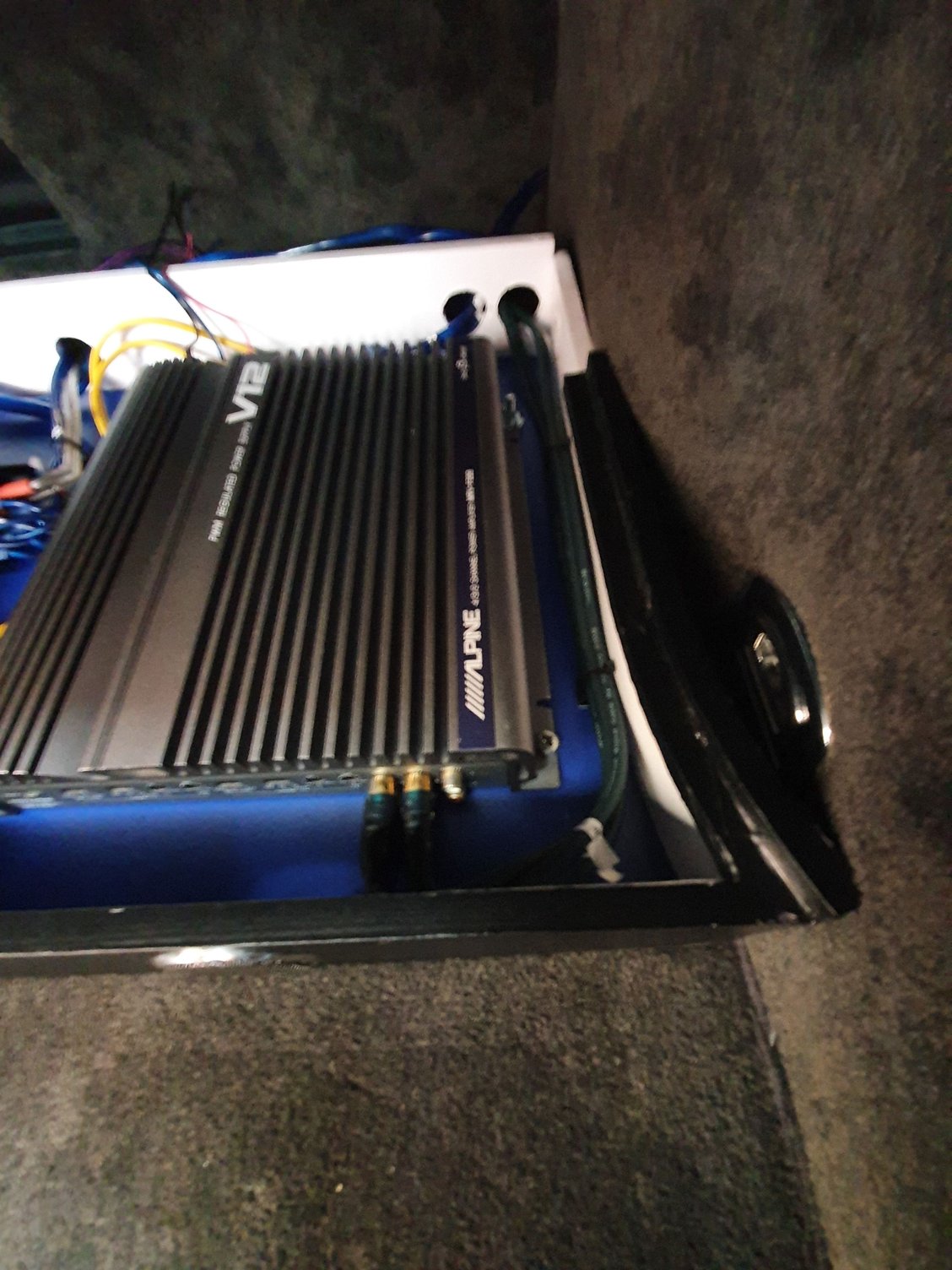

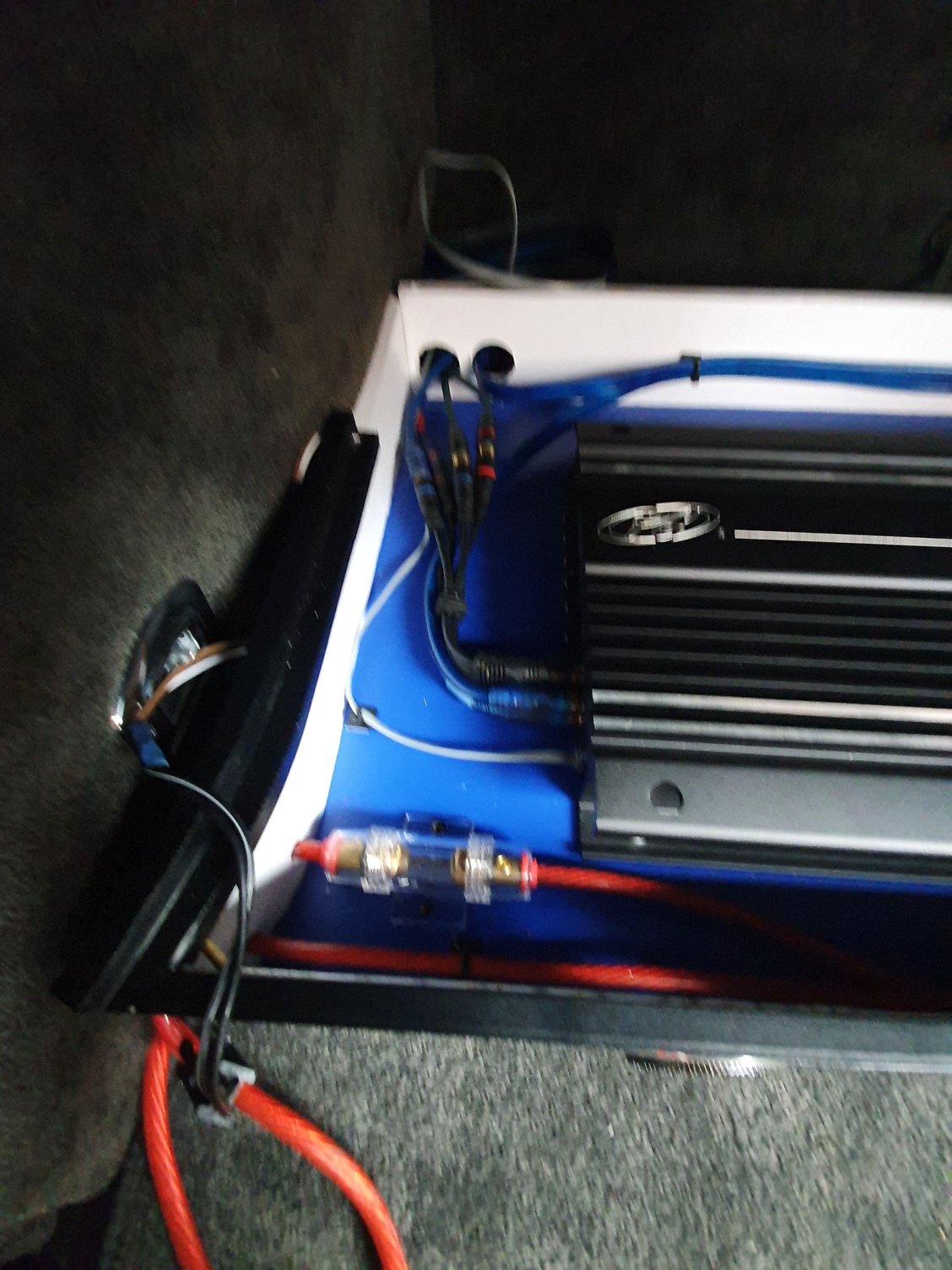

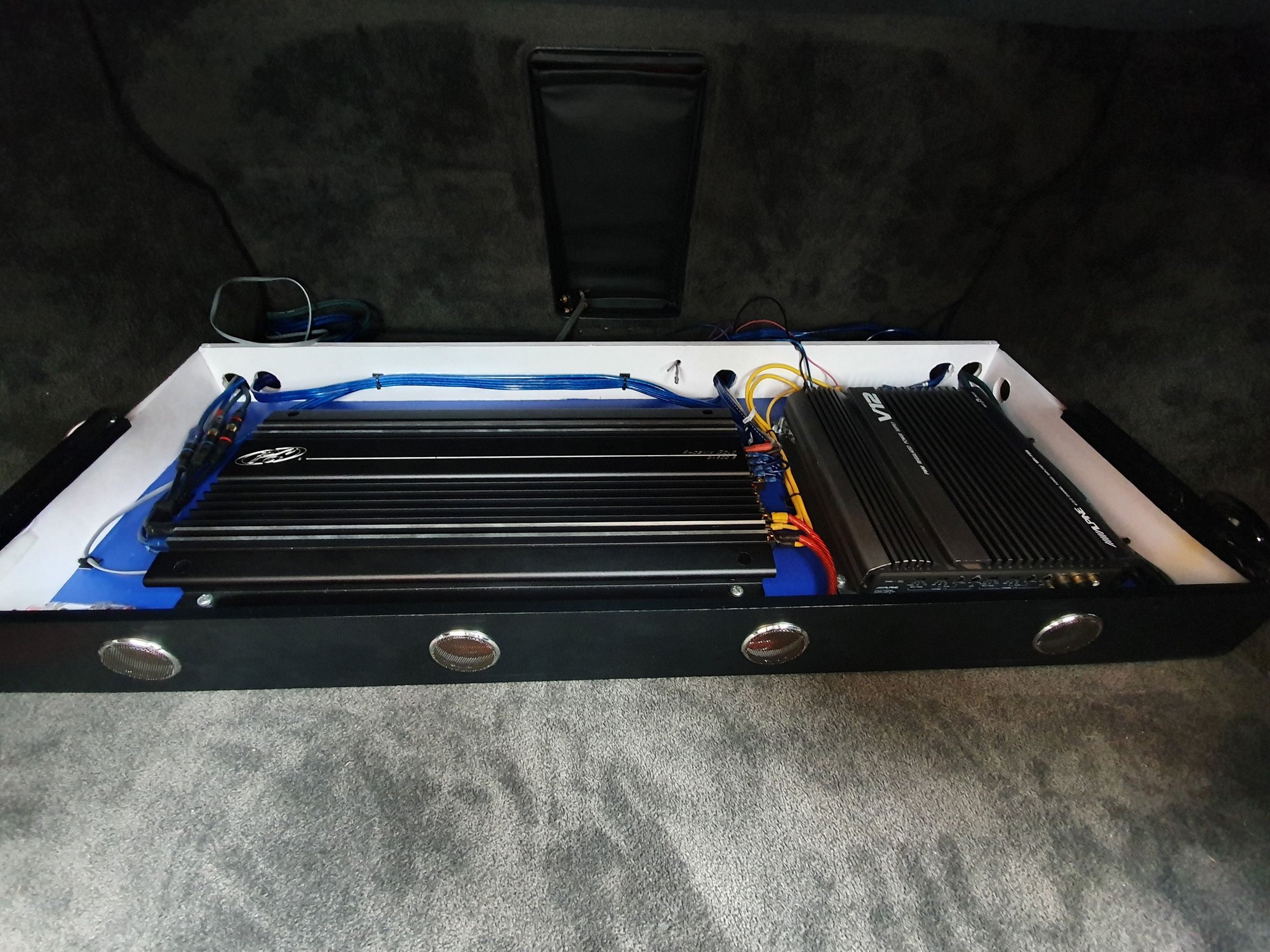

The finish look in the boot all tucked away nice ...
