Vacuum leak - CGT

Old Dec 2, 2019 | 03:05 AM
  #1
MulsanneTurbo's Avatar
Thread Starter
|
Registered User
Joined: Dec 2019
Posts: 35
From: England
Rep Power: 0
MulsanneTurbo is infamous around these parts
Vacuum leak - CGT

Hi. Have been reading all the great info on here for some time.

I have an 07 GT with the newer/rerouted plastic pipes. Would appreciate a little steer/guidance from the learned members of this forum.

I have a vacuum leak but I’m told very minor.

Emissions light is now on.

Have replaced exhaust gas gas temp sensor recently which cured the light but it came back on after the repair and my Indy says he’s found a small leak.

Car runs beautifully and the idle is steady.

I’m just wondering if this is something I should sort at next service time - 3 or so months away - or get done now. Indy has checked over everything and said run for a bit as all else is well.

I don’t do much mileage and won’t cover more than 500 miles before next service.

Thanks for any assistance !


Last edited by MulsanneTurbo; Dec 2, 2019 at 04:40 AM.
Old Dec 2, 2019 | 07:32 AM
  #2
John Fiammetta's Avatar
Registered User
Joined: Dec 2017
Posts: 414
From: switzerland
Rep Power: 55
John Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond repute
Leave it for now .
Of you haven’t all ready get a small code reader of Amazon £10 or something to ...
1- read the code of the CEL
2- clear it . ......see how quick it recurs ??

once you have a code post it on here and recurrence time ( same code ) .


It’s not just the dreaded plastic pipes over the gearbox and steering rack there’s loads of minor ( relatively) valves and stuff easily accessible in comparison that sit at the top back of the engine under the Bentley logo plastic cover .
hopefully a code will help determine what’s leaking ....if anything?


Last edited by John Fiammetta; Dec 2, 2019 at 07:35 AM.
Old Dec 2, 2019 | 07:46 AM
  #3
Johnny Hotspur GT's Avatar
Administrator
10 Year Member
Joined: Jul 2014
Posts: 3,945
From: Montgomery NJ
Rep Power: 1002
Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !
Hello MT,
Did your Indy pinpoint where he says the small leak is on your 07 ?

Old Dec 2, 2019 | 09:45 AM
  #4
MulsanneTurbo's Avatar
Thread Starter
|
Registered User
Joined: Dec 2019
Posts: 35
From: England
Rep Power: 0
MulsanneTurbo is infamous around these parts
Thanks both - much appreciated.

I’ll get a scanner and post the code as suggested.

Unfortunately this was a final check my Indy did before I picked it up after EGT sensor repair and as it caught us both by surprise he didn’t get time to do diagnostics.

Its just running so well he advised to run for a little while....

Thanks again.


Old Dec 2, 2019 | 03:44 PM
  #5
kongolo's Avatar
Registered User
5 Year Member
Joined: Oct 2019
Posts: 86
Rep Power: 0
kongolo is infamous around these parts
I’ve noticed that these cars don’t like not to be driven and will complain accordingly. Had a typical P0174 fault coming up for a bout then disappeared. No obvious issue, running smooth. If it’s running smooth I wouldn’t worry too much.

Old Dec 5, 2019 | 02:22 PM
  #6
MulsanneTurbo's Avatar
Thread Starter
|
Registered User
Joined: Dec 2019
Posts: 35
From: England
Rep Power: 0
MulsanneTurbo is infamous around these parts
Thank you.

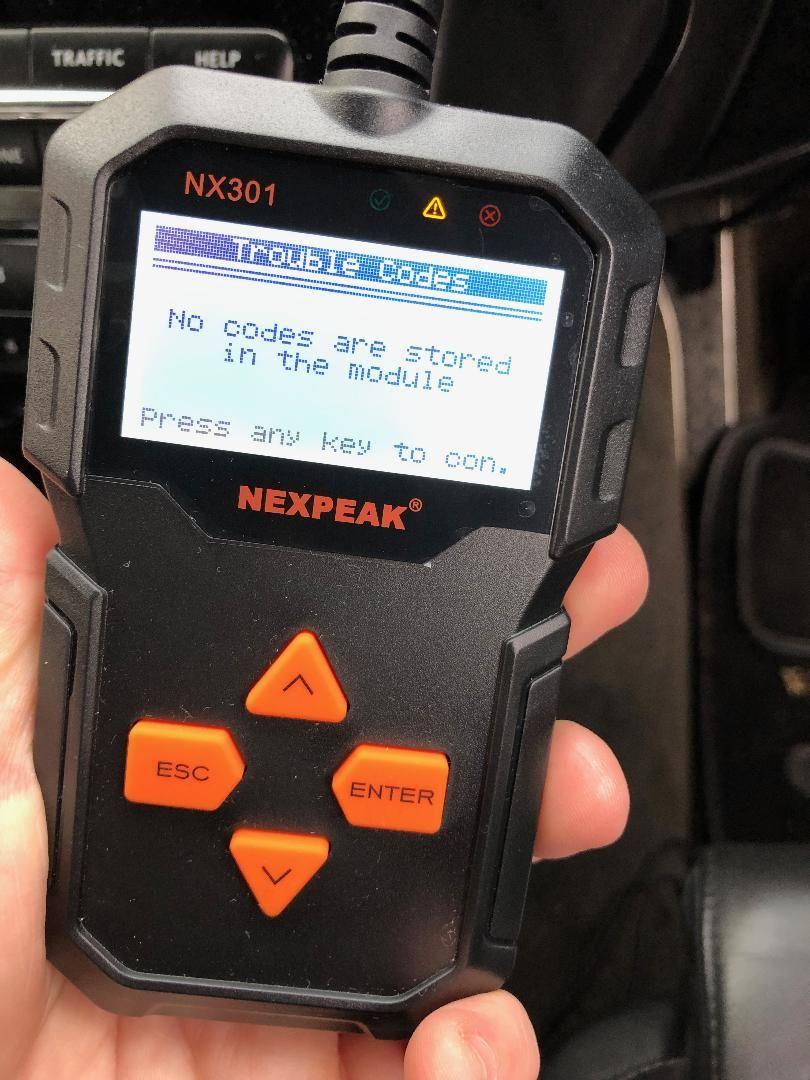

So... Amazon order of OBD2 reader arrived yesterday ( thanks for the advice ). Plugged it in today and this was the result :


Did the reset anyway. Light went out.

Went for a drive..... all well.

Parked up and ran some errands. An hour later returned and headed home. Light back on!

Car is driving perfectly and pulls like a train. Idle very solid.

Guess I keep resetting for the moment?





Old Dec 5, 2019 | 03:48 PM
  #7
Johnny Hotspur GT's Avatar
Administrator
10 Year Member
Joined: Jul 2014
Posts: 3,945
From: Montgomery NJ
Rep Power: 1002
Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !
Hello MT,
I am not sure on that $20-$40 scanner properly reading your Bentley, the norm for our vehicles is either the Ross-Tech VCDS, or a VAS 5054 with ODIS.
Did that scanner show you both engine modules #1 and #2 to choose from for scanning ?

Being you had the light on, the proper scanner would show you the fault, yet you picture shows no fault, does that scanner do a full scan, or just one module at a time that you have to pick which module you are scanning ?

https://store.ross-tech.com/shop/cat/VCDS

https://www.ebay.com/p/885811507


Johnny

Originally Posted by MulsanneTurbo
Thank you.

So... Amazon order of OBD2 reader arrived yesterday ( thanks for the advice ). Plugged it in today and this was the result :
Did the reset anyway. Light went out.

Went for a drive..... all well.

Parked up and ran some errands. An hour later returned and headed home. Light back on!

Car is driving perfectly and pulls like a train. Idle very solid.

Guess I keep resetting for the moment?


Last edited by Johnny Hotspur GT; Dec 5, 2019 at 03:53 PM.
Old Dec 8, 2019 | 01:38 AM
  #8
MulsanneTurbo's Avatar
Thread Starter
|
Registered User
Joined: Dec 2019
Posts: 35
From: England
Rep Power: 0
MulsanneTurbo is infamous around these parts

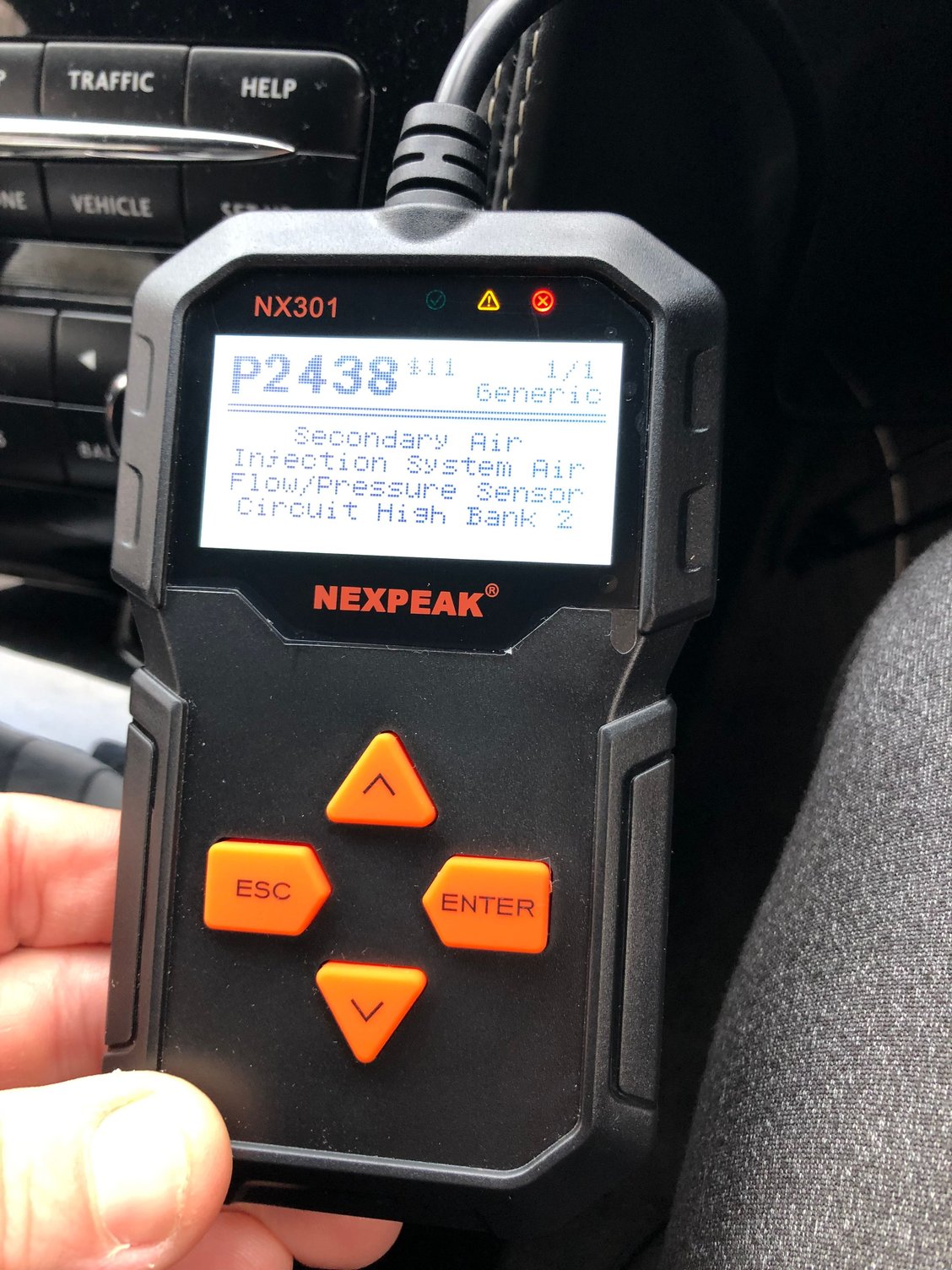

Hi Johnny- thanks for the links. I’ll have to get a better diagnostics. I’m a bit new to this but have managed to further interrogate the simple scanner I purchased and it has come back with the message I was expecting- which is still the same as the code I got before the EGTS was replaced....

I reset it and all fine after an initial drive. Fired it up a little later and the light was back on...

GT is running great so guess I will just earmark the vacuum leak repair at next service time in 3 months.....

MT.

Old Dec 8, 2019 | 01:55 AM
  #9
John Fiammetta's Avatar
Registered User
Joined: Dec 2017
Posts: 414
From: switzerland
Rep Power: 55
John Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond repute
Old Dec 8, 2019 | 09:21 AM
  #10
MulsanneTurbo's Avatar
Thread Starter
|
Registered User
Joined: Dec 2019
Posts: 35
From: England
Rep Power: 0
MulsanneTurbo is infamous around these parts
Thanks both! Have now seen the link and ordered the part.

Old Dec 8, 2019 | 03:37 PM
  #11
kongolo's Avatar
Registered User
5 Year Member
Joined: Oct 2019
Posts: 86
Rep Power: 0
kongolo is infamous around these parts
Originally Posted by Johnny Hotspur GT
Hello MT,
I am not sure on that $20-$40 scanner properly reading your Bentley, the norm for our vehicles is either the Ross-Tech VCDS, or a VAS 5054 with ODIS.
Did that scanner show you both engine modules #1 and #2 to choose from for scanning ?

Being you had the light on, the proper scanner would show you the fault, yet you picture shows no fault, does that scanner do a full scan, or just one module at a time that you have to pick which module you are scanning ?

https://store.ross-tech.com/shop/cat/VCDS

https://www.ebay.com/p/885811507


Johnny
sorry to hijack, but, Johnny any recommendations on a decent hand held one? I like to have one in the car and although I’m happy to travel with a Mac, couldn’t stomac to travel with a windows laptop 🤣

Old Dec 8, 2019 | 06:05 PM
  #12
Johnny Hotspur GT's Avatar
Administrator
10 Year Member
Joined: Jul 2014
Posts: 3,945
From: Montgomery NJ
Rep Power: 1002
Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !
Originally Posted by kongolo
sorry to hijack, but, Johnny any recommendations on a decent hand held one? I like to have one in the car and although I’m happy to travel with a Mac, couldn’t stomac to travel with a windows laptop 🤣
No laptop needed, the Hex-Net can also be used on a smartphone.


https://store.ross-tech.com/shop/vchn_10/


Johnny

Old Dec 10, 2019 | 10:39 AM
  #13
kongolo's Avatar
Registered User
5 Year Member
Joined: Oct 2019
Posts: 86
Rep Power: 0
kongolo is infamous around these parts
Originally Posted by Johnny Hotspur GT
No laptop needed, the Hex-Net can also be used on a smartphone.


https://store.ross-tech.com/shop/vchn_10/


Johnny
Interesting... is there a UK distributor for the Ross Tech unit?

Old Dec 10, 2019 | 10:51 AM
  #14
Johnny Hotspur GT's Avatar
Administrator
10 Year Member
Joined: Jul 2014
Posts: 3,945
From: Montgomery NJ
Rep Power: 1002
Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !
Originally Posted by kongolo
Interesting... is there a UK distributor for the Ross Tech unit?
https://www.ross-tech.com/distributors.php

https://www.mi-uk.com/product-catego...ics/ross-tech/

Old Dec 10, 2019 | 10:59 AM
  #15
kongolo's Avatar
Registered User
5 Year Member
Joined: Oct 2019
Posts: 86
Rep Power: 0
kongolo is infamous around these parts
