Turbo under boost obd
Hi all.
Just got back from 2 week 3500km drive of Germany . No problem at all to mention. I did think on an odd occasion she didnt pull quite as well but wasnt sure, perhaps a very minor misfire pop from the exhaust twice but was over in a milisecond. Took her up to 160 mph on the autobahn. Cruised at 130 140 mph plenty of times. Plenty of red line 2,3,4th gear pulls. No CEL,
Any how, got back put VAS 5054 on and found:
00665 P0299 002 Turbo/ supercharger under boost and 06435 P1923 008
I will attempt to attach screen shots.
Just got back from 2 week 3500km drive of Germany . No problem at all to mention. I did think on an odd occasion she didnt pull quite as well but wasnt sure, perhaps a very minor misfire pop from the exhaust twice but was over in a milisecond. Took her up to 160 mph on the autobahn. Cruised at 130 140 mph plenty of times. Plenty of red line 2,3,4th gear pulls. No CEL,
Any how, got back put VAS 5054 on and found:
00665 P0299 002 Turbo/ supercharger under boost and 06435 P1923 008
I will attempt to attach screen shots.
Thread Starter
|
Registered User
Joined: May 2010
Posts: 1,675
From: Scotland
Rep Power: 107
As said, no cel of any kind. Apart from a wee pop twice. If I hadnt read the fault codes out I wouldnt know there was an issue?? Weird??
Any advice please gents is very welcome.
Last edited by Frank ( Sunnyside ); Oct 21, 2022 at 12:28 PM.
Registered User
Joined: Feb 2018
Posts: 862
Rep Power: 53
Hello,
Just to confirm, the low boost issue is on bank 2 as per the scan, British passenger side of car. Since priority level is 0 we can assume this issue is Intermittent? That can make diagnosis difficult.
Start with and select measuring blocks go to engine 11 (bank 2) @ address 114 to see live data. This test will require driving the car while data logging to evaluate if bank 2 turbo boost is consistent. If address 114 doesn't show boost just try 115 and so on but we're close. To learn how to data log with measuring blocks look on line to Ross Tech with the the previous question. Your system is related to RT.
Just to confirm, the low boost issue is on bank 2 as per the scan, British passenger side of car. Since priority level is 0 we can assume this issue is Intermittent? That can make diagnosis difficult.
Start with and select measuring blocks go to engine 11 (bank 2) @ address 114 to see live data. This test will require driving the car while data logging to evaluate if bank 2 turbo boost is consistent. If address 114 doesn't show boost just try 115 and so on but we're close. To learn how to data log with measuring blocks look on line to Ross Tech with the the previous question. Your system is related to RT.
Last edited by 1eapplebaum; Oct 22, 2022 at 05:56 PM.
Thread Starter
|
Registered User
Joined: May 2010
Posts: 1,675
From: Scotland
Rep Power: 107
Hello,
Just to confirm, the low boost issue is on bank 2 as per the scan, British passenger side of car. Since priority level is 0 we can assume this issue is Intermittent? That can make diagnosis difficult.
Start with and select measuring blocks go to engine 11 (bank 2) @ address 114 to see live data. This test will require driving the car while data logging to evaluate if bank 2 turbo boost is consistent. If address 114 doesn't show boost just try 115 and so on but we're close. To learn how to data log with measuring blocks look on line to Ross Tech with the the previous question. Your system is related to RT.
Just to confirm, the low boost issue is on bank 2 as per the scan, British passenger side of car. Since priority level is 0 we can assume this issue is Intermittent? That can make diagnosis difficult.
Start with and select measuring blocks go to engine 11 (bank 2) @ address 114 to see live data. This test will require driving the car while data logging to evaluate if bank 2 turbo boost is consistent. If address 114 doesn't show boost just try 115 and so on but we're close. To learn how to data log with measuring blocks look on line to Ross Tech with the the previous question. Your system is related to RT.
Yes it does seem intermittent. I use VAS5054a so is that the same 114 address?
I will try to get out in the car next week and do some logging as you suggest
I have bought 2 cheep vac/boost gauges to plum in and run through a grommet in the bulkhead. Hopefully i can see live boost that way too.
Registered User
Joined: Feb 2018
Posts: 862
Rep Power: 53
Thanks Applebaum,
Yes it does seem intermittent. I use VAS5054a so is that the same 114 address?
I will try to get out in the car next week and do some logging as you suggest
I have bought 2 cheep vac/boost gauges to plum in and run through a grommet in the bulkhead. Hopefully i can see live boost that way too.
Yes it does seem intermittent. I use VAS5054a so is that the same 114 address?
I will try to get out in the car next week and do some logging as you suggest
I have bought 2 cheep vac/boost gauges to plum in and run through a grommet in the bulkhead. Hopefully i can see live boost that way too.
Your welcome.
Address 114 or 115 should work.
The turbo gauge(s) is better, less fiddly and observable in real time. I installed one on my B and enjoy having it.
Thread Starter
|
Registered User
Joined: May 2010
Posts: 1,675
From: Scotland
Rep Power: 107
where did you fit yours any pictures. Im thinking at the bottom of the a pillar dash hight.
Trending Topics
Registered User
Joined: Feb 2018
Posts: 862
Rep Power: 53
I just installed one to monitor gross boost. Yes a twin needle is on my back burner.
Will post some pics this evening US time.
Registered User
Joined: Feb 2018
Posts: 862
Rep Power: 53

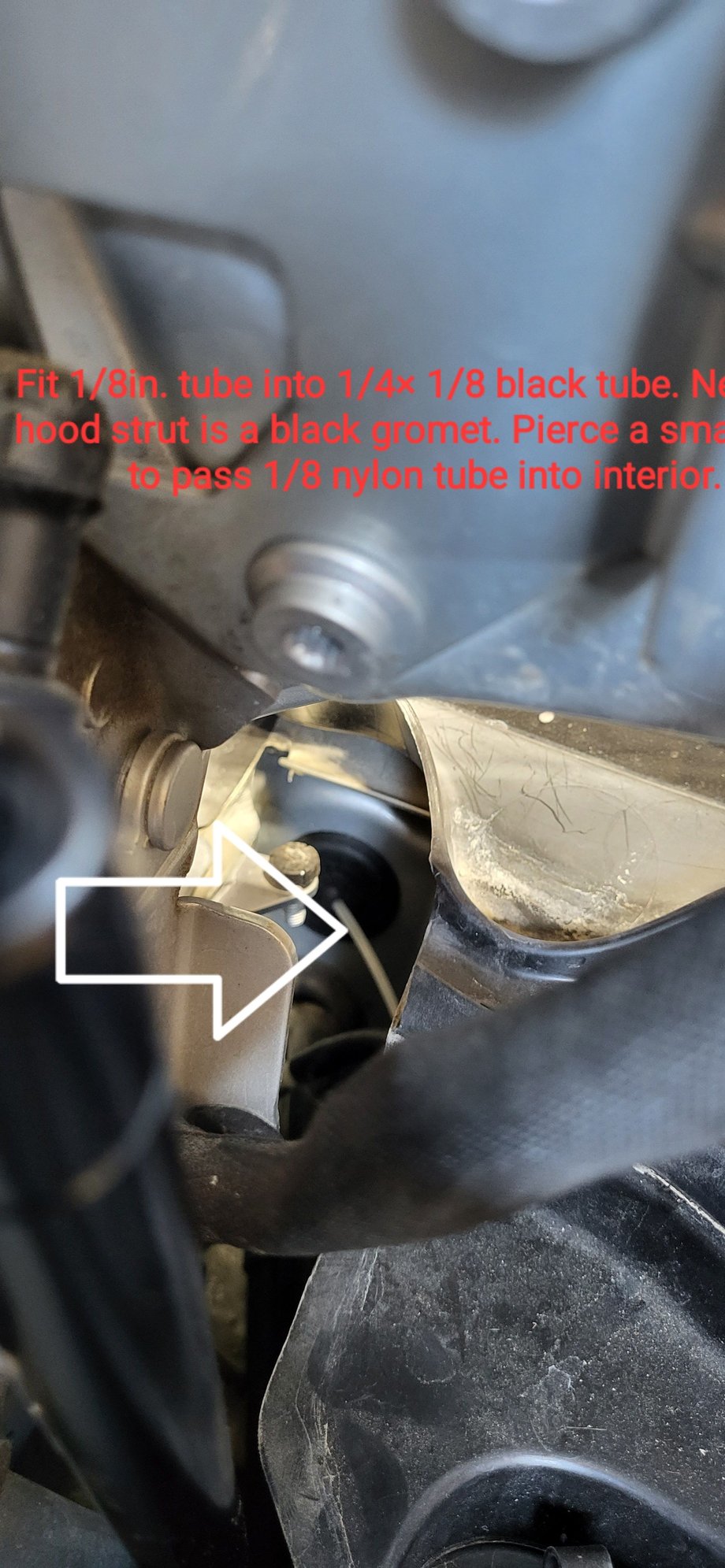

Here is a quick pictorial. Not sure [yet] how to isolate each turbo for gauge monitors. Ideas welcomed.
No haven't been able to find a Bi turbo gauge.
Last edited by 1eapplebaum; Oct 23, 2022 at 05:17 PM.
