What is ZAB?

Thanks,
Robert



previous version of the infotainment system.

you have RNS , next version , earlier was ZAB



Hello @robob ,
Well this sucks...
You have HW: version H23, and SW: version is 0584, which most likely means that you have a 3W0 035 017 Q, which is not on the WT10340 update disc as I posted in prior posts above.

I will look and also call Steve at BOE, he may need your VIN, so if you want to pm me it, that would help.

Johnny

.



Ok, thanks:-)



Sent.

Of course it would be really cool if we could solve this with an update. I do recall that my life doesn't generally go that way, but I remain positive about a fix.

Take care,
Robert



Received your PM, I will call Bentley parts and service tomorrow.

Johnny



Really appreciate that:-)



I just got off the phone with Steve at Bentley of Edison (BoE), in reference to the update disc, he will research it now.

Johnny



Cool, Thanks Much:-)
PS: Where is the Nav disc in my car? Is the trap door in the glovebox related to the Infotainment system?



Finally have the laptop. Too hot to scan now. May be in the morning before I do the 07 & 47 scan:-)



@robob ,
You should do an auto scan do we can see all installed items.

You definitely want to see
07- Control head 3D0 907 048
37- Navigation - 3W0 035 017 Q / ?
47- Sound System- 3W8 035 465C
56- Radio --------- 3W0 035 017 Q / ?
as all 3 of theses (07 / 37 / 56) reside in the Infotainment head unit itself.

Johnny



Will do.

Having Monday on Sunday, but the F1 replay is almost over and I will head out to the car:-)



Ok,

Autoscan:

Sunday,30,July,2023,11:24:20:15047
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 23.3.1.0 (x64) HEX-NET2 CB: 0.4631.5
Data version: 20230421 DS346.2
www.Ross-Tech.com


VIN: License Plate: TEMP
Mileage: 6670km-4144mi Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: ZA-BY62 (3W0)
Scan: 01 02 03 05 06 07 08 09 15 16 17 19 2E 34 36 37 38 46 47 53
56 65 68 6C 6D 71 76 77

VIN: Mileage: 6670km-4144miles

01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: Malfunction 0010
06-Seat Mem. Pass -- Status: OK 0000
07-Control Head -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
34-Level Control -- Status: Malfunction 0010
36-Seat Mem. Drvr -- Status: Malfunction 0010
37-Navigation -- Status: Malfunction 0010
38-Roof Electronics -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
47-Sound System -- Status: OK 0000
52-Door Elect, Pass. -- Status: Malfunction 0010
53-Parking Brake -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
62-Door, Rear Left -- Status: OK 0000
65-Tire Pressure -- Status: Malfunction 0010
68-Wiper Electr. -- Status: OK 0000
6C-Back-up Cam. -- Status: Malfunction 0010
6D-Trunk Elect. -- Status: OK 0000
71-Battery Charger -- Status: Malfunction 0010
72-Door, Rear Right -- Status: OK 0000
76-Park Assist -- Status: OK 0000
77-Telephone -- Status: OK 0000
-------------------------------------------------------------------------------

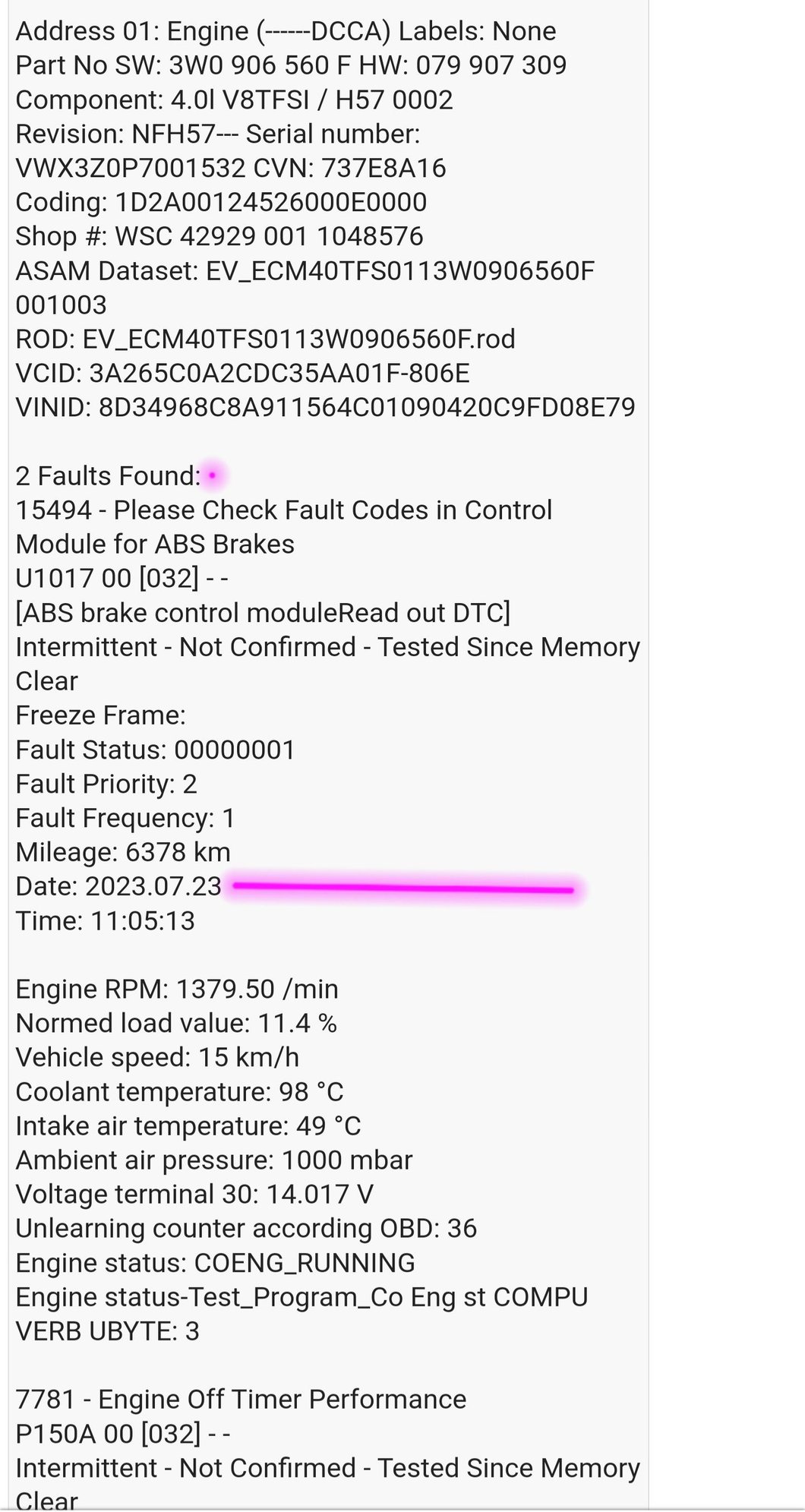

Address 01: Engine (------DCCA) Labels: None
Part No SW: 3W0 906 560 F HW: 079 907 309
Component: 4.0l V8TFSI / H57 0002
Revision: NFH57--- Serial number: VWX3Z0P7001532 CVN: 737E8A16
Coding: 1D2A00124526000E0000
Shop #: WSC 42929 001 1048576
ASAM Dataset: EV_ECM40TFS0113W0906560F 001003
ROD: EV_ECM40TFS0113W0906560F.rod
VCID: 3A265C0A2CDC35AA01F-806E
VINID: 8D34968C8A911564C01090420C9FD08E79

2 Faults Found:
15494 - Please Check Fault Codes in Control Module for ABS Brakes
U1017 00 [032] - -
[ABS brake control moduleRead out DTC]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 6378 km
Date: 2023.07.23
Time: 11:05:13

Engine RPM: 1379.50 /min
Normed load value: 11.4 %
Vehicle speed: 15 km/h
Coolant temperature: 98 °C
Intake air temperature: 49 °C
Ambient air pressure: 1000 mbar
Voltage terminal 30: 14.017 V
Unlearning counter according OBD: 36
Engine status: COENG_RUNNING
Engine status-Test_Program_Co Eng st COMPU VERB UBYTE: 3

7781 - Engine Off Timer Performance
P150A 00 [032] - -
Intermittent - Not Confirmed - Tested Since Memory Clear

Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 02: Auto Trans (J217) Labels:| 0CM-325-025.clb
Part No SW: 3W0 927 158 G HW: 0CU 927 760 A
Component: OBL 40TFSIALL H19 0003
Revision: --H19--- Serial number: VWX3Z0P7001532 CVN: C9357CAF
Coding: 000001
Shop #: WSC 42929 001 1048576
ASAM Dataset: EV_TCMAL450211 002010
ROD: EV_TCMAL450211_BY62.rod
VCID: 41D42BE6410A6672405-8014

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes Labels: None
VCID: 55FCEFB6AD42FAD20CD-8000

No Faults Found
or DTCs not supported by controller
or a communication error occurred

-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. Labels: 3D0-909-13x-05.lbl
Part No SW: 3D0 909 137 G HW: 3D0 909 137 G
Component: C5 Kessy 6850
Revision: 00H24072 Serial number: VWX3Z0P7001532
Coding: 0405741
Shop #: WSC 00083 790 00154
VCID: 2B08694EDF469C228A9-807E

Subsystem 1 - Part No: XXXXXXXXXXX
Component: ELV XXXX

1 Fault Found:
00956 - Key 2
002 - Lower Limit Exceeded
Freeze Frame:
Fault Status: 01100010
Fault Priority: 4
Fault Frequency: 4
Reset counter: 198
Time Indication: 0
Date: 2022.10.23
Time: 22:47:40


-------------------------------------------------------------------------------
Address 06: Seat Mem. Pass (J521) Labels: None
Part No SW: 4W0 959 760 A HW: 4W0 959 760
Component: MEM-BFS H04 0700
Revision: AA000000 Serial number: 00000123398963
Coding: 501A1B2480A70000000001010101000000212121000000
Shop #: WSC 00083 790 00243
VCID: 40D22EE24AC06F7A4FB-8014

No fault code found.

-------------------------------------------------------------------------------
Address 07: Control Head Labels: 3D0-907-048.clb
Part No SW: 3D0 907 048 HW: 3D0 907 048
Component: J127 KBT vorn 0100
Revision: ABH23001 Serial number: VWZ6Z7R0026019
Shop #: WSC 00000 000 00000
VCID: 6398C16EF7161462729-8036

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC Labels: 3W7-907-040.clb
Part No: 3W0 907 040 L
Component: Climatronic BY624 3019
Coding: 0000111
Shop #: WSC 00083 790 00154
VCID: 3A265C0A201C35AA01F-806E

1 Fault Found:
00710 - Defroster Flap Positioning Motor (V107)
014 - Defective - Intermittent

-------------------------------------------------------------------------------
Address 09: Cent. Elect. Labels:. 3D0-937-049-V2.clb
Part No SW: 3D0 937 049 Q HW: 3D0 937 049 Q
Component: J519 7700
Revision: -4007--- Serial number: --------------
Coding: 40820000AB2A11800508030000000000
Shop #: WSC 00083 790 00154
VCID: 382246021E1027BAF7B-806C

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:* None
Part No SW: 3W3 959 655 A HW: 3W3 959 655 A
Component: VW10Airbag20P H01 0004
Revision: -------- Serial number: 003FW00098TA Dataset Number: V03935209DB 0001
Coding: 000000000000000000000000000000003050
Shop #: WSC 00083 790 00154
ASAM Dataset: EV_AirbaVW10BPABY62X 001002
ROD: EV_AirbaVW10BPABY62X.rod
VCID: 45DC3FF655224A527CD-8010

Seat occupied recognition:
Subsystem 1 - Part No SW: 3W7 959 339 G HW: 3W7 959 339 G
Component: BF-Gewichtss. H03 0201
Serial number: 5850000R14A310BJ3P

Crash sensor for side airbag: driver side:
Serial number: 3572DRB40000F6DCD93E

Front Passenger's Side Airbag Crash Sensor:
Serial number: 3582DRB40000F7214A9Z

Rear Side Airbag Crash Sensor (on driver's side):
Serial number: 35128RB40000738CCD0U

Passenger side rear thorax airbag crash sensor:
Serial number: 35228RB40000738CF31P

Crash sensor for front airbag: driver side:
Serial number: 35547RB400007397ED7/

Crash sensor for front airbag: front passenger side:
Serial number: 35647RB400007397EDC3

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel Labels: 7L6-953-549.lbl
Part No: 7L6 953 549 K
Component: J527 3601
Coding: 0000032
Shop #: WSC 00083 790 00244
VCID: 47C035FE63EE58428E1-8012

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments Labels: 3Wx-920-xxx-17.lbl
Part No SW: 3W0 920 851 R HW: 3W0 920 851 R
Component: J285 KOMBI-INST. 5555
Revision: KPH10V04
Coding: 0042214
Shop #: WSC 44619 001 1048576
VCID: 45DC3FF659A24A527CD-8010

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway Labels: None
Part No SW: 3W0 909 901 HW: 3W0 920 851 R
Component: J533 GW-K-CAN TP20 5555
Revision: KPH10V04
Coding: 5FF2FFAEEB154700
Shop #: WSC 44619 001 1048576
VCID: 76BE883A54C491CA257-8022

No fault code found.

-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650) Labels:. 5N0-035-342.lbl
Part No SW: 5N0 035 342 G HW: 5N0 035 342 G
Component: SG EXT.PLAYER H19 0770
Revision: A1001003 Serial number: 7670124385
Coding: 030100
Shop #: WSC 00083 790 00191
VCID: 2B08694ED3069C228A9-807E

No fault code found.

-------------------------------------------------------------------------------
Address 34: Level Control Labels: 3Wx-907-553-34.clb
Part No: 3W0 907 553 J
Component: LUFTFDR.-CDC- 3C3V0 7509
Coding: 0005531
Shop #: WSC 00083 790 00169
VCID: 41D42BE64DCA6672405-8014

1 Fault Found:
00477 - Control Module; Display & Input; Comfort CAN; Front (J523)
004 - No Signal/Communication - Intermittent

-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr (J136) Labels: None
Part No SW: 4W0 959 760 A HW: 4W0 959 760
Component: MEM-FS H04 0700
Revision: AA000000 Serial number: 00000123398989
Coding: 501A1B2480A70000000001010101000000212121000000
Shop #: WSC 00083 790 00243
VCID: 40D22EE24AC06F7A4FB-8014

1 Fault Found:
03325 - Switch for Backrest Angle Adjustment: Back
003 - Mechanical Failure
Freeze Frame:
Fault Status: 01100011
Fault Priority: 4
Fault Frequency: 1
Reset counter: 157
Mileage: 6671 km
Time Indication: 0
Date: 2023.07.30
Time: 11:18:53


-------------------------------------------------------------------------------
Address 37: Navigation (J0506) Labels:. 3D0-035-680.clb
Part No SW: 3W0 035 017 Q HW: 3W0 035 017 Q
Component: RNS-MID H23 0584
Revision: AB001001 Serial number: VWZ6Z7R0026019
Coding: 04010002000000044000
Shop #: WSC 00083 790 00154
VCID: 3B28590E23660CA21A9-806E

Subsystem 1 - Part No: 3W0 919 859 BR
Component: NAR V5 8112

1 Fault Found:
02635 - Tuner Not Enabled/Activated
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 7
Fault Frequency: 72
Reset counter: 189
Mileage: 4016 km
Time Indication: 0
Date: 2020.04.19
Time: 10:35:38


-------------------------------------------------------------------------------
Address 38: Roof Electronics Labels: None
Part No: 3W0 907 135 G
Component: Dachmodul 0803
Coding: 0006589
Shop #: WSC 00083 790 00194
VCID: 3A265C0A201C35AA01F-806E

No fault code found.

-------------------------------------------------------------------------------
Address 46: Central Conv.
Cannot be reached

-------------------------------------------------------------------------------
Address 47: Sound System Labels: None
Part No SW: 3W8 035 465 C HW: 3W8 035 465 C
Component: DSP 8 Channel 0030
Revision: 00H08001 Serial number: 75870014241212
Shop #: WSC 00000 000 00000
VCID: 3C2A5A122A680B9A133-8068

No fault code found.

-------------------------------------------------------------------------------
Address 53: Parking Brake (J540) Labels: None
Part No SW: 4W0 907 801 HW: 4W0 907 801
Component: EPB-4 H01 0002
Revision: -------- Serial number: 00000000008661 Dataset Number: V03935199CY 0001
ASAM Dataset: EV_BY62XParkiBrake 001008
ROD: EV_BY62XParkiBrake.rod
VCID: 74BAB2324E3883DA1B3-8020

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J0506) Labels:. 3D0-035-680.clb
Part No SW: 3W0 035 017 Q HW: 3W0 035 017 Q
Component: RNS-MID H23 0584
Revision: AB001001 Serial number: VWZ6Z7R0026019
Coding: 04010002000000044000
Shop #: WSC 00083 790 00154
VCID: 3B28590E23660CA21A9-806E

Subsystem 1 - Part No: 3W0 919 859 BR
Component: NAR V5 8112

1 Fault Found:
02635 - Tuner Not Enabled/Activated
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 7
Fault Frequency: 72
Reset counter: 189
Mileage: 4016 km
Time Indication: 0
Date: 2020.04.19
Time: 10:35:38


-------------------------------------------------------------------------------
Address 65: Tire Pressure Labels: 3D0-907-273-V5.clb
Part No SW: 3W7 907 273 D HW: 3W7 907 273 D
Component: J0502 RDK 0007
Revision: 004007 Serial number: 00000700004487
Coding: 0000E063B8FD63FD0063B8FD63FD0063B8FD4B6E4B6E4B6E4B 6E4B6E
Shop #: WSC 00083 790 00215
VCID: 41D42BE64DCA6672405-8014

1 Fault Found:
02214 - Tire Pressure Warning
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 1
Fault Frequency: 1
Reset counter: 165
Time Indication: 0

Freeze Frame:
(no units): 84.0


-------------------------------------------------------------------------------
Address 68: Wiper Electr. Labels: 3Wx-955-023.clb
Part No: 3W1 955 023 L
Component: Wischermodul ª0401
Shop #: WSC 00000 725 65552
VCID: 3FD02D1E3B3E1082361-806A

No fault code found.

-------------------------------------------------------------------------------
Address 6C: Back-up Cam. Labels: 5N0-907-441.clb
Part No SW: 3W3 907 441 C HW: 3W3 907 441 C
Component: J772__Rearview 0030
Revision: 00H13000 Serial number: 525 PA8JA20092
Coding: 2020002
Shop #: WSC 00083 790 00169
VCID: 39244306255A3EB2085-806C

1 Fault Found:
00778 - Steering Angle Sensor (G85)
013 - Check DTC Memory - Intermittent
Freeze Frame:
Fault Status: 00101101
Fault Priority: 6
Fault Frequency: 13
Reset counter: 193
Mileage: 6378 km
Time Indication: 0
Date: 2023.07.16
Time: 00:00:55

Freeze Frame:
Term 15 On
Reverse OFF
Count: 3


-------------------------------------------------------------------------------
Address 6D: Trunk Elect. (----) Labels:* None
Part No SW: 3W3 959 108 HW: 3W3 959 108
Component: HDSG-Modul H01 0803
Revision: 00000000 Serial number: 048500042 Dataset Number: V03935209LM 0001
Coding: 184006C020
Shop #: WSC 00083 790 00154
ASAM Dataset: EV_HDSGBY6245 002001
ROD: EV_HDSGBY6245_002.rod
VCID: 7DAC97167D72C29264D-8028

No fault code found.

-------------------------------------------------------------------------------
Address 71: Battery Charger (J367) Labels:* None
Part No SW: 3W3 915 181 B HW: 3W3 915 181 B
Component: EMM Batt Man H05 0570
Serial number: 0000000001
Coding: 1E0100
Shop #: WSC 00083 790 00215
ASAM Dataset: EV_BatteChargVaria1 002019
ROD: EV_BatteChargVaria1_002.rod
VCID: 3822460212D027BAF7B-806C

Battery Monitoring Control Module:

1 Fault Found:
13705472 - Databus
U1121 00 [008] - Missing Message
[DTC_TIMEOUT_ESP]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 188


-------------------------------------------------------------------------------
Address 76: Park Assist Labels: 3W0-919-283-V3.clb
Part No SW: 3W0 919 283 G HW: 3W0 919 283 E
Component: J446 ST Parkhilfe 0111
Revision: 11H02001 Serial number: 58131503300749
Coding: 0300036
Shop #: WSC 00083 790 00154
VCID: 41D42BE64DCA6672405-8014

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412) Labels:| 3C8-035-730-A.clb
Part No SW: 3D0 035 730 E HW: 3D0 035 730 E
Component: Telefon 026 0983
Revision: -------- Serial number: 35502105238068
Coding: 020105010100010000000000
Shop #: WSC 00083 790 00154
ASAM Dataset: EV_UHVPremi 002709
ROD: EV_UHVPremi.rod
VCID: 1E6EB09A9034798A1D7-804A

No fault code found.

End----------(Elapsed Time: 01:56, VBatt start/end: 14.2V/14.2V)-----------

I think a saw an AC fault which is interesting as it blows cold.

So, the infotainment system is working. Did this scan with the car running;. Still sitting at the car if someone wants another scan.

Thanks Much,
Robert



So hopefully you folks are having some fun.

I am going to get out of the heat. I will check back to see if more is needed.

Take care,
Robert:-)



@robob ,
Of course as life would have it, the Infotainment system is working during your scan...

As to the auto scan, did it clear all of the faults after said scan, if not you can go in one by one to each address and clear them, so you can get rid of most, if not all the faults, the seat fault is interesting..

You can see by the dates and mileage that the faults shown are all prior from other dates, with the exception of the seat fault today.

01 - covers 03 as to the ABS, and an Intermittent fault on the "engine off timer".. ? on the latter, timer. Clear this.

03 - ABS, is experiencing a communication problem, I would discuss the information in 03 with Ross-Tech via phone tech support, or on the Ross-Tech forum.

05 - ACC/Start Auth/KESSY fault is most likely a low battery in the key fob. Clear this.

07 - Control head, no faults

08 - HVAC defrost flap, Intermittent, most likely stuck at some point, and from prior date, may have been caused by low house battery. Clear this.

2E - media 3/ media interface in the glovebox- no faults.

34 - Level Control / Suspension, Intermittent, clear also.

36 - Seat memory driver's side, mechanical failure, clear this to see if it comes back.

37 - Navigation - is from the year 2020, and is in reference to the satellite radio not being activated/paid subscription, clear this.
Just curious, didn't the GT3-R come with free lifetime subscription ?

46 - Central Conv - shows as "Status OK" at the top of the scan at the installed list, yet it has no communication in the actual scan, I would rescan this module individually.

47 - Sound System / amplifier - no faults, good.

56 - Radio / RSN-MID - again is in regards to the satellite radio not being activated, clear this.

65 - TPMS - Intermittent, most likely a low tire at some point, no date shown, clear this.

6C - Back-up Camara - Intermittent from this month, most likely from the low house battery that you had, clear this.

71 - Battery Charger - same, possibly from low house battery, intermittent, clear this.

I am waiting on talking to Steve at BoE tomorrow for any updates as to the SW FW update.

As usual, everything shows good in the scan as it is working, BUT, this scan does show faults from the past in 37 and 56, so I can see that you never cleared them with the mobile version, did you ever clear any faults out of 07 ?

Johnny

.
