Can someone tell me what the plugs are? I'm installing navtv most hur and pioneer but want to know what each of these plugs are! Can't find this info anywhere. I think the yellow plug is for steering wheel controls but not sure. Thanks.

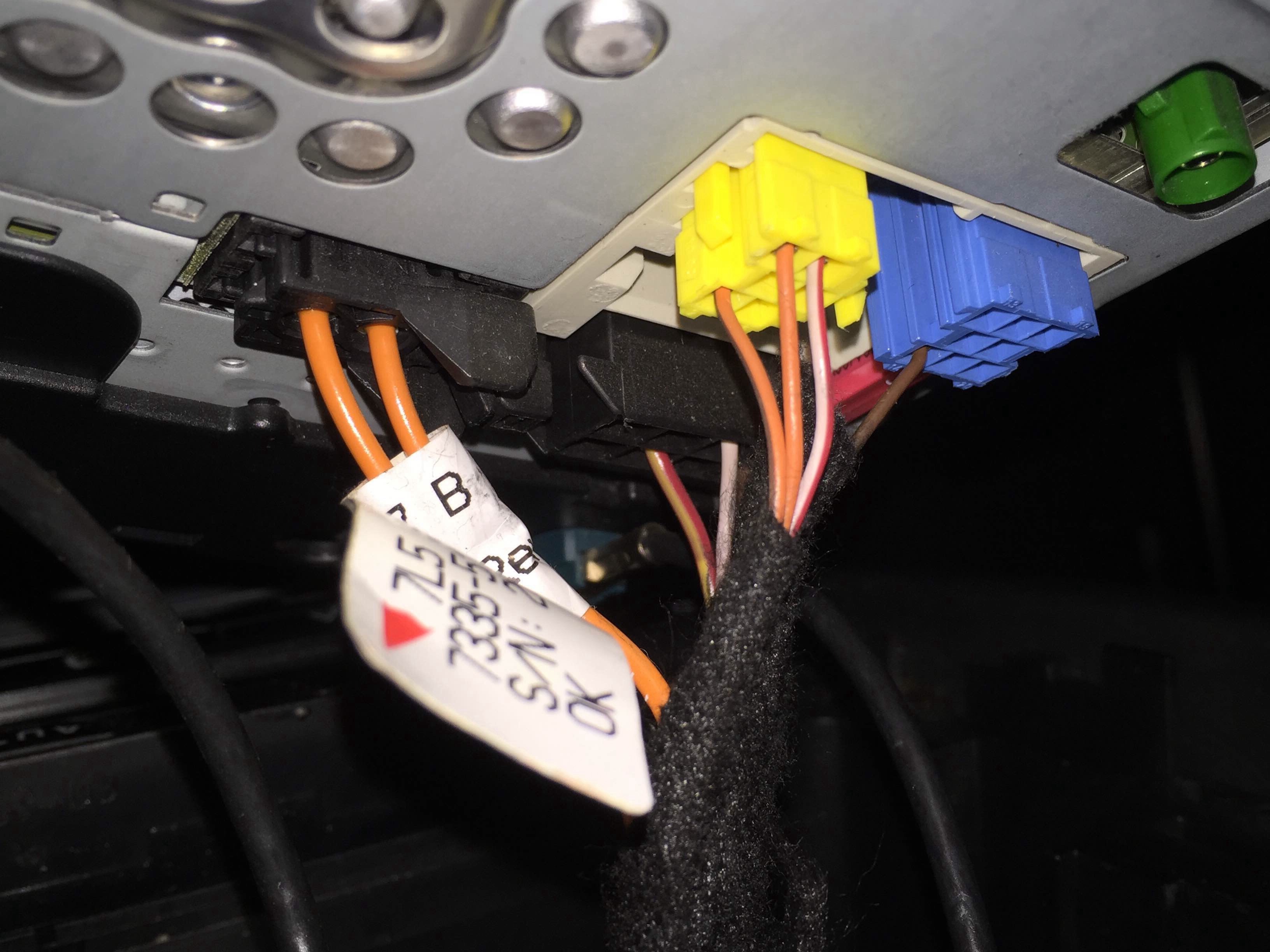

I have a blue plug. A yellow plug. And two black plugs (I know one is fiber optic). It's a bose navigation headunit. Pcm 2.1. I'll try and attach photos.



Also, what are these two plugs. Antenna and?



everywhere? look like you didnt try to google it )))))



Thanks!! Just need to know what the F & G Lines are. Is the F the radio antenna and the yellow plug the cd changer or something?

They both just say sheild. So not sure why heir are two. Just need help on these 2. Thanks.



this both are radio antenna leads. in some regions yellow plug is totally useless since no broadcasting on its frequencies.



Makes sense now! Thanks a lot.



Can someone tell me which one is the switched power and which one is constant power?

Is A4 switched/ignition power?

Is their a constant power?


The diagram doesn't say which is switched or constant power. Thanks for your help.



http://en.wikipedia.org/wiki/DIN_72552



No offence but doesn't answer my question.
