Snapped Camshaft Adjuster Bolt = Engine & Brake Hydraulics Failure ?

Reply



Thread Tools Search this Thread Rate Thread
  #1
Old 10-11-2013, 04:57 PM
osj911's Avatar
Registered User
Thread Starter

Join Date: Feb 2005
Location: Saratoga, CA / USC, LA
Posts: 551
Rep Power: 35
osj911 will become famous soon enough
Snapped Camshaft Adjuster Bolt = Engine & Brake Hydraulics Failure ?

Wanted to know if anyone else had experienced this.

My family was driving our 2011 Cayenne S on the freeway the other day and they saw the following lights: PSM failure, Check Engine, Start/Stop deactivated, ABS. They were on the freeway and they pulled off and soon after the engine completely died and would not turn on.

The dealer called today to say the camshaft adjuster bolt had snapped off and as a result, the hydraulic brake system also failed? Has anyone ever had this issue?

I'm a huge fan of Porsches ('72 911, '03 996TT, '13 Cayenne) but this cayenne has seemed to be quite finicky
Reply With Quote
  #2
Old 10-12-2013, 12:50 PM
Registered User

Join Date: Mar 2004
Location: Los Angeles
Posts: 387
Rep Power: 34
MikeL is a glorious beacon of lightMikeL is a glorious beacon of lightMikeL is a glorious beacon of lightMikeL is a glorious beacon of lightMikeL is a glorious beacon of lightMikeL is a glorious beacon of light
That sucks, I have at 12' S, how many miles on yours when this happened?
Reply With Quote
  #3
Old 10-24-2013, 02:19 PM
Renaissance.Man's Avatar
Moderator

Join Date: Jan 2011
Location: (in my garage welding something vicious)
Posts: 1,531
Rep Power: 96
Renaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond repute
Sorry, first time I have heard about this. That is essentially the same 4.8 used in the 957 Cayenne (with minor revisions).
Reply With Quote
  #4
Old 04-03-2014, 10:02 PM
Registered User

Join Date: Apr 2014
Location: Madison, AL
Posts: 3
Rep Power: 0
techtype123 is on a distinguished road
You're ok

The bolts in questions are 4 relatively small aluminum screws with a steel pin inside them, 4 screws for each adjuster. For some 2011 models, the steel pin wasn't long enough, and the screws would break off right where they ended. If all screw heads can be accounted for, then you're golden. If not, or there is any sign of damage, Porsche replaced engine. There is a service campaign to address this.
Reply With Quote
  #5
Old 04-14-2014, 12:54 PM
Renaissance.Man's Avatar
Moderator

Join Date: Jan 2011
Location: (in my garage welding something vicious)
Posts: 1,531
Rep Power: 96
Renaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond reputeRenaissance.Man has a reputation beyond repute
Quote:
Originally Posted by techtype123 View Post
The bolts in questions are 4 relatively small aluminum screws with a steel pin inside them, 4 screws for each adjuster. For some 2011 models, the steel pin wasn't long enough, and the screws would break off right where they ended. If all screw heads can be accounted for, then you're golden. If not, or there is any sign of damage, Porsche replaced engine. There is a service campaign to address this.
Do you have the service bulletin? Interested to see what it says verbatim.
Reply With Quote
  #6
Old 04-14-2014, 01:48 PM
Registered User

Join Date: Jun 2013
Posts: 1,120
Rep Power: 64
porschecayenne92 has a brilliant futureporschecayenne92 has a brilliant futureporschecayenne92 has a brilliant futureporschecayenne92 has a brilliant futureporschecayenne92 has a brilliant futureporschecayenne92 has a brilliant futureporschecayenne92 has a brilliant futureporschecayenne92 has a brilliant futureporschecayenne92 has a brilliant futureporschecayenne92 has a brilliant futureporschecayenne92 has a brilliant future
For these reason I am not considering another porsche any more !! Looks like Porsche only wants to make big profit and doesnt care any more for the good things it used to be and what made us Porsche fanatics .
I spend a lot of money with my cayenne TT (low miles) , also thanks to people in these forum , I have read a lot of stories about failures everywhere and every defect is repeated in every model every year..
Reply With Quote
  #7
Old 01-13-2015, 01:03 PM
Registered User

Join Date: Jan 2015
Location: Ohio
Posts: 1
Rep Power: 0
hero3 is on a distinguished road
I just had the same Camshaft adjuster bolt break off on a 2011 Cayenne Turbo (76,000)
Does anyone know if there were a service bulletin on this issue?
Reply With Quote
  #8
Old 02-23-2015, 09:52 PM
Registered User

Join Date: Feb 2015
Posts: 2
Rep Power: 0
McSmarty is on a distinguished road
Me 2

Was driving on highway at 55 last week and had exact same thing happen. Dealer said camshaft bolt came loose and bent at least two valves although they have only spent 1/2 checking out engine so far. Sounds like whole engine may need to be replaced. Luckily it is under warranty 2011 Cayenne S with 76k miles.
Reply With Quote
  #9
Old 02-23-2015, 11:01 PM
Registered User

Join Date: Feb 2015
Location: ohio
Age: 39
Posts: 1
Rep Power: 0
glhsa is on a distinguished road
Warranty is over after 50k unless u bought a certified used model
Reply With Quote
  #10
Old 02-24-2015, 07:42 PM
Registered User

Join Date: Feb 2015
Posts: 2
Rep Power: 0
McSmarty is on a distinguished road
Yes it is CPO I bought a little over a year ago. 5yrs or 100k miles. Seems more common than I would think after a quick search.
Reply With Quote
  #11
Old 09-02-2015, 12:55 PM
Registered User

Join Date: Sep 2015
Location: Florida
Age: 50
Posts: 1
Rep Power: 0
Susan Rivera is on a distinguished road
Camshaft adjuster bolt broke off 2011 Cayenne S 33k miles

Hello everyone. So I had the same exact thing happen to me. I was driving on highway usual speed 80, and suddenly check engine light, PSM failure and stop start deactivation came on. Lucky I had just reached my exit, 20 miles from home. The car then was really difficult to stop brakes were tight. Towed to dealer and they told me the camshaft bolt broke off and one or two are missing. I guess I may end up with a new engine, I guess thats good right? Porsche should do a recall, it is very dangerous.
Reply With Quote
  #12
Old 11-21-2015, 11:50 AM
kar kar is offline
Registered User

Join Date: Nov 2015
Location: charlottetown
Age: 48
Posts: 9
Rep Power: 0
kar is on a distinguished road
Quote:
Originally Posted by techtype123 View Post
The bolts in questions are 4 relatively small aluminum screws with a steel pin inside them, 4 screws for each adjuster. For some 2011 models, the steel pin wasn't long enough, and the screws would break off right where they ended. If all screw heads can be accounted for, then you're golden. If not, or there is any sign of damage, Porsche replaced engine. There is a service campaign to address this.
where is this service bulletin or recall?
Reply With Quote
  #13
Old 01-10-2016, 03:11 PM
Registered User

Join Date: Jan 2016
Location: Florida
Age: 32
Posts: 4
Rep Power: 0
Rostamon8 is on a distinguished road
The reality of the problem.

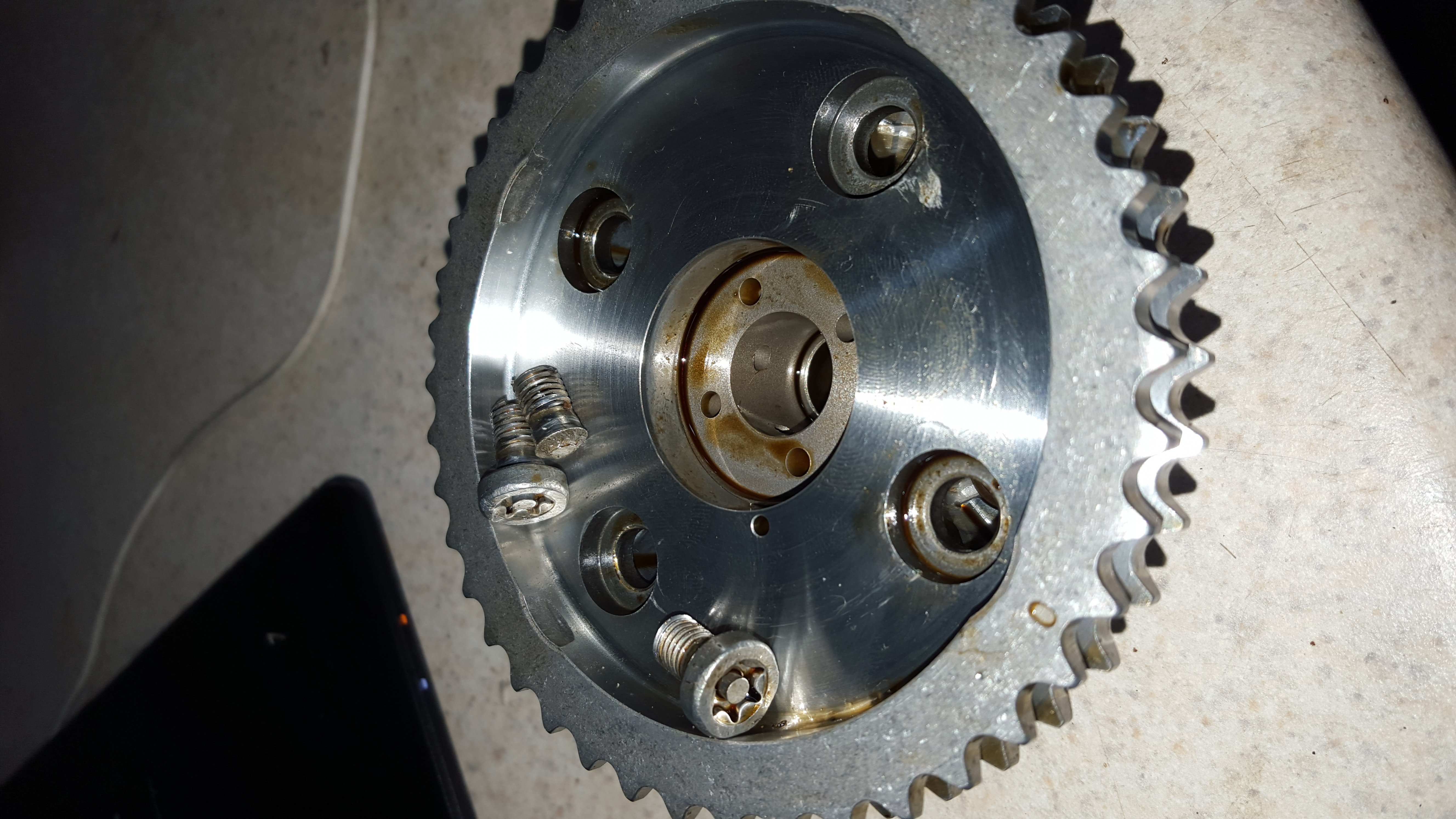

I would like to shed some light on the camshaft controller concerns. There was a run of the 4.8 in the Cayenne and Panamera that used aluminum bolts to hold the camshaft adjusting unit together. Unfortunately due to something beyond beyond my level of engineering knowledge, these bolts actually become loose and then sheer off. When this happens, the timing chain can no longer turn the camshaft so the camshaft stops turning. The chain stays in place and the opposite side of the engine stays in "time". The reason for the way the vehicle acts afterwards is the camshafts drive accessories on the rear of the engine. Keep in mind I am only talking about the intake cams as the exhaust is a fixed gear with no timing adjustments. So if you driver's side, bank two adjuster breaks. The high pressure fuel pump is no longer turning so the fuel pressure drops so low that most of the time the engine with just shut down and that's it. If the passenger side breaks, bank one, the vacuum pump stops turning causing a lack of power assist to the vehicle's brakes thus the hard brake pedal. Some times these vehicles keep going despite running extremely poorly. Never do this as it greatly increases your chances of damaging the head.

As far as the campaign or recall, the manufacture campaigned a good number of the affected vehicles with the WC-22 campaign. This campaign replaces both of the old style adjusters with an updated part that now has steel bolts. Here's a tip for the people with this engine. If you are concerned with what type adjuster you have, take a flashlight and open the oil fill cap and look into the cam housing. you can see the back of the bank one adjuster and see the bolts. If they are dark colored and magnetic, you have the updated parts. If not you could have the early batch and they might be a problem down the road. Thinking of the cost of a new engine it might be worth replacing as preventative maintenance. Unfortunately I believe the are over $500 each and it will require two.

As far as once they break, The bolts and pieces of bolts fall into your engine.
The first thing is to be sure and check the head for damage behind the effected sprocket. If it's okay you will then need to perform a leak-down test to ensure that none of the valves are bent. If that's okay then you must recover all of the pieces of bolts even if the oil pan has to be removed (this requires the subframe removed or the engine out). Sometimes they can all be found in the head and behind the timing cover. The trick here is to request your mechanic to show you all four bolts and bolt heads so that you can be sure he did not just leave them in the engine floating around. Once they are recovered you are good to go with the reassembly.

Something to think about is what if you just replaced the bolts yourself with some steel bolts an lock tight? BMW offers bolts for theirs because they break all the time as well. Maybe, maybe not. I haven't tried one yet.

I hope this helps.
Attached Thumbnails
Click image for larger version

Name:	20160110_163735.jpg
Views:	458
Size:	1.72 MB
ID:	437042
Reply With Quote
  #14
Old 02-20-2016, 06:17 AM
kar kar is offline
Registered User

Join Date: Nov 2015
Location: charlottetown
Age: 48
Posts: 9
Rep Power: 0
kar is on a distinguished road
Quote:
Originally Posted by Rostamon8 View Post
I would like to shed some light on the camshaft controller concerns. There was a run of the 4.8 in the Cayenne and Panamera that used aluminum bolts to hold the camshaft adjusting unit together. Unfortunately due to something beyond beyond my level of engineering knowledge, these bolts actually become loose and then sheer off. When this happens, the timing chain can no longer turn the camshaft so the camshaft stops turning. The chain stays in place and the opposite side of the engine stays in "time". The reason for the way the vehicle acts afterwards is the camshafts drive accessories on the rear of the engine. Keep in mind I am only talking about the intake cams as the exhaust is a fixed gear with no timing adjustments. So if you driver's side, bank two adjuster breaks. The high pressure fuel pump is no longer turning so the fuel pressure drops so low that most of the time the engine with just shut down and that's it. If the passenger side breaks, bank one, the vacuum pump stops turning causing a lack of power assist to the vehicle's brakes thus the hard brake pedal. Some times these vehicles keep going despite running extremely poorly. Never do this as it greatly increases your chances of damaging the head.

As far as the campaign or recall, the manufacture campaigned a good number of the affected vehicles with the WC-22 campaign. This campaign replaces both of the old style adjusters with an updated part that now has steel bolts. Here's a tip for the people with this engine. If you are concerned with what type adjuster you have, take a flashlight and open the oil fill cap and look into the cam housing. you can see the back of the bank one adjuster and see the bolts. If they are dark colored and magnetic, you have the updated parts. If not you could have the early batch and they might be a problem down the road. Thinking of the cost of a new engine it might be worth replacing as preventative maintenance. Unfortunately I believe the are over $500 each and it will require two.

As far as once they break, The bolts and pieces of bolts fall into your engine.
The first thing is to be sure and check the head for damage behind the effected sprocket. If it's okay you will then need to perform a leak-down test to ensure that none of the valves are bent. If that's okay then you must recover all of the pieces of bolts even if the oil pan has to be removed (this requires the subframe removed or the engine out). Sometimes they can all be found in the head and behind the timing cover. The trick here is to request your mechanic to show you all four bolts and bolt heads so that you can be sure he did not just leave them in the engine floating around. Once they are recovered you are good to go with the reassembly.

Something to think about is what if you just replaced the bolts yourself with some steel bolts an lock tight? BMW offers bolts for theirs because they break all the time as well. Maybe, maybe not. I haven't tried one yet.

I hope this helps.
No recall in Canada or the USA been to the dealer and no coverage 2011 with 129000 kms

Last edited by kar; 02-20-2016 at 06:20 AM.
Reply With Quote
  #15
Old 02-20-2016, 08:48 PM
kar kar is offline
Registered User

Join Date: Nov 2015
Location: charlottetown
Age: 48
Posts: 9
Rep Power: 0
kar is on a distinguished road
http://www.autonews.com/article/20150209/ANE/150209861/porsche-will-recall-some-panamera-cayenne-models-in-ch
Why was this not done in the USA or Canada?
