Ok, on past list add connector housing 970.044.900.99
and it can be connected to the existing fm antenna?
radio can operate without this antenna amp or not?
oh more complicated)
Do you know the price for this antenna amp?



yes. They will remove original antenna connector and will use new one.
Porsche suggest replace right antenna amp, but imo this will not change reception.

price for amp about hundred euro.



Ok, I will order connector only, I will try without antena amp,
I do not understand what the purpose of installing the amplifier?
if this will not change reception. I'm confused about this issue,

what is the name of this installation manual/procedure?
I want to tell them exactly(porsche service)
thanks



Tuqipment
9110

I am sure they know. Only one manual how to retrofit PCM.



One more thing,
Vehicles with factory equiped pcm 3.1 system has front dashboard center speaker.
I think it is 80mm speaker (1 pcs).
On my car with cdr31 system I do not have this speaker.

Is it possible to add this speaker now when I adding an amplifier?
is it easy to connect to new apm? I can order this speaker.



In original retrofit they do not install this speaker.
But you can. need speaker, oe, not expensive, and route two wires to the amp and find two suitable round pins (contacts).

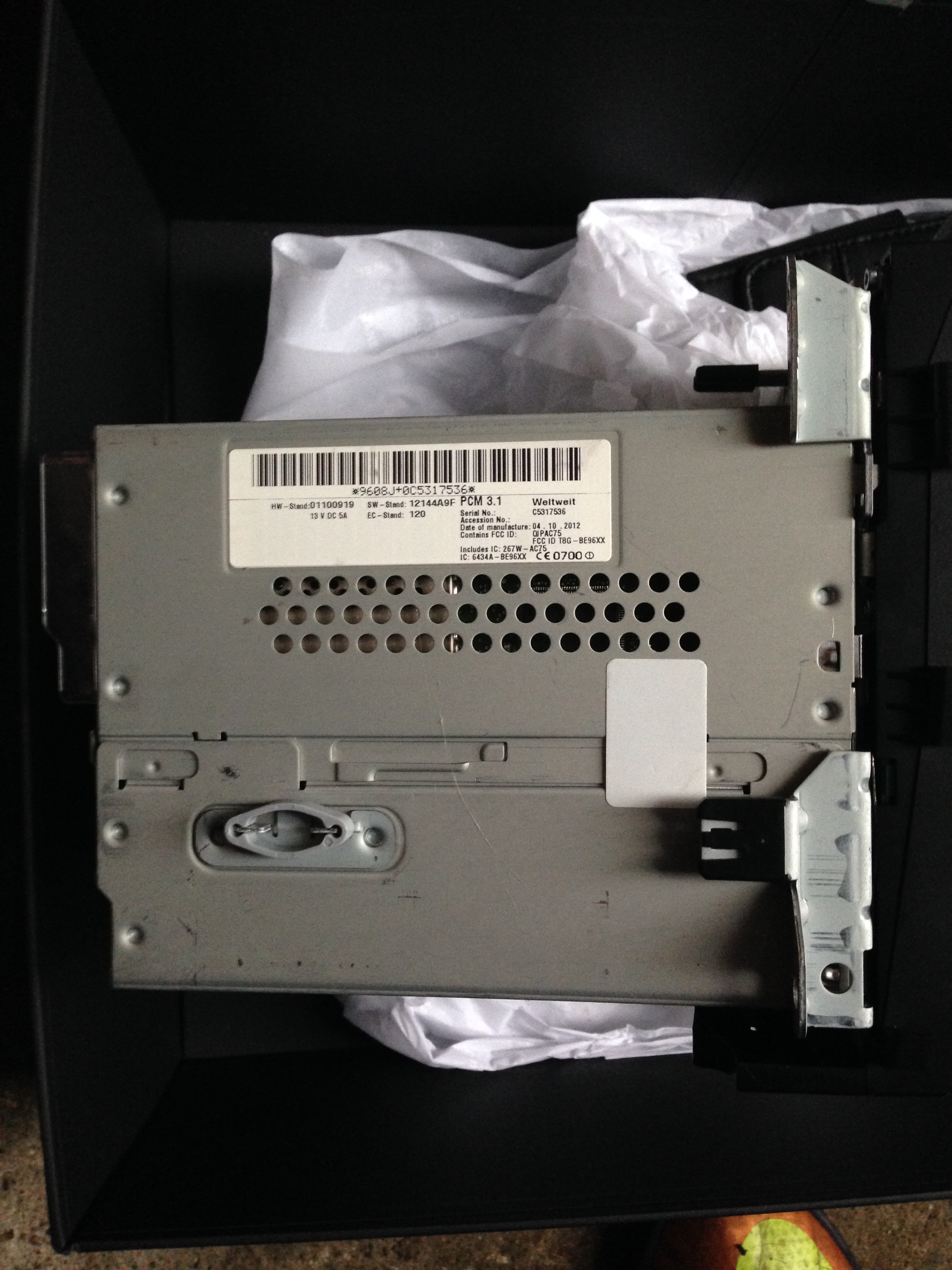

PCM 3.1 which I bought is removed from 2013 Cayenne.
made on 04.october.2012.
Part no is: 958.624.970.01
I will recieve it in 10 days.
How do you think, Will I have new functions? hdd and album art?



95862497001 - looks like wromg number

oh, it is not part number, i see.



and should not allow jukebox features.



This Pcm is made in october 2012.
They said "Jukebox is a standard feature on all Cayennes production starting Nov, 2012. We will see..
I noticed, some pcm have DISC button and some have a MEDIA button?
Mine is with MEDIA button.



Part number is not on the sticker?



Yes, this is part number.
Not exact, but it is.

suit for cars MY "C", so I do not know exactly will jukebox works or not.



Happy New year!!

Pcm will arrive this week, fakra antenna next week.

One question, another topic.
Is it possible to add unlock/lock button on doors on Cayenne 958.
My car is made on december 2011, and Porsche added this feature on january 2012 cars. Cost?

Thanks



Yes.
I did it once.
Need some time for proper coding door control units,
install button, let say 100 Euro each, carefully cut oe handle inserts, use suitable connector for handle switch, route wires to door unit, and insert pin in the control module connector.

2 hours for both front doors.
OE button and led in door buttons works well.



That is great! I want to do the same.

But first to finish the conversion of PCM system

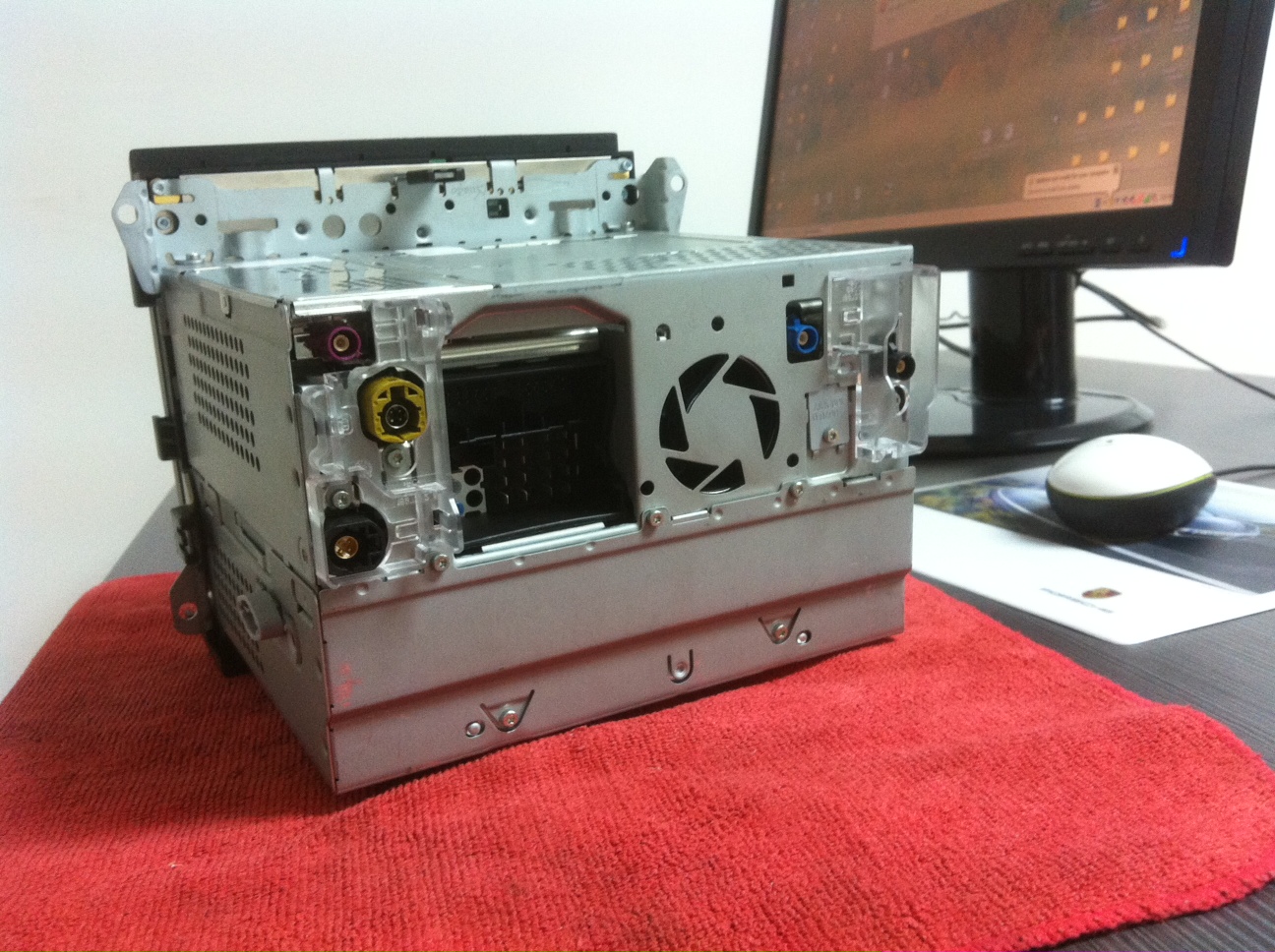

PCM has finally arrived. looks great!
I'm just waiting to get the GPS antenna. I ordered on ebay 10 days ago.
wiring and apm I will order in a few days.

One question about purple connector on pcm, what is it?
