A worthless thread (because no sound clip) PTT with Magnaflow 10790 X-Pipe installed

EDIT: Here is a video of sound comparisons. The big difference is in low tones that are very apparent at lower RPMs. Makes car sound raspier and more gurgly. From inside cabin, cannot hear difference almost at all, due to sound proofing materials used on Panamera. Hope it helps.



Flo1989 twisted my arms, and I got me the Magnaflow x-pipe, and just had it installed in the car. Will have to take the after vids for sound, etc.
First impression, there is much more low frequency rumble at lower rpms, while at higher rpms the exhaust seems to sound deeper and throatier.
It is very hard to tell from inside the car, as it is thermal and sound insulated.
From inside car, I would have to struggle to try notice a difference. That is how well insulated things are there.
From outside, the difference is very apparent. And it did cost me same as his job was, total about $160. $92 for x-pipe off ebay, $70 for labor at a small muffler shop. Going to a small muffler shop is key. Large shops wanted to charge me $200 or more as soon as I drove onto the lot with the Panamera. This guy, I spoke to him on phone, told him what I want to do, he said come on down any time.
Just wanted to post up, will update with media soon. Thank you for your suggestion Flo1989.

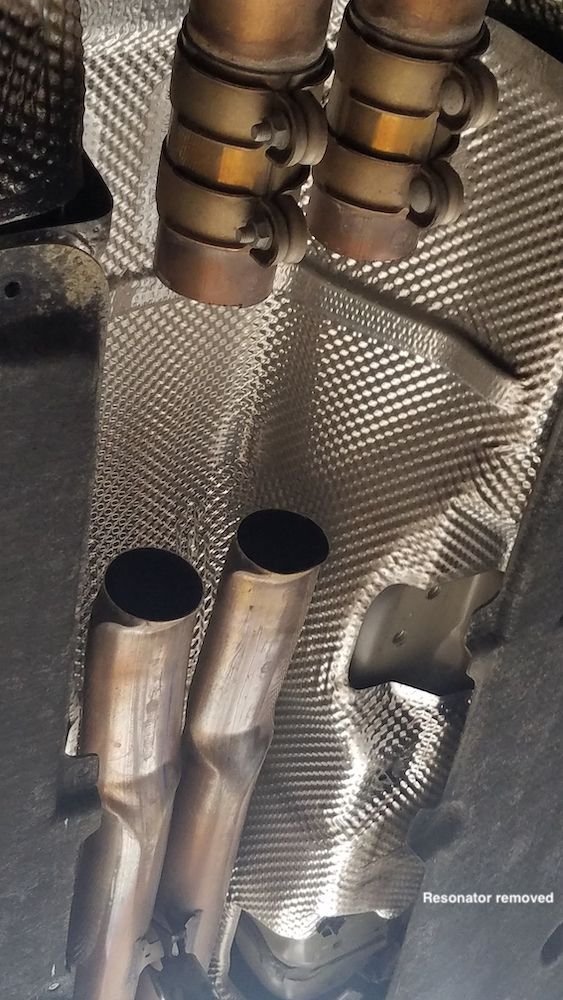

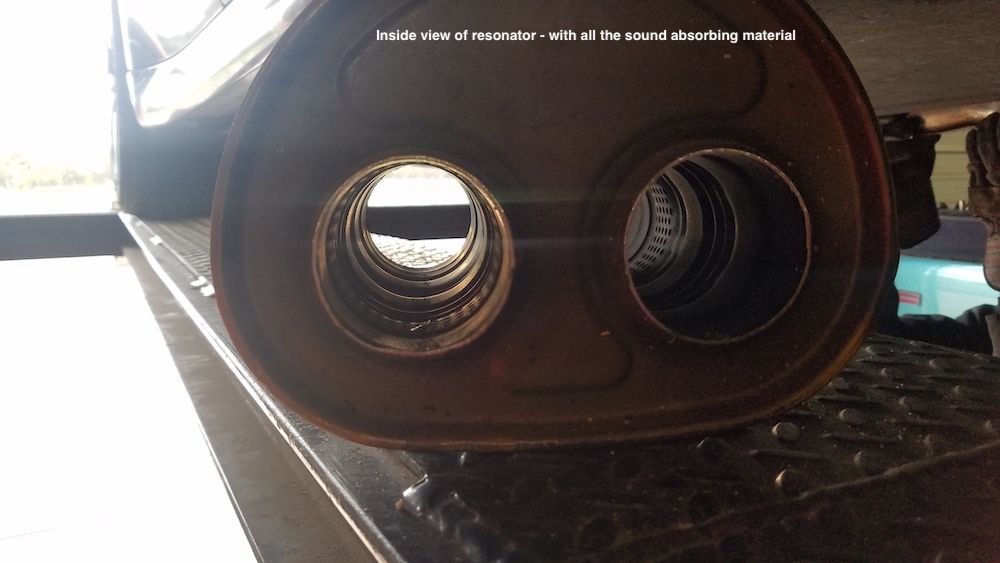

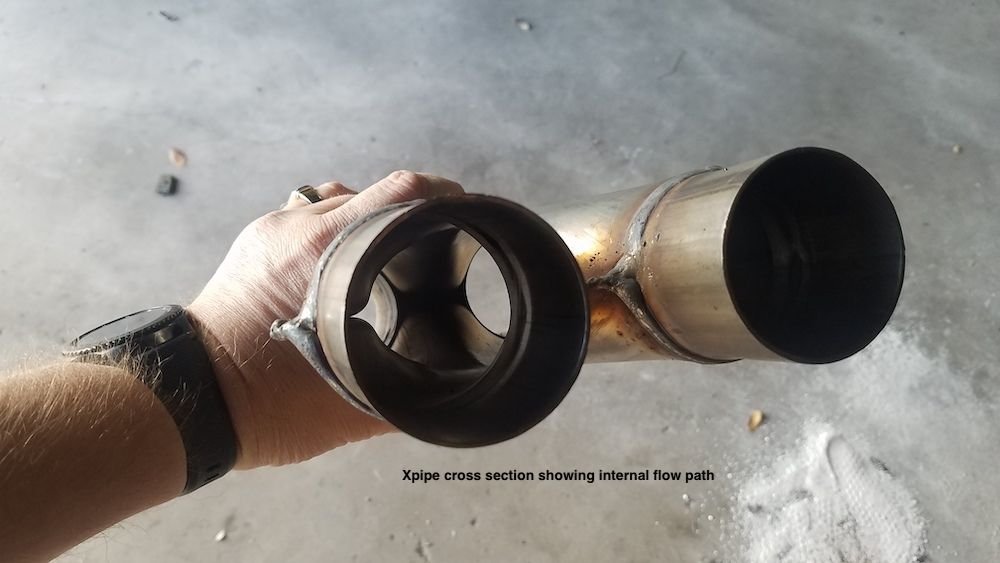

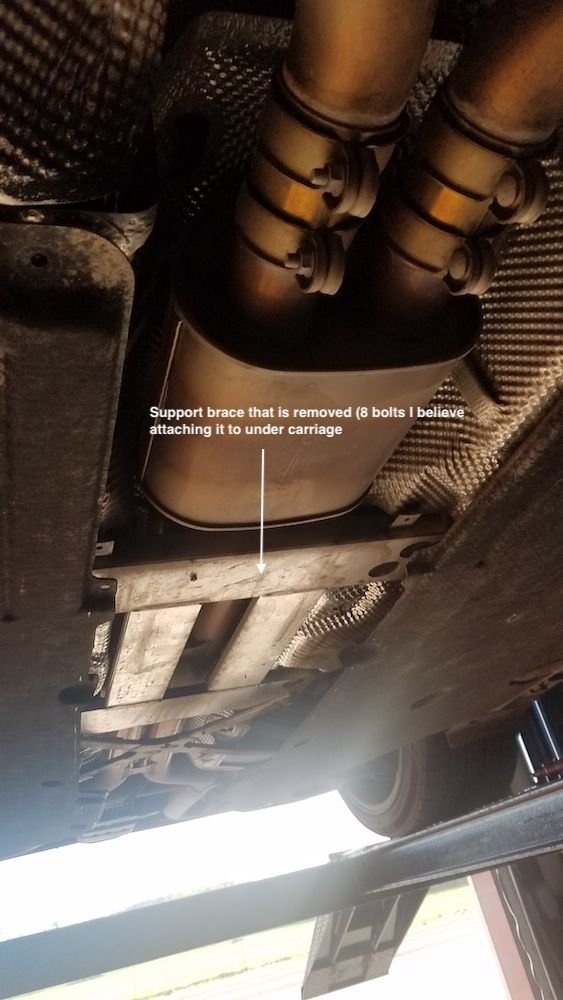

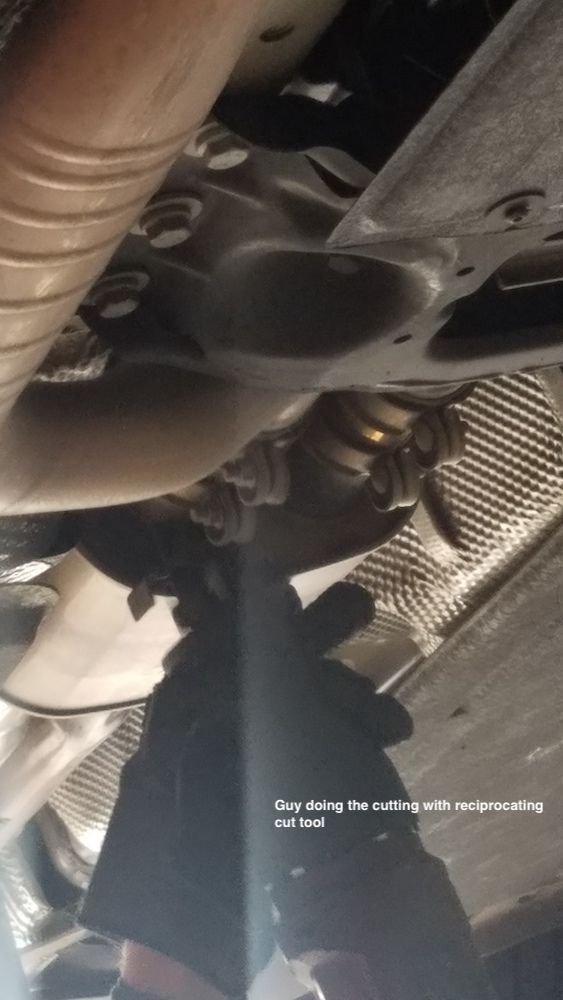

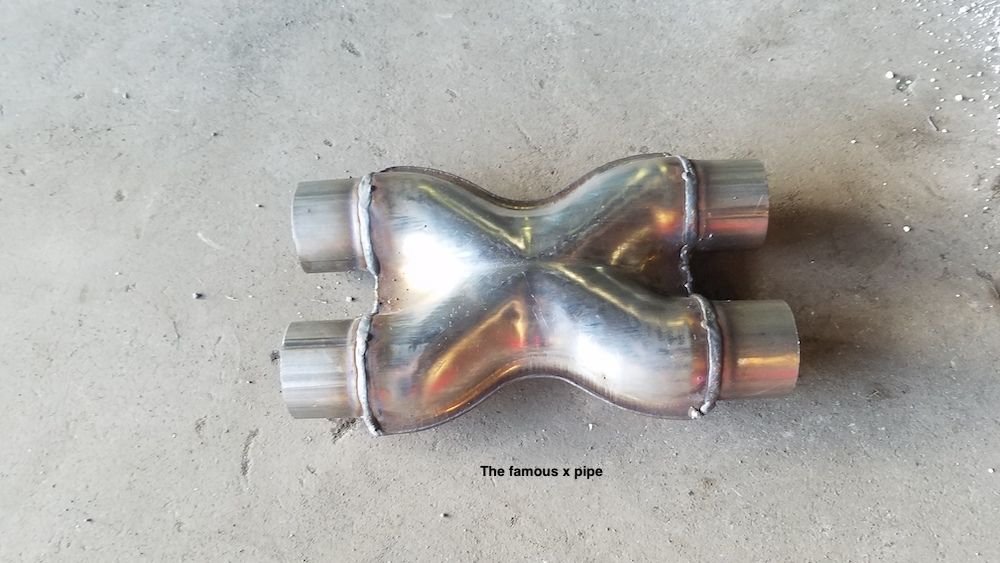

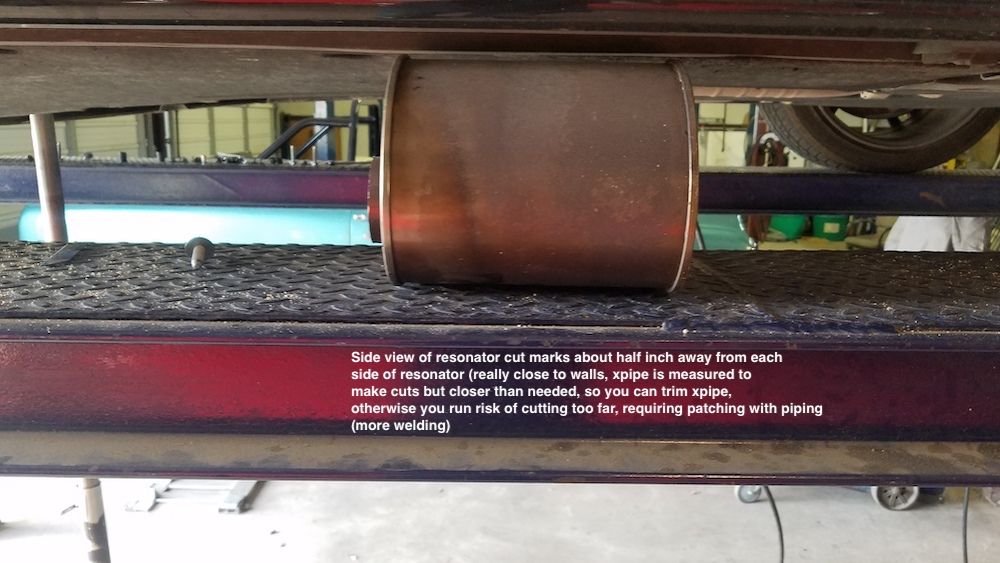

UPDATE - PICS:



















Last edited by ciaka; Apr 8, 2019 at 08:19 AM.
Old Mar 14, 2019 | 11:23 AM
  #2
LGARCIA's Avatar
Registered User
5 Year Member
Joined: Jun 2018
Posts: 314
From: South Florida
Rep Power: 20
LGARCIA is infamous around these parts
Looking forward to it!!

Old Mar 14, 2019 | 04:18 PM
  #3
DogWood's Avatar
Registered User
5 Year Member
Joined: Apr 2018
Posts: 935
From: Bend, Oregon
Rep Power: 47
DogWood is infamous around these partsDogWood is infamous around these parts
Thanks ciaka, hhmmm, with minimal impact to the inside sound levels I might have to consider doing this as well LOL
Sounds like the Burmester could drown it out easily

Old Mar 14, 2019 | 06:05 PM
  #4
ciaka's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: Mar 2012
Posts: 2,298
From: TX
Rep Power: 123
ciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant future
It will be a day or two before I get a change to take edit and make comparo vid. For interior, the sound proofing is awesome. When I told the muffler guy to sit in and get on the gas since I cannot hear from inside, he laughed. Then he sat in, and immediately said 'holy crap, this thing is fricking insulated to the max'.
From inside you hear ever so slightly more. You wont even notice it. No need for Burmester. No need for any radio to drown out anything. I was surprised very much.
Outside you can notice for sure. I think I have to re take the after vids since my camera placement resulted in wind blowing into the mic, and you can hear the wind in the vid. Sorry for delay.


Originally Posted by DogWood
Thanks ciaka, hhmmm, with minimal impact to the inside sound levels I might have to consider doing this as well LOL
Sounds like the Burmester could drown it out easily

Old Mar 14, 2019 | 06:35 PM
  #5
stealthn's Avatar
Registered User
Joined: Jan 2009
Posts: 329
From: Canada
Rep Power: 31
stealthn is infamous around these parts
Looking forward to it (as always)

do do you have a picture or diagram of the exhaust and exactly what was replaced?

Old Mar 14, 2019 | 07:16 PM
  #6
ciaka's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: Mar 2012
Posts: 2,298
From: TX
Rep Power: 123
ciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant future
I have full set of pics as if I was making DIY for replacing the xpipe. The guy was super cool and while he was working, allowed me run around with camera to take whatever pics I wanted.



Originally Posted by stealthn
Looking forward to it (as always)

do do you have a picture or diagram of the exhaust and exactly what was replaced?

Old Mar 14, 2019 | 07:51 PM
  #7
rgfinnegan3's Avatar
Registered User
Joined: Aug 2018
Posts: 61
From: Santa Maria, CA
Rep Power: 0
rgfinnegan3 is infamous around these parts
Originally Posted by ciaka
Rgfinnegan3 twisted my arms, and I got me the Magnaflow x-pipe, and just had it installed in the car... Thank you for your suggestion Rgfinnegan3.
Well, you are welcome, but I think it was someone else. My only mod so far is the Sprint Booster. But thanks anyway Ciaka! Love the recognition!

Old Mar 14, 2019 | 07:55 PM
  #8
ciaka's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: Mar 2012
Posts: 2,298
From: TX
Rep Power: 123
ciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant future
well, thank you anyways.

Old Mar 14, 2019 | 08:11 PM
  #9
ciaka's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: Mar 2012
Posts: 2,298
From: TX
Rep Power: 123
ciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant future
It was actually Flo1989. Flo...thank you.

Old Mar 15, 2019 | 05:51 AM
  #10
Deezflip's Avatar
Registered User
5 Year Member
Joined: Dec 2018
Posts: 252
From: Baltimore, MD
Rep Power: 18
Deezflip is infamous around these parts
Originally Posted by LGARCIA
Looking forward to it!!
me too, to the video, to the diy, to everything...subscribed!

Old Mar 15, 2019 | 06:11 AM
  #11
RDR142's Avatar
Registered User
5 Year Member
Joined: Oct 2018
Posts: 175
From: North Carolina - Florida
Rep Power: 15
RDR142 is infamous around these parts
Looking forward to hearing and seeing it. you're going to love it!

Old Mar 15, 2019 | 01:22 PM
  #12
Flo1989's Avatar
Registered User
Joined: Feb 2018
Posts: 213
From: Ohio
Rep Power: 17
Flo1989 is infamous around these parts
Originally Posted by ciaka
It was actually Flo1989. Flo...thank you.
Not a problem! Can't wait to check out your TT results.

Old Mar 16, 2019 | 01:42 AM
  #13
mitcho168's Avatar
Registered User
Joined: Mar 2009
Posts: 186
From: cali
Rep Power: 25
mitcho168 is infamous around these parts
can you post pics of the weld of the x pipe?please . the part # is 2.25" would a 3" work better?

Old Mar 16, 2019 | 11:46 AM
  #14
ciaka's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: Mar 2012
Posts: 2,298
From: TX
Rep Power: 123
ciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant future
Sorry for delays. House construction under way for pool, house warranty work with contractors in and outside home, my work, kids going away for break, work project in overdrive since we deal with new design team overseas, fencing, permits for hoa, permits for city, and wife that wants to kill me because I like my pool design more than hers. and lets not forget weekly yard maintenance that started here in TX already (man I cannot wait for my pool to come in so I can jump in never to be seen again...JK).
O yeah, and two dogs that I would not mind strangling at a blink of an eye, due to kids 'taking care of them'. Hope gives you insight into my normal life over last month or so.
I will get to this when I can.

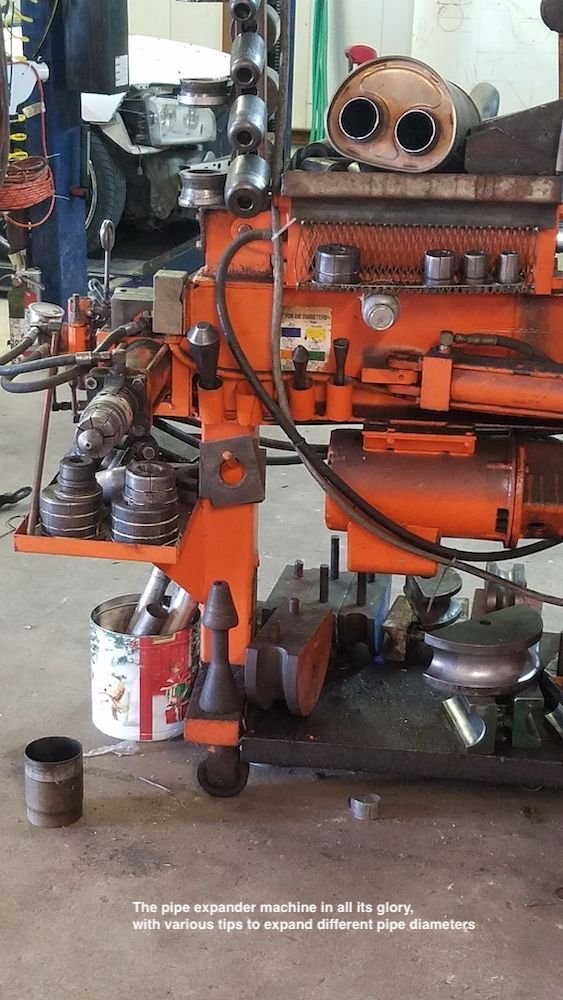

In mean time, for Panamera GTS and turbo, DO NOT BUY any other size than 2.25". It is the size that will fit your car. My muffler guy had to take the xpipe ends and expand them ever so slightly since he was very **** about things fitting just perfect. 2.25" is what you need to buy - Flo1989 link is one. I got mine off ebay but entered the same Magnaflow part number and saved about 20 bucks. Spend time finding a small muffler shop that can give you good price. For large shops, they will see your car and will automatically add 100 or 200 bucks to the cost. Guaranteed.



Originally Posted by mitcho168
can you post pics of the weld of the x pipe?please . the part # is 2.25" would a 3" work better?

Old Mar 20, 2019 | 07:49 AM
  #15
ciaka's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: Mar 2012
Posts: 2,298
From: TX
Rep Power: 123
ciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant future
Made an update to put up pics, showing the work done. Next, will be some vids.
